What comes in the Carbon Fiber Intake Power Package for the C346 Focus ST?

The Carbon Fiber Intake Power Package ships with three COBB parts: the Ford Focus ST / Fiesta ST Accessport V3, part AP3-FOR-001, the Redline Carbon Fiber Intake System, part 793150, and the Ford / Mazda Rear Motor Mount, part 891010. No intercooler or exhaust is in the box.

Is this package legal to run in California?

Yes. COBB lists California Air Resources Board Executive Order D-660-183 for this package, which makes it legal for sale and use on emissions controlled vehicles in all 50 states when installed as the COBB application guide describes. Keep the EO documentation with the car for smog inspections.

Does the carbon intake need a tune to run?

No. COBB states the Redline intake is compatible with the original factory calibration as well as all COBB Off-The-Shelf maps. The point of the package, though, is to flash a matching Stage 1 map with the included Accessport V3 so the ECU takes advantage of the extra airflow from day one.

How does this differ from the standard Stage 1+ package for the Focus ST?

Both packages share the Accessport V3 and the billet rear motor mount. This version swaps the standard cold air intake for the Redline Carbon Fiber Intake System, adding a 3k twill carbon tube and airbox lid, a gloss finish, a Redline badge and a dual cone filter.

Will the rear motor mount add vibration in the cabin?

COBB designed it to avoid major changes to noise and vibration. The 85A durometer bushing has molded voids that soak up vibration, while the billet body still restrains engine movement. Expect a little more feel than the factory mount, far less than a solid bushing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 1+ Carbon Fiber Intake Power Package for C346 Ford Focus ST

COBB Tuning’s Carbon Fiber Intake Power Package for C346 Ford Focus ST pairs the Accessport V3 with the Redline Carbon Fiber Intake System, a 3k twill tube and airbox lid, and the Ford / Mazda Rear Motor Mount. CARB Executive Order D-660-183 keeps it legal in all 50 states. Choose it for Stage 1 power and an engine bay worth showing off; if looks matter less, the standard Stage 1+ package brings the same tuning for less money.

Construction

The Redline intake is a complete factory replacement from the filter to the turbo, built from 3k tow carbon fiber in a 2×2 twill weave with a gloss finish and a Redline badge. Black 4-ply silicone couplers and black e-coated 304 stainless steel hardware hold it together. Because the carbon is laid by hand, small weave variations are normal. The Carbon Fiber Intake Power Package keeps the intake compatible with the factory tune as well as every COBB Off-The-Shelf map.

Features

Accessport V3 with Off-The-Shelf maps, custom map support and a full uninstall to the factory ECU state
Live gauges, datalogging, a shift light and performance measuring
Redline intake in 3k tow 2×2 twill carbon fiber with a gloss finish and Redline badge
Pre-oiled, reusable dual cone filter on 3 in piping
Rear Motor Mount in 6061 billet aluminum with an 85A durometer voided bushing and zinc hardware

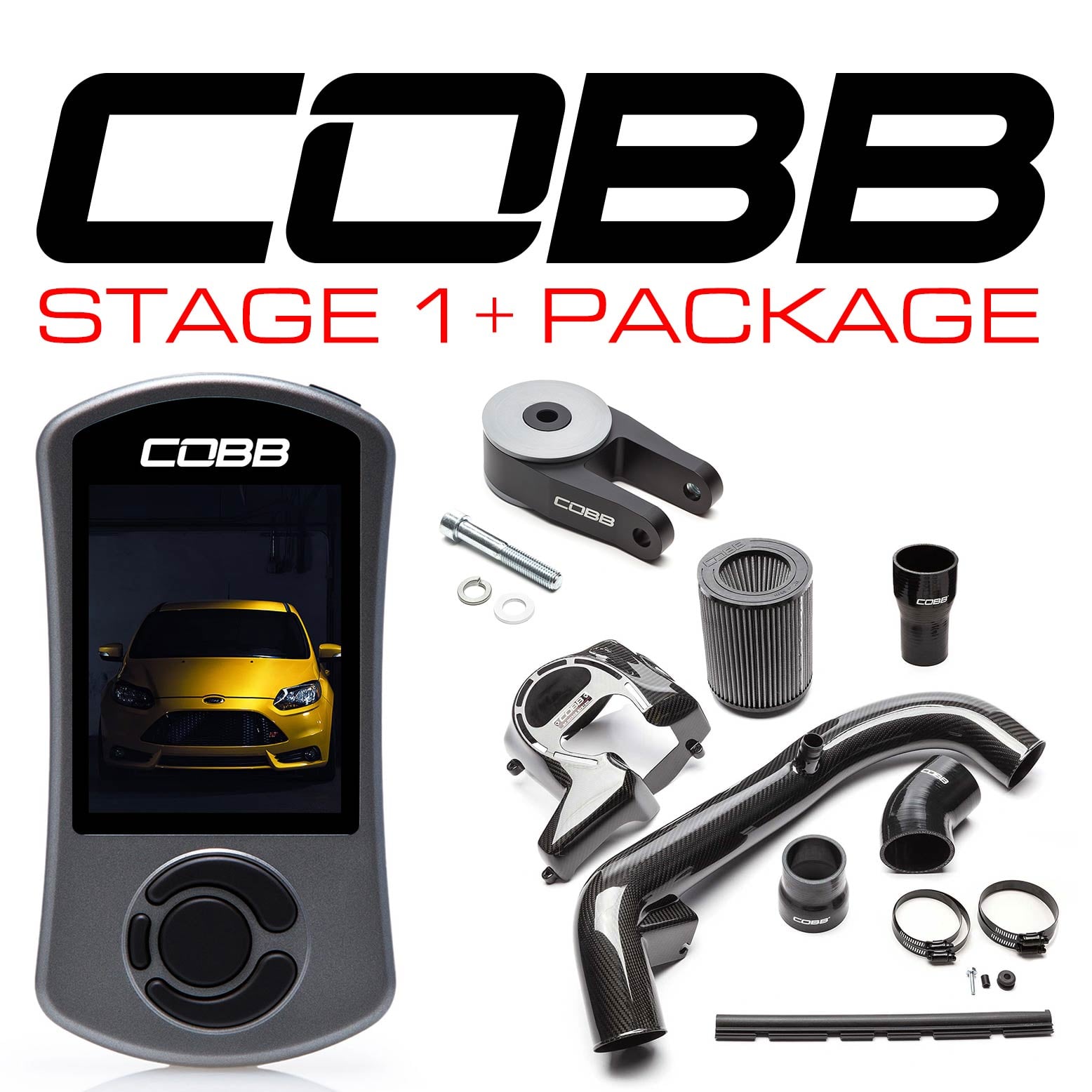

What’s Included

COBB Ford Focus ST / Fiesta ST Accessport V3 (AP3-FOR-001)
COBB Ford Redline Carbon Fiber Intake System (793150)
COBB Ford / Mazda Rear Motor Mount (891010)

Applications

Ford Focus ST: C346 | 2013-2018 | USDM and EDM 2013-2018, ADM 2013-2014, CHDM 2015-2017

Notes

50-state legal with CARB EO D-660-183
No intercooler or exhaust parts are included in this Stage 1+ package
Flat Foot Shift applies to manual transmission cars only
COBB lists this package for the Focus ST only; Focus RS owners should buy the components separately

Frequently Asked Questions

What comes in the Carbon Fiber Intake Power Package for the C346 Focus ST? The Carbon Fiber Intake Power Package ships with three COBB parts: the Ford Focus ST / Fiesta ST Accessport V3, part AP3-FOR-001, the Redline Carbon Fiber Intake System, part 793150, and the Ford / Mazda Rear Motor Mount, part 891010. No intercooler or exhaust is in the box.
Is this package legal to run in California? Yes. COBB lists California Air Resources Board Executive Order D-660-183 for this package, which makes it legal for sale and use on emissions controlled vehicles in all 50 states when installed as the COBB application guide describes. Keep the EO documentation with the car for smog inspections.
Does the carbon intake need a tune to run? No. COBB states the Redline intake is compatible with the original factory calibration as well as all COBB Off-The-Shelf maps. The point of the package, though, is to flash a matching Stage 1 map with the included Accessport V3 so the ECU takes advantage of the extra airflow from day one.
How does this differ from the standard Stage 1+ package for the Focus ST? Both packages share the Accessport V3 and the billet rear motor mount. This version swaps the standard cold air intake for the Redline Carbon Fiber Intake System, adding a 3k twill carbon tube and airbox lid, a gloss finish, a Redline badge and a dual cone filter.
Will the rear motor mount add vibration in the cabin? COBB designed it to avoid major changes to noise and vibration. The 85A durometer bushing has molded voids that soak up vibration, while the billet body still restrains engine movement. Expect a little more feel than the factory mount, far less than a solid bushing.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
