What comes in the PowerMax Stage 2 Turbocharger Upgrade?

The PowerMax Stage 2 Turbocharger Upgrade contains both turbochargers: the left unit, Garrett 901654-5001W, and the right unit, Garrett 901655-5001W, each complete with a calibrated electric actuator. Garrett also includes an adapter so the stock inlet tube connects to the larger 2.75 inch compressor inlet. Speed sensors are not included and are sold separately.

How much horsepower will the PowerMax Stage 2 Turbocharger Upgrade support?

Garrett rates the pair at more than 700 horsepower. That figure is calculated strictly from the choke flow of the compressor map and represents potential flywheel power, the total capability of the turbos. Garrett stresses that real results depend heavily on the modifications and tuning of the truck, so fuel and calibration set the ceiling.

Does it fit a 2021 or newer F-150?

Garrett lists this kit for the 2017-2020 F-150 and F-150 Raptor with the 3.5L EcoBoost and does not list 2021 or later trucks on its application page. Some distributor listings extend the range to 2021, so confirm fitment with us before ordering for a 2021 truck.

Do I need a tune with the Stage 2 turbos?

Yes. Turbos with 54 percent more compressor flow than stock only add power when the calibration asks for more air and fuel, and Garrett states that results depend heavily on tuning. Plan the calibration, and check that the fuel system can support the target, before the turbos go in.

Why should I fit a speed sensor?

Garrett sets the maximum allowable speed for these turbos at 176,000 rpm and states that running above it risks damage and premature failure. A machined port in each compressor housing accepts Garrett speed sensor kit 781328-0003 with a gauge or 781328-0004 without one, so the tuner can keep shaft speed in range.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Garrett PowerMax Stage 2 Turbocharger Upgrade for 2017-2020 Ford F-150 and Raptor 3.5L EcoBoost

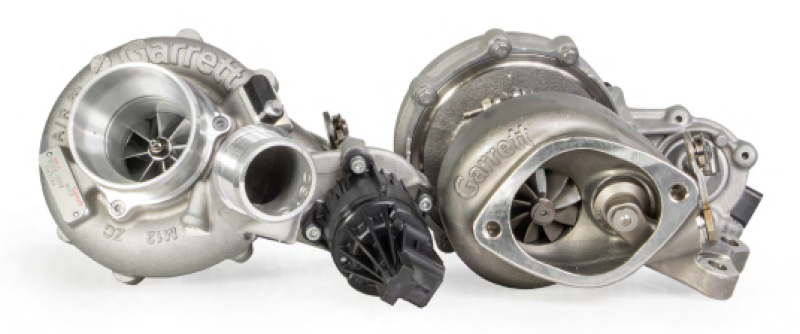

Garrett’s PowerMax Stage 2 Turbocharger Upgrade for the 2017-2020 Ford F-150 and F-150 Raptor 3.5L EcoBoost replaces both factory turbos with GT2260S units that keep the stock outline but move far more air. Garrett quotes 54 percent more compressor flow and 52 percent more turbine flow than the factory turbos, and a choke-flow capability above 700 horsepower for the pair. This is the kit for a built truck with fuel and calibration to match; on a stock or lightly tuned F-150 most of that capacity goes unused.

Design and Performance

The compressor wheel is a 60mm billet part, fully machined, running in a housing with a tuned ported shroud and a 2.75 inch inlet that is larger than stock; Garrett includes an adapter so the factory inlet tube still connects. On the exhaust side Garrett fits a 50mm Inconel turbine wheel in a larger 0.45 A/R housing. Each turbo arrives complete with a calibrated electric actuator and a journal bearing rotating group.

Features

Matched left and right turbos for the PowerMax Stage 2 Turbocharger Upgrade, outline interchangeable with the factory units
Calibrated electric actuator fitted to each turbo
Machined speed sensor port in each compressor housing

Specifications

Garrett turbo model: GT2260S
Compressor wheel: 60mm billet, fully machined
Turbine wheel: 50mm Inconel
Turbine housing A/R: 0.45
Bearing system: Journal bearing
Maximum turbocharger speed: 176,000 rpm
Flow gain over factory: 54 percent compressor, 52 percent turbine

What’s Included

Left turbocharger, Garrett 901654-5001W
Right turbocharger, Garrett 901655-5001W
Adapter for the stock inlet tube

Applications

Garrett lists the PowerMax Stage 2 Turbocharger Upgrade for these trucks:

Ford F-150: 2017-2020 | 3.5L EcoBoost
Ford F-150 Raptor: 2017-2020 | 3.5L EcoBoost

Notes

Garrett sells each side separately as the Stage 2 left turbo and the Stage 2 right turbo
Speed sensor kits 781328-0003 and 781328-0004 are sold separately; see Garrett speed sensor kits
Garrett states that running above 176,000 rpm is at the owner’s risk and can cause damage and premature failure
The 700 horsepower figure is Garrett’s choke-flow rating for the turbos; results depend on the truck’s modifications and calibration

Frequently Asked Questions

What comes in the PowerMax Stage 2 Turbocharger Upgrade? The PowerMax Stage 2 Turbocharger Upgrade contains both turbochargers: the left unit, Garrett 901654-5001W, and the right unit, Garrett 901655-5001W, each complete with a calibrated electric actuator. Garrett also includes an adapter so the stock inlet tube connects to the larger 2.75 inch compressor inlet. Speed sensors are not included and are sold separately.
How much horsepower will the PowerMax Stage 2 Turbocharger Upgrade support? Garrett rates the pair at more than 700 horsepower. That figure is calculated strictly from the choke flow of the compressor map and represents potential flywheel power, the total capability of the turbos. Garrett stresses that real results depend heavily on the modifications and tuning of the truck, so fuel and calibration set the ceiling.
Does it fit a 2021 or newer F-150? Garrett lists this kit for the 2017-2020 F-150 and F-150 Raptor with the 3.5L EcoBoost and does not list 2021 or later trucks on its application page. Some distributor listings extend the range to 2021, so confirm fitment with us before ordering for a 2021 truck.
Do I need a tune with the Stage 2 turbos? Yes. Turbos with 54 percent more compressor flow than stock only add power when the calibration asks for more air and fuel, and Garrett states that results depend heavily on tuning. Plan the calibration, and check that the fuel system can support the target, before the turbos go in.
Why should I fit a speed sensor? Garrett sets the maximum allowable speed for these turbos at 176,000 rpm and states that running above it risks damage and premature failure. A machined port in each compressor housing accepts Garrett speed sensor kit 781328-0003 with a gauge or 781328-0004 without one, so the tuner can keep shaft speed in range.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
