What separates the Redline TCM Factory Intercooler Package from the non-Redline version?

The intake. The Redline TCM Factory Intercooler Package uses the 7F3160 Redline Carbon Fiber Intake System, with a carbon airbox lid and a reusable dual-inlet filter offering 165 percent more surface area than stock. The standard package uses the aluminum Intake System w/ HCT. The other components are shared.

Does the intercooler require cutting the grille or bumper?

No. This intercooler sits in the factory location and mates snugly to the OEM shutter shroud, so COBB specifies no cutting, trimming or permanent modification. The COBB front mount intercooler, by contrast, needs minor trimming on the back side of the grille.

Can the Accessport change how the transmission shifts?

Yes. The included Accessport flashes the transmission control module as well as the engine computer. Its off-the-shelf transmission tunes adjust shift points, shift firmness, skip shift behavior and torque limits, so the gearbox can be matched to a preferred driving style.

Is this package legal in California?

No. COBB lists the package as not legal for sale or use in California on any emission controlled motor vehicle. Testing with the California Air Resources Board is pending, and COBB will update the status once an Executive Order number is issued.

How does the flex fuel part of the kit work?

The CAN Gateway Flex Fuel Upgrade measures the ethanol content of the fuel being pumped into the engine and sends that reading to the ECU. An Accessport delivered flex fuel calibration then uses the value, so a flex fuel map must be loaded for the sensor to do its job.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

COBB Tuning Stage 2 CAN Flex Fuel Redline TCM Factory Intercooler Package Silver for P552 Ford F-150 Raptor

COBB Tuning’s Redline TCM Factory Intercooler Package is the fullest Stage 2 kit COBB builds for the 2017-2020 Raptor that keeps the cooler in its stock position. It joins the AP3-FOR-005-TCM Accessport V3, which flashes both the engine ECU and the transmission control module, with the 7F3160 Redline Carbon Fiber Intake System, a silver cast aluminum intercooler that sits behind the OEM shutter shroud, and the CAN Flex Fuel Upgrade. The intake carbon is 3k tow in a 2×2 twill weave under a gloss clear coat. Owners chasing the largest core volume should look at the front mount Stage 2 kits instead.

Tuning and Transmission

The Accessport in the Redline TCM Factory Intercooler Package carries off-the-shelf transmission tunes that adjust shift points, shift firmness, skip shift behavior and torque limits, alongside the engine and flex fuel calibrations. The CAN Gateway reads ethanol content and passes it to the ECU for use by an Accessport delivered flex fuel map. Raptor specific adjustments include a retained Auto Start-Stop setting, fuel pump control, Dynamic Pedal Control from -5 to 10, and Valet Mode.

Features

Accessport V3 with TCM flashing and storage for up to 100 maps
Intercooler core 70 percent greater than stock with 10 percent more cooling surface area
Two flat sections cast into the intercooler, one for a water or methanol nozzle and one for a drain
Gloss 2×2 twill carbon fiber airbox lid with reusable dual-inlet filter
Multi-channel datalogging stored up to 10 hours
Mates to the OEM shutter shroud with no cutting or trimming

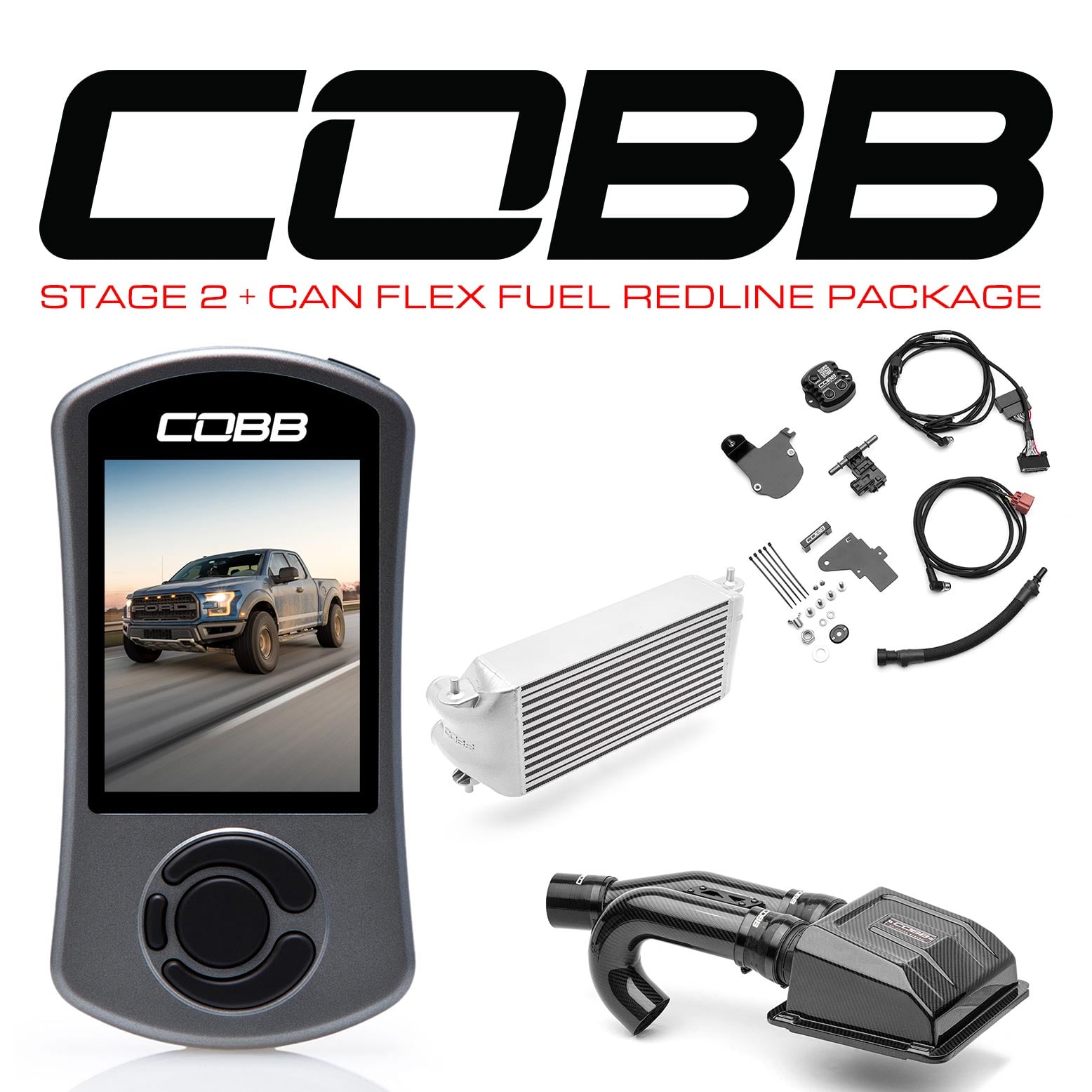

What’s Included

Accessport V3 with TCM Flashing (AP3-FOR-005-TCM)
Redline Carbon Fiber Intake System w/ HCT (7F3160)
Factory Location Intercooler, Silver (7F1527-SL)
CAN Flex Fuel Upgrade (3F2650)
COBB Vehicle Badge (800200)

Applications

Ford F-150 Raptor: P552 | 2017-2020 | 3.5L EcoBoost | USDM

Notes

Not legal for sale or use in California on any emission controlled motor vehicle; CARB testing toward 50-state compliance is pending
Flex fuel operation requires an Accessport delivered flex fuel calibration
Confirmed fitment covers the USDM 2017-2020 F-150 Raptor only

Frequently Asked Questions

What separates the Redline TCM Factory Intercooler Package from the non-Redline version? The intake. The Redline TCM Factory Intercooler Package uses the 7F3160 Redline Carbon Fiber Intake System, with a carbon airbox lid and a reusable dual-inlet filter offering 165 percent more surface area than stock. The standard package uses the aluminum Intake System w/ HCT. The other components are shared.
Does the intercooler require cutting the grille or bumper? No. This intercooler sits in the factory location and mates snugly to the OEM shutter shroud, so COBB specifies no cutting, trimming or permanent modification. The COBB front mount intercooler, by contrast, needs minor trimming on the back side of the grille.
Can the Accessport change how the transmission shifts? Yes. The included Accessport flashes the transmission control module as well as the engine computer. Its off-the-shelf transmission tunes adjust shift points, shift firmness, skip shift behavior and torque limits, so the gearbox can be matched to a preferred driving style.
Is this package legal in California? No. COBB lists the package as not legal for sale or use in California on any emission controlled motor vehicle. Testing with the California Air Resources Board is pending, and COBB will update the status once an Executive Order number is issued.
How does the flex fuel part of the kit work? The CAN Gateway Flex Fuel Upgrade measures the ethanol content of the fuel being pumped into the engine and sends that reading to the ECU. An Accessport delivered flex fuel calibration then uses the value, so a flex fuel map must be loaded for the sensor to do its job.

About COBB Tuning

COBB Tuning was founded by Trey Cobb in 1999 in Rockwall, Texas, as a Subaru performance shop in the back of his father’s tire shop, and is now headquartered in Austin, Texas. In 2004 COBB introduced the Accessport, a handheld ECU tuning device that flashes COBB’s off-the-shelf maps or a custom tune and doubles as a real-time gauge and datalogger. The range has since grown from Subaru to Ford, Volkswagen, Audi, Porsche, Nissan, Honda, Mazda, Mitsubishi and Toyota platforms, with intakes, intercoolers, exhausts and flex fuel kits engineered alongside the tuning, and many COBB parts carry California Air Resources Board Executive Order numbers for use in all 50 states.
