Which R8 model years does the Boost Logic Twin Turbo Kit for 4S fit?

Boost Logic builds the Twin Turbo Kit for 4S R8 in two fitments, one for 2017-2018 cars and one for the 2020 and later facelift, selected at checkout. Some 2020 and later cars sold outside the US use a different header and need the Euro OPF Header option. First-generation R8 models are not listed for this kit.

Which turbo option is right for my R8?

The standard Gen II GTX3582 is rated by Boost Logic for 1,700 whp and spools well at the 800 whp base level. The G35-1050 and G40-1150 raise the rating to 1,800 and 2,000 whp. The G42-1200, G42-1450 and G45-1600 are rated from 2,300 to over 2,700 whp and are suggested by Boost Logic for built engines.

Does the R8 Spyder need anything extra?

Yes. Boost Logic states Spyder models require a front water tank for the intercooler circuit, so an R8 Spyder needs the Boost Logic Front Icebox for 4S Audi R8 with the kit. Coupe owners can add the same icebox as an upgrade, and it is offered with or without a water pump.

Is cutting or drilling needed to install the kit?

No. Boost Logic states the kit requires no cutting, drilling or other modification to the vehicle or engine. The oil feed and return bolt in and every turbo system joint is V-banded. The work is still a professional installation, and the car will need a calibration to suit the turbo size chosen.

Does the kit include the Boost Logic heat management package?

No. The heat management package, with its up pipe, turbo and wastegate blankets and intercooler thermal barriers, is sold separately, and the universal V10 header blankets are a separate item too. Boost Logic recommends them to keep engine bay temperatures down on a turbocharged R8, where the engine sits under glass.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

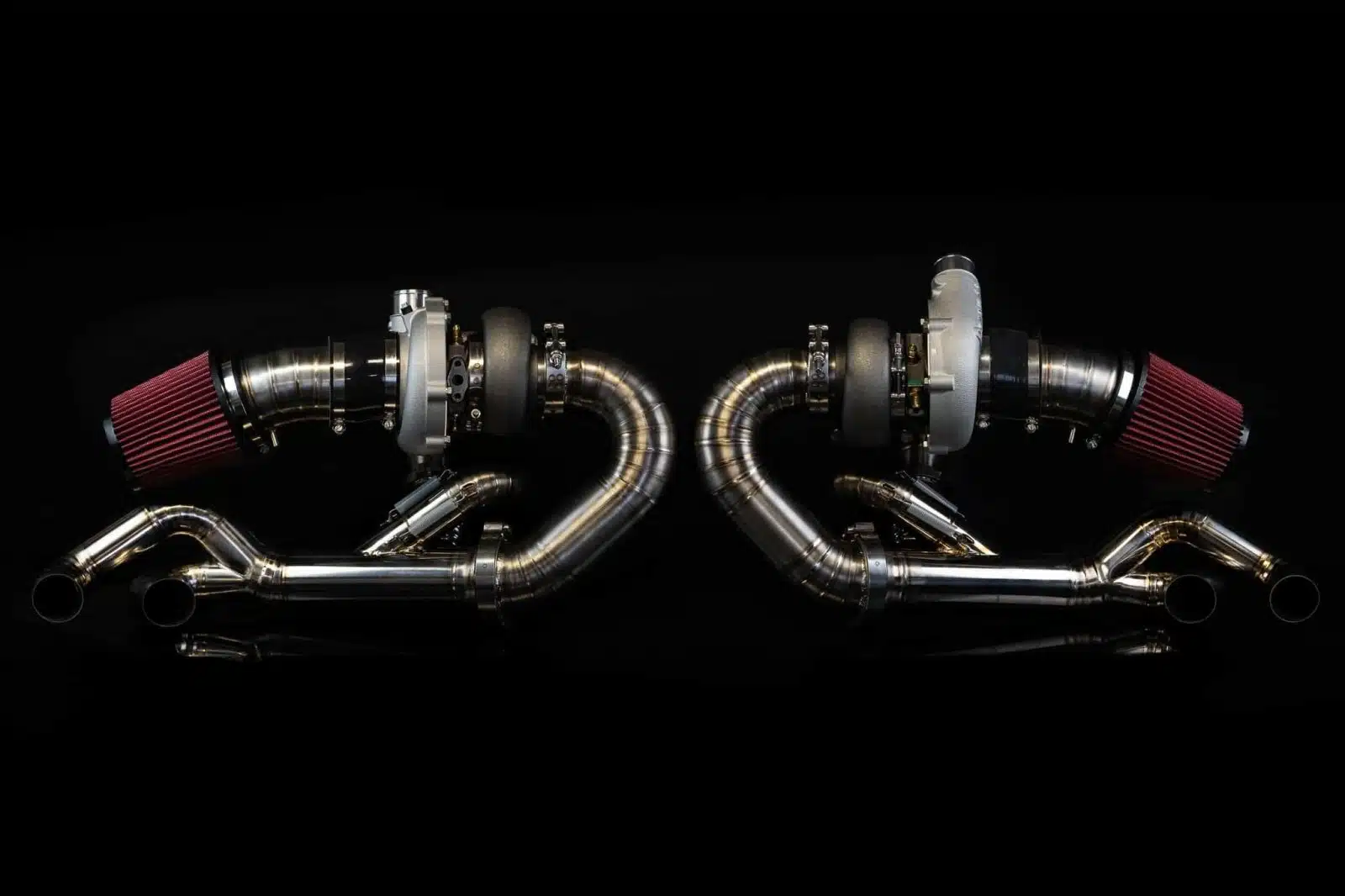

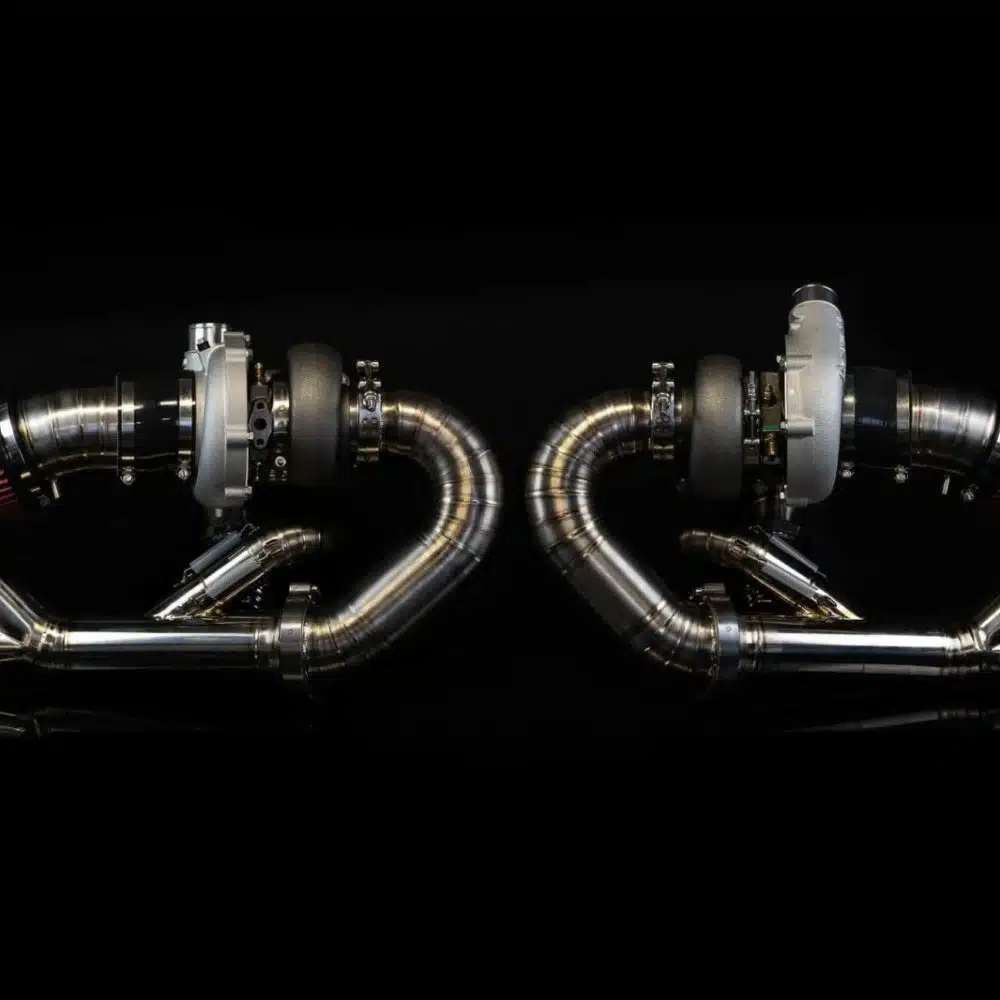

Boost Logic Twin Turbo Kit for 4S Audi R8

Boost Logic’s Twin Turbo Kit for 4S Audi R8 is the second-generation R8 version of Boost Logic’s V10 twin turbo system, ordered by model year for 2017-2018 cars or the 2020 and later facelift. It pairs Garrett turbos with air-to-water intercoolers, dual heat exchangers and a titanium exhaust, and Boost Logic states it installs with no cutting, drilling or modification to the car or engine. The standard Gen II GTX3582 turbos are rated by Boost Logic for 1,700 whp with good spool at the 800 whp base level, and G-series upgrades reach 2,700+ whp on built engines. For an R8 owner keeping factory internals, the standard turbos or the G35 and G40 upgrades are the sensible range.

Design and Performance

The intercoolers are Boost Logic air-to-water units with Garrett cores and billet end tanks, rated by Boost Logic for more than 2,000 hp, plumbed through Vanjen piping. A dedicated water circuit with dual heat exchangers, a water tank carrying an extra temperature sensor bung, braided hose and heat-shielded lines keeps intake temperatures in check. The bolt-in oil feed and return and fully V-banded connections are what let the system go in without machining.

Features

Twin Garrett turbochargers with a choice of six turbo sizes from the Gen II GTX3582 to the G45-1600
Air-to-water intercoolers with Garrett cores and billet end tanks, plumbed with Vanjen piping
Dual heat exchangers and a water tank with an extra temperature sensor bung
Titanium exhaust and titanium intake pipes with Boost Logic intake filters
Bolt-in oil feed and return with V-banded connections; no cutting or drilling per Boost Logic
Tial blow-off valve and wastegates

Specifications

Gen II GTX3582: standard turbo, rated by Boost Logic for 1,700 whp with strong spool at the 800 whp base level
G35-1050: rated by Boost Logic for 1,800 whp
G40-1150: rated by Boost Logic for 2,000 whp
G42-1200: rated by Boost Logic for 2,300+ whp, suggested for built engines
G42-1450: rated by Boost Logic for 2,500+ whp, suggested for built engines
G45-1600: rated by Boost Logic for 2,700+ whp, suggested for built engines

What’s Included

Twin turbochargers, Gen II GTX3582 as standard or the selected upgrade
Boost Logic air-to-water intercoolers with Garrett cores and billet end tanks
Boost Logic Vanjen intercooler piping
Boost Logic titanium intake pipes
Boost Logic custom intake filters
Boost Logic titanium exhaust
Boost Logic water tank with an additional temperature sensor bung
Boost Logic dual heat exchangers for the water cooling circuit
Boost Logic heat-shielded lines
Boost Logic braided hose for the water system
Tial blow-off valve and wastegates

Applications

Audi R8: 4S | 2017-2018 | 5.2L V10
Audi R8: 4S facelift | 2020-2023 | 5.2L V10

Notes

Choose the model year and turbocharger at checkout; Boost Logic builds the kit to suit 2017-2018 or 2020 and later cars
R8 Spyder models require a front water tank: order the Boost Logic Front Icebox for 4S Audi R8 with the Twin Turbo Kit for 4S R8 on any Spyder
Some 2020 and later R8s sold outside the US have a different specification header; Boost Logic offers a Euro OPF Header option so the kit fits those cars, available through Bulletproof Automotive at extra cost
Boost Logic does not list an engine calibration, fuel system parts or installation in the kit contents; plan engine management and fueling with your tuner before ordering
The Boost Logic Fuel Rail Kit for LB724 Lamborghini Huracán and 4S Audi R8 (BL 06030802) is built for turbocharged 2017 and later R8 applications
Heat management is sold separately: the Boost Logic V10 Turbo Kit Heat Management Package for LB724 Lamborghini Huracán and 4S Audi R8 (BL 06030116) fits this kit, and Boost Logic Universal V10 Header Blankets (BL 06030109) are also offered
Boost Logic suggests an OEM intake manifold reinforced sealing solution for cars without a billet manifold; the alternative is the Boost Logic Billet and Carbon Fiber Intake Manifold for LB724 Lamborghini Huracán and Audi R8 (BL 11020408)
Also available through Bulletproof Automotive: the T51R mod for a spooling whistle like the discontinued HKS T51R series, gloss powdercoat intercoolers and compressor housings, black ceramic coated exhaust housings and CHRA, and 24k gold plating
Some photos show optional finishes and a Boost Logic billet intake manifold, which is sold separately

Frequently Asked Questions

Which R8 model years does the Boost Logic Twin Turbo Kit for 4S fit? Boost Logic builds the Twin Turbo Kit for 4S R8 in two fitments, one for 2017-2018 cars and one for the 2020 and later facelift, selected at checkout. Some 2020 and later cars sold outside the US use a different header and need the Euro OPF Header option. First-generation R8 models are not listed for this kit.
Which turbo option is right for my R8? The standard Gen II GTX3582 is rated by Boost Logic for 1,700 whp and spools well at the 800 whp base level. The G35-1050 and G40-1150 raise the rating to 1,800 and 2,000 whp. The G42-1200, G42-1450 and G45-1600 are rated from 2,300 to over 2,700 whp and are suggested by Boost Logic for built engines.
Does the R8 Spyder need anything extra? Yes. Boost Logic states Spyder models require a front water tank for the intercooler circuit, so an R8 Spyder needs the Boost Logic Front Icebox for 4S Audi R8 with the kit. Coupe owners can add the same icebox as an upgrade, and it is offered with or without a water pump.
Is cutting or drilling needed to install the kit? No. Boost Logic states the kit requires no cutting, drilling or other modification to the vehicle or engine. The oil feed and return bolt in and every turbo system joint is V-banded. The work is still a professional installation, and the car will need a calibration to suit the turbo size chosen.
Does the kit include the Boost Logic heat management package? No. The heat management package, with its up pipe, turbo and wastegate blankets and intercooler thermal barriers, is sold separately, and the universal V10 header blankets are a separate item too. Boost Logic recommends them to keep engine bay temperatures down on a turbocharged R8, where the engine sits under glass.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
