Does the Boost Logic Heat Management Package for LB724 fit my turbo kit?

The Heat Management Package for LB724 Huracán and 4S R8 is made for the Boost Logic V10 twin turbo kit on the non-Performante Huracán and on 2017 and later R8 models. Cars running the Boost Logic kit for the Performante, EVO, STO or Sterrato need the separate Performante package instead.

What is included in the package?

The package contains up pipe blankets, turbo blankets and wastegate blankets, along with adhesive thermal barriers for the intercoolers. Header blankets are not part of the package, and Boost Logic sells its Universal V10 Header Blankets under a separate part number for owners who want to cover the headers too.

What temperatures can the blankets take?

Boost Logic rates the volcanic rock fabric outer layer at 1,800 degrees F direct heat and 2,500 degrees F radiant heat, and the calcium magnesium silicate wool insulation at 1,832 degrees F continuous and 2,300 degrees F peak. A stainless steel mesh overlay adds durability and thermal resistance.

Why wrap the wastegates?

Boost Logic designs the wastegate blankets to reduce heat soak from the main wastegate body into the actuator. That lowers stress on the actuator diaphragm under extreme loads and temperature swings, which Boost Logic says gives more stable wastegate operation and consistent turbo performance, while shielding nearby lines.

How do the intercooler thermal barriers work?

The thermal barriers stick to the area beneath the intercoolers and reflect heat away, helping the air-to-water system stay efficient. They are glass fiber mat interwoven with glass filament yarn, faced with 0.1 mm imprinted aluminum foil, and backed with an acrylate-based self-adhesive.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Boost Logic V10 Turbo Kit Heat Management Package for LB724 Lamborghini Huracán and 4S Audi R8

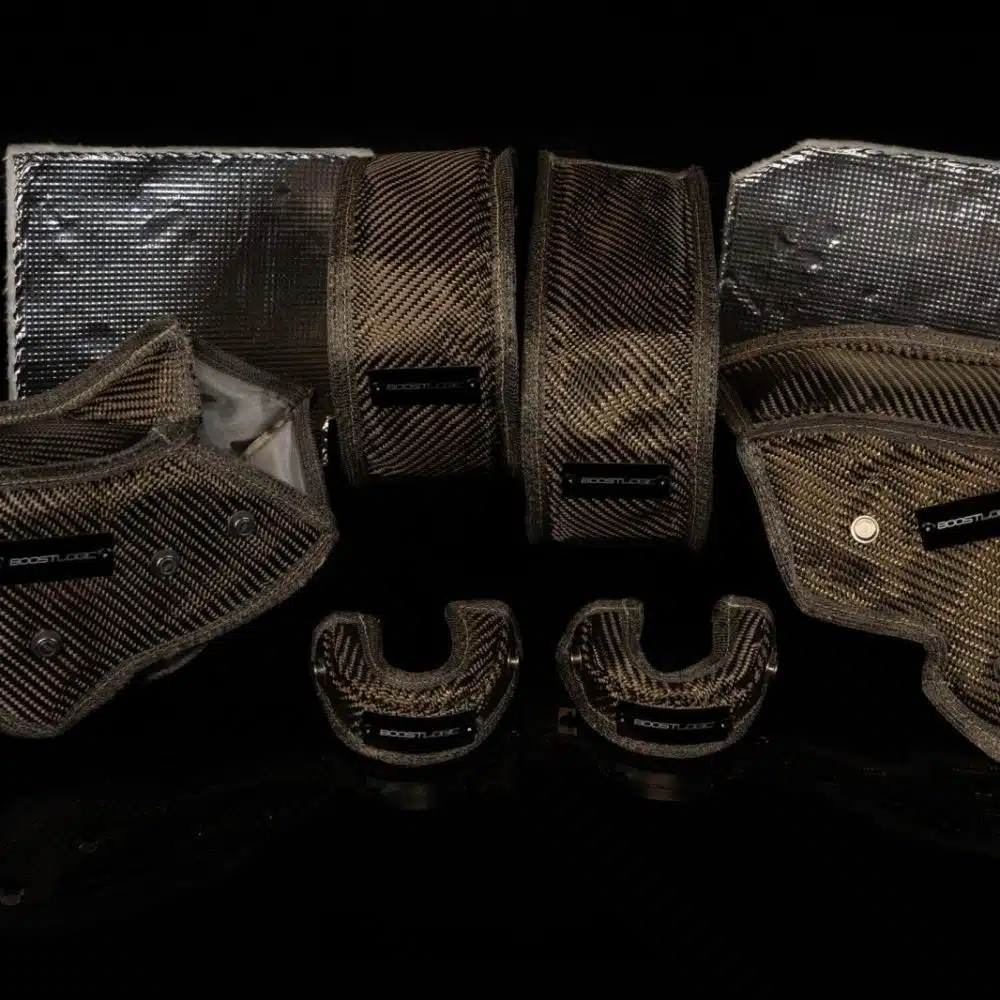

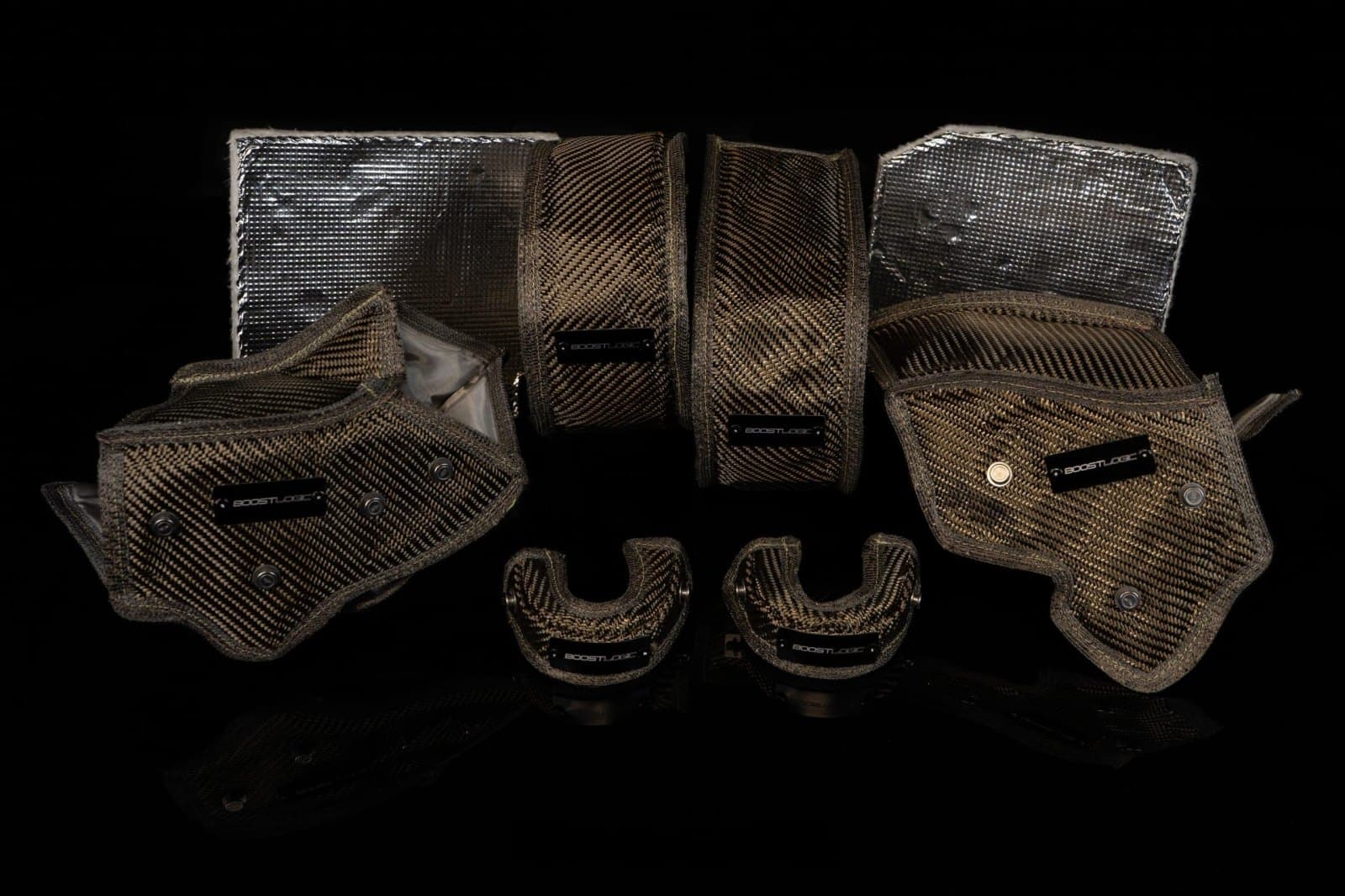

Boost Logic’s Heat Management Package for LB724 Lamborghini Huracán and 4S Audi R8 is a set of up pipe, turbo and wastegate blankets plus intercooler thermal barriers, made to fit the Boost Logic V10 twin turbo kit on the non-Performante Huracán and the 2017 and later R8. The blankets keep exhaust heat inside the hot side, where Boost Logic says it improves turbo efficiency and response, and away from the intake path and nearby lines in an engine bay that runs hot with two turbos behind the cabin. Owners with the Performante-family kit need the separate Performante package.

Construction

The blankets have an outer layer of pulverized volcanic lava rock woven into fabric, insulated with calcium magnesium silicate wool and finished with a stainless steel mesh overlay. The wastegate blankets limit heat soak from the wastegate body into the actuator, which Boost Logic says eases diaphragm stress and steadies valve operation under heavy load. The intercooler thermal barriers are self-adhesive glass fiber panels faced with 0.1 mm imprinted aluminum foil that reflect heat from below the intercoolers.

Features

Up pipe, turbo and wastegate blankets with intercooler thermal barriers in one package
Blanket outer layer rated to 1,800 degrees F direct and 2,500 degrees F radiant heat
Wastegate blankets that limit heat soak into the actuator diaphragm
Self-adhesive intercooler barriers with a 0.1 mm aluminum foil face
Stainless steel mesh overlay for durability

Specifications

Blanket outer layer: Pulverized volcanic lava rock fabric in a tight mesh weave, rated 1,800 degrees F direct and 2,500 degrees F radiant heat
Blanket insulation: Calcium magnesium silicate wool, rated 1,832 degrees F continuous and 2,300 degrees F peak
Blanket overlay: High-temperature stainless steel mesh
Thermal barrier base: Glass fiber mat interwoven with glass filament yarn
Thermal barrier facing: 0.1 mm imprinted aluminum foil
Thermal barrier adhesive: Acrylate-based self-adhesive backing

What’s Included

Up pipe blankets
Turbo blankets
Wastegate blankets
Intercooler adhesive thermal barriers

Applications

Audi R8: 4S | 2017-2018 | 5.2L V10
Audi R8: 4S facelift | 2020-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2019 | 5.2L V10

Notes

Made to fit the Boost Logic Twin Turbo Kit for LB724 Lamborghini Huracán (BL 06011301) and the Boost Logic Twin Turbo Kit for 4S Audi R8 (BLTTR8)
Not for the Boost Logic Performante-family kit; those cars use the Boost Logic Performante Heat Management Package for LB724 Lamborghini Huracán (BL 06040116)
The Heat Management Package for LB724 Huracán and 4S R8 does not include header blankets; Boost Logic sells Universal V10 Header Blankets (BL 06030109) separately
Temperature ratings are the material ratings Boost Logic publishes for the blanket layers

Frequently Asked Questions

Does the Boost Logic Heat Management Package for LB724 fit my turbo kit? The Heat Management Package for LB724 Huracán and 4S R8 is made for the Boost Logic V10 twin turbo kit on the non-Performante Huracán and on 2017 and later R8 models. Cars running the Boost Logic kit for the Performante, EVO, STO or Sterrato need the separate Performante package instead.
What is included in the package? The package contains up pipe blankets, turbo blankets and wastegate blankets, along with adhesive thermal barriers for the intercoolers. Header blankets are not part of the package, and Boost Logic sells its Universal V10 Header Blankets under a separate part number for owners who want to cover the headers too.
What temperatures can the blankets take? Boost Logic rates the volcanic rock fabric outer layer at 1,800 degrees F direct heat and 2,500 degrees F radiant heat, and the calcium magnesium silicate wool insulation at 1,832 degrees F continuous and 2,300 degrees F peak. A stainless steel mesh overlay adds durability and thermal resistance.
Why wrap the wastegates? Boost Logic designs the wastegate blankets to reduce heat soak from the main wastegate body into the actuator. That lowers stress on the actuator diaphragm under extreme loads and temperature swings, which Boost Logic says gives more stable wastegate operation and consistent turbo performance, while shielding nearby lines.
How do the intercooler thermal barriers work? The thermal barriers stick to the area beneath the intercoolers and reflect heat away, helping the air-to-water system stay efficient. They are glass fiber mat interwoven with glass filament yarn, faced with 0.1 mm imprinted aluminum foil, and backed with an acrylate-based self-adhesive.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
