Where does the Boost Logic Front Surge Tank for R35 mount?

Boost Logic designed the Front Surge Tank for R35 to sit in the driver side front of a left-hand drive R35 GT-R. Right-hand drive cars are not listed, so owners of JDM or UK market cars should confirm fitment with Bulletproof Automotive before ordering, since the driver side is on the opposite side of those cars.

Should I choose the -12AN or -16AN feed fitting?

The bottom fitting feeds the mechanical fuel pump, so match it to the inlet size of the pump and the feed line planned for the build. The -16AN option is the larger of the two. Both are the same price, and the fuel system builder or tuner planning the car is best placed to make the call.

How much fuel does the tank hold?

Boost Logic lists a capacity of 1.75 gallons. A surge tank holds a reserve of fuel at the pump inlet so the pump keeps a steady supply when fuel moves away from the pickup in the main tank, which matters most under hard acceleration and cornering on a high power car.

What fittings come with the tank?

The standard tank comes with three -10AN fittings on the side, a -6AN vent on top and either a -12AN or a -16AN fitting on the bottom to feed the mechanical pump. Boost Logic states the tank can be optioned with other fitting combinations, which Bulletproof Automotive can arrange at the time of ordering.

Is the mechanical fuel pump included?

No. The listing covers the surge tank and its fittings only. The mechanical fuel pump, its drive, the fuel lines and hoses, and any other fuel system parts are separate purchases. Plan the full fuel system with the builder or tuner so the fittings on the tank match the rest of the plumbing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

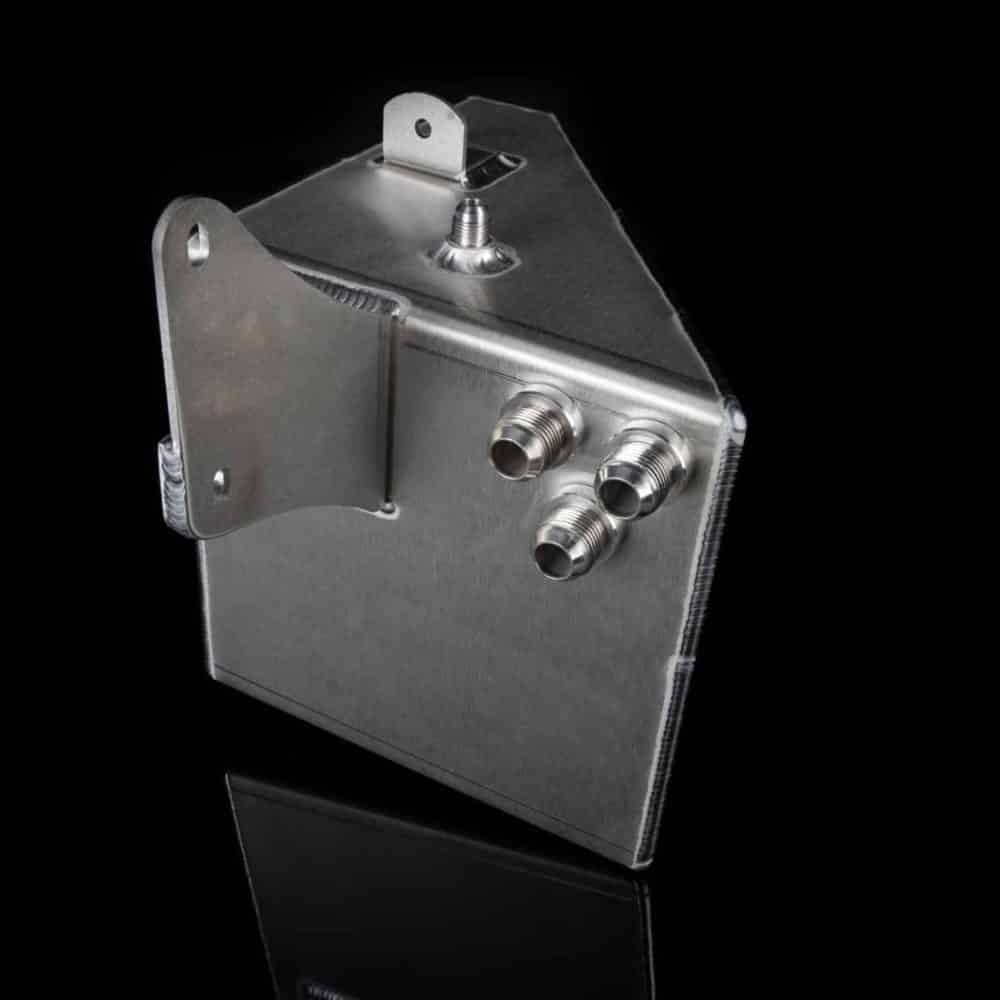

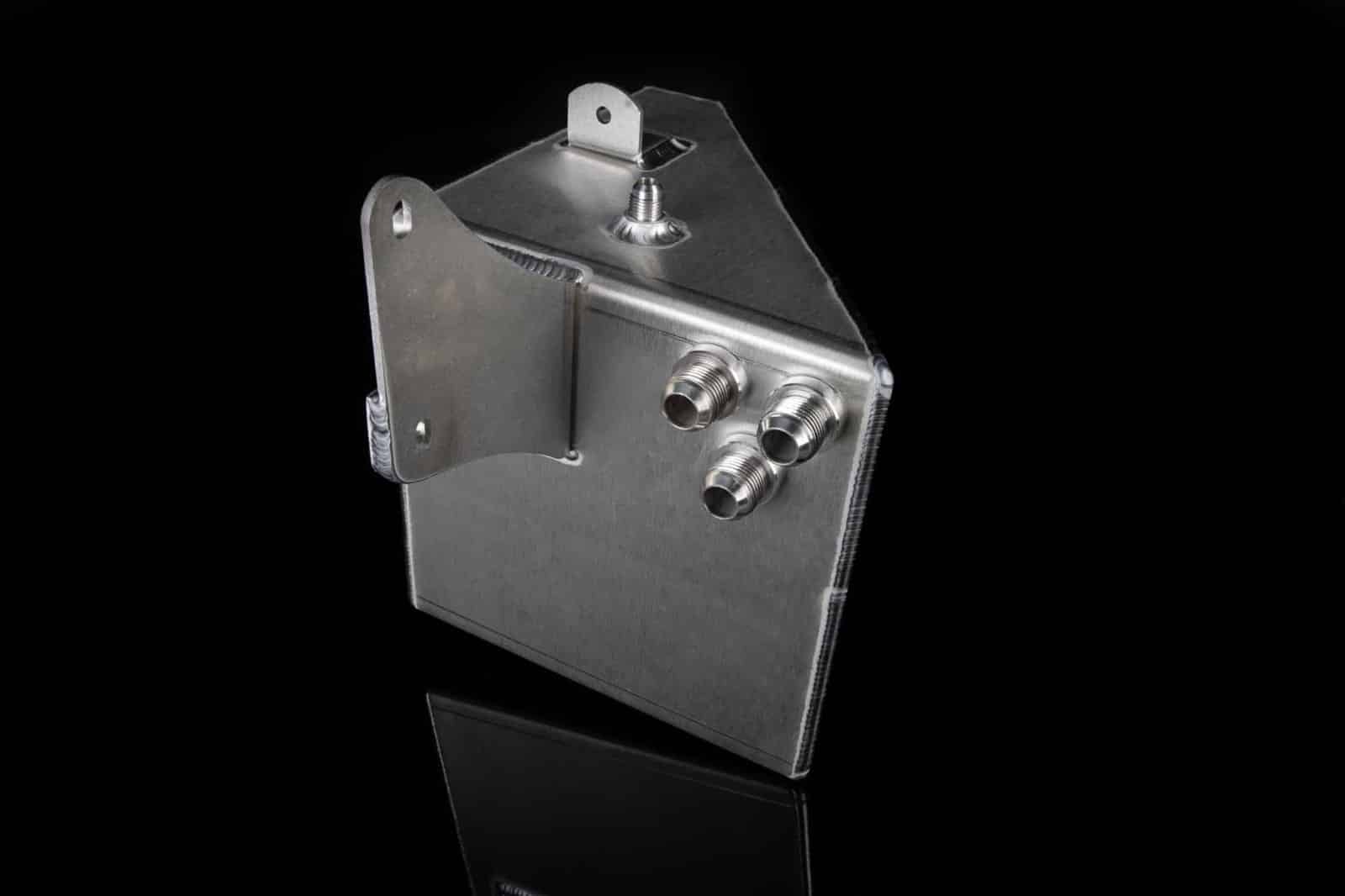

Boost Logic Mechanical Fuel Pump Front Surge Tank for R35 Nissan GT-R

Boost Logic’s Front Surge Tank for R35 Nissan GT-R is a 1.75 gallon fuel surge tank built to feed a mechanical fuel pump, and it mounts in the driver side front of a left-hand drive R35. It comes with three -10AN fittings on the side, a -6AN vent on top and a -12AN or -16AN outlet on the bottom to feed the pump, and Boost Logic can supply other fitting combinations. It belongs in a high power build that has moved to a mechanical pump; a car still on its factory fuel system does not need it.

Features

1.75 gallon capacity
Three -10AN fittings on the side
-6AN vent fitting on top
Choice of -12AN or -16AN bottom outlet to feed the mechanical pump
Other fitting combinations available from Boost Logic

What’s Included

Front surge tank
Three -10AN side fittings
-6AN top vent fitting
-12AN or -16AN bottom feed fitting

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

The Front Surge Tank for R35 is designed for the driver side front of a left-hand drive car; right-hand drive fitment is not listed
Choose the -12AN or -16AN pump feed fitting at checkout
Other fitting combinations are available through Bulletproof Automotive; ask when ordering
The mechanical fuel pump, its drive, fuel lines and hoses are not included
Boost Logic does not state the tank material
Boost Logic also builds the Boost Logic Fuel Rail Kit for R35 Nissan GT-R (BLFRKRNG9) for the fuel delivery side of the engine

Frequently Asked Questions

Where does the Boost Logic Front Surge Tank for R35 mount? Boost Logic designed the Front Surge Tank for R35 to sit in the driver side front of a left-hand drive R35 GT-R. Right-hand drive cars are not listed, so owners of JDM or UK market cars should confirm fitment with Bulletproof Automotive before ordering, since the driver side is on the opposite side of those cars.
Should I choose the -12AN or -16AN feed fitting? The bottom fitting feeds the mechanical fuel pump, so match it to the inlet size of the pump and the feed line planned for the build. The -16AN option is the larger of the two. Both are the same price, and the fuel system builder or tuner planning the car is best placed to make the call.
How much fuel does the tank hold? Boost Logic lists a capacity of 1.75 gallons. A surge tank holds a reserve of fuel at the pump inlet so the pump keeps a steady supply when fuel moves away from the pickup in the main tank, which matters most under hard acceleration and cornering on a high power car.
What fittings come with the tank? The standard tank comes with three -10AN fittings on the side, a -6AN vent on top and either a -12AN or a -16AN fitting on the bottom to feed the mechanical pump. Boost Logic states the tank can be optioned with other fitting combinations, which Bulletproof Automotive can arrange at the time of ordering.
Is the mechanical fuel pump included? No. The listing covers the surge tank and its fittings only. The mechanical fuel pump, its drive, the fuel lines and hoses, and any other fuel system parts are separate purchases. Plan the full fuel system with the builder or tuner so the fittings on the tank match the rest of the plumbing.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
