What comes in the Boost Logic Fuel Rail Kit for R35?

The Fuel Rail Kit for R35 includes the Boost Logic T-6 fuel rails, a Weldon fuel pressure regulator and bracket, a rail to regulator line, a regulator to factory return line, a fuel crossover line, a return line quick disconnect, four fuel fittings, three regulator fittings with O-rings, and five stainless bolts and washers.

Why does the kit shroud the regulator?

Heat can upset a fuel pressure regulator. Boost Logic mounts the Weldon regulator so it is shrouded from engine bay heat, which it says prevents fuel pressure irregularities and diaphragm failure. The same layout tidies the engine bay compared with setups that leave the regulator hanging in the open.

Is the kit compatible with E85?

Yes. Boost Logic states that every component in the kit is safe with pump gas, E85 and race gas. The rails and regulator are one part of an ethanol conversion, and a car moving to E85 still needs injectors, pumps and a tune sized for the extra fuel volume.

Does installation require cutting the fuel system?

No. The kit uses OEM style quick connectors, so it joins the factory fuel system without cutting or splicing, and Boost Logic states that no permanent modifications are required. All hardware for the installation is included, and the fuel system should be checked for leaks under pressure before the car is driven.

Should I buy the kit or the rail pair?

Boost Logic recommends the complete kit with the Weldon regulator as its full fueling solution. The rail pair suits a car that already runs a suitable regulator and lines. Both use the same billet rails, so the choice comes down to whether the build needs the regulator, bracket and return plumbing that this kit adds.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

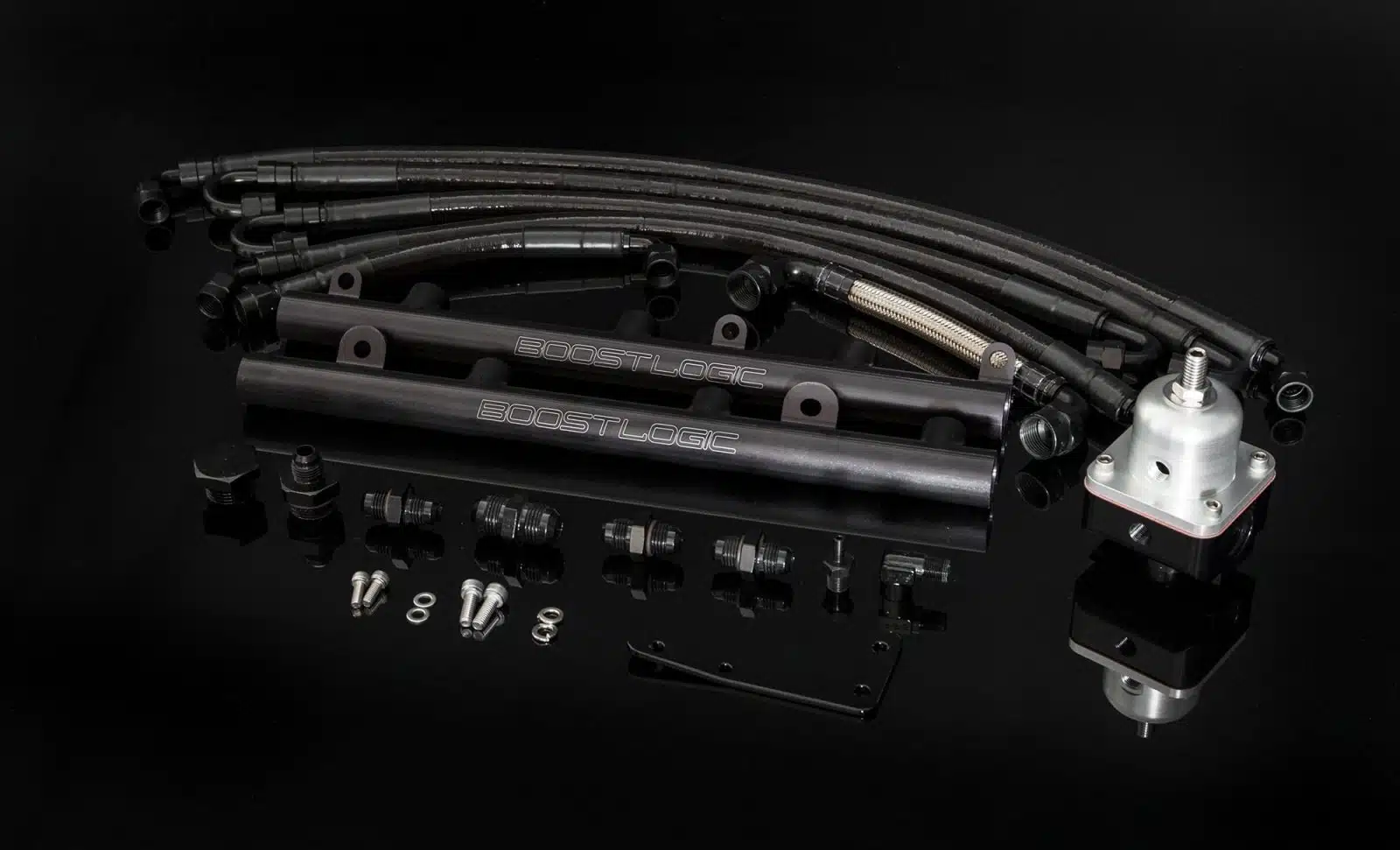

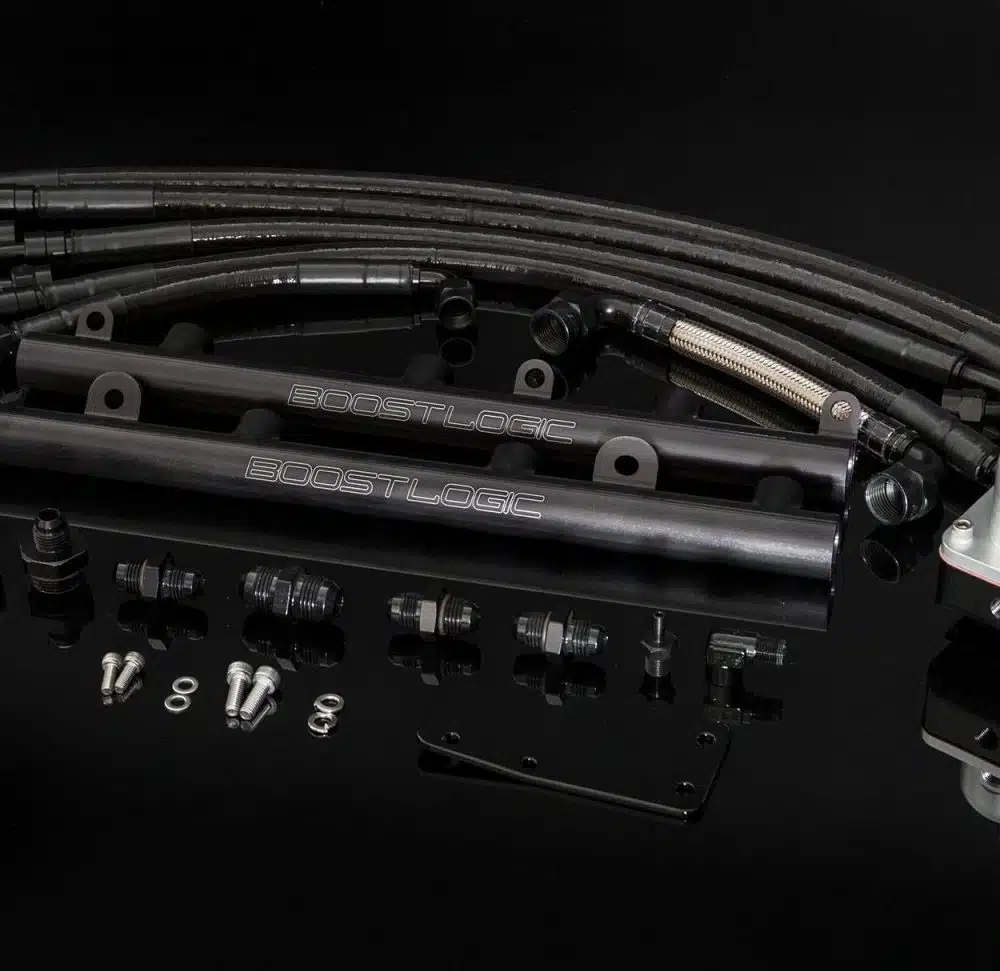

Boost Logic Fuel Rail Kit for R35 Nissan GT-R

Boost Logic’s Fuel Rail Kit for R35 Nissan GT-R is the complete version of its billet rail system, pairing CNC machined, laser etched T-6 aluminum rails with a Weldon fuel pressure regulator for GT-R builds between 900 and 2,000 horsepower. The kit mounts the regulator where it is shrouded from engine bay heat, which Boost Logic says prevents fuel pressure irregularities and diaphragm failure, and it connects through OEM style quick connectors with no cutting or splicing. It suits a car that needs a regulator as well as rails; owners who only need rails can buy the pair.

Features

Weldon fuel pressure regulator, a regulator Boost Logic trusts on the highest horsepower cars
Regulator shrouded from heat to help prevent pressure irregularities and diaphragm failure
CNC machined, laser etched T-6 aluminum fuel rails
OEM style quick connectors with no cutting, splicing or permanent modifications
Safe with pump gas, E85 and race gas
Cleaner engine bay layout with no unnecessary fittings or junctions

What’s Included

Boost Logic T-6 fuel rails
Weldon fuel pressure regulator
Regulator bracket
Fuel rail to regulator line
Regulator to OE return line
Fuel crossover line
Return line quick disconnect
4 fuel fittings
3 regulator fittings with O-rings
5 stainless steel bolts
5 stainless steel washers

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

All hardware needed for installation is included, per Boost Logic
Injectors and fuel pumps are not included
The Fuel Rail Kit for R35 uses the same billet rails sold on their own as the Boost Logic Billet Fuel Rail Pair for R35 Nissan GT-R (BL 02011003)

Frequently Asked Questions

What comes in the Boost Logic Fuel Rail Kit for R35? The Fuel Rail Kit for R35 includes the Boost Logic T-6 fuel rails, a Weldon fuel pressure regulator and bracket, a rail to regulator line, a regulator to factory return line, a fuel crossover line, a return line quick disconnect, four fuel fittings, three regulator fittings with O-rings, and five stainless bolts and washers.
Why does the kit shroud the regulator? Heat can upset a fuel pressure regulator. Boost Logic mounts the Weldon regulator so it is shrouded from engine bay heat, which it says prevents fuel pressure irregularities and diaphragm failure. The same layout tidies the engine bay compared with setups that leave the regulator hanging in the open.
Is the kit compatible with E85? Yes. Boost Logic states that every component in the kit is safe with pump gas, E85 and race gas. The rails and regulator are one part of an ethanol conversion, and a car moving to E85 still needs injectors, pumps and a tune sized for the extra fuel volume.
Does installation require cutting the fuel system? No. The kit uses OEM style quick connectors, so it joins the factory fuel system without cutting or splicing, and Boost Logic states that no permanent modifications are required. All hardware for the installation is included, and the fuel system should be checked for leaks under pressure before the car is driven.
Should I buy the kit or the rail pair? Boost Logic recommends the complete kit with the Weldon regulator as its full fueling solution. The rail pair suits a car that already runs a suitable regulator and lines. Both use the same billet rails, so the choice comes down to whether the build needs the regulator, bracket and return plumbing that this kit adds.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
