Which turbochargers come with the Boost Logic 2500X Turbo Kit for R35?

The 2500X Turbo Kit for R35 comes with PTE Next Gen 6885 turbochargers as standard. Six alternatives are offered, the PTE 7685, 8085, 8385 and 8685 and the Next Gen R 5885 and 6885, for 2,000 to 3,600 dollars more depending on the choice, so the kit can be matched to a power target or racing class.

Does the car keep its air conditioning and power steering?

Yes. Boost Logic designed the 2500X to fit Sportsman-frame turbochargers in the stock turbo location while retaining air conditioning, power steering and the core functionality of the R35. That is the main difference between this kit and systems that move the turbochargers out of the factory position to make room.

How much power can the 2500X make?

Boost Logic says the platform can produce more than 2,500 wheel horsepower in properly prepared combinations and has run six-second quarter-mile times. Reaching that level needs the engine, fuel system, cooling, transmission, drivetrain and engine management all upgraded to match, and none of those parts are included in the kit.

What is the difference between recirculating and non-recirculating wastegates?

A recirculating setup routes wastegate gas back into the exhaust, which is quieter and tidier, while a non-recirculating setup vents it separately for more sound and simpler packaging. Both cost the same on the 2500X, so the choice comes down to sound, packaging and the intended use of the car.

What optional extras are available?

Boost Logic offers a powder-coated compressor housing for 350 dollars, its frame notch kit for 300 dollars and downpipe crossbolts at no extra charge. None of these are required, and Bulletproof Automotive can add them when the kit is ordered along with the turbocharger and wastegate choices.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Boost Logic 2500X Turbo Kit for R35 Nissan GT-R

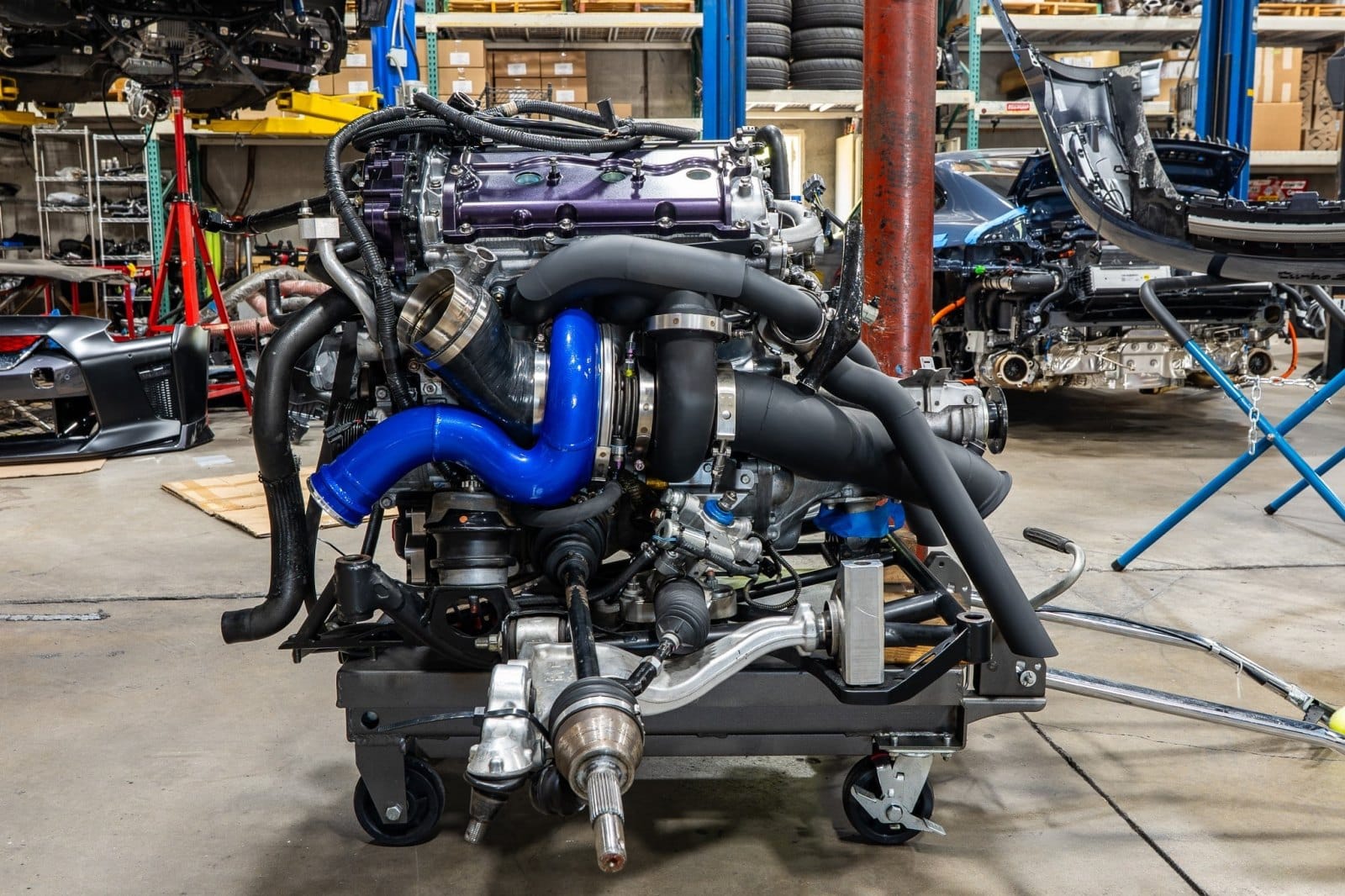

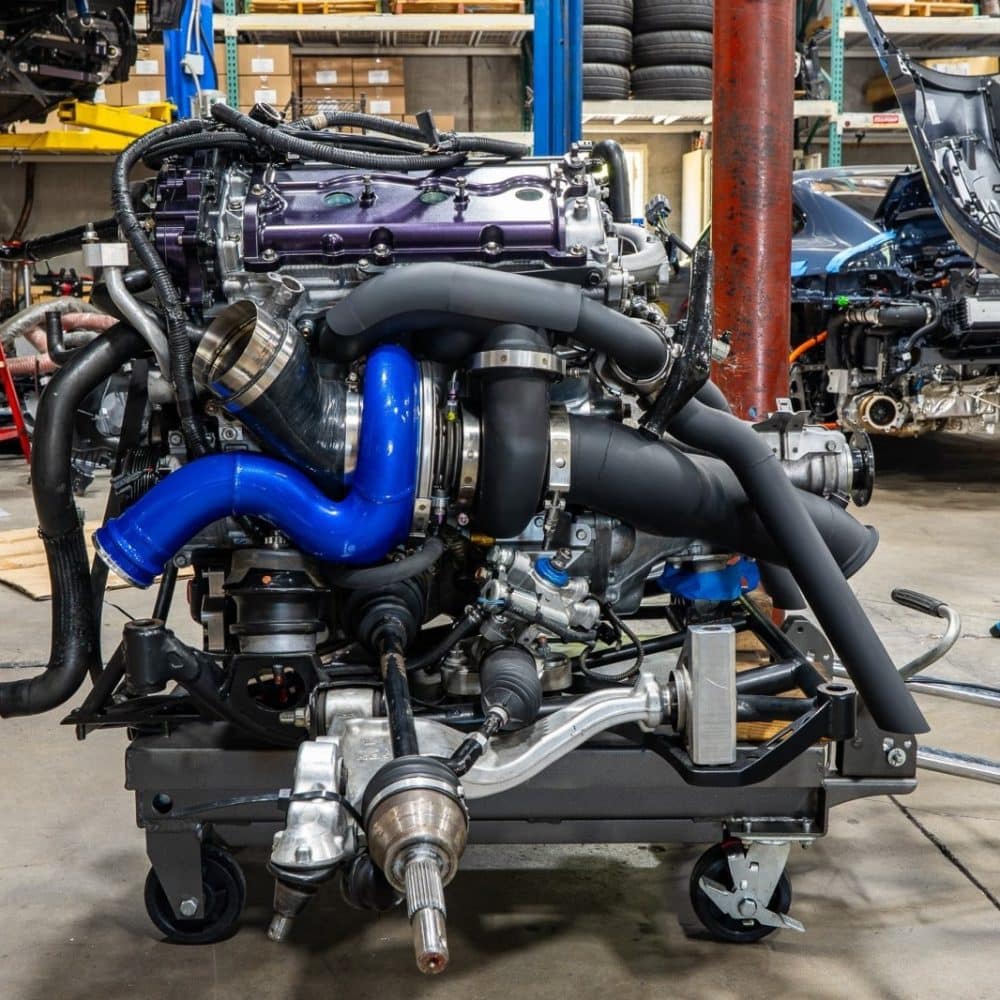

Boost Logic’s 2500X Turbo Kit for R35 Nissan GT-R puts PTE Sportsman-frame turbochargers in the stock turbo location while keeping the air conditioning, power steering and core functions of the car. Fitting turbos that size meant engineering the system around 3D metal printing: the turbo manifolds, support brackets and compressor outlets are all printed, which gave Boost Logic control of runner geometry, collector transitions and wall thickness in a very compact package. The standard kit runs PTE Next Gen 6885 turbos, with six alternatives offered, and Boost Logic says properly prepared cars can make more than 2,500 wheel horsepower and have run six-second quarter miles. It is a competition-level system for a car built around it.

3D-Printed Hardware

Additive manufacturing let Boost Logic shape manifold geometry, transitions, brackets and compressor outlets that would be close to impossible to fabricate conventionally. The printed manifolds are designed to make the most of exhaust energy feeding the oversized turbine housings, the printed brackets hold the larger Sportsman-frame turbos in place, and the printed compressor outlets give a smooth path out of the compressors in the space the factory layout allows.

Features

PTE Sportsman-frame turbochargers in the stock turbo location
3D metal-printed turbo manifolds with optimized runners, collectors and transitions
3D-printed turbo support brackets and compressor outlets
Retains air conditioning and power steering
Recirculating or non-recirculating wastegate configuration
Capable of more than 2,500 whp in properly prepared combinations, per Boost Logic

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Choose the turbochargers and the wastegate configuration at checkout; PTE Next Gen 6885 turbos are standard and the six alternatives add $2,000 to $3,600
Supporting engine, fuel system, cooling, transmission, drivetrain and engine-management upgrades are required to safely reach the upper capability of the 2500X Turbo Kit for R35
Available through Bulletproof Automotive as add-ons: a powder-coated compressor housing for $350 and the Boost Logic frame notch kit for $300; downpipe crossbolts can be added at no charge
The 2,500 whp and six-second quarter-mile figures come from properly prepared Boost Logic customer cars; their full specification is not published
Boost Logic recommends discussing the power target and intended use before choosing a turbo configuration, and Bulletproof Automotive can arrange that

Frequently Asked Questions

Which turbochargers come with the Boost Logic 2500X Turbo Kit for R35? The 2500X Turbo Kit for R35 comes with PTE Next Gen 6885 turbochargers as standard. Six alternatives are offered, the PTE 7685, 8085, 8385 and 8685 and the Next Gen R 5885 and 6885, for 2,000 to 3,600 dollars more depending on the choice, so the kit can be matched to a power target or racing class.
Does the car keep its air conditioning and power steering? Yes. Boost Logic designed the 2500X to fit Sportsman-frame turbochargers in the stock turbo location while retaining air conditioning, power steering and the core functionality of the R35. That is the main difference between this kit and systems that move the turbochargers out of the factory position to make room.
How much power can the 2500X make? Boost Logic says the platform can produce more than 2,500 wheel horsepower in properly prepared combinations and has run six-second quarter-mile times. Reaching that level needs the engine, fuel system, cooling, transmission, drivetrain and engine management all upgraded to match, and none of those parts are included in the kit.
What is the difference between recirculating and non-recirculating wastegates? A recirculating setup routes wastegate gas back into the exhaust, which is quieter and tidier, while a non-recirculating setup vents it separately for more sound and simpler packaging. Both cost the same on the 2500X, so the choice comes down to sound, packaging and the intended use of the car.
What optional extras are available? Boost Logic offers a powder-coated compressor housing for 350 dollars, its frame notch kit for 300 dollars and downpipe crossbolts at no extra charge. None of these are required, and Bulletproof Automotive can add them when the kit is ordered along with the turbocharger and wastegate choices.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
