What is the Racing MONO4r TA Big Brake Kit for RZ34 designed to pair with?

Endless builds the MONO4r TA as the rear partner for its Racing MONO6 TA front caliper, and it sells the two as a set for the RZ34. Both are pipeless forged monoblocs with stainless pistons and E-slit rotors, so a car fitted with this Big Brake Kit for RZ34 and the matching front ends up with the same construction at each corner.

How is this different from the standard MONO4r rear kit?

The TA version removes the external fluid pipe, adds a 3D-cut surface and stainless pistons, and comes in at 2,100g against 2,260g. Both use a 355mm three-piece E-slit rotor on the RZ34. The TA kit uses the RCP197 pad shape, the standard kit RCP147.

Why does the Endless USA sheet list the Racing MONO4r TA kit for the RZ34 Z as Racing Mono4 TA?

Endless USA writes Racing Mono4 TA for this rear kit, but the RCP197 pad it lists is the pad for the rear-only MONO4r TA in the Endless Japan catalogue. We use the MONO4r TA name so the title matches the caliper on the car.

Does the Racing MONO4r TA kit for the RZ34 Z keep the parking brake?

The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 355mm x 32mm three-piece rotors at the rear, so the RZ34 Z keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.

What is in the Endless MONO4r TA rear kit?

Two Racing MONO4r TA calipers, a set of Endless pads, mounting brackets, two 355mm x 32mm three-piece E-slit rotors on Tufram-coated bells, and two brake lines. DOT4 or higher fluid is needed for the bleed and is not supplied, and the pads should be bedded in on a dry day.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

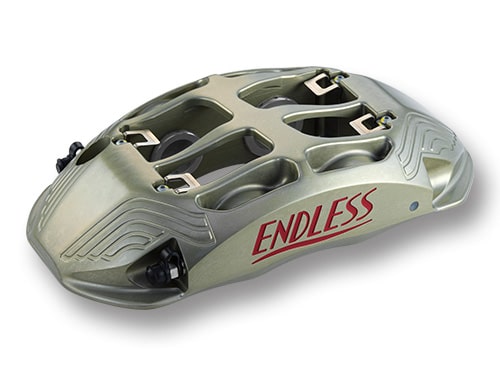

Endless Racing MONO4r TA Rear Big Brake Kit for RZ34 Nissan Z

Endless’s Racing MONO4r TA Rear Big Brake Kit for RZ34 Nissan Z is the pipeless rear caliper Endless builds to sit behind its Racing MONO6 TA front. It is forged as a monobloc, 3D cut over the surface, fitted with stainless pistons, and routes fluid inside the body with no outer pipe. At 2,100g it is lighter than the standard MONO4r. The rotor is a 355mm x 32mm three-piece E-slit unit on a Tufram-coated bell, and the pad shape is RCP197. Endless USA lists it as Racing Mono4 TA; the RCP197 pad marks it as the rear-only MONO4r TA.

Features

Pipeless forged monobloc rear caliper, 2,100g
3D-cut surface and stainless steel pistons
355mm x 32mm three-piece E-slit rotors
Tufram-coated rotor bells
RCP197 pad shape
Hard anodised body with engraved lettering

Specifications

Caliper: Endless Racing MONO4r TA, four-piston forged monobloc, pipeless
Caliper weight: 2,100g
Caliper size: 141mm x 66.3mm x 276mm
Finish: Hard anodised, engraved lettering
Rotors: 355mm x 32mm, three-piece
Caliper rotor range: 300mm to 355mm diameter
Pad shape: RCP197
Minimum wheel size: 15 inch, per Endless

What’s Included

Endless Racing MONO4r TA calipers (2)
Endless brake pad set
Caliper mounting brackets (2)
Rotors (2), 355mm x 32mm three-piece
Brake lines (2)

Applications

Nissan Z: RZ34 | 2023-present

Notes

Rear axle only. The set pairing this Big Brake Kit for RZ34 with a Racing MONO6 TA front is listed separately
Endless USA lists this caliper as Racing Mono4 TA; the RCP197 pad shape is the MONO4r TA rear caliper
The three-piece rear rotors retain the factory parking brake
Endless gives a 15 inch minimum wheel for the MONO4r TA, though the 355mm rotor is the larger constraint
Replace E-slit rotors when the E marks are worn, and use DOT4 or higher fluid
Made to order in Japan, with lead time confirmed after ordering

Frequently Asked Questions

What is the Racing MONO4r TA Big Brake Kit for RZ34 designed to pair with? Endless builds the MONO4r TA as the rear partner for its Racing MONO6 TA front caliper, and it sells the two as a set for the RZ34. Both are pipeless forged monoblocs with stainless pistons and E-slit rotors, so a car fitted with this Big Brake Kit for RZ34 and the matching front ends up with the same construction at each corner.
How is this different from the standard MONO4r rear kit? The TA version removes the external fluid pipe, adds a 3D-cut surface and stainless pistons, and comes in at 2,100g against 2,260g. Both use a 355mm three-piece E-slit rotor on the RZ34. The TA kit uses the RCP197 pad shape, the standard kit RCP147.
Why does the Endless USA sheet list the Racing MONO4r TA kit for the RZ34 Z as Racing Mono4 TA? Endless USA writes Racing Mono4 TA for this rear kit, but the RCP197 pad it lists is the pad for the rear-only MONO4r TA in the Endless Japan catalogue. We use the MONO4r TA name so the title matches the caliper on the car.
Does the Racing MONO4r TA kit for the RZ34 Z keep the parking brake? The factory parking brake stays. Endless three-piece rear rotors retain it, and this kit runs 355mm x 32mm three-piece rotors at the rear, so the RZ34 Z keeps a working parking brake after the upgrade. Endless two-piece rear rotors are the ones that do not retain it.
What is in the Endless MONO4r TA rear kit? Two Racing MONO4r TA calipers, a set of Endless pads, mounting brackets, two 355mm x 32mm three-piece E-slit rotors on Tufram-coated bells, and two brake lines. DOT4 or higher fluid is needed for the bleed and is not supplied, and the pads should be bedded in on a dry day.

About Endless

Endless was founded in 1986, when Isao Hanazato began developing brake pads out of his own racing experience, and the company builds its friction material, rotors, calipers and brake fluid in Saku City, Nagano. It has run its own team since 1991, in the All Japan F3 Championship and the Mirage Cup, and by 2017 had supplied brake fluid to Formula 1 for fifteen consecutive years. The pads supplied in each kit are Endless compounds, so caliper and friction material come from the same company.
