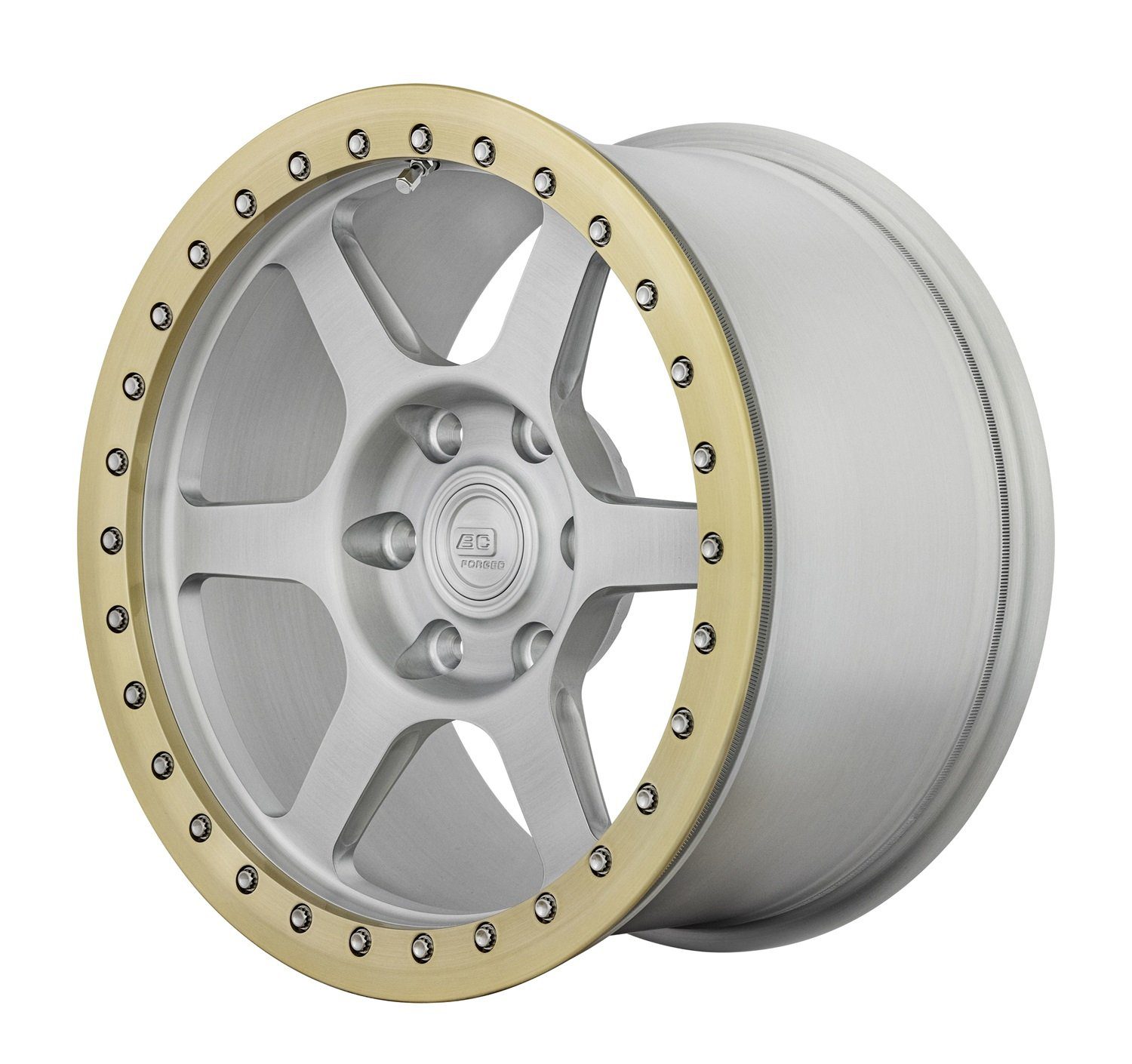

BC Forged RD Series RD06-BL Monoblock Wheel

BC Forged RD Series RD06-BL Monoblock Wheel

The BC Forged RD Series, featuring the RD06-BL Wheel, is designed for off-road and racing enthusiasts who demand top performance and durability. Constructed from fully forged 6061-T6 aluminum, this wheel accommodates large brakes and TPMS sensors, making it ideal for challenging conditions. It offers a variety of concavity profiles, extensive bolt patterns, and vehicle-specific center bores for precise fitting. Each wheel comes with a billet center cap, an aluminum valve stem, and a 6061-T6 forged beadlock ring equipped with robust stainless 12-point beadlock hardware, crafted to excel under severe conditions. Additional customization options such as OEM / production center locks, various beadlock ring finishes, and diverse hardware finishes are available to meet specific racing needs and aesthetic preferences.

Finishing

• All Inclusive:
  • BC Forged provides an extensive palette of colors at no additional cost. Full polishing is exclusively available for Modular Lips; all other finishes are accessible for both Monoblock and Modular designs.
    • Solid Colors: Available in gloss, matte or satin clear coats.
      • Black
      • Bronze
      • Gunmetal
      • Gloss white
      • Lunar silver
      • Matte golden bronze
      • Obsidian blue
      • Satin race gold
      • Satin obsidian blue
      • Shadow copper
    • Translucent Colors: Available in brushed, gloss and satin finishes.
      • Bright clear
      • Bright graphite grey
      • Brushed bronze
      • Brushed champagne bronze
      • Brushed clear
      • Brushed dark black
      • Brushed gold
      • Brushed grey
      • Crystal burgundy
      • Crystal dark blue
      • Crystal green
      • Crystal orange
      • Crystal purple
      • Graphite grey
      • Royal gold
      • Rose gold
      • Sapphire blue
      • Satin brushed clear
      • Satin brushed grey
      • Satin crystal purple
      • Satin graphite grey
      • Satin royal gold
      • Stone
    • Beadlock Ring: Both standard and translucent finishes are available for the beadlock ring.
    • Beadlock Hardware:
      • Black
      • Gold
      • Stainless
      • Titanium
    • Valve Stems: TPMS sensors are meticulously designed to integrate seamlessly with BC Forged valve stems.
      • Stainless
      • Black

Additional Options

• OEM center cap / production centerlock (+)

Features

• 1-piece 6061-T6 fully forged aluminum
• 6061-T6 forged beadlock ring
• Stainless 12pt beadlock hardware
• Various beadlock ring & hardware finishes
• Anti-slip knurled bead seats
• Accommodates big brakes
• TPMS compatible
• Anti-slip knurled bead seats included
• Designed for off-road / race use
• Bespoke fitment for your vehicle specifically
• Each wheel / set is made to order, custom built
• Multiple different concave profiles
• Extensive bolt pattern configurations
• Center bore is vehicle specific
• Billet aluminum center cap
• Aluminum valve stem

Specifications

• Wheel Series: RD Series
• Wheel Model: RD06-BL
• Configuration: Monoblock beadlock
• Diameters:
  • 17″
  • 18″
  • 19″
  • 20″
• Widths:
  • 7″
  • 7.5″
  • 8″
  • 8.5″
  • 9″
  • 9.5″
  • 10″
  • 10.5″
  • 11″
  • 11.5″ (+)
  • 12″ (+)
  • 12.5″ (+)
  • 13″ (+)
• Available Sizing:
  • 17″:
    • 17×7
    • 17×7.5
    • 17×8
    • 17×8.5
    • 17×9
    • 17×9.5
    • 17×10
    • 17×10.5
    • 17×11
    • 17×11.5
    • 17×12
  • 18″:
    • 18×8
    • 18×8.5
    • 18×9
    • 18×9.5
    • 18×10
    • 18×10.5
    • 18×11
    • 18×11.5
    • 18×12
    • 18×12.5
    • 18×13
  • 19″:
    • 19×8
    • 19×8.5
    • 19×9
    • 19×9.5
    • 19×10
    • 19×10.5
    • 19×11
    • 19×11.5
    • 19×12
    • 19×12.5
    • 19×13
  • 20″:
    • 20×8
    • 20×8.5
    • 20×9
    • 20×9.5
    • 20×10
    • 20×10.5
    • 20×11
    • 20×11.5
    • 20×12
    • 20×12.5
    • 20×13
• Mounting: Standard PCD / Centerlock
• Offsets: Custom

Other “RD Series” Wheels

• RD01
• RD01-BL
• RD02
• RD02-BL
• RD03
• RD03-BL
• RD05
• RD05-BL
• RD06

Beadlock Instructions / Warnings

• Assembly Instructions:
  • Inspect tire bead and bead flange for any damages, wear, dirt, or debris
  • Insure tire bead is fully seated before installing the bead lock ring
  • Apply each bead lock bolt with anti-seize and washers before installing
  • Start 4 bolts by hand 90 degrees apart finger tight (12, 3, 6, and 9 o’clock positions)
  • Continue to install the remaining bolts finger tight
  • Start torquing each bolt in a crisscross pattern to 15ft/lbs
  • Once all bolts are torqued to 15ft/lbs begin the next step
  • Re-torque each bolt at 30 ft/lbs one after another in a clockwise pattern until every bolt is re-torqued
• Disassembly Instructions:
  • Important – Remove tire valve and deflate tire completely before removing the beadlock bolts and beadlock ring
  • Begin loosening each bolt one by one in a crisscross pattern until they are broken loose
  • Repeat this process until all bolts are loose and completely removed from the wheel
  • Remove the beadlock ring
  • Dismount / remove the tire
• Maintenance & Warnings:
  • This product is not DOT approved and for off-road / race applications only
  • You take responsibility for all risk or damages caused to the car and environment. Any improper use or mis-installation of parts could result in bodily harm or damage.
  • Beadlock wheels do not carry any structural or finishing warranties due to their intended use(s)
  • Visually inspect bolts and beadlock rings after first use and every 100 miles after
  • Re-check beadlock bolt torque after first run and replace beadlock ring bolts every year or when changing tires (whichever comes first)
  • Inspect the beadlock ring during each tire change for bends or distortion. If either exists do not use the beadlock ring.

Notes

• Please verify the available widths for all diameters
• All BC Forged wheels are exclusively built to order, typically expected to arrive via express shipping in as little as 6-8 weeks

Warranty

• 3 year structural warranty
• 1 year finishing warranty
