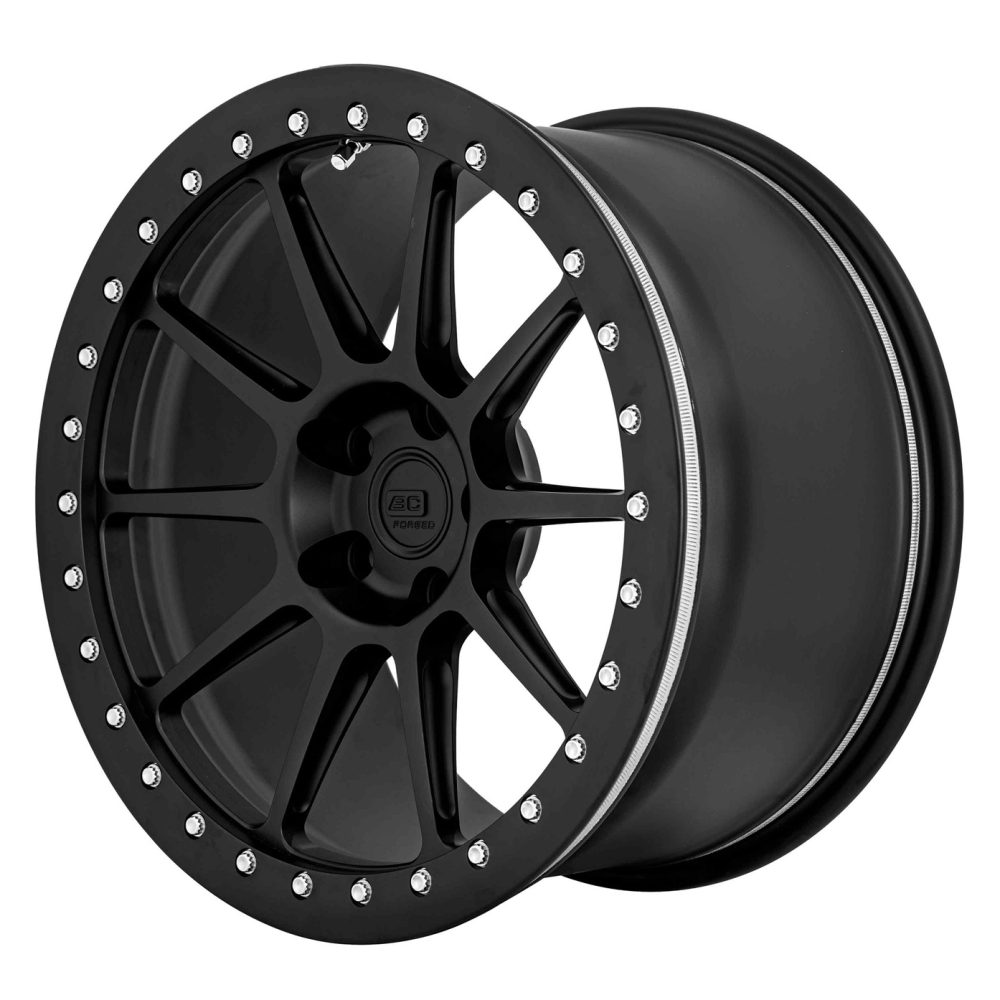

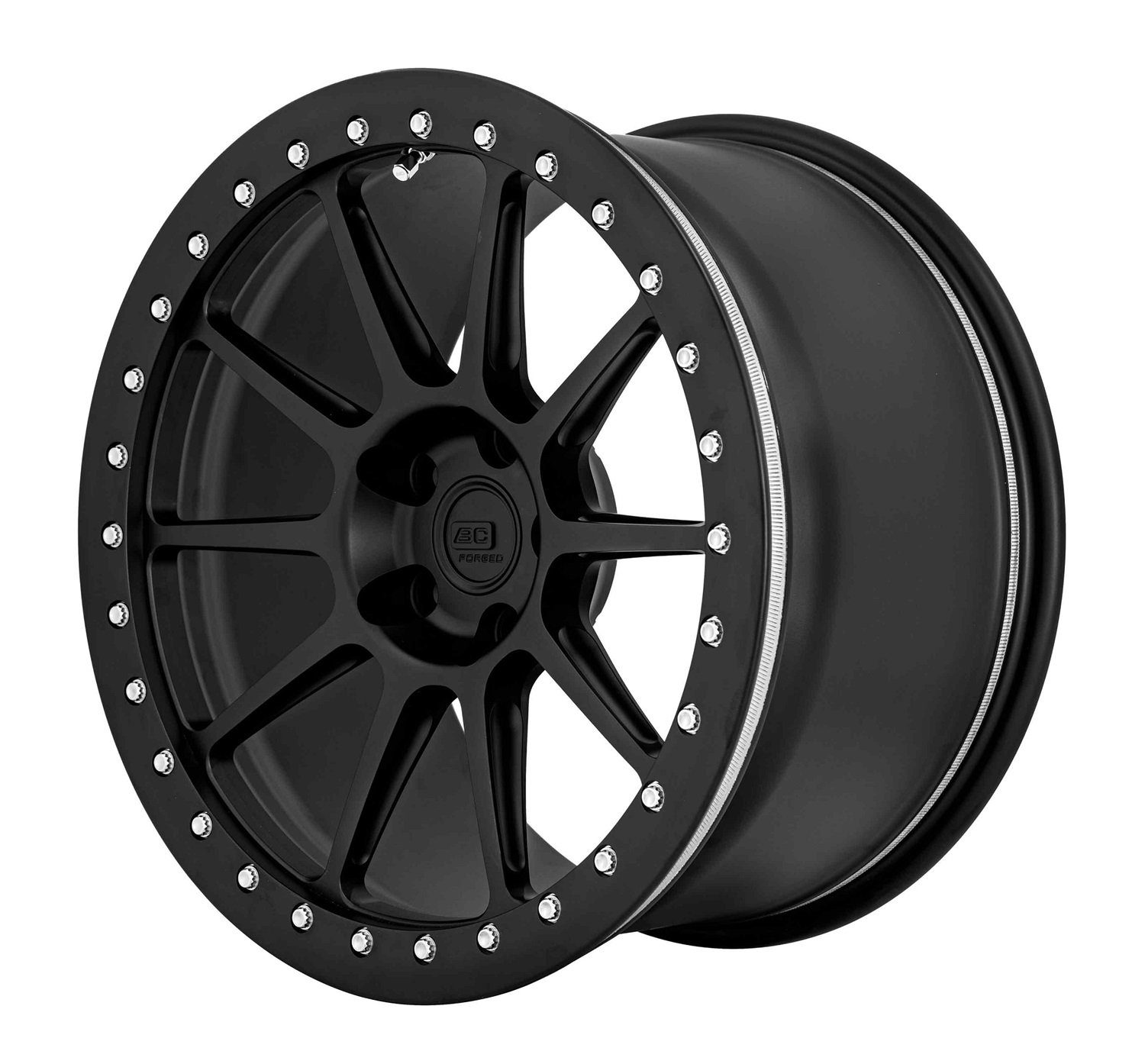

BC Forged RD Series RD01-BL Monoblock Wheel

The BC Forged RD Series, showcasing the RD01-BL Wheel, is tailored for off-road and race enthusiasts who demand both performance and resilience. This wheel is crafted from fully forged 6061-T6 aluminum, ensuring compatibility with large brake systems and TPMS sensors for demanding environments. Designed specifically for off-road / race use, it features multiple concavity profiles, extensive bolt pattern options, and vehicle-specific center bores for precise fitment. Standard features include a billet center cap, an aluminum valve stem, and a 6061-T6 forged beadlock ring with stainless 12-point beadlock hardware, enhancing durability and performance under extreme conditions. Additional customization options such as OEM / production centerlocks, various beadlock ring finishes, and hardware finishes allow for further personalization to meet specific racing needs and aesthetic preferences.

Finishing

All Inclusive:
- BC Forged offers a wide selection of colors at no extra charge. Full polishing is reserved solely for Modular Lips; however, all other finishes are available for both Monoblock and Modular designs.
  - Solid Colors: Available in gloss, matte or satin clear coats.
    - Black
    - Bronze
    - Gunmetal
    - Gloss white
    - Lunar silver
    - Matte golden bronze
    - Obsidian blue
    - Satin race gold
    - Satin obsidian blue
    - Shadow copper
  - Translucent Colors: Available in brushed, gloss and satin finishes.
    - Bright clear
    - Bright graphite grey
    - Brushed bronze
    - Brushed champagne bronze
    - Brushed clear
    - Brushed dark black
    - Brushed gold
    - Brushed grey
    - Crystal burgundy
    - Crystal dark blue
    - Crystal green
    - Crystal orange
    - Crystal purple
    - Graphite grey
    - Royal gold
    - Rose gold
    - Sapphire blue
    - Satin brushed clear
    - Satin brushed grey
    - Satin crystal purple
    - Satin graphite grey
    - Satin royal gold
    - Stone
  - Beadlock Ring: All standard and translucent finishes are available for the beadlock ring.
  - Beadlock Hardware:
    - Black
    - Gold
    - Stainless
    - Titanium
  - Valve Stems: TPMS sensors are specifically engineered to work perfectly with BC Forged valve stems.
    - Stainless
    - Black

Additional Options

OEM center cap / production centerlock (+)

Features

1-piece 6061-T6 fully forged aluminum
6061-T6 forged beadlock ring
Stainless 12pt beadlock hardware
Various beadlock ring & hardware finishes
Anti-slip knurled bead seats
Accommodates big brakes
TPMS compatible
Anti-slip knurled bead seats included
Designed for off-road / race use
Bespoke fitment for your vehicle specifically
Each wheel / set is made to order, custom built
Multiple different concave profiles
Extensive bolt pattern configurations
Center bore is vehicle specific
Billet aluminum center cap
Aluminum valve stem

Specifications

Wheel Series: RD Series
Wheel Model: RD01-BL
Configuration: Monoblock beadlock
Diameters:
- 17″
- 18″
- 19″
- 20″
Widths:
- 7″
- 7.5″
- 8″
- 8.5″
- 9″
- 9.5″
- 10″
- 10.5″
- 11″
- 11.5″ (+)
- 12″ (+)
- 12.5″ (+)
- 13″ (+)
Available Sizing:
- 17″:
  - 17×7
  - 17×7.5
  - 17×8
  - 17×8.5
  - 17×9
  - 17×9.5
  - 17×10
  - 17×10.5
  - 17×11
  - 17×11.5
  - 17×12
- 18″:
  - 18×8
  - 18×8.5
  - 18×9
  - 18×9.5
  - 18×10
  - 18×10.5
  - 18×11
  - 18×11.5
  - 18×12
  - 18×12.5
  - 18×13
- 19″:
  - 19×8
  - 19×8.5
  - 19×9
  - 19×9.5
  - 19×10
  - 19×10.5
  - 19×11
  - 19×11.5
  - 19×12
  - 19×12.5
  - 19×13
- 20″:
  - 20×8
  - 20×8.5
  - 20×9
  - 20×9.5
  - 20×10
  - 20×10.5
  - 20×11
  - 20×11.5
  - 20×12
  - 20×12.5
  - 20×13
Mounting: Standard PCD / Centerlock
Offsets: Custom

Other “RD Series” Wheels

Beadlock Instructions / Warnings

Assembly Instructions:
- Inspect tire bead and bead flange for any damages, wear, dirt, or debris
- Insure tire bead is fully seated before installing the bead lock ring
- Apply each bead lock bolt with anti-seize and washers before installing
- Start 4 bolts by hand 90 degrees apart finger tight (12, 3, 6, and 9 o’clock positions)
- Continue to install the remaining bolts finger tight
- Start torquing each bolt in a crisscross pattern to 15ft/lbs
- Once all bolts are torqued to 15ft/lbs begin the next step
- Re-torque each bolt at 30 ft/lbs one after another in a clockwise pattern until every bolt is re-torqued
Disassembly Instructions:
- Important – Remove tire valve and deflate tire completely before removing the beadlock bolts and beadlock ring
- Begin loosening each bolt one by one in a crisscross pattern until they are broken loose
- Repeat this process until all bolts are loose and completely removed from the wheel
- Remove the beadlock ring
- Dismount / remove the tire
Maintenance & Warnings:
- This product is not DOT approved and for off-road / race applications only
- You take responsibility for all risk or damages caused to the car and environment. Any improper use or mis-installation of parts could result in bodily harm or damage.
- Beadlock wheels do not carry any structural or finishing warranties due to their intended use(s)
- Visually inspect bolts and beadlock rings after first use and every 100 miles after
- Re-check beadlock bolt torque after first run and replace beadlock ring bolts every year or when changing tires (whichever comes first)
- Inspect the beadlock ring during each tire change for bends or distortion. If either exists do not use the beadlock ring.

Notes

Please verify the available widths for all diameters
All BC Forged wheels are exclusively built to order, typically expected to arrive via express shipping in as little as 6-8 weeks

Warranty

3 year structural warranty
1 year finishing warranty
