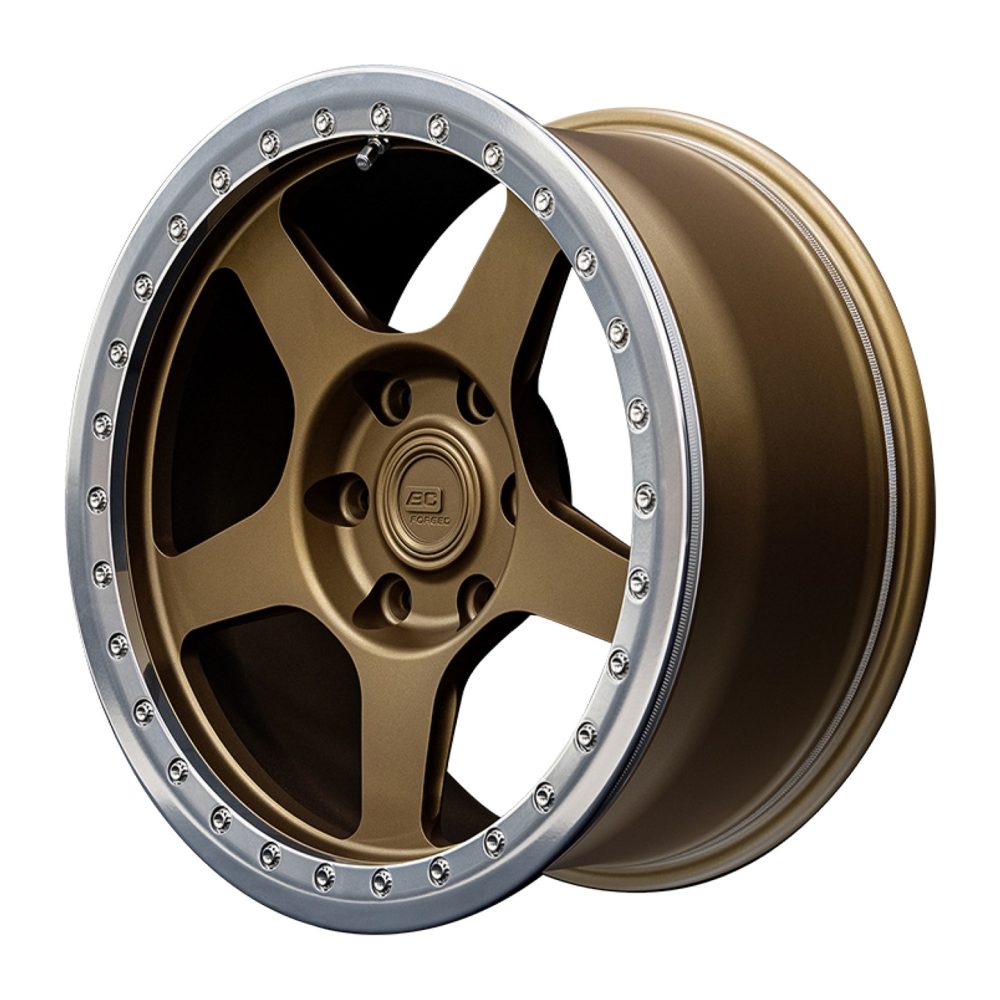

BC Forged RD Series RD05-BL Monoblock Wheel

BC Forged RD Series RD05-BL Monoblock Wheel

The BC Forged RD Series, featuring the RD05-BL Wheel, caters to off-road and racing aficionados seeking unparalleled performance and sturdiness. Made from fully forged 6061-T6 aluminum, this wheel supports large brakes and TPMS sensors, suitable for demanding environments. It boasts various concavity profiles, numerous bolt patterns, and vehicle-specific center bores for accurate installation. Each wheel is equipped with a billet center cap, an aluminum valve stem, and a 6061-T6 forged beadlock ring with durable stainless 12-point beadlock hardware, ensuring superior performance in tough conditions. Additional custom options include OEM / production center locks, a range of beadlock ring finishes, and multiple hardware finishes to satisfy specific racing requirements and stylistic choices.

Finishing

• All Inclusive:
  • BC Forged provides an extensive palette of colors at no additional cost. Full polishing is exclusively available for Modular Lips, while all other finishes are accessible for both Monoblock and Modular designs.
    • Solid Colors: Available in gloss, matte or satin clear coats.
      • Black
      • Bronze
      • Gunmetal
      • Gloss white
      • Lunar silver
      • Matte golden bronze
      • Obsidian blue
      • Satin race gold
      • Satin obsidian blue
      • Shadow copper
    • Translucent Colors: Available in brushed, gloss and satin finishes.
      • Bright clear
      • Bright graphite grey
      • Brushed bronze
      • Brushed champagne bronze
      • Brushed clear
      • Brushed dark black
      • Brushed gold
      • Brushed grey
      • Crystal burgundy
      • Crystal dark blue
      • Crystal green
      • Crystal orange
      • Crystal purple
      • Graphite grey
      • Royal gold
      • Rose gold
      • Sapphire blue
      • Satin brushed clear
      • Satin brushed grey
      • Satin crystal purple
      • Satin graphite grey
      • Satin royal gold
      • Stone
    • Beadlock Ring: Both standard and translucent finishes are available for the beadlock ring.
    • Beadlock Hardware:
      • Black
      • Gold
      • Stainless
      • Titanium
    • Valve Stems: TPMS sensors are meticulously designed to integrate seamlessly with BC Forged valve stems.
      • Stainless
      • Black

Additional Options

• OEM center cap / production centerlock (+)

Features

• 1-piece 6061-T6 fully forged aluminum
• 6061-T6 forged beadlock ring
• Stainless 12pt beadlock hardware
• Various beadlock ring & hardware finishes
• Anti-slip knurled bead seats
• Accommodates big brakes
• TPMS compatible
• Anti-slip knurled bead seats included
• Designed for off-road / race use
• Bespoke fitment for your vehicle specifically
• Each wheel / set is made to order, custom built
• Multiple different concave profiles
• Extensive bolt pattern configurations
• Center bore is vehicle specific
• Billet aluminum center cap
• Aluminum valve stem

Specifications

• Wheel Series: RD Series
• Wheel Model: RD05-BL
• Configuration: Monoblock beadlock
• Diameters:
  • 17″
  • 18″
  • 19″
  • 20″
• Widths:
  • 7″
  • 7.5″
  • 8″
  • 8.5″
  • 9″
  • 9.5″
  • 10″
  • 10.5″
  • 11″
  • 11.5″ (+)
  • 12″ (+)
  • 12.5″ (+)
  • 13″ (+)
• Available Sizing:
  • 17″:
    • 17×7
    • 17×7.5
    • 17×8
    • 17×8.5
    • 17×9
    • 17×9.5
    • 17×10
    • 17×10.5
    • 17×11
    • 17×11.5
    • 17×12
  • 18″:
    • 18×8
    • 18×8.5
    • 18×9
    • 18×9.5
    • 18×10
    • 18×10.5
    • 18×11
    • 18×11.5
    • 18×12
    • 18×12.5
    • 18×13
  • 19″:
    • 19×8
    • 19×8.5
    • 19×9
    • 19×9.5
    • 19×10
    • 19×10.5
    • 19×11
    • 19×11.5
    • 19×12
    • 19×12.5
    • 19×13
  • 20″:
    • 20×8
    • 20×8.5
    • 20×9
    • 20×9.5
    • 20×10
    • 20×10.5
    • 20×11
    • 20×11.5
    • 20×12
    • 20×12.5
    • 20×13
• Mounting: Standard PCD / Centerlock
• Offsets: Custom

Other “RD Series” Wheels

• RD01
• RD01-BL
• RD02
• RD02-BL
• RD03
• RD03-BL
• RD05
• RD06
• RD06-BL

Beadlock Instructions / Warnings

• Assembly Instructions:
  • Inspect tire bead and bead flange for any damages, wear, dirt, or debris
  • Insure tire bead is fully seated before installing the bead lock ring
  • Apply each bead lock bolt with anti-seize and washers before installing
  • Start 4 bolts by hand 90 degrees apart finger tight (12, 3, 6, and 9 o’clock positions)
  • Continue to install the remaining bolts finger tight
  • Start torquing each bolt in a crisscross pattern to 15ft/lbs
  • Once all bolts are torqued to 15ft/lbs begin the next step
  • Re-torque each bolt at 30 ft/lbs one after another in a clockwise pattern until every bolt is re-torqued
• Disassembly Instructions:
  • Important – Remove tire valve and deflate tire completely before removing the beadlock bolts and beadlock ring
  • Begin loosening each bolt one by one in a crisscross pattern until they are broken loose
  • Repeat this process until all bolts are loose and completely removed from the wheel
  • Remove the beadlock ring
  • Dismount / remove the tire
• Maintenance & Warnings:
  • This product is not DOT approved and for off-road / race applications only
  • You take responsibility for all risk or damages caused to the car and environment. Any improper use or mis-installation of parts could result in bodily harm or damage.
  • Beadlock wheels do not carry any structural or finishing warranties due to their intended use(s)
  • Visually inspect bolts and beadlock rings after first use and every 100 miles after
  • Re-check beadlock bolt torque after first run and replace beadlock ring bolts every year or when changing tires (whichever comes first)
  • Inspect the beadlock ring during each tire change for bends or distortion. If either exists do not use the beadlock ring.

Notes

• Please verify the available widths for all diameters
• All BC Forged wheels are exclusively built to order, typically expected to arrive via express shipping in as little as 6-8 weeks

Warranty

• 3 year structural warranty
• 1 year finishing warranty
