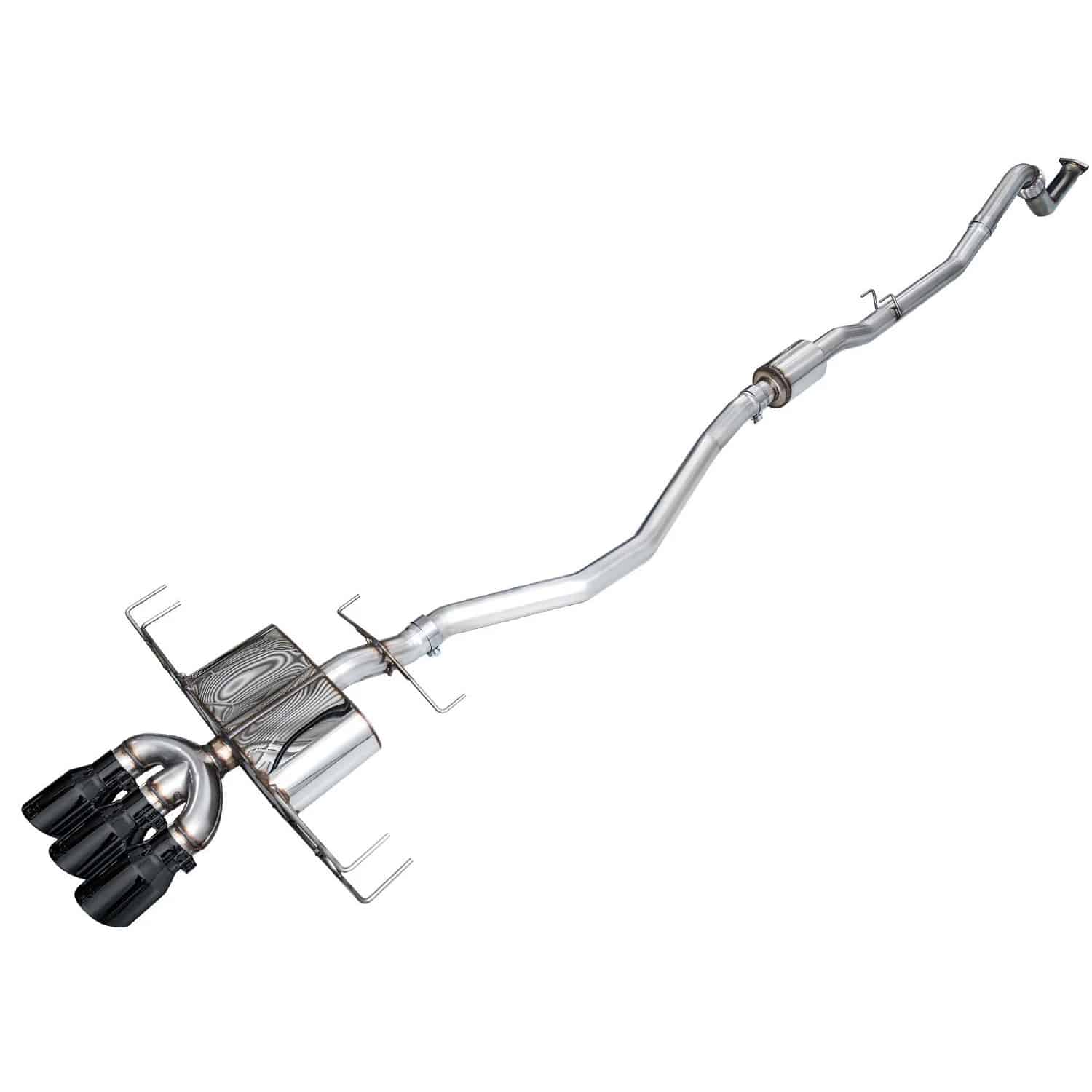

AWE Tuning Touring Edition Exhaust System w/ Diamond Black Tips for DE5 Acura Integra Type S

The K20 in the DE5 Integra Type S responds well to exhaust work, and the AWE Tuning Touring Edition Exhaust is built around exactly what daily-driven Type S owners need: real performance gains without the cabin drone that makes highway cruising miserable. This is a full 3-inch T304L stainless steel downpipe-back system, integrating a front pipe, a robust mid-pipe resonator, and AWE’s patented 180 Technology at the rear, all developed specifically for DE5 fitment. The resonator isn’t a conventional design; exhaust gasses from the K20 pass through strategically placed ports and into reflection chambers, where sound waves bounce off the walls. By controlling port size, port location, and chamber geometry, AWE controls exactly when those reflected waves re-enter the main exhaust flow, producing a wave that is precisely 180 degrees out of phase with drone-prone frequencies and canceling them before they reach the cabin. The main bore stays straight-through, so there’s no restriction, no power trade-off; just a deep, aggressive exhaust note at the tailpipe and silence where it counts at highway speeds. The system was developed and validated for use with both the factory downpipe and an aftermarket catted unit, so you’re not locked into a specific downpipe choice to get the intended sound character or drone suppression. Thick-walled T304L stainless steel runs the full length of the system, every component designed around the DE5 chassis specifically, and the Diamond Black tips finish it out at the rear valance.

Not Valved

• During development, AWE ran a full evaluation of the factory valve and its behavior across various driving conditions to understand why it was there in the first place. The conclusion; there’s no meaningful volume difference between modes that actually justifies the valve’s existence. It stays closed in comfort mode, though it still opens past a certain throttle threshold, and sport and sport+ mode holds it open; sport+ also adds ECU-driven burbles. On the stock setup, exhaust flow routes through the side mufflers with the valve closed to manage interior volume and drone-prone frequencies, then shifts through the center when it opens. AWE’s configurations replace all of that with a full straight-through exhaust path running through the 180 Technology resonator, which handles drone suppression without mode-dependent routing or gimmicks, at all times, regardless of what driving mode you’re in. Low-throttle driving with the Touring Edition is genuinely civil; it’s deeper than stock, but not the kind of setup that announces itself every time you back out of the driveway.

Front Pipes

• The system includes a full 3-inch front pipe with a unique flange and gasket design that maintains the full diameter from inlet to outlet. It’s integrated into the exhaust system rather than a standalone component, and it mates to both the factory downpipe and aftermarket downpipes. AWE exhausts are not designed to work with other aftermarket front pipes.

Exhaust Tips

• Every system ships with three 4.5-inch double-walled, slash-cut tips finished in Diamond Black, each stamped with the AWE logo. The tips are individually adjustable, so depth into the bumper can be set to preference.

180 Technology

• Not every frequency that comes out of an exhaust system is one you want in your ears. AWE’s patented 180 Technology targets the problematic ones specifically, canceling them out while leaving the performance and the exhaust note intact. As exhaust gases exit the engine and flow into a 180 Technology-equipped resonator, they pass through strategically placed ports and into reflection chambers. The sound waves carried by those gases bounce off the chamber walls, and AWE’s acoustic engineers adjust the size and placement of the ports and chambers based on the specific acoustics of each vehicle platform. That control over geometry determines exactly when the reflected waves re-enter the main exhaust flow; the timing produces a sound wave that is 180 degrees out of phase with the unwanted frequencies, canceling them at the source. It’s not a universal solution applied across platforms; each resonator is developed around the acoustics of a specific vehicle, which is a large part of why AWE exhausts carry the reputation they do across different applications. The straight-through design means no flow restriction, so the power is there, the drone isn’t, and the exhaust note is exactly what it should be.

Fitment Guarantee

• AWE has been in the business since 1991, starting as an installer of aftermarket parts; they understand firsthand what it means when an upgrade doesn’t fit. Every AWE brand product carries the AWE Fitment Guarantee, a commitment that their products are engineered for precise fitment and straightforward installation by a qualified installer, every time.

No CEL Guaranteed

• The AWE No Check Engine Light Guarantee covers against check engine lights appearing when the product is installed correctly and used as intended on vehicles with no additional modifications, outside of other AWE products designed to work alongside it. No workarounds, no warning lights.

Features

• Handcrafted from CNC mandrel-bent, U.S.-sourced .065” wall T304L stainless steel
• Full 3” catback
• Integrated 3” front pipe that accommodates a true 3” inch diameter from inlet to outlet
• Dyno-proven max gains of 4hp and 6lb-ft of torque at the wheels (stock downpipe)
• Patented drone-canceling 180 Technology
• Straight-forward install (no motor mount removal and generous clearances)
• Touring Edition weighs 46lbs
• Direct bolt-on for factory-like simplicity
• Stamped stainless steel trident tip merge with triple diamond black 4.5″ double-walled slash-cut tips
• Proudly designed, engineered, and manufactured at AWE in the USA
• Perfect fitment guaranteed
• AWE no CEL guarantee
• No tune required

What’s Included

• Touring Edition Catback Exhaust
• Gasket
• Dust cover for factory valve plug
• Three diamond black 4.5” slash-cut double-walled tips
• All necessary hardware for installation

Other Editions

• TOURING EDITION with chrome silver tips
• TRACK EDITION with chrome silver tips
• TRACK EDITION with diamond black tips

Applications

• Acura Integra Type S: DE5 | 2023-present | K20C8 2.0L I4 turbo

Notes

• No tune required
• AWE exhausts are not designed to mate with other aftermarket front pipes
• This product does not tamper with any emissions control or monitoring devices
• Installation instructions

Frequently Asked Questions

• Will this exhaust produce drone at highway speeds? No. The Touring Edition is built around AWE’s patented 180 Technology, which cancels drone-prone frequencies at the resonator before they reach the cabin. The straight-through design preserves full flow, so there’s no trade-off between sound quality and highway comfort.
• Does the AWE Touring Edition work with an aftermarket downpipe? Yes, but only with AWE’s aftermarket downpipes. AWE developed and validated the Touring Edition for use with both the factory downpipe and an aftermarket catted downpipe.
• Does installing this exhaust trigger a check engine light? No, provided the system is installed correctly and used as intended on a vehicle with no additional modifications outside of other compatible AWE products. AWE backs this with their No Check Engine Light Guarantee.
• What performance gains can I expect? AWE’s dyno testing on the DE5 with the stock downpipe shows gains of up to 4hp and 6lb-ft of torque at the wheels.
