How much power does the Single Mid-Pipe for F80 add?

Active Autowerke measured gains of 18 or more wheel horsepower and 30 or more lb-ft of torque on a Mustang dyno with the Single Mid-Pipe for F80 / F82 BMW M3 / M4 and its F8X rear exhaust section fitted together. The mid-pipe alone was not measured separately, so expect a smaller gain on its own.

Does it get rid of the weed eater sound?

Yes. Active Autowerke traced the raspy weed eater sound to the out-of-sync turbos meeting in the factory crossover and silencer. Its single-pipe design merges the banks in one large pipe instead, which Active Autowerke says removes much of that sound and leaves a deeper, more harmonious note.

Why is the pipe oval?

Active Autowerke wanted 3.5 inches of flow for performance but needed the mid-pipe to clear the road. An oval section carries that flow while keeping the pipe tucked up under the car, so ground clearance stays close to factory and the mid-pipe is not the lowest point.

Should I order the resonated version?

Choose the resonated version if you want the deeper single-pipe tone with less edge on long drives. The non-resonated version is the most open and aggressive. Both include the Active F-brace and use the same oval pipe, so the choice is purely about how loud you want the car.

Is the F-brace included?

Yes. The Active F-brace ships with every Single Mid-Pipe for the F80 and F82, so there is nothing extra to order for the installation. Active Autowerke also lists an exhaust dump version of this mid-pipe, which is not offered here.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

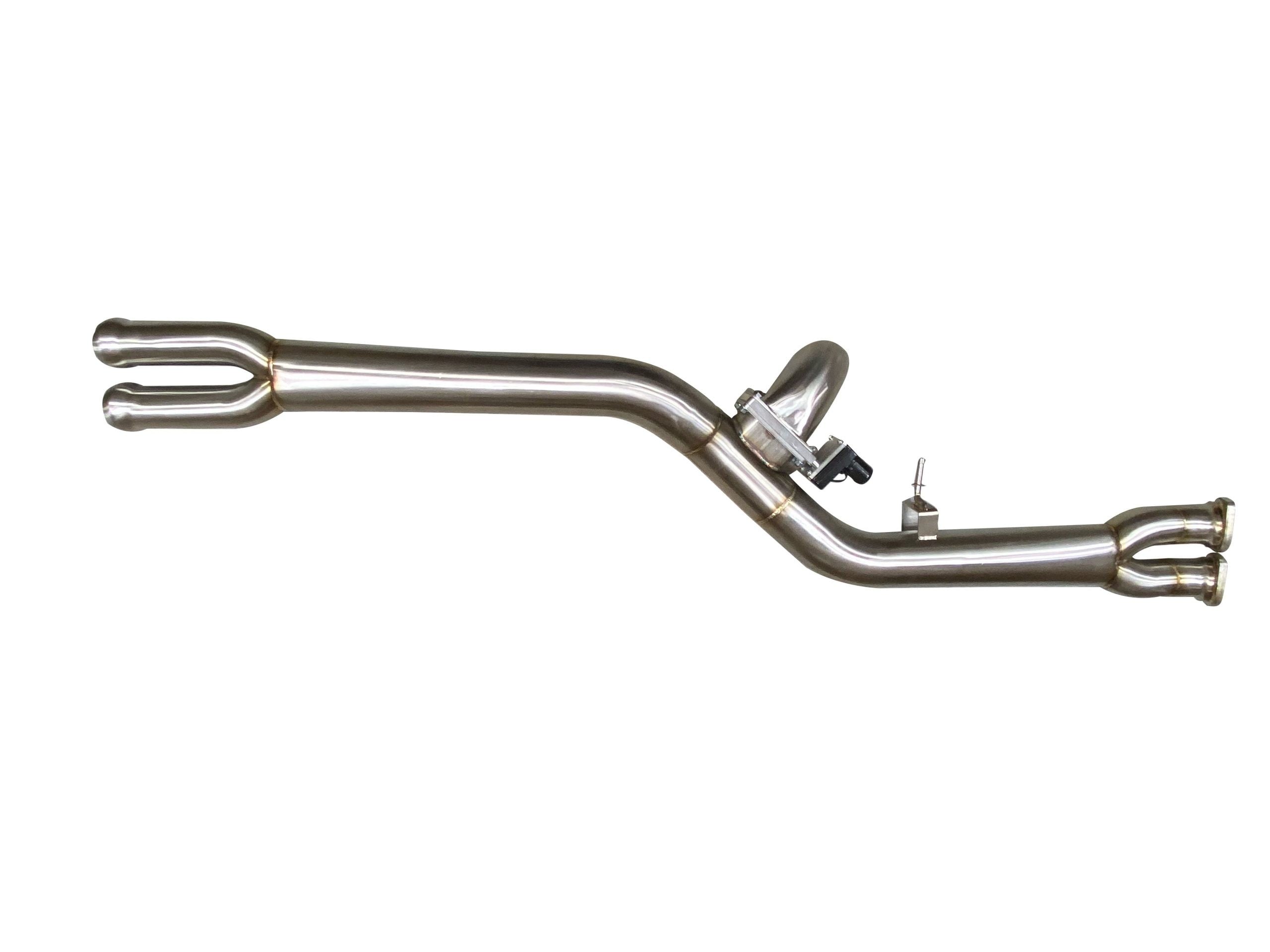

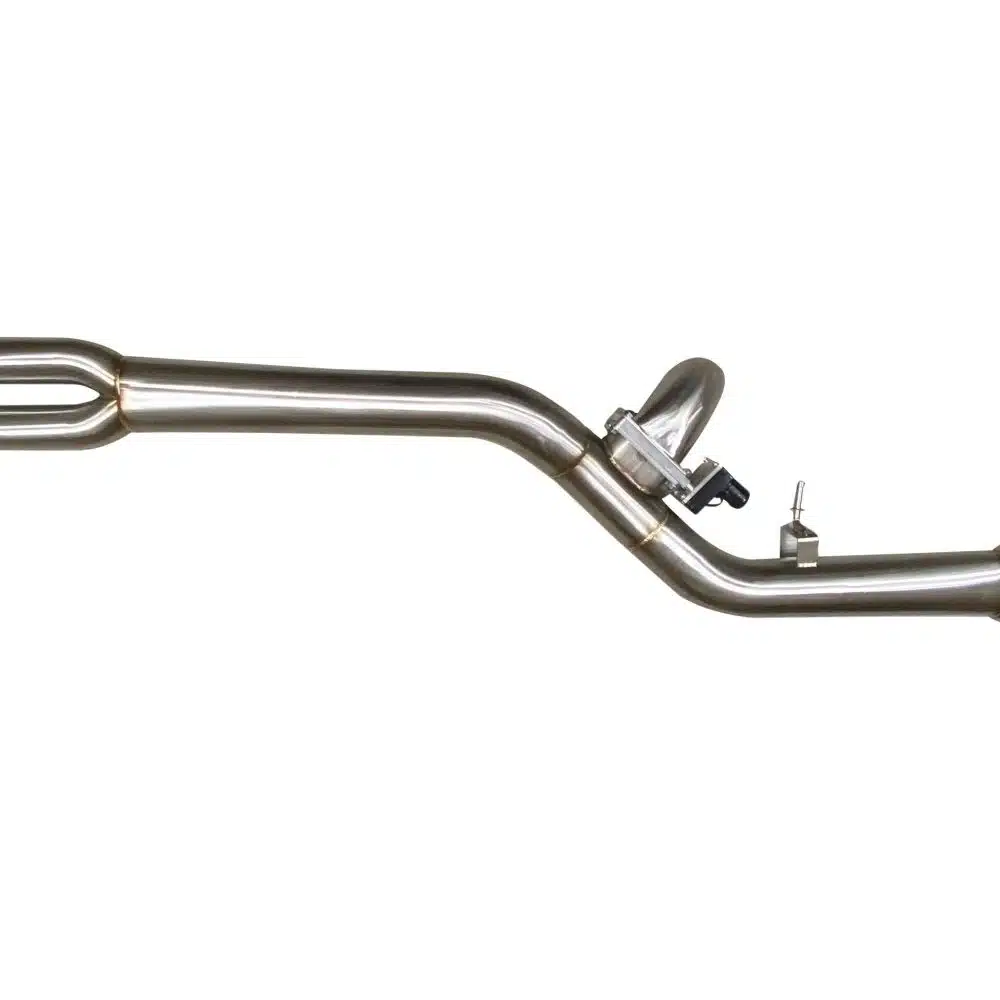

Active Autowerke Signature Single Mid-Pipe for F80 / F82 BMW M3 / M4

Active Autowerke’s Single Mid-Pipe for F80 / F82 BMW M3 / M4 is the part that started the company’s F8X exhaust program in 2014, built to cure the dueling three-cylinder sound the S55 makes through its factory mid-pipe. Active Autowerke traced the noise to the way the two turbos fall out of sync at the factory crossover and silencer, and answered with one large pipe that merges the banks and lets them settle. To fit 3.5 inch of flow under the car without losing ground clearance, the pipe is oval in section. On a Mustang dyno with its F8X rear section, Active Autowerke measured gains of 18 or more wheel horsepower and 30 or more lb-ft, so this is the mid-pipe for an owner who wants power as well as a deeper voice.

Design and Performance

BMW fitted the F8X with a middle silencer that has a small internal crossover. It helps with drone but restricts flow and amplifies the out-of-sync turbo sound. Active Autowerke replaced it with a single-pipe design that flows more freely, weighs less than the factory part and, by its account, spools the turbos sooner.

Features

Single oval pipe with 3.5 inch flow capacity
Deeper, throatier exhaust note
Lighter than the factory mid-pipe
Less back pressure for quicker turbo spool, per Active Autowerke
Non-resonated or resonated versions
Active F-brace included

What’s Included

Signature single mid-pipe
Active F-brace

Applications

BMW M3: F80 | 2015-2018 | 3.0L S55
BMW M4: F82 | 2015-2020 | 3.0L S55

Notes

The Single Mid-Pipe for F80 / F82 BMW M3 / M4 replaces the factory mid-pipe only; downpipes and the rear exhaust are sold separately
Gains were measured by Active Autowerke on a Mustang dyno with this mid-pipe and its F8X rear exhaust section fitted together
It pairs with the AFlow Catted Downpipes for F80 or GESI Catted Downpipes for F80 and the Maad Maxx Rear Exhaust for F80

Frequently Asked Questions

How much power does the Single Mid-Pipe for F80 add? Active Autowerke measured gains of 18 or more wheel horsepower and 30 or more lb-ft of torque on a Mustang dyno with the Single Mid-Pipe for F80 / F82 BMW M3 / M4 and its F8X rear exhaust section fitted together. The mid-pipe alone was not measured separately, so expect a smaller gain on its own.
Does it get rid of the weed eater sound? Yes. Active Autowerke traced the raspy weed eater sound to the out-of-sync turbos meeting in the factory crossover and silencer. Its single-pipe design merges the banks in one large pipe instead, which Active Autowerke says removes much of that sound and leaves a deeper, more harmonious note.
Why is the pipe oval? Active Autowerke wanted 3.5 inches of flow for performance but needed the mid-pipe to clear the road. An oval section carries that flow while keeping the pipe tucked up under the car, so ground clearance stays close to factory and the mid-pipe is not the lowest point.
Should I order the resonated version? Choose the resonated version if you want the deeper single-pipe tone with less edge on long drives. The non-resonated version is the most open and aggressive. Both include the Active F-brace and use the same oval pipe, so the choice is purely about how loud you want the car.
Is the F-brace included? Yes. The Active F-brace ships with every Single Mid-Pipe for the F80 and F82, so there is nothing extra to order for the installation. Active Autowerke also lists an exhaust dump version of this mid-pipe, which is not offered here.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
