Do the AFlow Catted Downpipes for G80 need a tune?

No. Active Autowerke states that the AFlow Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2 need no performance tune, and its catalyst efficiency guarantee applies on the factory software. A tune can make more of the freer flow, but it is optional.

Will these downpipes trigger a check engine light?

Active Autowerke guarantees that its AFlow converters will not set a catalyst efficiency code for the first two years of ownership, with full replacement if they do. The converters reach working efficiency within 9 seconds of a cold start, which keeps the downstream oxygen sensors satisfied.

What is the difference between the AFlow and GESI versions?

Both use the same 3 inch stainless downpipes. The AFlow version carries Active AFlow converters rated for up to 800 horsepower. The GESI version carries GESI G-Sport converters rated from 500 to 850 horsepower per cat, which Active Autowerke calls the most advanced GESI makes, at a higher price.

Are the downpipes difficult to install?

No cutting or welding is needed. Each downpipe bolts to its turbo with a cast stainless V-band and meets the factory mid-pipe at the stock 70mm diameter. The job is far easier with the car on a lift, and the factory parts can go back on later.

Which cars do they fit?

Active Autowerke lists the three S58 cars: the G80 BMW M3, the G82 M4 and the G87 M2. All three share the twin-turbo 3.0 liter S58 and the same downpipe layout. The F97 X3 M and F98 X4 M take their own Active Autowerke downpipes.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

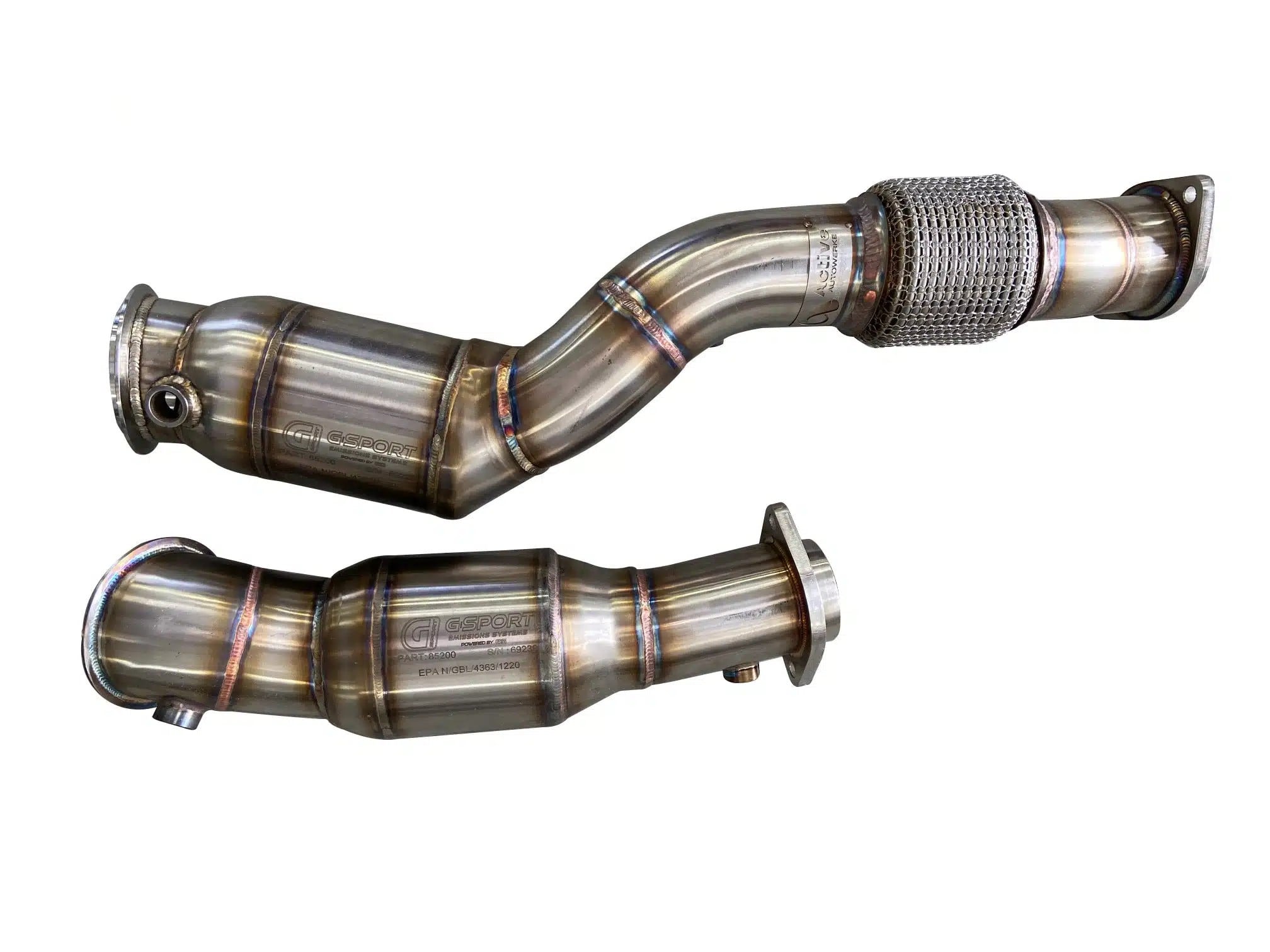

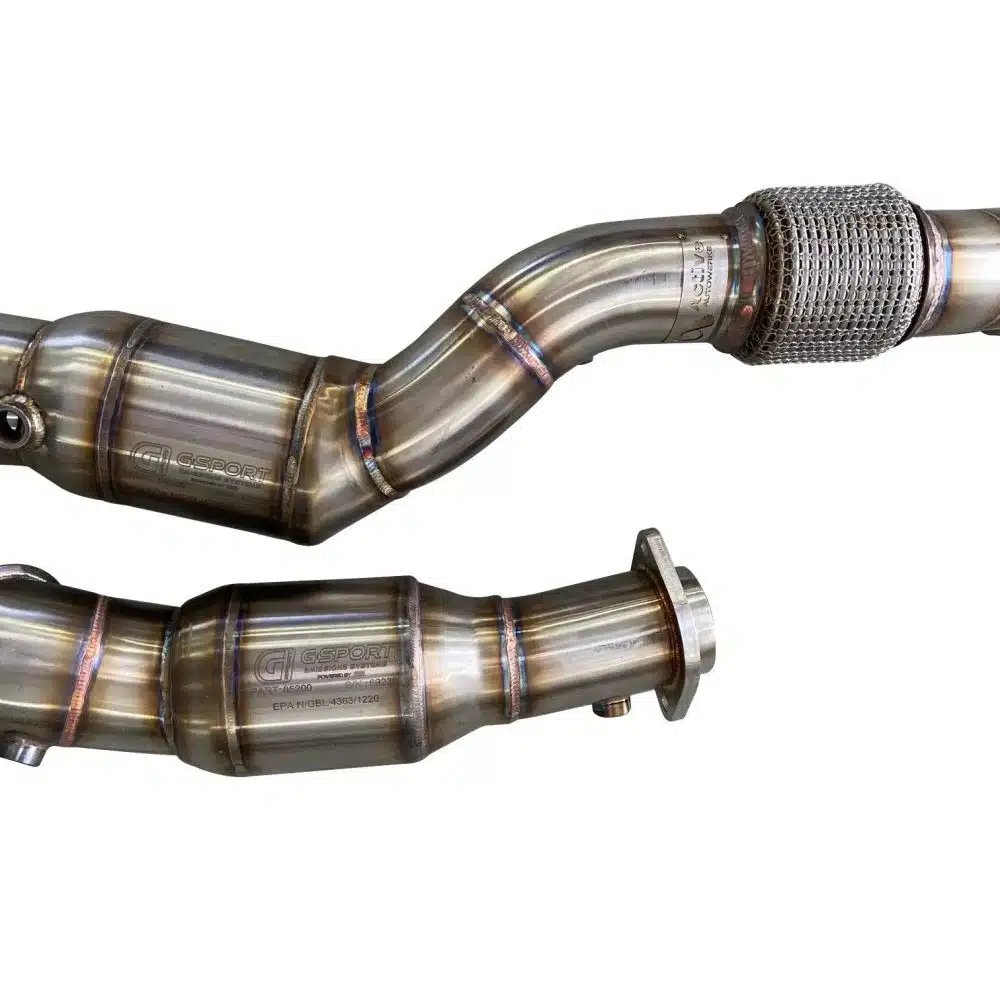

Active Autowerke AFlow Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2

Active Autowerke’s AFlow Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2 replace the factory S58 downpipes with 3 inch stainless runs that keep a catalytic converter in each bank, so the twin turbos breathe against less back pressure while the car keeps its emissions hardware. They are TIG welded in Miami and never step below the factory 70mm outlet. For an owner who wants quicker spool and a fuller S58 voice without reflashing the engine computer, this is the measured first step; a heavily tuned car is better served by the GESI Catted Downpipes, rated from 500 to 850 horsepower per cat.

Design and Performance

Active Autowerke chose a large-bore pipe with as few bends as possible, because an S58 turbo spools sooner when spent gas leaves the turbine housing with less resistance. A cast stainless V-band locates each pipe at the turbo, flex joints take up engine movement, and the outlets meet the factory mid-pipe at stock diameter, so nothing downstream has to change.

Features

Pair of Active AFlow high flow converters on a 304 stainless metallic substrate brazed to the mantle
EPA registered and OBD2 compliant converters
Two-year guarantee against catalyst efficiency check engine lights, with full replacement
Cast stainless upper V-band flange and stainless flex joints
TIG welded 304 stainless steel construction
Bolt-on installation with no cutting or welding
Made in Miami, Florida

Specifications

Piping diameter: 3 in (76mm)
Wall thickness: 1.5mm
Outlet diameter: 70mm
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Rated output: Up to 800 hp

Applications

BMW M2: G87 | 2023-present | 3.0L S58
BMW M3: G80 | 2021-present | 3.0L S58
BMW M4: G82 | 2021-present | 3.0L S58

Notes

The AFlow Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2 meet the factory mid-pipe or the Active Autowerke Equal Length Mid-Pipe for G80, Single Mid-Pipe for G80, Equal Length Mid-Pipe for G87 and Single Mid-Pipe for G87
Warranty is 5 years or 50,000 miles on the shells and 2 years or 25,000 miles on the catalytic cores, to the original purchaser, and is void on a car tuned for more burble than stock
Also offered in an exhaust bundle for the G80 / G82 and for the G87 M2

Frequently Asked Questions

Do the AFlow Catted Downpipes for G80 need a tune? No. Active Autowerke states that the AFlow Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2 need no performance tune, and its catalyst efficiency guarantee applies on the factory software. A tune can make more of the freer flow, but it is optional.
Will these downpipes trigger a check engine light? Active Autowerke guarantees that its AFlow converters will not set a catalyst efficiency code for the first two years of ownership, with full replacement if they do. The converters reach working efficiency within 9 seconds of a cold start, which keeps the downstream oxygen sensors satisfied.
What is the difference between the AFlow and GESI versions? Both use the same 3 inch stainless downpipes. The AFlow version carries Active AFlow converters rated for up to 800 horsepower. The GESI version carries GESI G-Sport converters rated from 500 to 850 horsepower per cat, which Active Autowerke calls the most advanced GESI makes, at a higher price.
Are the downpipes difficult to install? No cutting or welding is needed. Each downpipe bolts to its turbo with a cast stainless V-band and meets the factory mid-pipe at the stock 70mm diameter. The job is far easier with the car on a lift, and the factory parts can go back on later.
Which cars do they fit? Active Autowerke lists the three S58 cars: the G80 BMW M3, the G82 M4 and the G87 M2. All three share the twin-turbo 3.0 liter S58 and the same downpipe layout. The F97 X3 M and F98 X4 M take their own Active Autowerke downpipes.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
