Who should choose the GESI Catted Downpipes for G80 over the AFlow version?

Owners building serious power. The GESI Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2 carry converters rated from 500 to 850 horsepower per cat, against 800 horsepower for the AFlow set. The pipework is the same, so a car on factory software gains little from the higher price.

Do I need a tune after fitting catted downpipes to an S58?

No. Active Autowerke sells this set as needing no performance tune, and the catalysts keep the downstream oxygen sensors in range on factory software. A tune added later makes use of the freer flow, and that is where the higher GESI rating starts to matter.

Will the GESI converters set a check engine light?

No. Active Autowerke states that these GESI converters will not set a catalyst efficiency fault. The 400 cell substrate reaches working efficiency within 9 seconds of startup, and the converters are EPA registered and OBD2 compliant, so the S58 monitors report as they do on the factory parts.

How difficult is the installation on a G80 or G87?

It is a bolt-on job with no cutting or welding. Each pipe locates at its turbo through a cast stainless V-band, a flex section takes up engine movement, and the 70mm outlet meets the factory mid-pipe directly. A lift makes the work far easier, and nothing on the car is modified.

What do the downpipes do for the sound of the S58?

Active Autowerke developed them as one part of a three-piece S58 exhaust with a mid-pipe and a valved axle-back, because it found the stock G80 note muffled. The downpipes are aimed mainly at quicker spool; the larger change in sound comes once the mid-pipe and axle-back are fitted too.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Active Autowerke GESI Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2

Active Autowerke’s GESI Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2 pair the Miami shop’s 3 inch S58 downpipes with GESI G-Sport UHO-series converters, rated for 500 to 850 horsepower per cat. That headroom is the reason to buy them. An S58 built far beyond factory output needs converters that will not become the restriction, and Active Autowerke calls these the most advanced catalysts GESI makes. On a stock or lightly modified car, the AFlow Catted Downpipes use identical pipework for less.

Construction

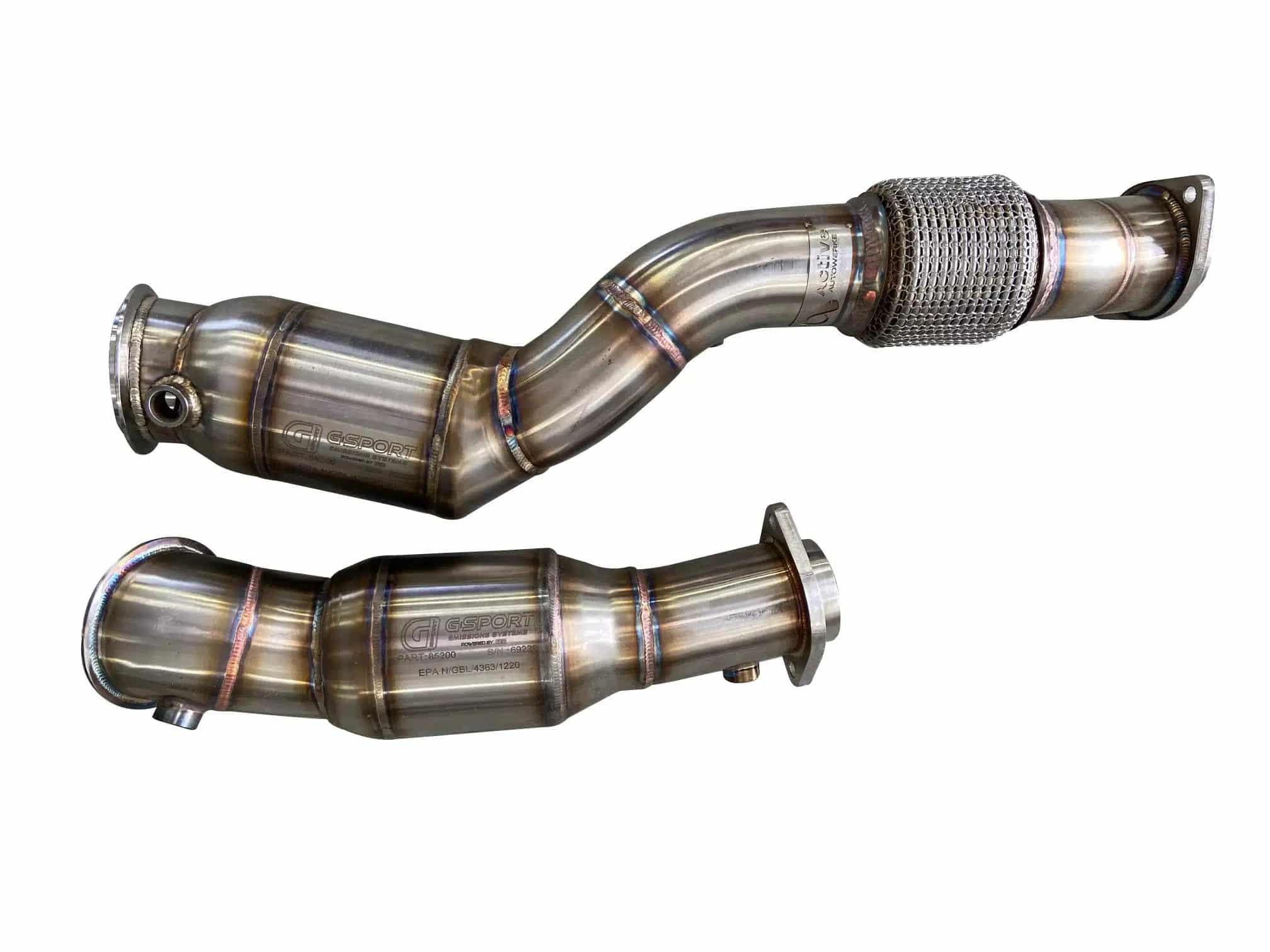

The pipe was routed with the fewest bends the tunnel allows, so the S58 turbines meet little resistance while they spool. Cast stainless V-band flanges seal each pipe to its turbo, braided flex sections absorb engine rock, and each outlet bolts to the factory mid-pipe at stock diameter with no adapter.

Features

Pair of GESI G-Sport UHO-series high flow converters
EPA registered and OBD2 compliant
304 stainless substrate furnace brazed to the mantle, rated to 1500F
GESI proprietary precious metal loading
Cast stainless upper V-band flanges and stainless flex joints
TIG welded 304 stainless steel, built in Miami, Florida
Bolt-on installation with no cutting, welding or tune required

Specifications

Piping diameter: 3 in (76mm)
Wall thickness: 1.5mm
Outlet diameter: 70mm
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Rated output: 500 to 850 hp per converter

Applications

BMW M2: G87 | 2023-present | 3.0L S58
BMW M3: G80 | 2021-present | 3.0L S58
BMW M4: G82 | 2021-present | 3.0L S58

Notes

The GESI Catted Downpipes for G80 bolt to the stock mid-pipe or to the Equal Length Mid-Pipe for G80, Single Mid-Pipe for G80, Equal Length Mid-Pipe for G87 or Single Mid-Pipe for G87
The system is completed by the Valved Axle-Back Exhaust for G80 / G82 or for the G87, also sold as the G80 / G82 exhaust bundle and G87 exhaust bundle
Shells and tube ends carry a 5 year or 50,000 mile warranty and the catalytic cores 2 years or 25,000 miles, original purchaser only. The core warranty is void on any car tuned for more burble than stock.

Frequently Asked Questions

Who should choose the GESI Catted Downpipes for G80 over the AFlow version? Owners building serious power. The GESI Catted Downpipes for G80 / G82 BMW M3 / M4 and G87 M2 carry converters rated from 500 to 850 horsepower per cat, against 800 horsepower for the AFlow set. The pipework is the same, so a car on factory software gains little from the higher price.
Do I need a tune after fitting catted downpipes to an S58? No. Active Autowerke sells this set as needing no performance tune, and the catalysts keep the downstream oxygen sensors in range on factory software. A tune added later makes use of the freer flow, and that is where the higher GESI rating starts to matter.
Will the GESI converters set a check engine light? No. Active Autowerke states that these GESI converters will not set a catalyst efficiency fault. The 400 cell substrate reaches working efficiency within 9 seconds of startup, and the converters are EPA registered and OBD2 compliant, so the S58 monitors report as they do on the factory parts.
How difficult is the installation on a G80 or G87? It is a bolt-on job with no cutting or welding. Each pipe locates at its turbo through a cast stainless V-band, a flex section takes up engine movement, and the 70mm outlet meets the factory mid-pipe directly. A lift makes the work far easier, and nothing on the car is modified.
What do the downpipes do for the sound of the S58? Active Autowerke developed them as one part of a three-piece S58 exhaust with a mid-pipe and a valved axle-back, because it found the stock G80 note muffled. The downpipes are aimed mainly at quicker spool; the larger change in sound comes once the mid-pipe and axle-back are fitted too.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
