Which hats do the GiroDisc Rear Replacement Rings for E9X attach to?

The Rear Replacement Rings for E9X attach to the aluminum hats of the GiroDisc A2-114 rear rotors for the BMW 335i. They are not made for factory BMW discs, other aftermarket hats or factory two-piece rotors, so the complete GiroDisc rear rotors need to be on the car first.

What size are the E9X rear rings?

GiroDisc lists the rear ring outer diameter as 335mm. That matches the original GiroDisc rear assembly for the 335i, so nothing about the caliper position, brake balance or ABS behavior changes when fresh rings are fitted to the existing hats.

Is any special tool needed to swap rear rings?

No. The job uses ordinary hand tools and a torque wrench that reads in inch pounds. The worn ring comes off the hat, the new ring goes on with the supplied hardware, and the cap screws are set no higher than 60 in-lb so the ring keeps its float.

How can I tell the rear rings need replacing?

Measure the ring thickness and compare it with the minimum figure marked on the hat and the ring edge. Replace the pair once either ring reaches that number, or immediately if a crack runs to the outer edge of the ring.

Do the replacement rings come as a single piece or a pair?

They come as a pair, one left and one right ring, together with new mounting hardware for both. GiroDisc does not sell single rear rings for this application, which keeps wear and braking force even across the axle and makes the swap a single job.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

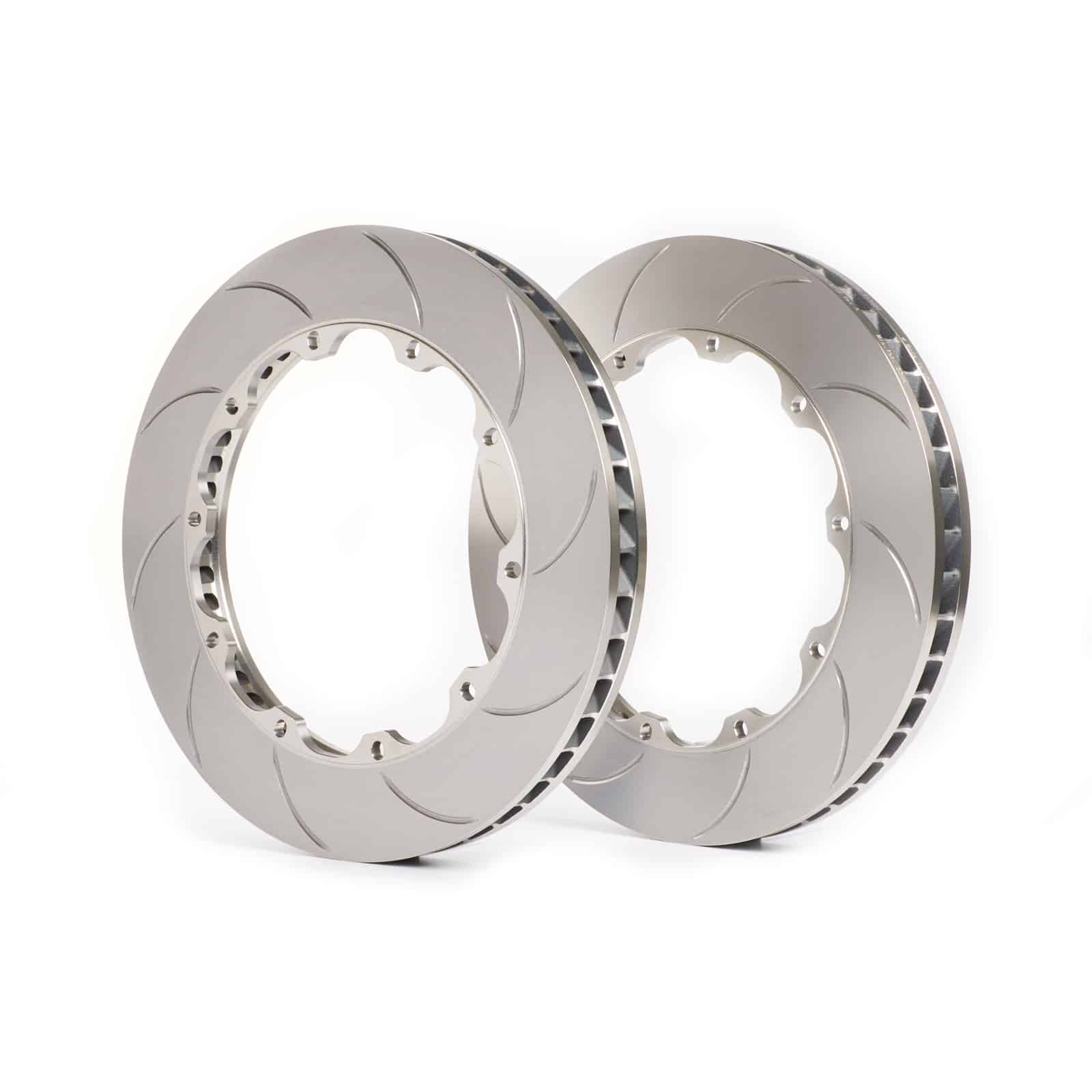

GiroDisc Rear Replacement Rings for E9X BMW 335i

GiroDisc’s Rear Replacement Rings for E9X BMW 335i are the service part for the A1-114 and A2-114 four-corner setup, covering the rear axle. Each 335mm ring is cast in the USA from GiroDisc’s high-carbon iron and finished in-house in Bellingham, Washington, then shipped in pairs with fresh hardware. Rear rings on a 335i usually outlast the fronts, but when the time comes this keeps the original aluminum hats in service and avoids paying for complete rotors again.

Fitment and Installation

Each new ring bolts onto the GiroDisc rear hat that is already on the car, and the worn iron is set aside. The rings are made for GiroDisc hats and nothing else, so other brands and factory two-piece hats are not compatible. Left and right rings are labeled so the curved vanes turn in the direction that pumps air outward, and the cap screws stay at or under 60 in-lb (7 Nm).

Features

335mm outer diameter matched to the GiroDisc E9X rear hat
Proprietary high-carbon iron, poured in the USA
Finish machining done in-house by GiroDisc
Left and right handed vane pattern for correct airflow
Sold as a pair with new mounting hardware

What’s Included

Rear replacement rings (L/R)
Replacement mounting hardware

Applications

BMW 335i: E9X with GiroDisc A2-114 rear rotors

Notes

The Rear Replacement Rings for E9X bolt only to the hats of the GiroDisc E9X 335i rear rotors
Hats are not included and are carried over from the existing rotors
Front axle service uses the GiroDisc E9X 335i front replacement rings
Stock photography may not depict the actual product

Frequently Asked Questions

Which hats do the GiroDisc Rear Replacement Rings for E9X attach to? The Rear Replacement Rings for E9X attach to the aluminum hats of the GiroDisc A2-114 rear rotors for the BMW 335i. They are not made for factory BMW discs, other aftermarket hats or factory two-piece rotors, so the complete GiroDisc rear rotors need to be on the car first.
What size are the E9X rear rings? GiroDisc lists the rear ring outer diameter as 335mm. That matches the original GiroDisc rear assembly for the 335i, so nothing about the caliper position, brake balance or ABS behavior changes when fresh rings are fitted to the existing hats.
Is any special tool needed to swap rear rings? No. The job uses ordinary hand tools and a torque wrench that reads in inch pounds. The worn ring comes off the hat, the new ring goes on with the supplied hardware, and the cap screws are set no higher than 60 in-lb so the ring keeps its float.
How can I tell the rear rings need replacing? Measure the ring thickness and compare it with the minimum figure marked on the hat and the ring edge. Replace the pair once either ring reaches that number, or immediately if a crack runs to the outer edge of the ring.
Do the replacement rings come as a single piece or a pair? They come as a pair, one left and one right ring, together with new mounting hardware for both. GiroDisc does not sell single rear rings for this application, which keeps wear and braking force even across the axle and makes the swap a single job.

About GiroDisc

GiroDisc designs, manufactures, and sells 2-piece, fully floating brake rotors for a wide range of performance vehicles. Every major component, including the hats, rotor rings, and drive pins, is manufactured in-house at their facility in Bellingham, Washington, from domestically sourced materials. GiroDisc rotors use a proprietary high-carbon iron ring formulated for superior metallurgy and thermal performance, paired with reusable machined-aluminum hats that reduce the long-term cost of maintaining a high-performance brake system. The 2-piece floating design sheds unsprung and rotating mass while remaining street-friendly, delivering race-proven braking for track and street use alike.
