Does the UCW Rear Wing Kit for E92 require drilling the trunk?

Yes. The UCW Rear Wing Kit for E92 mounts through the factory trunk lid, and Verus Engineering includes a drill template so the holes land where the CNC cut steel trunk mounts need them. The billet aluminum uprights then bolt to those mounts with stainless hardware, and Verus supplies an install manual for the E92 M3.

How much downforce does the E92 UCW wing make?

Verus Engineering puts the E92 UCW past 500 lb, a rating for both the downforce it can make and the load it can bear. How much of that a driver uses depends on road speed and on the angle of attack, set anywhere from 0 to 15 degrees to suit the front aero.

Do I need a front splitter with the UCW wing on my E92?

Yes, to keep the car balanced. Verus Engineering built the UCW for owners who need a large increase in rear downforce to offset a significant front aero package, and its E92 front splitter was sized to counteract this wing. Adding rear load alone shifts the balance rearward.

What are the E92 wing parts made from?

The element is autoclave-cured 2x2 twill pre-preg carbon with an automotive high-gloss clear finish and carbon endplates. Verus Engineering machines the uprights from billet aluminum, makes the trunk mounts from CNC cut and bent sheet steel, and uses stainless hardware throughout. Each wing is assembled to order.

Can I fit vented endplates to the E92 wing?

Yes. Verus Engineering sells Vented Carbon Fiber Endplates that bolt to every UCW wing element using the same hardware as the standard endplates. Verus developed them in CFD and reports a 1.2 percent gain in lift-to-drag ratio at 10 degrees angle of attack, measured on a generic swan neck mount in free stream airflow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering UCW Rear Wing Kit for E92 BMW M3

Verus Engineering’s UCW Rear Wing Kit for E92 BMW M3 adds the rear downforce an E92 needs once the nose carries a real splitter, on billet aluminum uprights that bolt to the factory trunk through CNC cut and bent steel mounts. Verus builds it to make and carry more than 500 lb of downforce, and the 2×2 twill pre-preg carbon element adjusts from 0 to 15 degrees to balance a range of front setups. Verus aims it at owners who need a large step in rear grip; bought on its own for a stock-nosed car, it adds more rear load than the front can match.

Design

Verus optimized the airfoil with the ANSYS adjoint solver for a better lift-to-drag ratio and reports close agreement between its CFD and real-world testing. Scan data of the E92 gave the mounts a near OEM fit, and a drill template locates the holes in the trunk lid.

Features

Element angle sets anywhere from 0 to 15 degrees
Machined billet aluminum uprights
CNC cut and bent steel trunk mounts
Carbon endplates and stainless hardware throughout

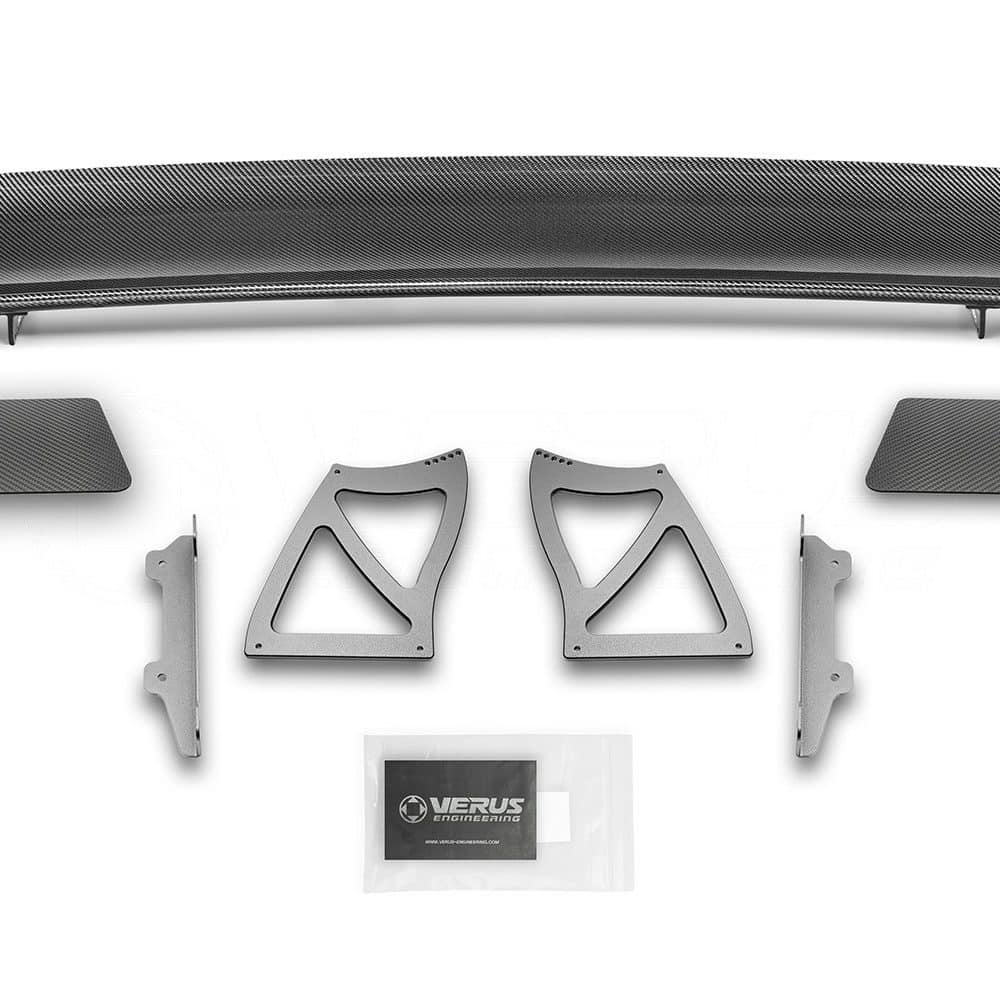

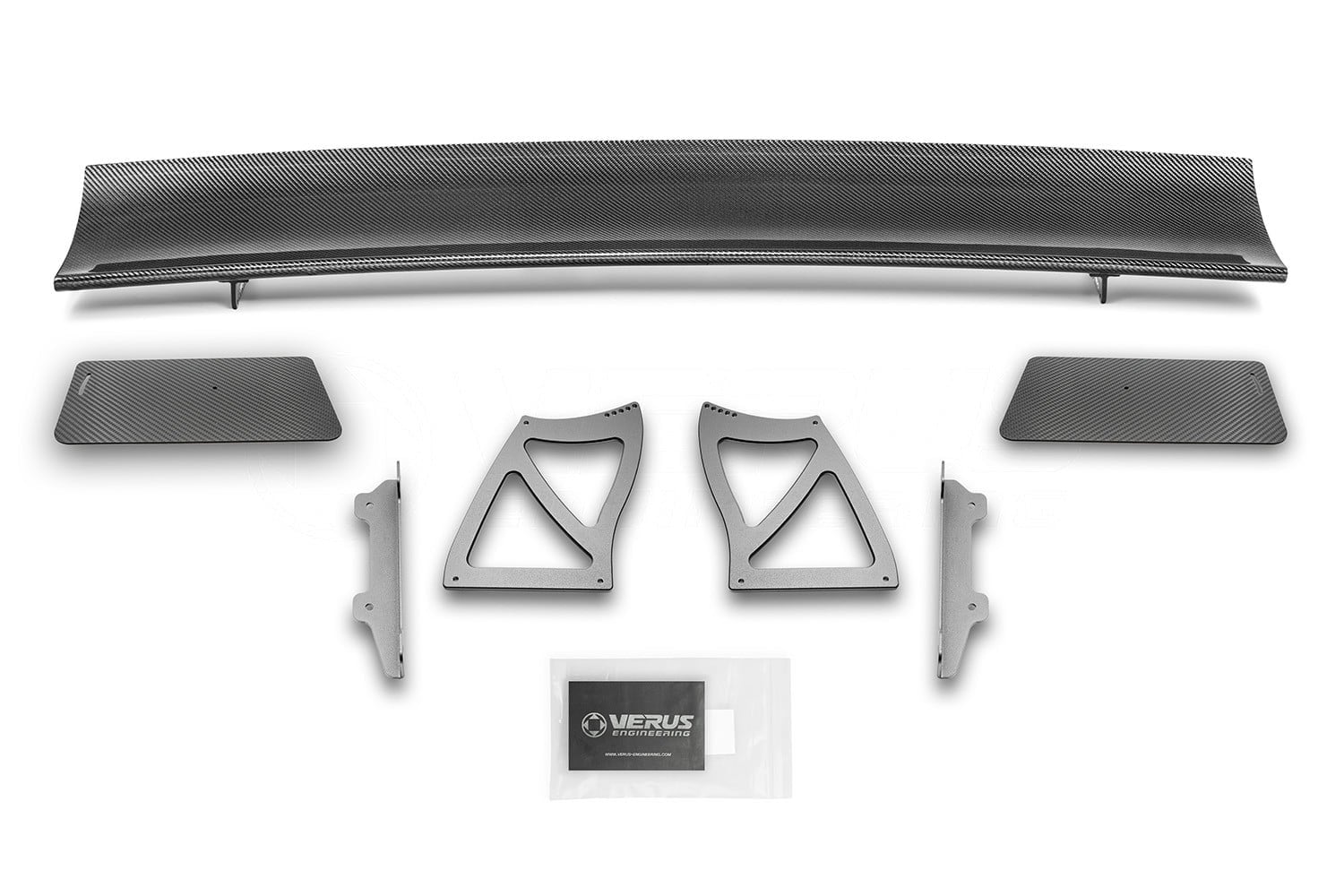

What’s Included

UCW rear wing element assembly
Machined aluminum rear wing uprights (x2)
Sheet steel rear wing trunk mounts (x2)
Carbon rear wing endplates (x2)
Drill template
Hardware kit with every part needed for the install

Applications

BMW M3: E92 | 2008-2013

Notes

The factory trunk lid must be drilled, using the template Verus includes, and an install manual covers the rest
The UCW Rear Wing Kit for E92 is made to order, and Verus targets shipment within 5 business days of the order unless it specifies otherwise
Balance it at the front with the Verus Engineering Front Splitter Kit for E92 BMW M3
The Vented Carbon Fiber Endplates bolt to any UCW element
Verus lists the wing for the E92 M3 coupe only; ask Bulletproof Automotive about any other E9x body style before ordering
See every Verus Engineering part for the E92 BMW M3
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the UCW Rear Wing Kit for E92 require drilling the trunk? Yes. The UCW Rear Wing Kit for E92 mounts through the factory trunk lid, and Verus Engineering includes a drill template so the holes land where the CNC cut steel trunk mounts need them. The billet aluminum uprights then bolt to those mounts with stainless hardware, and Verus supplies an install manual for the E92 M3.
How much downforce does the E92 UCW wing make? Verus Engineering puts the E92 UCW past 500 lb, a rating for both the downforce it can make and the load it can bear. How much of that a driver uses depends on road speed and on the angle of attack, set anywhere from 0 to 15 degrees to suit the front aero.
Do I need a front splitter with the UCW wing on my E92? Yes, to keep the car balanced. Verus Engineering built the UCW for owners who need a large increase in rear downforce to offset a significant front aero package, and its E92 front splitter was sized to counteract this wing. Adding rear load alone shifts the balance rearward.
What are the E92 wing parts made from? The element is autoclave-cured 2×2 twill pre-preg carbon with an automotive high-gloss clear finish and carbon endplates. Verus Engineering machines the uprights from billet aluminum, makes the trunk mounts from CNC cut and bent sheet steel, and uses stainless hardware throughout. Each wing is assembled to order.
Can I fit vented endplates to the E92 wing? Yes. Verus Engineering sells Vented Carbon Fiber Endplates that bolt to every UCW wing element using the same hardware as the standard endplates. Verus developed them in CFD and reports a 1.2 percent gain in lift-to-drag ratio at 10 degrees angle of attack, measured on a generic swan neck mount in free stream airflow.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
