Does the UCW Rear Wing Kit for FK8 bolt to the factory trunk?

Yes. Verus Engineering designed the UCW Rear Wing Kit for FK8 to bolt onto the factory trunk of the 2017 to 2021 Civic Type R like a stock part, using machined billet aluminum trunk mounts and uprights. Verus publishes an install manual and an install video, and the hardware kit holds every fastener the job needs.

Aluminum or carbon fiber endplates, which should I choose?

Both versions share the pre-preg carbon element, billet uprights and trunk mounts. The standard kit ships with aluminum endplates, while the carbon fiber option matches them to the gloss carbon wing for a higher price. Verus Engineering quotes no aerodynamic difference, so the choice comes down to looks and budget.

What load is the FK8 UCW wing rated for?

The FK8 UCW assembly is rated by Verus Engineering to make and survive over 500 lb of downforce. The load on track depends on speed and on the angle of attack, set between 0 and 15 degrees, and Verus gives no FK8 figure at a stated speed, so read 500 lb as what the structure is built to carry.

Should a front splitter go on before this wing?

Yes. Verus Engineering aimed the UCW wing at drivers who need a large step in rear downforce to offset a strong front aero package, and fitting it alone shifts the balance rearward. Verus suggests its FK8 front splitter for any Type R wearing a larger rear wing.

Which materials go into the FK8 wing?

Carbon fiber in a 2x2 twill pre-preg weave forms the element, which Verus Engineering cures in an autoclave before a high-gloss automotive clear goes on. It rides on machined billet aluminum uprights and trunk mounts held with stainless hardware, and Verus Engineering derived its airfoil from the larger V1X element.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering UCW Rear Wing Kit for FK8 Honda Civic Type R

Verus Engineering’s UCW Rear Wing Kit for FK8 Honda Civic Type R is meant for the 2017 to 2021 Type R that already carries serious front aero and now needs a matching step in rear downforce. A swan neck carbon element hangs from machined billet aluminum uprights that bolt to the factory trunk through billet mounts. Verus rates the assembly to generate and withstand more than 500 lb of downforce, which is a lot to ask of a Civic still wearing its stock nose; fit a splitter first, then the wing.

Design and Performance

The airfoil began as the Verus V1X element, reshaped with the ANSYS adjoint solver for the room available on the Civic, and CFD confirmed it sits in useful airflow once mounted. It sets anywhere from 0 to 15 degrees of attack to suit the front setup, and Verus says its CFD predictions and on-track data correlate closely.

Features

Swan neck mounting on machined billet aluminum uprights
Billet aluminum trunk mounts that bolt to the factory trunk
Airfoil derived from the larger Verus V1X element
Choice of aluminum or carbon fiber endplates
Stainless fasteners at every mounting point

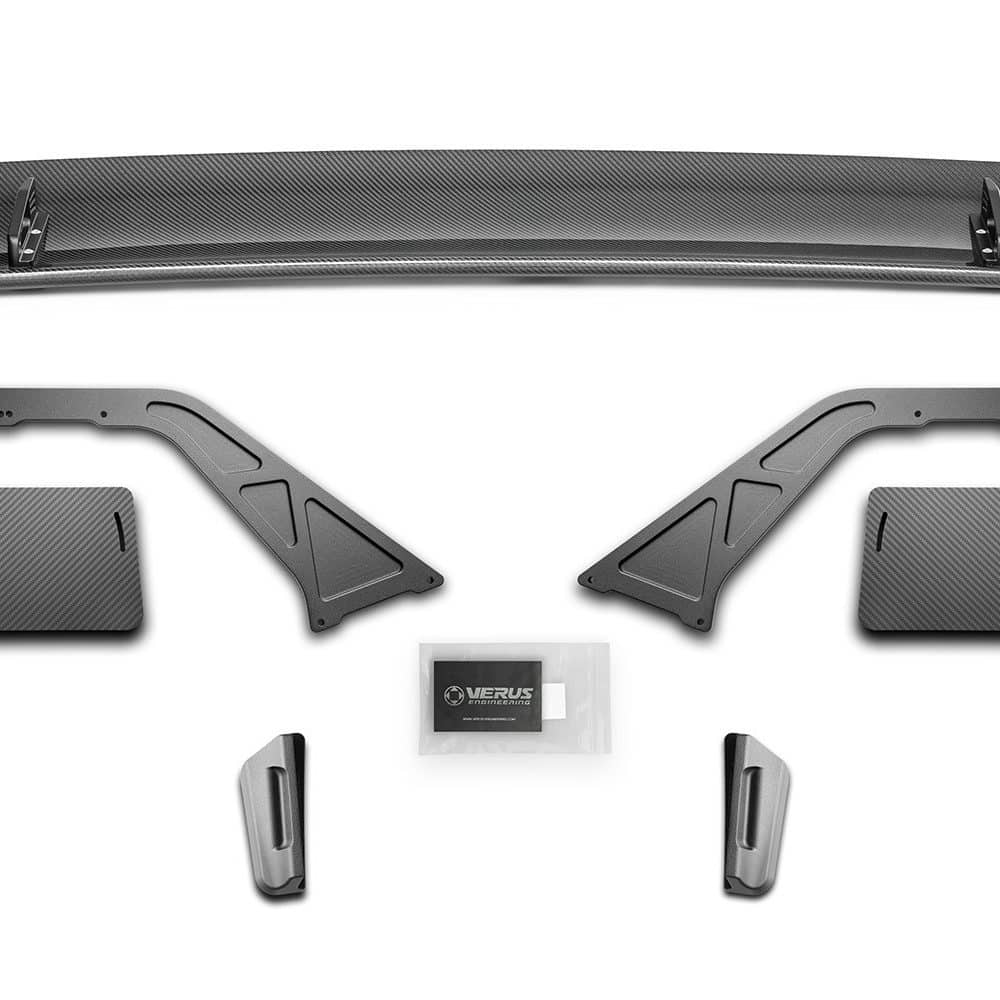

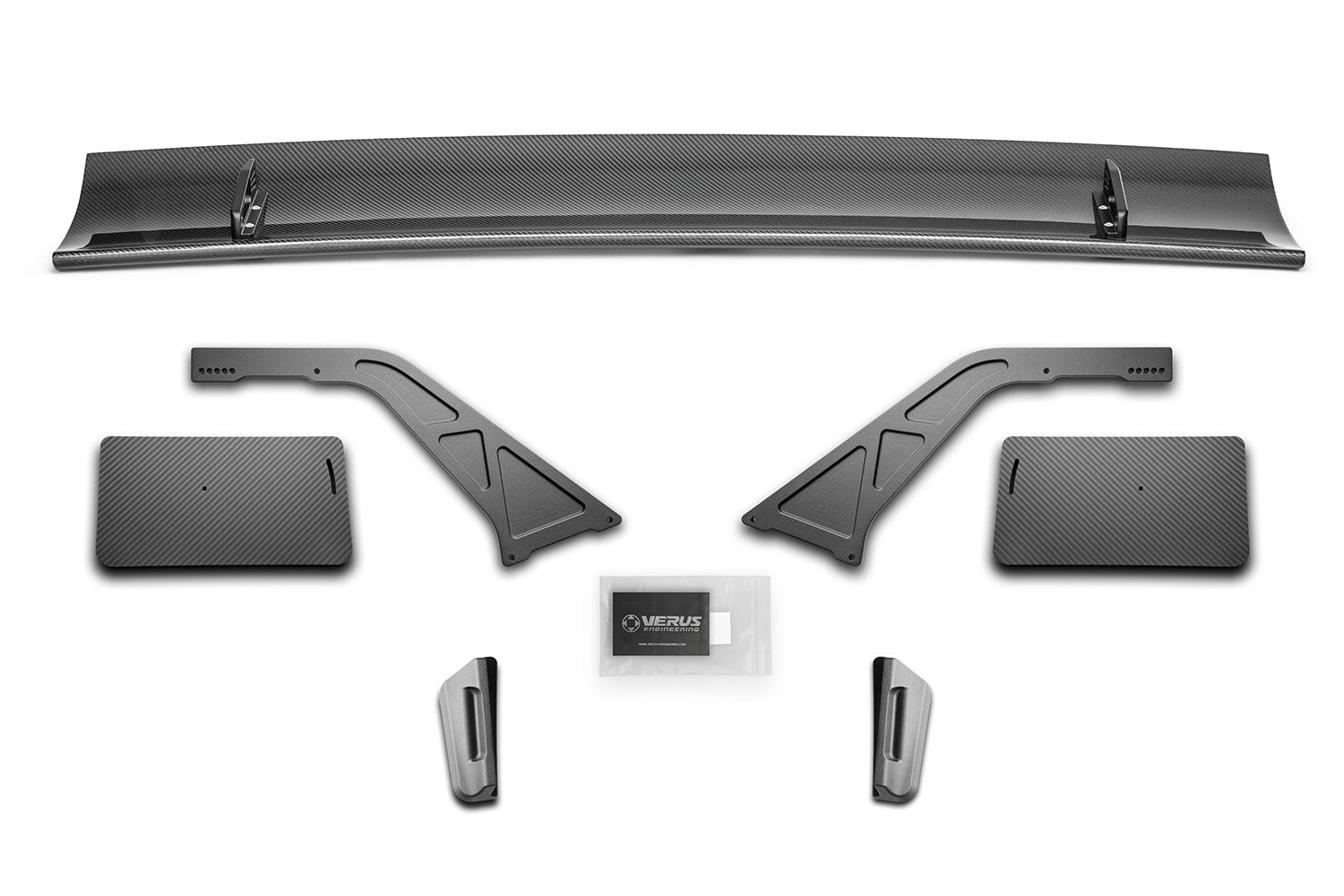

What’s Included

UCW swan neck rear wing element assembly
Machined aluminum uprights (x2)
Machined aluminum trunk mounts (x2)
Endplates (x2), aluminum as standard or carbon fiber when selected
Complete hardware kit

Applications

Honda Civic Type R: FK8 | 2017-2021

Notes

Lead time: Verus assembles the UCW Rear Wing Kit for FK8 after the order arrives and quotes dispatch inside 5 business days, unless it gives a different date
Verus backs the FK8 wing with an install manual, an install video and an informative packet
The wing forms the rear of the Verus Ventus 3 kit for the Type R; Verus suggests the Verus Engineering Front Splitter Kit for FK8 Honda Civic Type R for any car carrying a larger rear wing
See every Verus Engineering part for the FK8 Honda Civic Type R
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the UCW Rear Wing Kit for FK8 bolt to the factory trunk? Yes. Verus Engineering designed the UCW Rear Wing Kit for FK8 to bolt onto the factory trunk of the 2017 to 2021 Civic Type R like a stock part, using machined billet aluminum trunk mounts and uprights. Verus publishes an install manual and an install video, and the hardware kit holds every fastener the job needs.
Aluminum or carbon fiber endplates, which should I choose? Both versions share the pre-preg carbon element, billet uprights and trunk mounts. The standard kit ships with aluminum endplates, while the carbon fiber option matches them to the gloss carbon wing for a higher price. Verus Engineering quotes no aerodynamic difference, so the choice comes down to looks and budget.
What load is the FK8 UCW wing rated for? The FK8 UCW assembly is rated by Verus Engineering to make and survive over 500 lb of downforce. The load on track depends on speed and on the angle of attack, set between 0 and 15 degrees, and Verus gives no FK8 figure at a stated speed, so read 500 lb as what the structure is built to carry.
Should a front splitter go on before this wing? Yes. Verus Engineering aimed the UCW wing at drivers who need a large step in rear downforce to offset a strong front aero package, and fitting it alone shifts the balance rearward. Verus suggests its FK8 front splitter for any Type R wearing a larger rear wing.
Which materials go into the FK8 wing? Carbon fiber in a 2×2 twill pre-preg weave forms the element, which Verus Engineering cures in an autoclave before a high-gloss automotive clear goes on. It rides on machined billet aluminum uprights and trunk mounts held with stainless hardware, and Verus Engineering derived its airfoil from the larger V1X element.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
