Is the bracket in the Air Oil Separator for FL5 made for right-hand drive cars?

No. The steel bracket in the Air Oil Separator for FL5 is made for the left-hand drive Civic Type R only, so the kit as supplied suits left-hand drive cars. On those cars it mounts without drilling, and Verus Engineering includes the bracket, both rubber hoses cut to length, a drain valve and every fastener needed.

Does the FL5 AOS fit the earlier FK8 Civic Type R?

No, not as supplied. This kit carries a bracket designed specifically for the FL5, the Type R sold from 2023. Verus Engineering builds a separate air oil separator for the 2017 to 2021 FK8 with its own bracket, so choose the version that matches the chassis of your car before ordering.

What does an air oil separator do on the FL5?

It removes oil from the crankcase ventilation air before that air returns to the intake. According to Verus Engineering, intake oil lowers the effective octane of the charge, which opens the door to detonation, lost power and carbon on the intake side. The Verus unit separates the oil with four 5-micron filters, stainless mesh and baffles, then holds it for draining.

How is the Verus AOS different from a catch can?

Verus Engineering recommends its AOS over a basic catch can for owners who want a set and forget part. Alongside four coalescent filters, the Verus unit adds two stainless mesh arrays, baffles and a drain valve for easy emptying, and Verus calls the basic catch can rudimentary by comparison. Verus has published a video in which RJ compares the two designs.

Can I add cooling to the Verus FL5 AOS?

Yes. Verus Engineering offers an optional AOS coolant add-on kit for the FK8 and FL5 Civic Type R, sold separately, which adapts the separator to the driving environment and needs of each owner. The standard kit works without it, and Verus publishes an install manual and an install video for the base separator.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Air Oil Separator for FL5 Honda Civic Type R

Verus Engineering’s Air Oil Separator for FL5 Honda Civic Type R puts a proper filter stage between the crankcase and the intake of the 2023 and later Type R, so oil vapor forced out during hard laps is caught before it can coat the intake tract. Inside the 6061-T6 body, four 5-micron coalescent filters sit at the inlets and outlets, two stainless mesh arrays add a further stage and baffles run throughout. Collected oil leaves through a drain valve, which makes the unit practical on an FL5 that commutes all week and laps on weekends.

Fit and Finish

A steel bracket made for the left-hand drive FL5 mounts the can without drilling, and the rubber hoses arrive cut to length. Verus machines and anodizes every body in Indianapolis, offering blue, black or red, and engraves its logo by laser.

Features

Four 5-micron coalescent filters for the crankcase air
Two stainless mesh arrays and a full baffle system
Drain valve for quick oil removal
No-drill steel bracket made for the FL5
CNC machined 6061-T6 aluminum, anodized in three colors

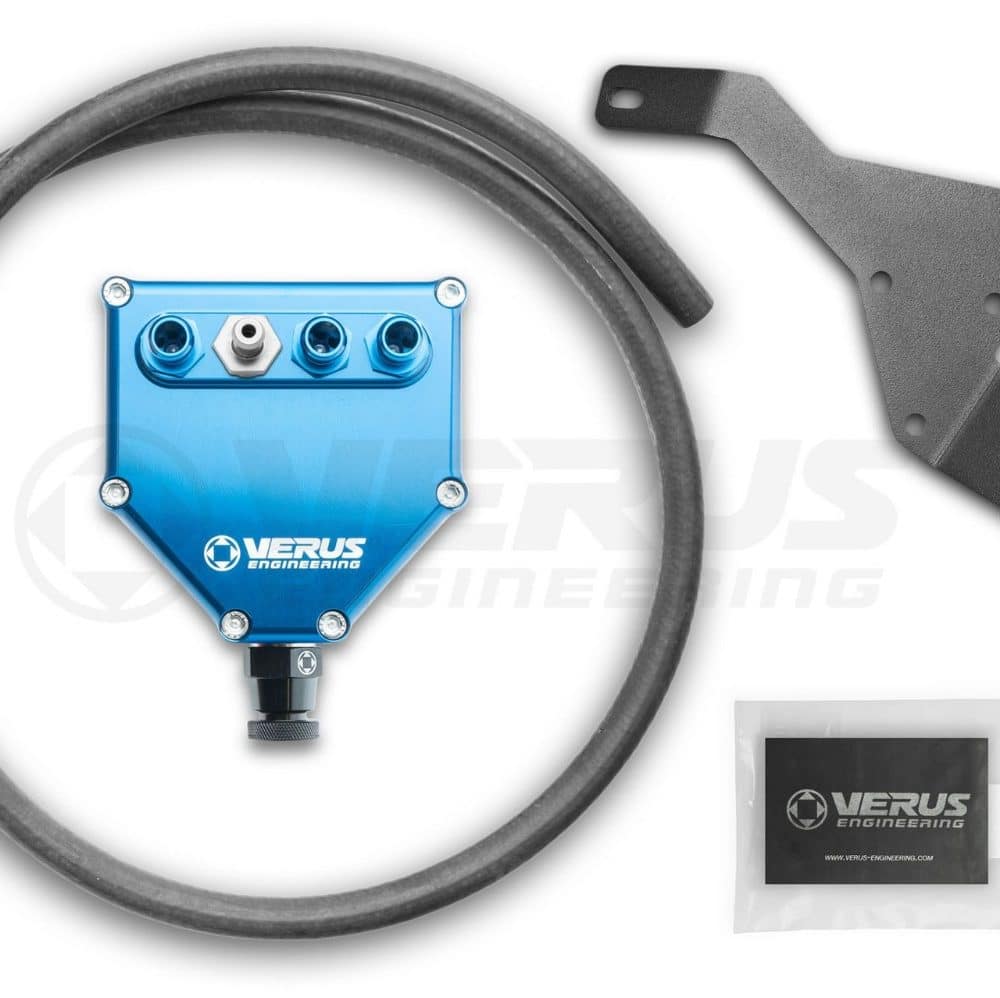

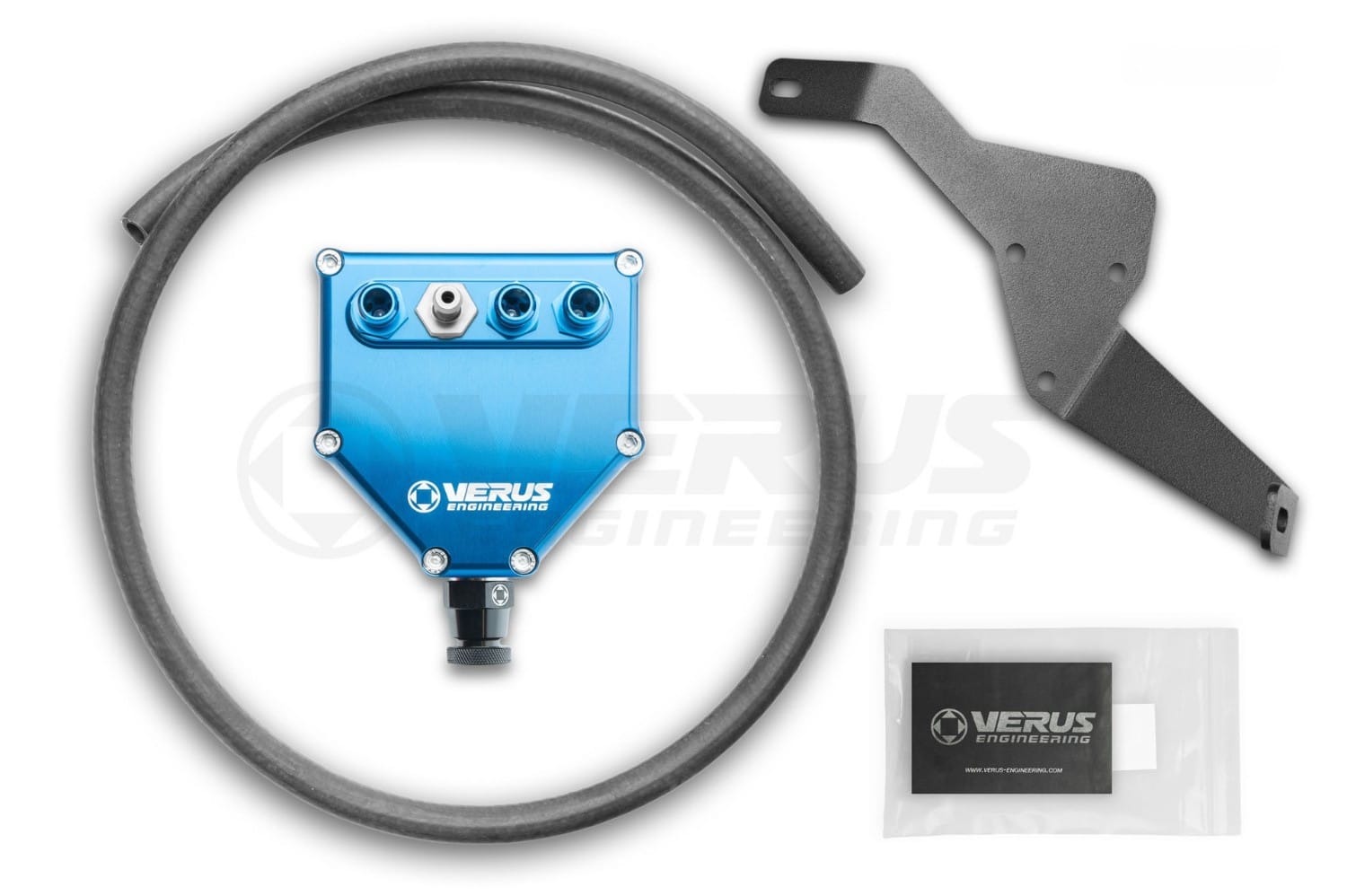

What’s Included

Air oil separator assembly with coalescent filters (x4)
Stainless mesh arrays (x2) and internal baffle system
Drain valve
Steel bracket for the left-hand drive FL5
1/2 inch and 3/8 inch rubber hoses
Hardware kit with every fastener for the install

Applications

Honda Civic Type R: FL5 | 2023-present

Notes

Right-hand drive FL5 cars are not covered by the supplied bracket
The Air Oil Separator for FL5 mounts without drilling; Verus shows the FL5 fitting in an install manual and video
The optional Verus AOS Coolant Add On Kit for FK8 and FL5 Type R models is sold separately
Over time, under-hood heat may dull the anodized finish
See every Verus Engineering part for the FL5 Honda Civic Type R
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Is the bracket in the Air Oil Separator for FL5 made for right-hand drive cars? No. The steel bracket in the Air Oil Separator for FL5 is made for the left-hand drive Civic Type R only, so the kit as supplied suits left-hand drive cars. On those cars it mounts without drilling, and Verus Engineering includes the bracket, both rubber hoses cut to length, a drain valve and every fastener needed.
Does the FL5 AOS fit the earlier FK8 Civic Type R? No, not as supplied. This kit carries a bracket designed specifically for the FL5, the Type R sold from 2023. Verus Engineering builds a separate air oil separator for the 2017 to 2021 FK8 with its own bracket, so choose the version that matches the chassis of your car before ordering.
What does an air oil separator do on the FL5? It removes oil from the crankcase ventilation air before that air returns to the intake. According to Verus Engineering, intake oil lowers the effective octane of the charge, which opens the door to detonation, lost power and carbon on the intake side. The Verus unit separates the oil with four 5-micron filters, stainless mesh and baffles, then holds it for draining.
How is the Verus AOS different from a catch can? Verus Engineering recommends its AOS over a basic catch can for owners who want a set and forget part. Alongside four coalescent filters, the Verus unit adds two stainless mesh arrays, baffles and a drain valve for easy emptying, and Verus calls the basic catch can rudimentary by comparison. Verus has published a video in which RJ compares the two designs.
Can I add cooling to the Verus FL5 AOS? Yes. Verus Engineering offers an optional AOS coolant add-on kit for the FK8 and FL5 Civic Type R, sold separately, which adapts the separator to the driving environment and needs of each owner. The standard kit works without it, and Verus publishes an install manual and an install video for the base separator.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
