Are springs included?

Yes. The kit comes as four shock absorbers and four springs. Both ends use 12.0 kgf/mm springs, equal to 672 lbs/in, each 175 mm long with a 70 mm inner diameter. Running the same rate front and rear is part of how TEIN rebalanced the car.

How low can the RX-7 go?

TEIN recommends running a US RX-7 between 1.2 and 2.0 inches below stock at both ends. The full-length bodies allow far more range, from 5.0 inches lower to 1.3 inches higher at the front and from 3.9 inches lower to 0.7 inches higher at the rear.

Will the TEIN Mono Sport Coilovers for FD3S ride well on the street?

Yes. TEIN tuned the damping of the TEIN Mono Sport Coilovers for FD3S for street comfort, and full-length height adjustment means lowering the car changes the ride very little. The 16-level knob lets the setting be softened or firmed to suit the road.

Do these fit a Japanese-market RX-7?

Yes. TEIN lists the kit for Japanese-market FD3S cars from 1991 to 2002 as well as the US 1993 to 1995 models. The ride height figures quoted here are for US cars, so owners of imported examples should check expected settings with BA.

Can damping be adjusted from the cabin?

No, not as supplied; each damper has a 16-level knob at the top. With an optional TEIN EDFC controller, stepping motors take over the knobs and give 32 levels from the driver seat, or 64 with EDFC ACTIVE or ACTIVE PRO. Controllers are sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

TEIN Mono Sport Coilovers for FD3S Mazda RX-7

TEIN’s Mono Sport Coilovers for FD3S Mazda RX-7 take the edge off the car’s very quick steering without dulling it, and they bring the rear into better balance with the front so the tail is easier to read near the limit. Equal 12.0 kgf/mm springs sit at both ends, and the damping is tuned for comfort on the street. That makes this a road and fast-road kit; a dedicated circuit RX-7 would call for TEIN’s track-focused ranges.

Setup and Ride

Mono-tube dampers with fully separate oil and gas chambers carry a single 16-level knob, which moves compression and rebound together through the ADVANCE M.S.V. valve. Full-length bodies change height by case length, leaving stroke and spring preload as designed, so the ride changes little when the car is lowered. TEIN also credits the setup with improved traction.

Features

Shell cases in high-strength STKM13C steel finished with ZTP coating
Wrought aluminium spring seats paired with low-friction hard-resin thrust washers
Square-drive adjusting wrench accepts a 12.7 mm spinner handle or torque wrench
Model-specific dust boots, with final assembly in a clean room
Overhaul and revalving available when the dampers need service
EDFC compatible, expanding damping to 32 levels or 64 with ACTIVE versions

Specifications

Spring rates: 12.0 kgf/mm (672 lbs/in) front and rear
Spring size: 175 mm, 70 mm ID
US front ride height range: -5.0 to +1.3 in (recommended -2.0 to -1.2)
US rear ride height range: -3.9 to +0.7 in (recommended -2.0 to -1.2)
Upper mounts: Reinforced rubber

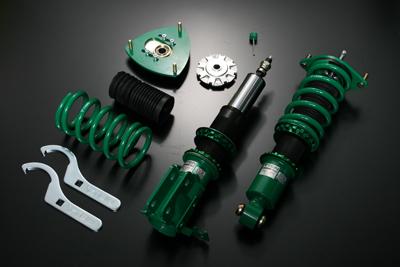

What’s Included

Mono-tube shock absorbers (x4)
Springs (x4)

Applications

Mazda RX-7: FD3S | 1993-1995 | 1.3L twin rotor
Mazda RX-7 (Japan-market): FD3S | 1991-2002 | 1.3L twin rotor

Notes

Each kit is built to order by TEIN, lead time varies, and orders cannot be cancelled or returned
US fitment covers the 1993 to 1995 RX-7; Japanese-market FD3S cars through 2002 are also listed, and owners of imported cars should confirm with BA
EDFC controllers for the TEIN Mono Sport Coilovers for FD3S are sold separately

Frequently Asked Questions

Are springs included? Yes. The kit comes as four shock absorbers and four springs. Both ends use 12.0 kgf/mm springs, equal to 672 lbs/in, each 175 mm long with a 70 mm inner diameter. Running the same rate front and rear is part of how TEIN rebalanced the car.
How low can the RX-7 go? TEIN recommends running a US RX-7 between 1.2 and 2.0 inches below stock at both ends. The full-length bodies allow far more range, from 5.0 inches lower to 1.3 inches higher at the front and from 3.9 inches lower to 0.7 inches higher at the rear.
Will the TEIN Mono Sport Coilovers for FD3S ride well on the street? Yes. TEIN tuned the damping of the TEIN Mono Sport Coilovers for FD3S for street comfort, and full-length height adjustment means lowering the car changes the ride very little. The 16-level knob lets the setting be softened or firmed to suit the road.
Do these fit a Japanese-market RX-7? Yes. TEIN lists the kit for Japanese-market FD3S cars from 1991 to 2002 as well as the US 1993 to 1995 models. The ride height figures quoted here are for US cars, so owners of imported examples should check expected settings with BA.
Can damping be adjusted from the cabin? No, not as supplied; each damper has a 16-level knob at the top. With an optional TEIN EDFC controller, stepping motors take over the knobs and give 32 levels from the driver seat, or 64 with EDFC ACTIVE or ACTIVE PRO. Controllers are sold separately.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
