Which springs are supplied with the kit?

Four main springs at the rates you choose when ordering, plus helper springs. Front options are 12, 14 or 16 kgf/mm and rear options 10, 12 or 14 kgf/mm, all 70 mm ID. TEIN uses 14.0 front and 12.0 rear as reference rates.

Do the TEIN Mono Racing Coilovers for GRF fit the GVF sedan?

Yes. TEIN lists the Mono Racing Coilovers for GRF for the 2008 to 2014 hatchback and the 2011 to 2014 GVF sedan, as well as the Japanese-market GRB and GVB. The recommended rear range differs slightly, with the sedan set 0.2 inches higher.

Is any interior modification needed during installation?

Yes. TEIN states that the rear interior needs to be modified when fitting this kit, so allow time for that work. Book an alignment once ride height is set, since the pillow ball mounts open up new camber and caster settings.

How much camber and caster adjustment is there?

The front pillow ball mounts adjust camber steplessly and caster in four steps, each set without disturbing the other. More front camber comes from turning the eccentric collar in the lower bracket, and optional camber washers widen that range again.

Can I adjust damping from inside the car?

No, not as delivered. Each damper carries a 16-level knob on top. Adding TEIN EDFC, sold separately, swaps those knobs for stepping motors run from a cabin controller, and the EDFC ACTIVE versions adjust automatically according to G-force and speed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

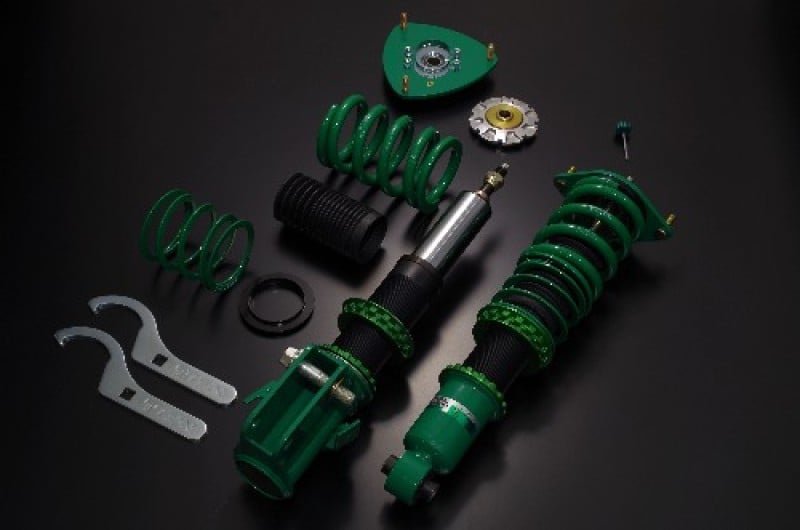

TEIN Mono Racing Coilovers for GRF / GVF Subaru Impreza WRX STI

TEIN’s Mono Racing Coilovers for GRF hatchback and GVF sedan STIs suit an owner who takes the car to track days and wants alignment range to match. The front pillow ball mounts adjust camber and caster separately, and every damper is mono-tube with a 16-step knob. Fitting means modifying the rear interior, so this is no casual bolt-on for a commuter.

On the Road and Circuit

TEIN tuned the GR and GV chassis to hold its composure at speed and to resist diving under heavy braking. Helper springs keep the main springs located at full droop, so the wheels retain rebound travel over crests. Because height comes from shell length rather than preload, lowering the car leaves the ride largely intact.

Features

Upright Strong Tube strut bodies, a rigid design from TEIN’s WRC and WRX work
ADVANCE M.S.V. valving pairs a micro speed valve with a wider-range needle
16 adjustment levels on a top-mounted knob, compression and rebound moving together
Front lower brackets add camber by turning an eccentric collar 180 degrees
EDFC compatible, with the TEIN controller sold separately

Specifications

Reference front spring: 14.0 kgf/mm (784 lbs/in), 150 mm, 70 mm ID
Reference rear spring: 12.0 kgf/mm (672 lbs/in), 135 mm, 70 mm ID
Front ride height (US): -3.1 to -0.2 in (recommended -1.8 to -1.0)
Rear ride height (US): -4.6 to -0.3 in (recommended GRF -1.8 to -1.0, GVF -1.6 to -0.8)
Upper mounts: Front camber and caster adjustable pillow ball; rear pillow ball

What’s Included

Mono-tube dampers (x4)
Main springs in the rates chosen at order (x4)
Helper springs (front and rear)
Front and rear pillow ball upper mounts

Applications

Subaru Impreza WRX STI (4-door): GVF | 2011-2014 | 2.5L
Subaru Impreza WRX STI (5-door): GRF | 2008-2014 | 2.5L
Subaru Impreza WRX STI (Japan-market): GRB / GVB | 2007-2014 | 2.0L

Notes

TEIN builds this kit to order, so lead time varies and the order cannot be cancelled or returned
Rates for the TEIN Mono Racing Coilovers for GRF are selected at order (front 12, 14 or 16 kgf/mm, rear 10, 12 or 14); BA confirms them before ordering
The rear interior has to be modified during installation
Camber washers in other offsets are extra, two needed per car
The flagship alternative, sold without main springs, is the TEIN Super Racing Dampers for GRF / GVF

Frequently Asked Questions

Which springs are supplied with the kit? Four main springs at the rates you choose when ordering, plus helper springs. Front options are 12, 14 or 16 kgf/mm and rear options 10, 12 or 14 kgf/mm, all 70 mm ID. TEIN uses 14.0 front and 12.0 rear as reference rates.
Do the TEIN Mono Racing Coilovers for GRF fit the GVF sedan? Yes. TEIN lists the Mono Racing Coilovers for GRF for the 2008 to 2014 hatchback and the 2011 to 2014 GVF sedan, as well as the Japanese-market GRB and GVB. The recommended rear range differs slightly, with the sedan set 0.2 inches higher.
Is any interior modification needed during installation? Yes. TEIN states that the rear interior needs to be modified when fitting this kit, so allow time for that work. Book an alignment once ride height is set, since the pillow ball mounts open up new camber and caster settings.
How much camber and caster adjustment is there? The front pillow ball mounts adjust camber steplessly and caster in four steps, each set without disturbing the other. More front camber comes from turning the eccentric collar in the lower bracket, and optional camber washers widen that range again.
Can I adjust damping from inside the car? No, not as delivered. Each damper carries a 16-level knob on top. Adding TEIN EDFC, sold separately, swaps those knobs for stepping motors run from a cabin controller, and the EDFC ACTIVE versions adjust automatically according to G-force and speed.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
