Can the Intake Full Kit for ZN8 be used with the HKS GT2 Supercharger?

No. HKS states that the Intake Full Kit for ZN8 cannot be used together with the HKS GT2 Supercharger. Owners who run the GT2 Supercharger, or who plan to add it later, should choose the intake parts that come with that system rather than this cold air intake kit.

Does the kit fit both the GR86 and the BRZ?

Yes. HKS uses the single part number 70026-AT012 for the ZN8 Toyota GR86 and the ZD8 Subaru BRZ, both with the FA24 engine. Bulletproof Automotive lists the kit for 2022 to 2025 model years on both cars, which share the same intake layout under the hood.

What parts are included in the full kit?

The full kit combines three HKS part numbers: 70026-AT010, the cold air intake box kit with the Super Power Flow filter, 70026-AT011, the carbon suction kit, and 70999-AT003, the one-piece air intake duct. Buying the full kit avoids ordering the three parts separately.

Does the air flow meter move with this intake?

No. HKS keeps the air flow meter in the same position as the stock intake so the kit works with the factory engine control. The box, suction pipe and duct change the path the air takes to the throttle while the sensor stays where the FA24 engine management expects it.

Is the intake safe to drive in the rain?

Yes. HKS designed the one-piece air intake duct with the same layout as the factory unit, and states that it does not absorb rainwater and can be used safely on the street. As with any intake, avoid driving through standing water deep enough to reach the intake opening.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

HKS Cold Air Intake Full Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ

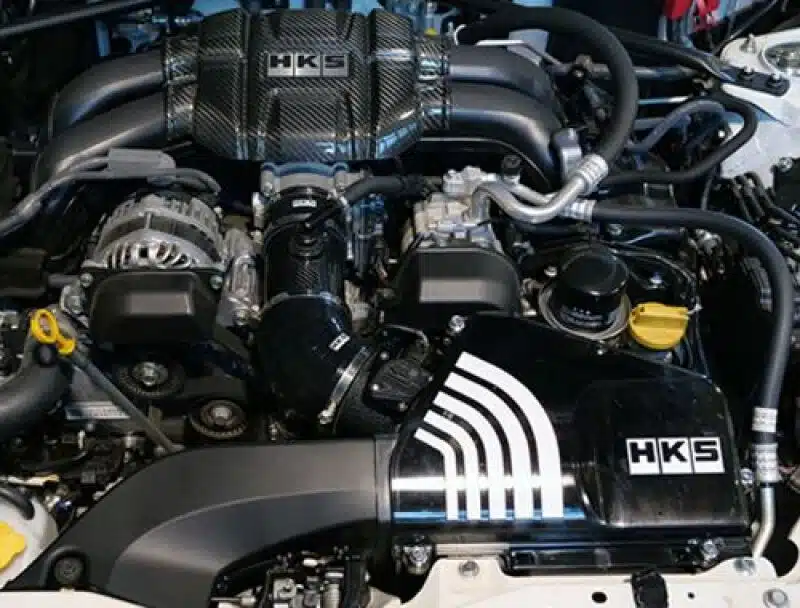

The HKS Cold Air Intake Full Kit for ZN8 Toyota GR86 and ZD8 Subaru BRZ brings three HKS parts together for the FA24 twins: the cold air intake box with a Super Power Flow filter, a hot pressed carbon suction pipe and a one-piece air intake duct whose narrowest section measures D87.5mm against the factory D50mm. It is a sensible upgrade for a GR86 or BRZ that keeps its factory induction layout and sees track days or spirited road use. HKS states that the kit cannot be used together with the HKS GT2 Supercharger, so a supercharged car, or one planned for that kit, should skip it.

Features

Super Power Flow wet-type, two-layer filter enclosed in an intake box to reduce the effect of hot engine bay air
Clear smoke upper case on the intake box and an added second intake duct to lower airflow resistance
Air flow meter kept in the stock position so the kit works with the factory engine control
Carbon suction pipe with a 3K twill prepreg surface, a UD prepreg inner layer and a smooth bore, plus an internal core wire that resists deformation
High temperature silicone hose connecting the suction pipe to the intake box
One-piece molded air intake duct with no internal seams, laid out like the factory duct so it does not draw in rainwater on the street

Specifications

Filter: Super Power Flow D150-80, wet type, 2 layers
Air intake duct, narrowest section: D87.5mm (factory D50mm)
Suction pipe construction: Hot pressed, 3K twill carbon prepreg surface with UD prepreg inside
Installation time: 4.0 hours
Kit part numbers: 70026-AT010, 70026-AT011, 70999-AT003

What’s Included

70026-AT010 cold air intake box kit
70026-AT011 carbon suction kit
70999-AT003 air intake duct

Applications

Subaru BRZ: ZD8 | 2022-2025 | FA24
Toyota GR86: ZN8 | 2022-2025 | FA24

Notes

The Intake Full Kit for ZN8 cannot be used together with the HKS GT2 Supercharger
HKS quotes an installation time of 4.0 hours, and professional installation is recommended
Do not clean the intake box with organic solvents. HKS warns that solvents may melt the resin.
HKS notes that circular marks on the inside of the air cleaner cover come from manufacturing and are not a defect
This part is intended for off-road or competition use where emissions laws apply, and the buyer is responsible for checking local regulations before installing it on a street vehicle

Frequently Asked Questions

Can the Intake Full Kit for ZN8 be used with the HKS GT2 Supercharger? No. HKS states that the Intake Full Kit for ZN8 cannot be used together with the HKS GT2 Supercharger. Owners who run the GT2 Supercharger, or who plan to add it later, should choose the intake parts that come with that system rather than this cold air intake kit.
Does the kit fit both the GR86 and the BRZ? Yes. HKS uses the single part number 70026-AT012 for the ZN8 Toyota GR86 and the ZD8 Subaru BRZ, both with the FA24 engine. Bulletproof Automotive lists the kit for 2022 to 2025 model years on both cars, which share the same intake layout under the hood.
What parts are included in the full kit? The full kit combines three HKS part numbers: 70026-AT010, the cold air intake box kit with the Super Power Flow filter, 70026-AT011, the carbon suction kit, and 70999-AT003, the one-piece air intake duct. Buying the full kit avoids ordering the three parts separately.
Does the air flow meter move with this intake? No. HKS keeps the air flow meter in the same position as the stock intake so the kit works with the factory engine control. The box, suction pipe and duct change the path the air takes to the throttle while the sensor stays where the FA24 engine management expects it.
Is the intake safe to drive in the rain? Yes. HKS designed the one-piece air intake duct with the same layout as the factory unit, and states that it does not absorb rainwater and can be used safely on the street. As with any intake, avoid driving through standing water deep enough to reach the intake opening.

About HKS

HKS is a Japanese performance engineering brand founded in 1973 and headquartered in Fujinomiya, Shizuoka, with a long-standing reputation for developing high-quality aftermarket parts and motorsport-proven technology for enthusiast and professional applications. Known for innovations in turbocharging and engine performance, HKS produces a broad range of components including exhaust systems, turbo kits, electronics / engine management, and suspension solutions, with product development heavily influenced by decades of involvement in racing disciplines such as circuit time attack, drag, and drifting.
