How much will the RX-7 drop?

Turn 14 and TEIN USA both list 0.8 inch, or 21 mm, at the front and 0.7 inch, or 17 mm, at the rear for the FD3S. That is a smaller drop than most H.Tech applications, so the change in stance is modest and close to level.

Does fitting require cutting the bump rubbers?

Yes, at the rear. TEIN instructs cutting each rear bump rubber 20 mm from the bottom and using the upper portion. TEIN lists no bump rubber change at the front of the FD3S. A bump stop reference guide comes in the box with the springs.

Which RX-7 models do the TEIN H.Tech Lowering Springs for FD3S fit?

The H.Tech Lowering Springs for FD3S are listed for the US-market RX-7 Base, R1, R2 and Touring from 1993 to 1995 with the 1.3 liter twin-turbo rotary. BA can confirm fitment on an imported or modified car before placing the special order.

Can these springs be used with my existing dampers?

Yes. TEIN designed H.Tech springs for OE dampers or similar replacement shocks, so healthy factory units can stay. The springs leave damping as it was and give no height adjustment, so owners wanting more control should look at the Mono Sport coilover kit listed in the notes.

What comes in the box?

Four lower springs in gold powder coat, plus warranty information and a bump stop reference guide. Silencer rubbers are supplied only on certain H.Tech applications. The springs carry a one-year TEIN warranty against defects and sag, though the finish and rust are excluded.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

TEIN H.Tech Lowering Springs for FD3S Mazda RX-7

TEIN’s H.Tech Lowering Springs for FD3S Mazda RX-7 lower the car just 0.8 inch (21 mm) at the front and 0.7 inch (17 mm) at the rear, less than the roughly 1.2 inches TEIN quotes for most H.Tech fitments. That small, even drop suits a US-market Base, R1, R2 or Touring kept as a road car on its existing dampers. It is the wrong choice for anyone after a dramatic stance or adjustable height for circuit work.

H.Tech on the RX-7

H.Tech is the gentler of TEIN’s two lowering spring lines, designed and tested in North America for ride comfort with a slight gain in handling. On the FD3S the front and rear figures sit within 0.1 inch of each other, so the RX-7 comes down almost level. The springs work with OE or similar dampers, keeping the job to a spring swap plus one bump rubber trim at the rear.

Features

Near-level drop keeps the factory front-to-rear attitude of the RX-7
SAE9254V grade chosen for durability, low weight and stroke retention
Silencer rubbers are part of certain H.Tech kits
TEIN tuned H.Tech for comfort, with handling only slightly sharper
One-year warranty covers sag past 5 mm, breakage, deformity and noise

Specifications

Front ride height change: -0.8 in (-21 mm)
Rear ride height change: -0.7 in (-17 mm)
Spring steel: SAE9254V chrome vanadium
Rate: Progressive
Finish: Gold powder coat

What’s Included

Lower springs (x4)
Warranty information and bump stop reference guide

Applications

Mazda RX-7 (Base, R1, R2, Touring): FD3S | 1993-1995 | 1.3L twin-turbo rotary

Notes

Made to order by TEIN; lead time varies, and a placed order cannot be cancelled or returned
Rear: cut each bump rubber 20 mm from the bottom and use the upper portion, per TEIN instructions
Use the TEIN H.Tech Lowering Springs for FD3S with OE or OE-replacement dampers
Powder coat wear and rust are not covered by the TEIN warranty
For adjustable ride height, the TEIN Mono Sport Coilovers for FD3S Mazda RX-7 replace springs and dampers together

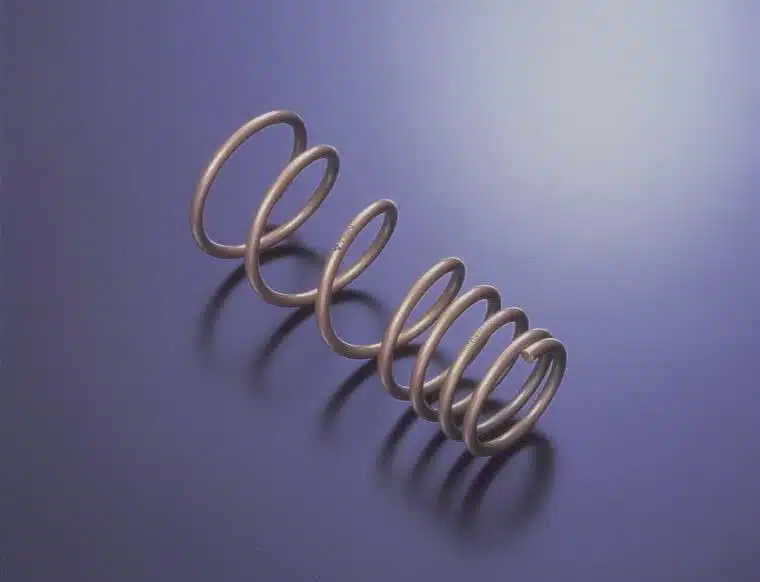

Photos are representative of the TEIN H.Tech range and do not show the springs for this car

Frequently Asked Questions

How much will the RX-7 drop? Turn 14 and TEIN USA both list 0.8 inch, or 21 mm, at the front and 0.7 inch, or 17 mm, at the rear for the FD3S. That is a smaller drop than most H.Tech applications, so the change in stance is modest and close to level.
Does fitting require cutting the bump rubbers? Yes, at the rear. TEIN instructs cutting each rear bump rubber 20 mm from the bottom and using the upper portion. TEIN lists no bump rubber change at the front of the FD3S. A bump stop reference guide comes in the box with the springs.
Which RX-7 models do the TEIN H.Tech Lowering Springs for FD3S fit? The H.Tech Lowering Springs for FD3S are listed for the US-market RX-7 Base, R1, R2 and Touring from 1993 to 1995 with the 1.3 liter twin-turbo rotary. BA can confirm fitment on an imported or modified car before placing the special order.
Can these springs be used with my existing dampers? Yes. TEIN designed H.Tech springs for OE dampers or similar replacement shocks, so healthy factory units can stay. The springs leave damping as it was and give no height adjustment, so owners wanting more control should look at the Mono Sport coilover kit listed in the notes.
What comes in the box? Four lower springs in gold powder coat, plus warranty information and a bump stop reference guide. Silencer rubbers are supplied only on certain H.Tech applications. The springs carry a one-year TEIN warranty against defects and sag, though the finish and rust are excluded.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
