What does the V10 Turbo Kit include?

It includes T1-spec Xona turbochargers, T1 manifolds and mounting, water-to-air intercoolers with Garrett cores, a front-mount heat exchanger, water tank and brushless pump, Turbosmart wastegates and blow-off valves, dual solenoid boost control, a 3.5 inch stainless exhaust, intercooler piping and 4 inch intakes.

Why did T1 choose Xona turbochargers?

T1 Race Development picked Xona turbochargers for their balance of quick spool and top-end power on the 5.2 liter V10. The turbos are built to T1 specification and mount on T1 manifolds, with blankets on the manifolds and turbines to keep heat in the hot side.

How does the kit keep intake temperatures down?

Charge air passes through water-to-air intercoolers with Garrett cores. A brushless pump circulates the water through 16AN lines to a front-mount heat exchanger and a T1 water tank, so heat taken from the charge air is shed at the front of the car.

Can I choose the powdercoat color?

Yes. Powdercoat in any color is included on the compressor covers, intercoolers, piping, intakes and intake ducting of the T1 V10 Turbo Kit. Tell Bulletproof Automotive the colors when ordering, while the hot side keeps its Cerakote ceramic coating for heat control.

Does the kit include a fuel system or a tune?

No. The kit covers the turbochargers, charge cooling, boost control, intakes and exhaust, with no fuel system, engine management or calibration. A turbocharged V10 needs all three, so plan them with Bulletproof Automotive and the tuner before the kit is fitted.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development V10 Turbo Kit for LB724 Lamborghini Huracán and 4S Audi R8

T1 Race Development’s V10 Turbo Kit for LB724 Lamborghini Huracán and 4S Audi R8 packages the forced induction system T1 builds for the 5.2 liter V10, pairing T1-spec Xona turbochargers and T1 manifolds with water-to-air charge cooling. Boost control, intakes and a stainless exhaust come in the same order, and the visible cold-side parts are powdercoated in whatever color the owner picks.

Design and Performance

T1 chose Xona turbochargers for their balance of spool and top-end power. Charge air runs through T1 water-to-air intercoolers with Garrett cores, and a brushless pump moves the water through 16AN lines to a front-mount heat exchanger and a T1 water tank, which keeps intake temperatures consistent. Turbosmart Hypergate wastegates and Raceport blow-off valves work under a T1-spec dual solenoid boost controller. Manifolds, turbine housings and the main exhaust are Cerakote ceramic coated, with T1-spec blankets on the manifolds and turbines.

Choosing a Version

T1 builds the kit for the 2017 to 2019 R8, the 2020 to 2023 R8 and the LB724 Huracán, all at the same price.

Features

T1-spec Xona turbochargers on T1 turbo manifolds
T1 water-to-air intercoolers with Garrett cores
Front-mount heat exchanger, T1 water tank and brushless pump
Turbosmart Hypergate wastegates and Raceport blow-off valves
Custom color powdercoat and Cerakote coating included

What’s Included

T1-spec Xona turbochargers with oil fittings, water fittings and lines
T1 turbo manifolds, turbo mounting system and manifold and turbine blankets

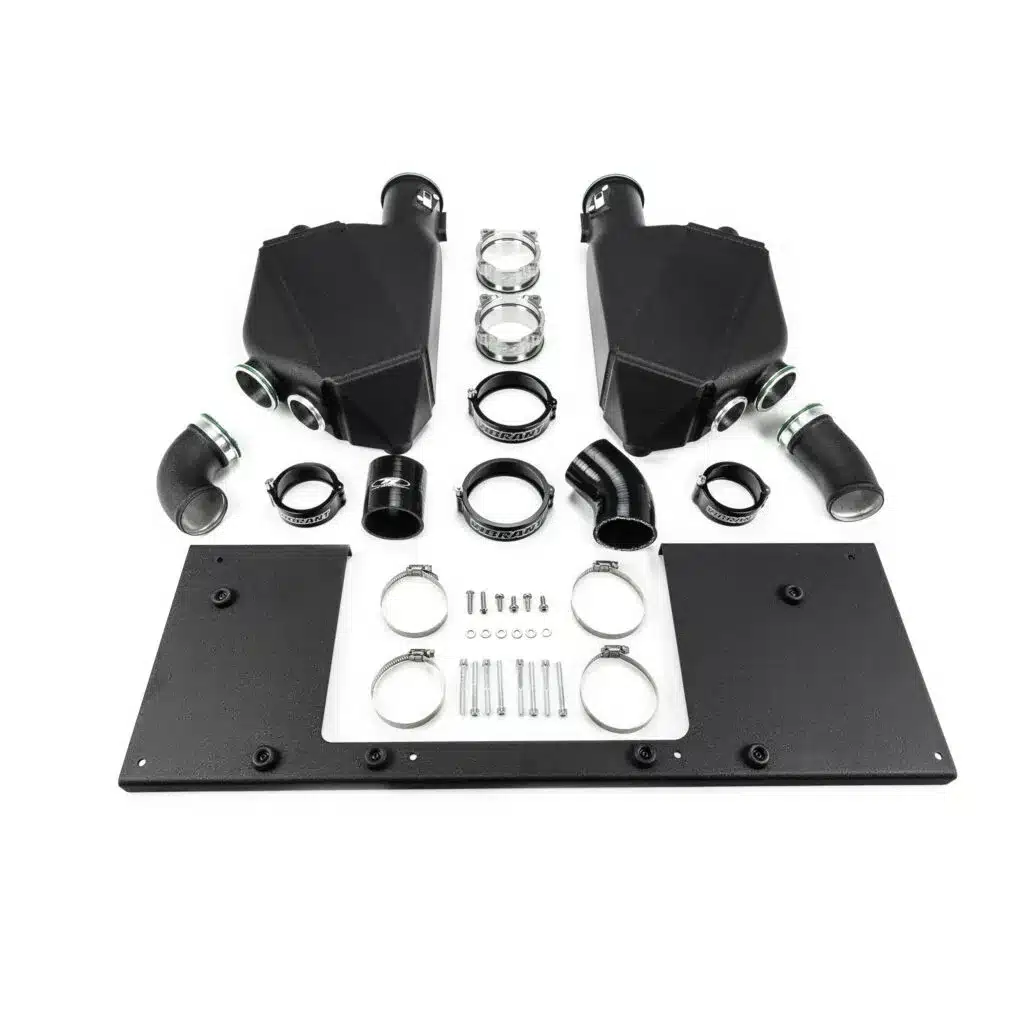

T1 water-to-air intercoolers, front-mount heat exchanger, 16AN water line system and water tank
Brushless intercooler water pump with harness
Turbosmart Raceport blow-off valves and Hypergate wastegates
T1-spec dual solenoid boost control system with harness
T1 stainless steel 3.5 inch exhaust with V-band connections
2.5 inch intercooler piping kit with HD clamps and T1 4 inch intakes with air ducts

Applications

Audi R8: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

The V10 Turbo Kit does not list a fuel system, engine management or a calibration; T1 builds matching fuel systems, such as the T1 Race Development Complete Fuel System for LB724 Lamborghini Huracán and 4S Audi R8 (T1 Huracan R8 CFS Kit)
Powdercoat colors are chosen at order, and T1 notes that pricing can change with the options selected
T1 lists its V10 intercooler pair as not fitting the Huracán Performante, so confirm the exact model with BA first

Frequently Asked Questions

What does the V10 Turbo Kit include? It includes T1-spec Xona turbochargers, T1 manifolds and mounting, water-to-air intercoolers with Garrett cores, a front-mount heat exchanger, water tank and brushless pump, Turbosmart wastegates and blow-off valves, dual solenoid boost control, a 3.5 inch stainless exhaust, intercooler piping and 4 inch intakes.
Why did T1 choose Xona turbochargers? T1 Race Development picked Xona turbochargers for their balance of quick spool and top-end power on the 5.2 liter V10. The turbos are built to T1 specification and mount on T1 manifolds, with blankets on the manifolds and turbines to keep heat in the hot side.
How does the kit keep intake temperatures down? Charge air passes through water-to-air intercoolers with Garrett cores. A brushless pump circulates the water through 16AN lines to a front-mount heat exchanger and a T1 water tank, so heat taken from the charge air is shed at the front of the car.
Can I choose the powdercoat color? Yes. Powdercoat in any color is included on the compressor covers, intercoolers, piping, intakes and intake ducting of the T1 V10 Turbo Kit. Tell Bulletproof Automotive the colors when ordering, while the hot side keeps its Cerakote ceramic coating for heat control.
Does the kit include a fuel system or a tune? No. The kit covers the turbochargers, charge cooling, boost control, intakes and exhaust, with no fuel system, engine management or calibration. A turbocharged V10 needs all three, so plan them with Bulletproof Automotive and the tuner before the kit is fitted.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
