Do the V4 Fuel Rails for R35 include injectors?

No. The T1 V4 Fuel Rails for R35 are sold as a rail set with the front crossover line, and fuel injectors are purchased separately. T1 Race Development offers Injector Dynamics injector sets for the R35, and the injector size should be chosen with the tuner to suit the power target and the fuel the car will run.

Should I choose -6AN or -8AN fittings?

Match the fittings to the feed and return lines on the car. Larger -8AN plumbing is common on high-flow systems with brushless or multiple pumps, while many street fuel systems use -6AN. If the car already has an aftermarket fuel system, confirm the line size before ordering, since the rails ship configured for one size.

How much power can the GT1R V4 rails support?

T1 Race Development rates the V4 rails for more than 2,500 horsepower, and they are the rails used in every GT1R Complete Fuel Solution. In most builds the injectors, pumps and lines reach their limits long before a 16 mm bore rail does, so the rails rarely need replacing as power grows.

Is the crossover line included with the GT1R V4 rails?

Yes. Every set of GT1R V4 rails includes the front crossover line that connects the two banks, in the fitting size chosen at ordering. That leaves the feed and return lines, the pressure regulator and the injectors as the remaining parts of the fuel system to plan around the rails.

Are the V4 rails a good base for a future fuel system upgrade?

Yes. Because T1 Race Development builds its complete fuel systems around the same V4 rails, a car can start with the rails and add pumps, filtration and flex fuel hardware later without replacing them. The 2,500 horsepower rating leaves room for nearly any VR38DETT build a street or drag car will see.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

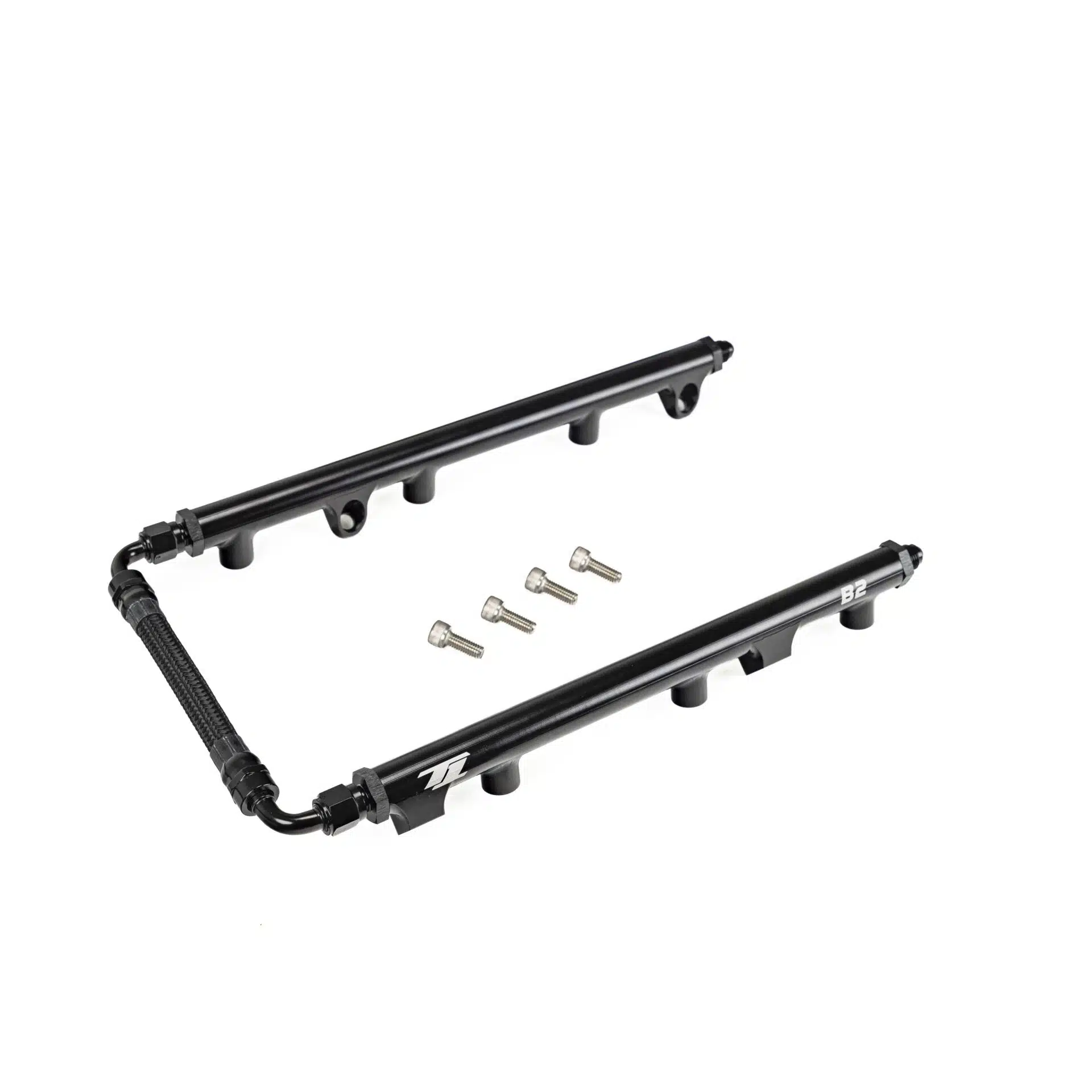

T1 Race Development GT1R V4 Fuel Rails for R35 Nissan GT-R

T1 Race Development’s GT1R V4 Fuel Rails for R35 Nissan GT-R are the latest revision of the rails T1 builds into every GT1R Complete Fuel Solution, refined through the systems it supplies for big-power GT-Rs. Each rail has a 16 mm bore, a large reservoir of fuel sitting at the injectors, which helps hold pressure evenly along the bank when every injector is wide open. T1 rates them for builds beyond 2,500 horsepower, which makes them rails bought once and kept through every stage the car will reach.

Design and Performance

Every set ships with the front crossover line that joins the two banks, and the inlet and outlet fittings are chosen at ordering in -6AN or -8AN to match the feed and return lines on the car. Because the same rails anchor T1’s complete systems, they sit comfortably alongside its pumps, filters and flex fuel hardware, and they leave the injector choice open to suit the power target.

Features

16 mm bore on both rails
Front crossover line included in every set
Choice of -6AN or -8AN inlet and outlet fittings
The rail T1 uses in every GT1R Complete Fuel Solution
Rated by T1 for builds beyond 2,500 hp

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Fuel injectors are not included; choose them with the tuner to suit the power target and fuel
Match the -6AN or -8AN fittings of the V4 Fuel Rails for R35 to the feed and return lines already on the car
For flex fuel on aftermarket rails, T1 offers the T1 Race Development GT1R Gen 2 Flex Fuel Kit with Aftermarket Fuel Rails (GT1R-FF-gen-2-aftermarket-rails) in 6AN ORB and 8AN ORB versions

Frequently Asked Questions

Do the V4 Fuel Rails for R35 include injectors? No. The T1 V4 Fuel Rails for R35 are sold as a rail set with the front crossover line, and fuel injectors are purchased separately. T1 Race Development offers Injector Dynamics injector sets for the R35, and the injector size should be chosen with the tuner to suit the power target and the fuel the car will run.
Should I choose -6AN or -8AN fittings? Match the fittings to the feed and return lines on the car. Larger -8AN plumbing is common on high-flow systems with brushless or multiple pumps, while many street fuel systems use -6AN. If the car already has an aftermarket fuel system, confirm the line size before ordering, since the rails ship configured for one size.
How much power can the GT1R V4 rails support? T1 Race Development rates the V4 rails for more than 2,500 horsepower, and they are the rails used in every GT1R Complete Fuel Solution. In most builds the injectors, pumps and lines reach their limits long before a 16 mm bore rail does, so the rails rarely need replacing as power grows.
Is the crossover line included with the GT1R V4 rails? Yes. Every set of GT1R V4 rails includes the front crossover line that connects the two banks, in the fitting size chosen at ordering. That leaves the feed and return lines, the pressure regulator and the injectors as the remaining parts of the fuel system to plan around the rails.
Are the V4 rails a good base for a future fuel system upgrade? Yes. Because T1 Race Development builds its complete fuel systems around the same V4 rails, a car can start with the rails and add pumps, filtration and flex fuel hardware later without replacing them. The 2,500 horsepower rating leaves room for nearly any VR38DETT build a street or drag car will see.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
