Which aftermarket rails does the Flex Fuel Kit for R35 fit?

This version of the T1 Flex Fuel Kit for R35 suits aftermarket rails with 6AN ORB or 8AN ORB inlets, and the inlet size is chosen when ordering. Cars still on the factory rails need the stock rail version of the kit instead, which includes an adapter that converts the factory inlet to AN threads.

Does the GT1R flex fuel kit require a tune?

Yes. The kit delivers the ethanol content signal to the factory ECU, but the calibration is what adjusts fueling and timing as the blend changes. Cobb and EcuTek both support the input and display the reading, so plan the flex fuel calibration with the tuner before installing the hardware on the car.

Why is the ethanol sensor on the pressure side?

On the pressure side, fuel is always moving toward the injectors, so the sensor sees a steady stream. In a return line, flow can fall away when the pumps approach their limit, which makes readings less consistent exactly when the engine is working hardest. Moving the sensor was one of the main changes T1 Race Development made for generation two.

Is an ethanol content gauge included with the kit?

No. T1 Race Development leaves the display out because Cobb and EcuTek both let the driver view ethanol content through their own tools. The kit supplies the sensor and mount, the converter box, the plug-and-play harness and Redhorse ethanol-compatible plumbing.

Will the aftermarket rail kit fit every R35 model year?

Yes. The second generation harness is plug-and-play for every R35 Nissan GT-R, so the same kit suits early and late cars, and the sensor plumbing joins the 6AN ORB or 8AN ORB inlets of the aftermarket rails. Fuel system work still calls for a qualified technician.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Gen 2 Flex Fuel Kit for R35 Nissan GT-R with Aftermarket Fuel Rails

T1 Race Development’s GT1R Gen 2 Flex Fuel Kit for R35 Nissan GT-R with Aftermarket Fuel Rails is the version for cars that have already moved past the factory rails, plumbing the ethanol sensor into 6AN ORB or 8AN ORB rail inlets. A GT-R on upgraded rails is usually chasing serious ethanol power, where a few points of blend either way change how much fuel and timing the engine will take, and the kit reports the real figure to the ECU tank after tank.

Design and Performance

Generation two moved the sensor to the pressure side of the system, where fuel always flows toward the injectors, so readings stay steady even when return flow dwindles as the pumps approach capacity. A converter box turns the sensor’s digital signal into the analog input the factory ECU reads, and the plug-and-play harness is built by Race Spec from Mil-Spec Tefzel wire, Raychem DR-25 heat shrink and new connectors, for every R35 model year.

Features

Ethanol sensor on the pressure side for consistent readings near pump capacity
Plumbed for 6AN ORB or 8AN ORB aftermarket rail inlets
Plug-and-play harness for every R35 model year
ECU signal of 0.5 V at 0 percent and 4.5 V at 100 percent ethanol
Ethanol-compatible Redhorse Performance hose with crimped ends

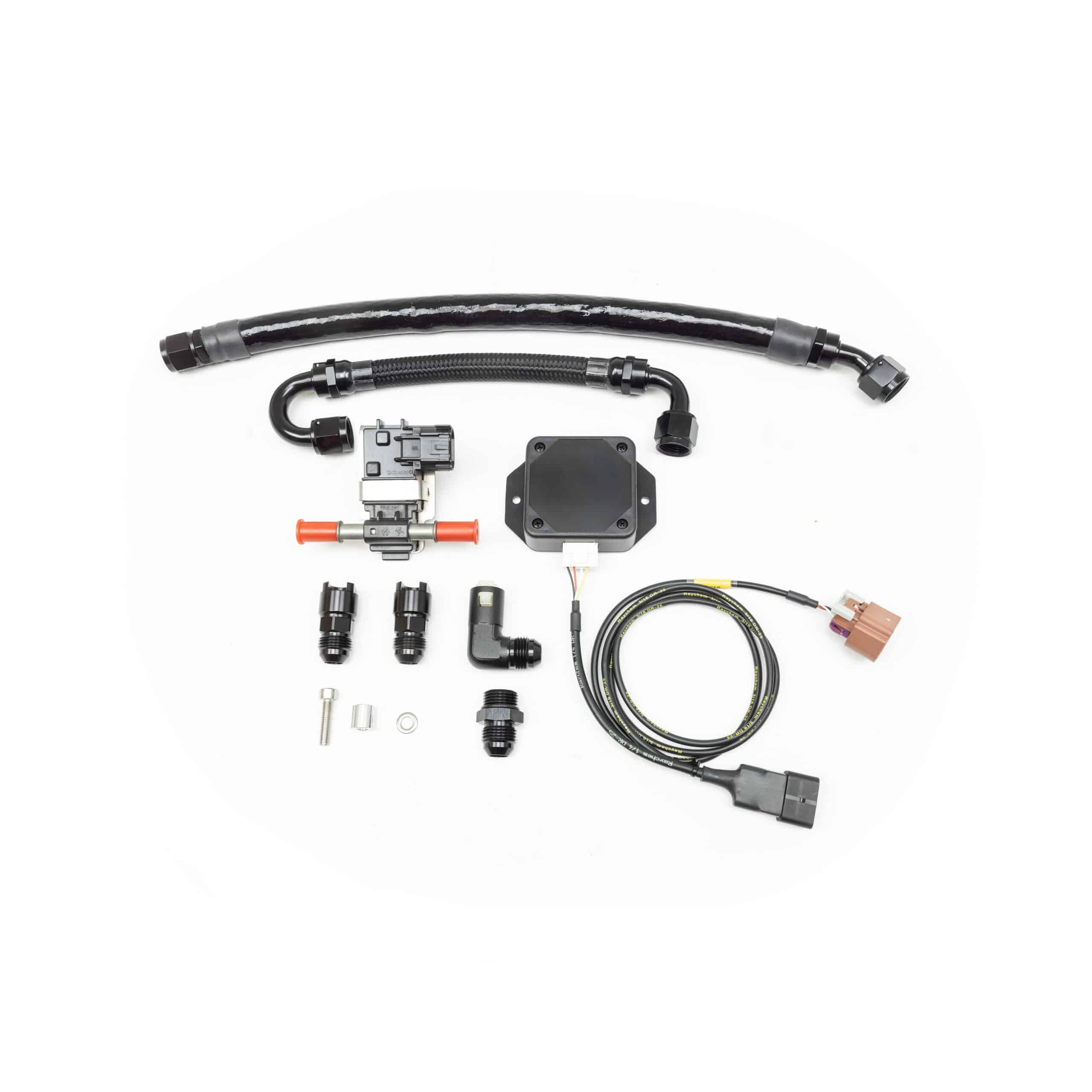

What’s Included

Ethanol content sensor and mount
Flex fuel converter box
Plug-and-play wiring harness
Redhorse Performance ethanol-compatible hose with crimped hose ends

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Choose the inlet size of the aftermarket rails; this Flex Fuel Kit for R35 is plumbed for either 6AN ORB or 8AN ORB
No ethanol content display is included; Cobb and EcuTek both show the reading in their own tools
Cars still on the factory fuel rails need the T1 Race Development GT1R Gen 2 Flex Fuel Kit with Stock Fuel Rails (GT1R-FF-gen-2 -Stock-Rails), which adds an adapter for the stock rail inlet
Pairs with the T1 Race Development GT1R V4 Fuel Rails (gt1r v4-1) for a complete T1 rail and flex fuel setup

Frequently Asked Questions

Which aftermarket rails does the Flex Fuel Kit for R35 fit? This version of the T1 Flex Fuel Kit for R35 suits aftermarket rails with 6AN ORB or 8AN ORB inlets, and the inlet size is chosen when ordering. Cars still on the factory rails need the stock rail version of the kit instead, which includes an adapter that converts the factory inlet to AN threads.
Does the GT1R flex fuel kit require a tune? Yes. The kit delivers the ethanol content signal to the factory ECU, but the calibration is what adjusts fueling and timing as the blend changes. Cobb and EcuTek both support the input and display the reading, so plan the flex fuel calibration with the tuner before installing the hardware on the car.
Why is the ethanol sensor on the pressure side? On the pressure side, fuel is always moving toward the injectors, so the sensor sees a steady stream. In a return line, flow can fall away when the pumps approach their limit, which makes readings less consistent exactly when the engine is working hardest. Moving the sensor was one of the main changes T1 Race Development made for generation two.
Is an ethanol content gauge included with the kit? No. T1 Race Development leaves the display out because Cobb and EcuTek both let the driver view ethanol content through their own tools. The kit supplies the sensor and mount, the converter box, the plug-and-play harness and Redhorse ethanol-compatible plumbing.
Will the aftermarket rail kit fit every R35 model year? Yes. The second generation harness is plug-and-play for every R35 Nissan GT-R, so the same kit suits early and late cars, and the sensor plumbing joins the 6AN ORB or 8AN ORB inlets of the aftermarket rails. Fuel system work still calls for a qualified technician.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
