Which bolts are included in the R35 titanium engine bolt kit?

The kit contains 88 titanium fasteners: 20 valve cover bolts, 2 oil fill neck nuts, 2 cam sensor bolts, 6 coil pack bolts, 8 M8 lower front cover bolts, 8 M10 mid front cover bolts, 20 M6 front cover and VTC cover bolts, 2 ground bolts and 20 M6 front cover bolts, all in the finish selected.

Is the Bolt Hardware Kit for R35 worth it for weight savings?

The weight saved by the T1 Bolt Hardware Kit for R35 is real but modest, since titanium weighs a little over half as much as steel and these are small fasteners. Most owners choose it for appearance and corrosion resistance on a show-quality engine bay, with the lighter top end as a bonus rather than a measurable performance gain.

What finishes are available for the GT1R titanium hardware?

T1 Race Development offers the kit in Raw Titanium, Black PVD and Iridescent Titanium. Every finish contains the same 88 fasteners at the same price, so the choice comes down to the look of the engine bay, for example Black PVD alongside dark covers or Raw Titanium for a natural metal appearance.

Does titanium engine hardware corrode?

Titanium does not rust, which is one reason it is chosen for exposed engine bay hardware, and it keeps a clean appearance through washing and wet weather far better than plated steel fasteners. On the Black PVD version the coating supplies the color, while the titanium underneath offers the same resistance to corrosion as the raw finish.

Can the titanium hardware kit be installed at home?

Yes, by a careful owner with basic tools. The fasteners replace existing valve cover, coil pack, sensor, ground and front cover bolts, so no machining is involved. Work one area at a time so each bolt returns to its own location, follow the factory torque values, and take care with the small M6 fasteners threading into aluminum.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Titanium Engine Bolt Hardware Kit for R35 Nissan GT-R

T1 Race Development’s GT1R Titanium Engine Bolt Hardware Kit for R35 Nissan GT-R replaces 88 of the fasteners on the top and front of the VR38DETT, from the 20 valve cover bolts to the coil pack, cam sensor and timing cover hardware, with titanium. The metal weighs a little over half as much as steel and does not rust, so the engine sheds a little weight and the hardware stays clean through years of heat and washing. It is the finishing detail for an engine bay that will be opened for an audience as often as for maintenance.

Finish Options

T1 offers the kit in three finishes with identical contents and pricing. Raw Titanium shows the natural grey of the metal. Black PVD carries a hard physical vapor deposition coating for a dark finish that suits black covers and intake pipes. Iridescent Titanium adds a colored iridescent finish for builds where the hardware is meant to be noticed.

Features

88 titanium fasteners for the top-end and front cover hardware
Lighter than the factory steel bolts and resistant to corrosion
Three finishes: Raw Titanium, Black PVD and Iridescent Titanium
Valve cover, coil pack, cam sensor, ground and front cover hardware in one kit
Listed by T1 among its weight saving components

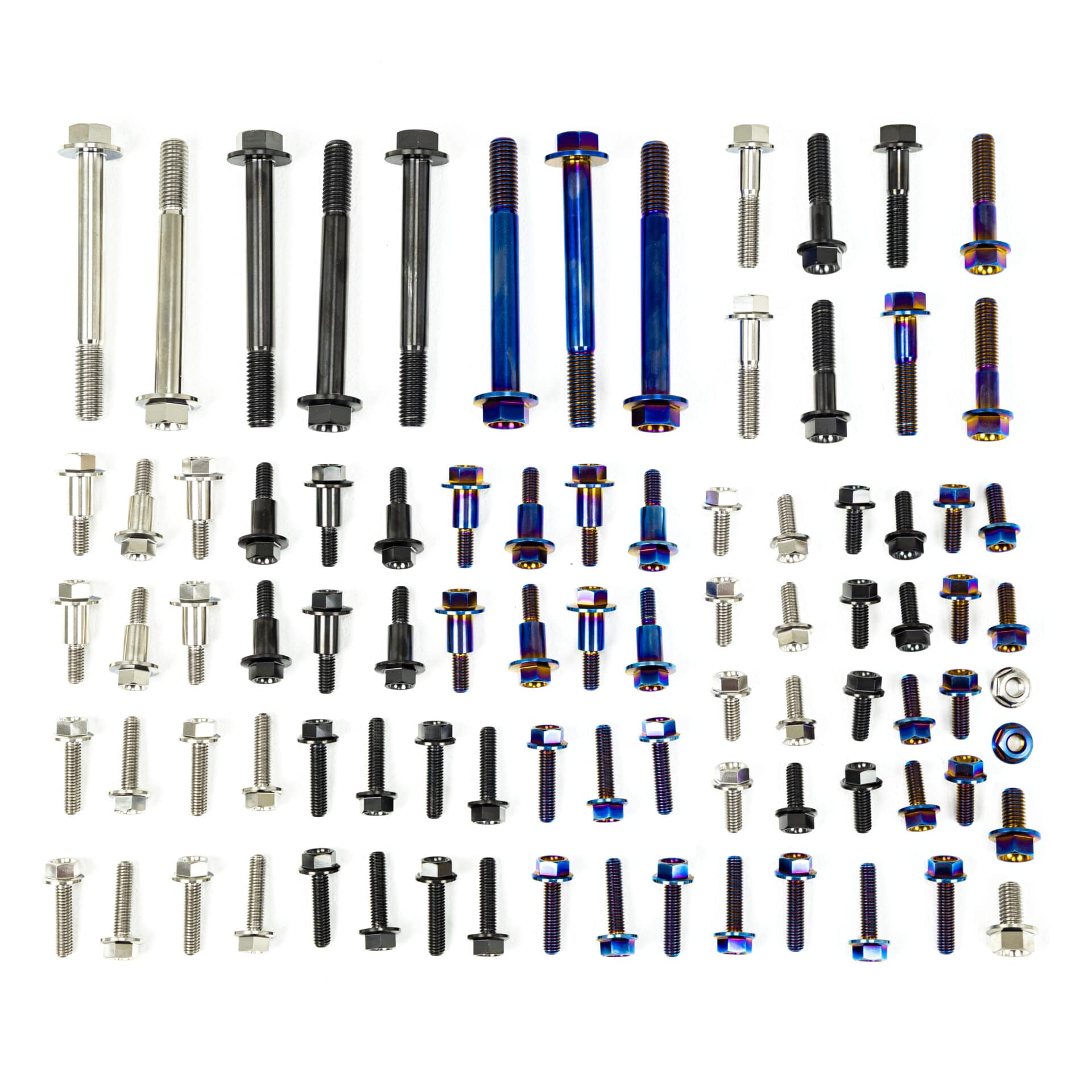

What’s Included

(20) Valve cover bolts
(2) Oil fill neck nuts
(2) Cam sensor bolts
(6) Coil pack bolts
(8) M8 lower front cover bolts
(8) M10 mid front cover bolts
(20) M6 front cover and VTC cover bolts
(2) Ground bolts
(20) M6 front cover bolts

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Sold as a complete 88-piece kit in the finish chosen
The Bolt Hardware Kit for R35 replaces visible top-end and front cover fasteners only; head, main and internal engine fasteners are not part of it

Frequently Asked Questions

Which bolts are included in the R35 titanium engine bolt kit? The kit contains 88 titanium fasteners: 20 valve cover bolts, 2 oil fill neck nuts, 2 cam sensor bolts, 6 coil pack bolts, 8 M8 lower front cover bolts, 8 M10 mid front cover bolts, 20 M6 front cover and VTC cover bolts, 2 ground bolts and 20 M6 front cover bolts, all in the finish selected.
Is the Bolt Hardware Kit for R35 worth it for weight savings? The weight saved by the T1 Bolt Hardware Kit for R35 is real but modest, since titanium weighs a little over half as much as steel and these are small fasteners. Most owners choose it for appearance and corrosion resistance on a show-quality engine bay, with the lighter top end as a bonus rather than a measurable performance gain.
What finishes are available for the GT1R titanium hardware? T1 Race Development offers the kit in Raw Titanium, Black PVD and Iridescent Titanium. Every finish contains the same 88 fasteners at the same price, so the choice comes down to the look of the engine bay, for example Black PVD alongside dark covers or Raw Titanium for a natural metal appearance.
Does titanium engine hardware corrode? Titanium does not rust, which is one reason it is chosen for exposed engine bay hardware, and it keeps a clean appearance through washing and wet weather far better than plated steel fasteners. On the Black PVD version the coating supplies the color, while the titanium underneath offers the same resistance to corrosion as the raw finish.
Can the titanium hardware kit be installed at home? Yes, by a careful owner with basic tools. The fasteners replace existing valve cover, coil pack, sensor, ground and front cover bolts, so no machining is involved. Work one area at a time so each bolt returns to its own location, follow the factory torque values, and take care with the small M6 fasteners threading into aluminum.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
