What does the Methanol Breather do?

The T1 Methanol Breather evacuates the high crankcase pressure common in high horsepower methanol engines. Crankcase gases are routed through the -20AN inlet into the tank, and the tank drains through a -10AN male fitting on a line the builder makes and routes.

What is the difference between the two packages?

The tank alone includes the breather tank with its welded bracket and a ready to weld -20AN bung. The hose package adds a 15 ft -20AN hose with one 90 degree hose end and one straight hose end, so the tank can be connected without sourcing a hose.

Does it need welding?

Yes. T1 Race Development sends a ready to weld male -20AN bung loose, and the installer fabricates and welds it in to suit the engine. The tank itself already has its mounting bracket welded on and can be mounted in a variety of places.

What hose should I use on the inlet?

If you buy the tank alone, use a -20AN hose that is verified as safe at high temperatures, as T1 Race Development advises. The hose package supplies a 15 ft -20AN hose with the hose ends included, which removes the guesswork.

Is the drain line included?

No. The breather tank has a -10AN male drain fitting, and the builder is responsible for making and routing the -10AN drain line. Bulletproof Automotive can help source suitable -10AN line and fittings to match the installation before the order ships.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

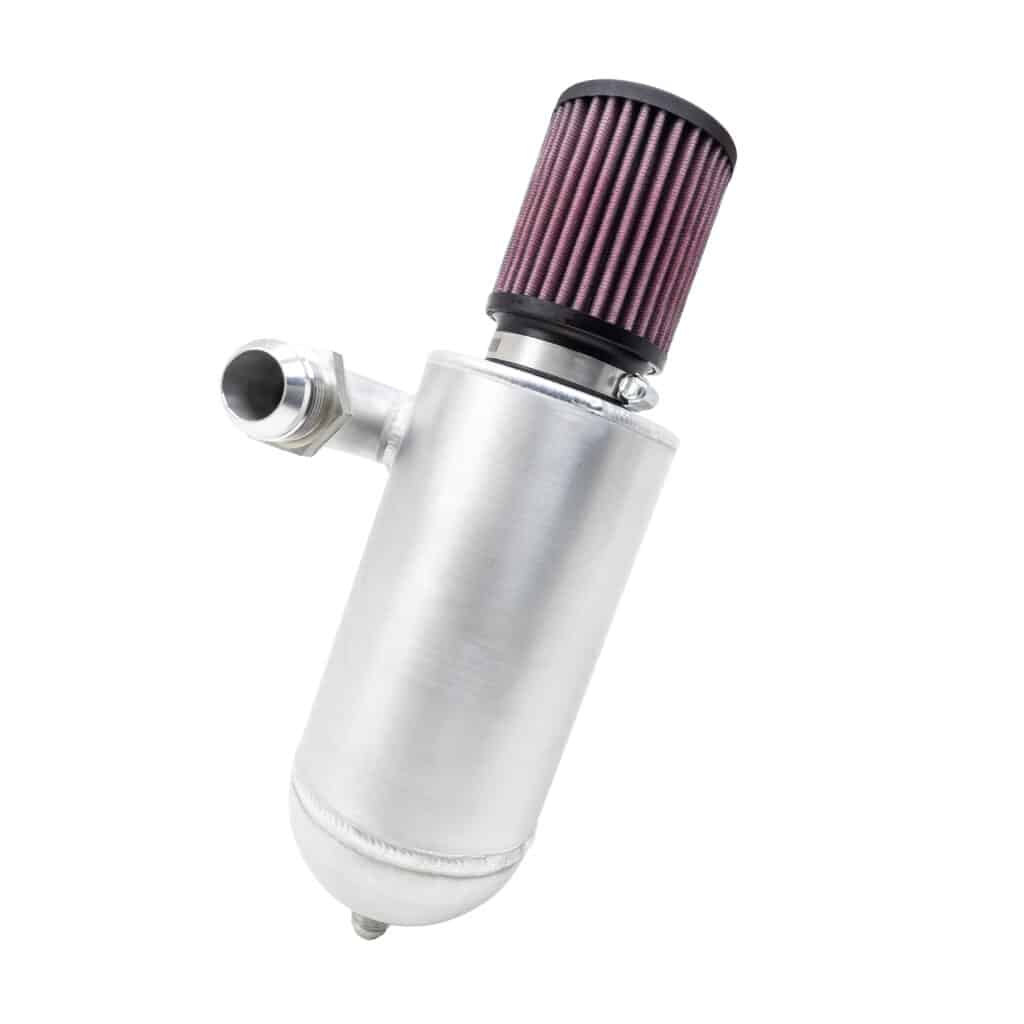

T1 Race Development GT1R Methanol Breather for R35 Nissan GT-R

T1 Race Development’s GT1R Methanol Breather for R35 Nissan GT-R is a crankcase breather tank built to evacuate the high crankcase pressure common in high horsepower methanol engines. It has a -20AN male inlet and a -10AN male drain, and it comes with its mounting bracket already welded on.

Two Packages

The tank is sold on its own or as T1’s breather system with a 15 ft -20AN hose. The hose package adds one 90 degree hose end and one straight hose end. Both packages include a ready to weld male -20AN bung, sent loose for the builder to fabricate and install.

Installation

The tank can be mounted in a variety of places. The builder makes and routes the -10AN drain line, and T1 asks that any hose used on the -20AN inlet is verified as safe at high temperatures.

Features

Breather tank for high horsepower methanol engines
-20AN male inlet and -10AN male drain
Mounting bracket welded on
Ready to weld -20AN bung supplied loose
Optional 15 ft -20AN hose with 90 degree and straight ends

Specifications

Inlet: -20AN male
Drain: -10AN male
Weld fitting: -20AN male bung, supplied loose
Hose package: 15 ft -20AN hose, 90 degree end and straight end

What’s Included

Breather tank with welded mounting bracket
Ready to weld male -20AN bung
With the hose package: 15 ft -20AN hose, 90 degree hose end and straight hose end

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Fabrication is required; the -20AN bung for the Methanol Breather is welded in by the installer
The builder makes and routes the -10AN drain line
Verify that the hose used on the -20AN inlet is safe at high temperatures
Fuel system parts for methanol builds include the T1 Race Development GT1R Methanol Fuel Line Kit

Frequently Asked Questions

What does the Methanol Breather do? The T1 Methanol Breather evacuates the high crankcase pressure common in high horsepower methanol engines. Crankcase gases are routed through the -20AN inlet into the tank, and the tank drains through a -10AN male fitting on a line the builder makes and routes.
What is the difference between the two packages? The tank alone includes the breather tank with its welded bracket and a ready to weld -20AN bung. The hose package adds a 15 ft -20AN hose with one 90 degree hose end and one straight hose end, so the tank can be connected without sourcing a hose.
Does it need welding? Yes. T1 Race Development sends a ready to weld male -20AN bung loose, and the installer fabricates and welds it in to suit the engine. The tank itself already has its mounting bracket welded on and can be mounted in a variety of places.
What hose should I use on the inlet? If you buy the tank alone, use a -20AN hose that is verified as safe at high temperatures, as T1 Race Development advises. The hose package supplies a 15 ft -20AN hose with the hose ends included, which removes the guesswork.
Is the drain line included? No. The breather tank has a -10AN male drain fitting, and the builder is responsible for making and routing the -10AN drain line. Bulletproof Automotive can help source suitable -10AN line and fittings to match the installation before the order ships.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
