Does the Full Length 6-Injector Fuel System work with the stock intake manifold?

Yes. T1 Race Development designed the Full Length 6-Injector Fuel System for an R35 Nissan GT-R that keeps its factory intake manifold and six injectors. Cars converting to the AMS or Boost Logic 12-injector manifold need one of the 12-injector versions, which add the secondary rail plumbing and crossover lines.

Why replace the factory fuel lines?

The full length kit runs a -8 main feed and a -6 main return line from the GT1R E5LM hanger to the engine bay in place of the factory lines. T1 recommends its OEM line systems for builds under about 1,400 wheel horsepower on ethanol, so new lines suit cars that will run beyond that level.

Is the fuel pump included?

Yes. The kit includes the Injector Dynamics FPS1100 brushless pump system, installed in the GT1R E5LM hanger, along with the GT1R BPC M1 harness that wires it in. T1 Race Development quotes a single FPS1100 at 2,000 wheel horsepower on ethanol, which removes the need for multiple pumps.

Can the system report fuel pressure to the ECU?

It can with an optional sensor. T1 Race Development offers the Injector Dynamics PTS kit and the GT1R fuel pressure sensor kit as add-ons to this system. Neither is part of the base kit, so choose one at the time of ordering if the ECU will log or act on fuel pressure.

What filter does the kit use?

It uses the Injector Dynamics F750, which meets the Bosch OE specification for fuel injector filtration. Injector Dynamics rates it at 750 liters per hour with 1.1 psi of pressure drop, and it carries a differential pressure indicator that shows when the element needs replacing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Full Length 6-Injector Fuel System for R35 Nissan GT-R

T1 Race Development’s GT1R Full Length 6-Injector Fuel System for R35 Nissan GT-R is the GT1R Complete Fuel Solution configured for owners who want to keep the factory intake manifold and its six injectors. It handles everything in the tank, replaces the factory lines under the car, and supplies the plumbing, fuel rails, ethanol sensor and filter in the engine bay, so the whole system comes from one source and was designed to work together.

Design and Performance

The heart of the system is the Injector Dynamics FPS1100 brushless pump in a GT1R E5LM hanger, which T1 quotes at 2,000 wheel horsepower on ethanol from a single pump. From the hanger, a -8 main feed line and a -6 main return line run the full length of the car in place of the factory lines. In the engine bay an Injector Dynamics F750 filter, GT1R rails and a FluidWorks regulator complete the circuit.

Features

Keeps the factory intake manifold and six injectors
Injector Dynamics FPS1100 brushless pump in a GT1R E5LM hanger
Full length -8 main feed and -6 main return lines
Injector Dynamics F750 filter meeting the Bosch OE injector filtration specification
FluidWorks fuel pressure regulator and ECA ethanol content sensor

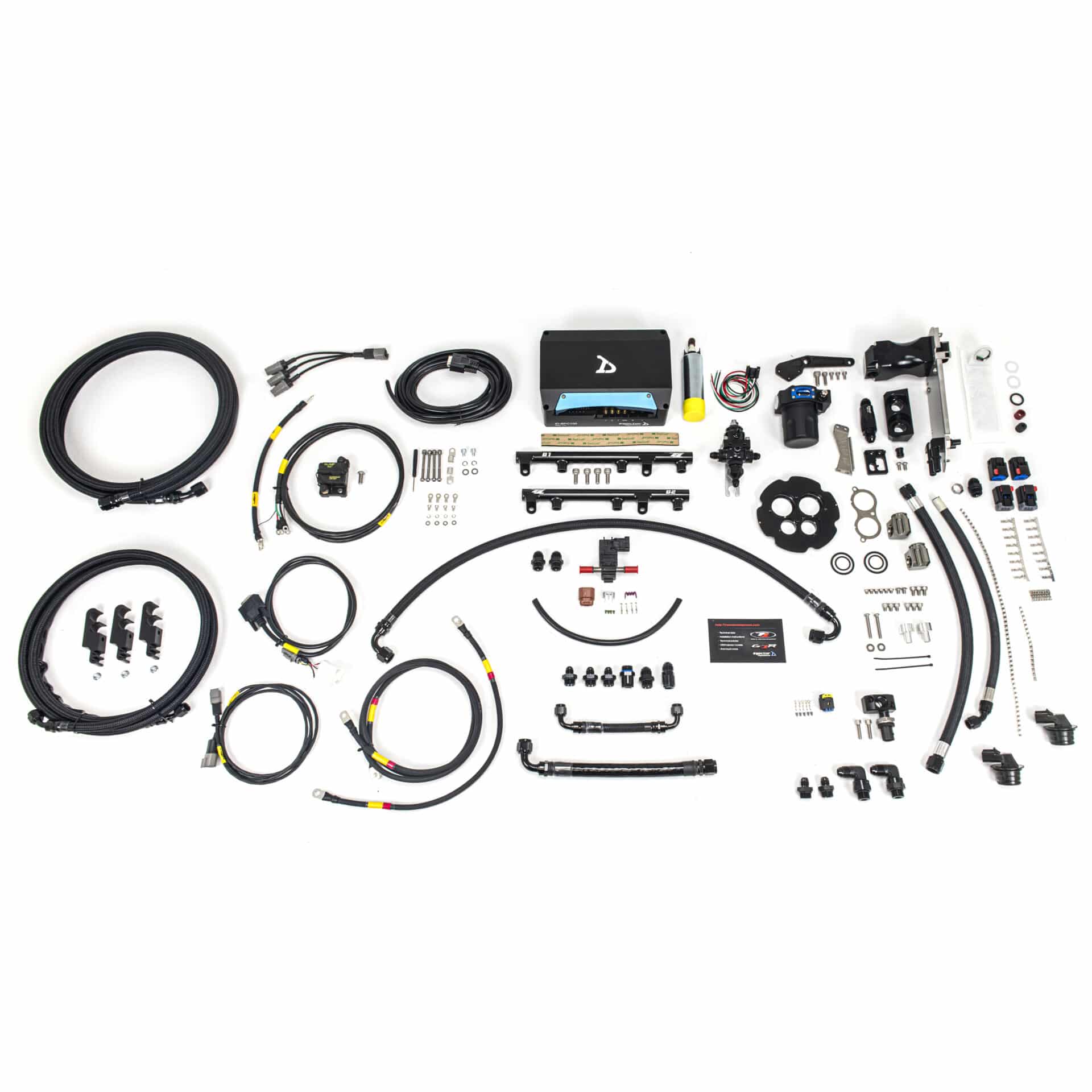

What’s Included

GT1R E5LM fuel pump hanger
Injector Dynamics FPS1100 brushless pump system
GT1R BPC M1 harness
GT1R fuel rails
Injector Dynamics F750 fuel filter
FluidWorks fuel pressure regulator
ECA sensor and connector
All lines, including the -8 main feed and -6 main return

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

The pump wiring supplied is T1’s GT1R BPC M1 harness; check with Bulletproof Automotive before ordering if the car runs an ECU other than a MoTeC M1
Injectors are not included
The Injector Dynamics PTS kit and the GT1R fuel pressure sensor kit are optional extras from T1
The Full Length 6-Injector Fuel System is T1 part number 02.01.07

Frequently Asked Questions

Does the Full Length 6-Injector Fuel System work with the stock intake manifold? Yes. T1 Race Development designed the Full Length 6-Injector Fuel System for an R35 Nissan GT-R that keeps its factory intake manifold and six injectors. Cars converting to the AMS or Boost Logic 12-injector manifold need one of the 12-injector versions, which add the secondary rail plumbing and crossover lines.
Why replace the factory fuel lines? The full length kit runs a -8 main feed and a -6 main return line from the GT1R E5LM hanger to the engine bay in place of the factory lines. T1 recommends its OEM line systems for builds under about 1,400 wheel horsepower on ethanol, so new lines suit cars that will run beyond that level.
Is the fuel pump included? Yes. The kit includes the Injector Dynamics FPS1100 brushless pump system, installed in the GT1R E5LM hanger, along with the GT1R BPC M1 harness that wires it in. T1 Race Development quotes a single FPS1100 at 2,000 wheel horsepower on ethanol, which removes the need for multiple pumps.
Can the system report fuel pressure to the ECU? It can with an optional sensor. T1 Race Development offers the Injector Dynamics PTS kit and the GT1R fuel pressure sensor kit as add-ons to this system. Neither is part of the base kit, so choose one at the time of ordering if the ECU will log or act on fuel pressure.
What filter does the kit use? It uses the Injector Dynamics F750, which meets the Bosch OE specification for fuel injector filtration. Injector Dynamics rates it at 750 liters per hour with 1.1 psi of pressure drop, and it carries a differential pressure indicator that shows when the element needs replacing.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
