Does a stock R35 GT-R need an air oil separator?

Even a stock GT-R leaves an oil film in the turbo inlets and intake runners, according to T1 Race Development, and the problem grows with power, forged pistons and ethanol fuel. A separator earns its keep on modified cars, where blowby rises and oil starts reaching the intercooler and blow-off valves. On a stock car it mainly keeps the intake tract clean.

Does the Oil Separator Kit for R35 need to be emptied?

No. The T1 Oil Separator Kit for R35 is a fully recirculating system. Oil collected in its two separation stages drains back to the engine through a 6AN check valve, so there is no can to empty and no risk of an overfull can spilling into the turbo inlets. It also avoids the oil smell that vented systems can carry into the cabin.

How long does the GT1R separator take to install?

T1 Race Development rates installation at under two hours for a first-time installer using basic hand tools, including the oil drainback. The kit arrives with pre-assembled lines, a CNC aluminum mounting bracket and stainless steel hardware, and T1 publishes step-by-step instructions on its support site.

How does the GT1R separator keep oil out of the turbos?

Crankcase vapor passes through detailed internal passages that separate oil in two stages, first the larger droplets and then the finer mist. Cleaned air continues to the intake while the separated oil returns to the engine. A 6AN check valve in the drain stops crankcase pressure from pushing up through the bottom, where the separator is designed to drain.

What if the engine makes more blowby than one separator can handle?

On engines running extreme boost, the volume of air moving through the crankcase can exceed what a single separator returns. T1 Race Development offers the GT1R Secondary Breather Kit for those builds, which lets the separator vent to a catch can mounted at the front of the car instead of back through the turbo inlets.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Air/Oil Separator Kit for R35 Nissan GT-R

T1 Race Development’s GT1R Air/Oil Separator Kit for R35 Nissan GT-R keeps crankcase oil out of the intake tract, where even a stock GT-R leaves a film in the turbo inlets and runners. Add boost, forged pistons with looser clearances or ethanol, which is harder on ring seal, and blowby climbs, carrying more oil into the intercooler and onto the valves. T1’s answer is a closed system that returns the oil to the engine, so there is no can to empty and no oily smell drifting into the cabin.

Design and Performance

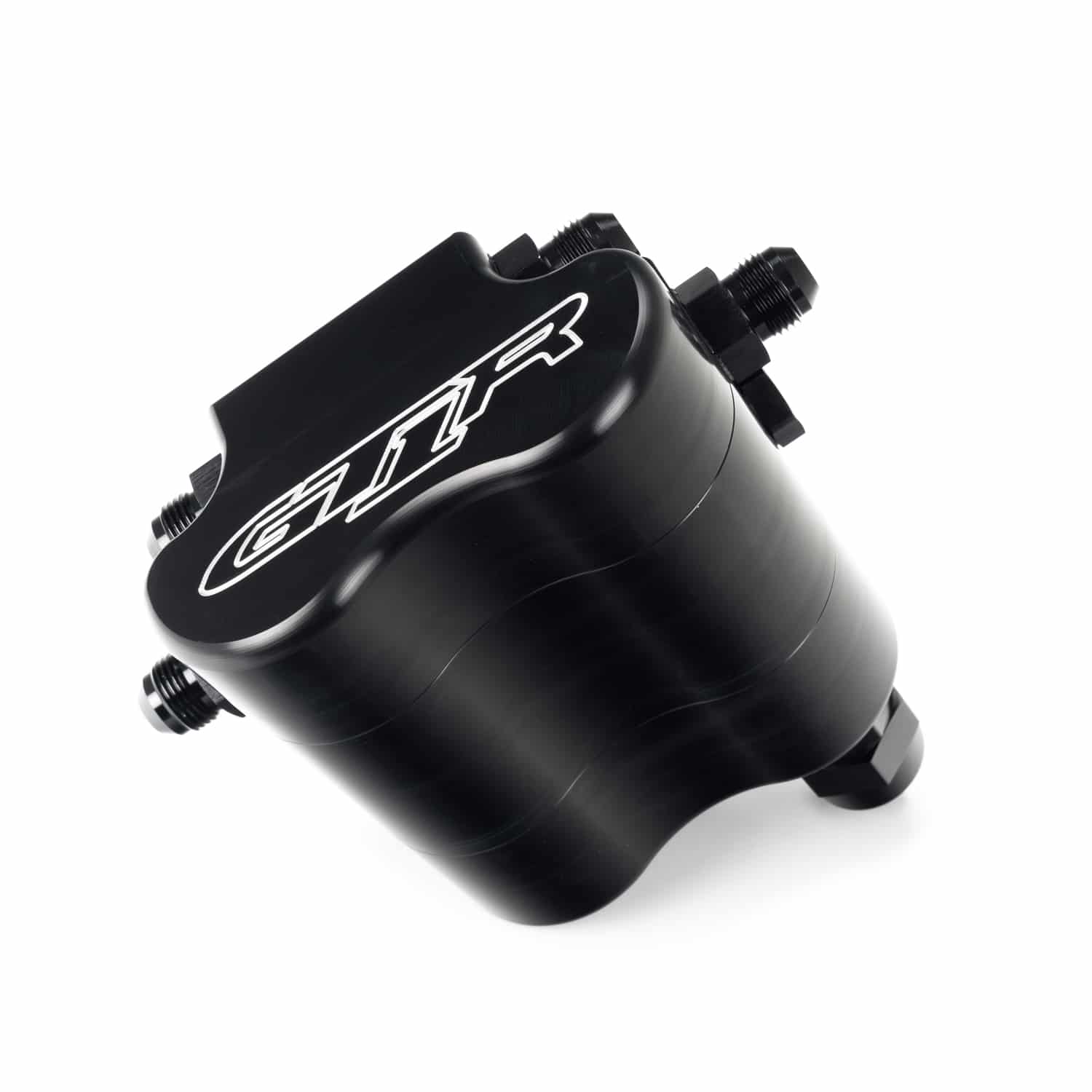

Detailed internal passages separate oil in two stages, first the heavier droplets and then the fine mist, and the oil drains back to the engine through a 6AN check valve in the base. That valve lets oil return while stopping crankcase pressure from feeding the separator from below. The three-piece CNC body is anodized black, engraved with the GT1R logo, sealed with Viton o-rings and plumbed through AN o-ring boss ports.

Bolt-On and Go

A CNC aluminum bracket and stainless steel hardware mount the separator to the engine, and the lines arrive pre-assembled with Redhorse Performance black anodized crimp hose ends on black AN hose.

Features

Two-stage separation of heavy droplets and fine oil mist
Fully recirculating and maintenance free, with nothing to empty
Three-piece CNC body, black anodized and GT1R engraved
Viton o-ring seals and AN o-ring boss ports
6AN check valve in the drain to block crankcase pressure

What’s Included

GT1R CNC air/oil separator
CNC aluminum mounting bracket and stainless steel hardware
Pre-assembled lines with Redhorse Performance crimp hose ends
Oil drainback system

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

On engines running extreme boost, the Oil Separator Kit for R35 can vent to the T1 Race Development GT1R Secondary Breather Kit (GT1R Secondary Breather Kit 1) instead of back through the turbo inlets

Frequently Asked Questions

Does a stock R35 GT-R need an air oil separator? Even a stock GT-R leaves an oil film in the turbo inlets and intake runners, according to T1 Race Development, and the problem grows with power, forged pistons and ethanol fuel. A separator earns its keep on modified cars, where blowby rises and oil starts reaching the intercooler and blow-off valves. On a stock car it mainly keeps the intake tract clean.
Does the Oil Separator Kit for R35 need to be emptied? No. The T1 Oil Separator Kit for R35 is a fully recirculating system. Oil collected in its two separation stages drains back to the engine through a 6AN check valve, so there is no can to empty and no risk of an overfull can spilling into the turbo inlets. It also avoids the oil smell that vented systems can carry into the cabin.
How long does the GT1R separator take to install? T1 Race Development rates installation at under two hours for a first-time installer using basic hand tools, including the oil drainback. The kit arrives with pre-assembled lines, a CNC aluminum mounting bracket and stainless steel hardware, and T1 publishes step-by-step instructions on its support site.
How does the GT1R separator keep oil out of the turbos? Crankcase vapor passes through detailed internal passages that separate oil in two stages, first the larger droplets and then the finer mist. Cleaned air continues to the intake while the separated oil returns to the engine. A 6AN check valve in the drain stops crankcase pressure from pushing up through the bottom, where the separator is designed to drain.
What if the engine makes more blowby than one separator can handle? On engines running extreme boost, the volume of air moving through the crankcase can exceed what a single separator returns. T1 Race Development offers the GT1R Secondary Breather Kit for those builds, which lets the separator vent to a catch can mounted at the front of the car instead of back through the turbo inlets.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
