What is the Extreme Duty Rotating Assembly?

It is the T1 Race Development bottom end for a 3.8 liter VR38 built for high power: an 88.4 mm billet crankshaft with an upgraded bolt and key, GT1R spec Diamond pistons, Manley 300M Tri-beam rods, TP1 DLC coated wrist pins and custom rod bearings.

Does it change displacement?

No. The billet crankshaft keeps the factory 88.4 mm stroke, so the VR38 stays at 3.8 liters. Owners who want more displacement can choose the 4.1 liter extreme duty stroker kit, which uses a 94.4 mm crank with the same rod and pin specification.

What power is it built for?

T1 Race Development lists the T1 Extreme Duty Rotating Assembly for 1,500 whp and up. Reaching any figure depends on the turbochargers, fuel system, engine management and calibration, as well as the cylinder heads and head sealing chosen for the engine.

Is machine work included?

No. The kit supplies the crankshaft, pistons, rods, wrist pins and rod bearings. Machining, balancing and assembly are carried out by the engine builder, or by T1 Race Development as part of one of its complete long block builds on a customer core.

Why use a billet crankshaft at stock stroke?

The billet crankshaft replaces the factory crank in a build where cylinder pressure is far above stock, and it comes with an upgraded crank bolt and key. T1 Race Development pairs it with Tri-beam 300M rods and DLC coated pins for the same reason.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R 3.8L Extreme Duty Rotating Assembly for R35 Nissan GT-R

T1 Race Development’s GT1R 3.8L Extreme Duty Rotating Assembly for R35 Nissan GT-R keeps the VR38 at its factory 3.8 liters while replacing the parts that carry the load: an 88.4 mm billet crankshaft, GT1R spec Diamond pistons, Manley 300M Tri-beam connecting rods and TP1 DLC coated wrist pins. T1 lists the assembly for builds of 1,500 whp and up.

Design and Performance

With the stroke left at the factory 88.4 mm, the engine keeps its factory displacement, while the billet crank, with an upgraded crank bolt and key, takes the place of the cast factory part. The Tri-beam 300M rods and DLC coated pins are the same heavier duty combination T1 uses in its extreme duty 4.1 liter kit, and custom rod bearings complete the assembly.

Choosing 3.8 or 4.1

T1 offers the extreme duty parts at both displacements. The 3.8 liter assembly suits owners who want to stay at factory displacement, and the 4.1 liter XT kit adds stroke for more torque at the same boost.

Features

88.4 mm billet crankshaft with upgraded crank bolt and key
GT1R spec Diamond pistons

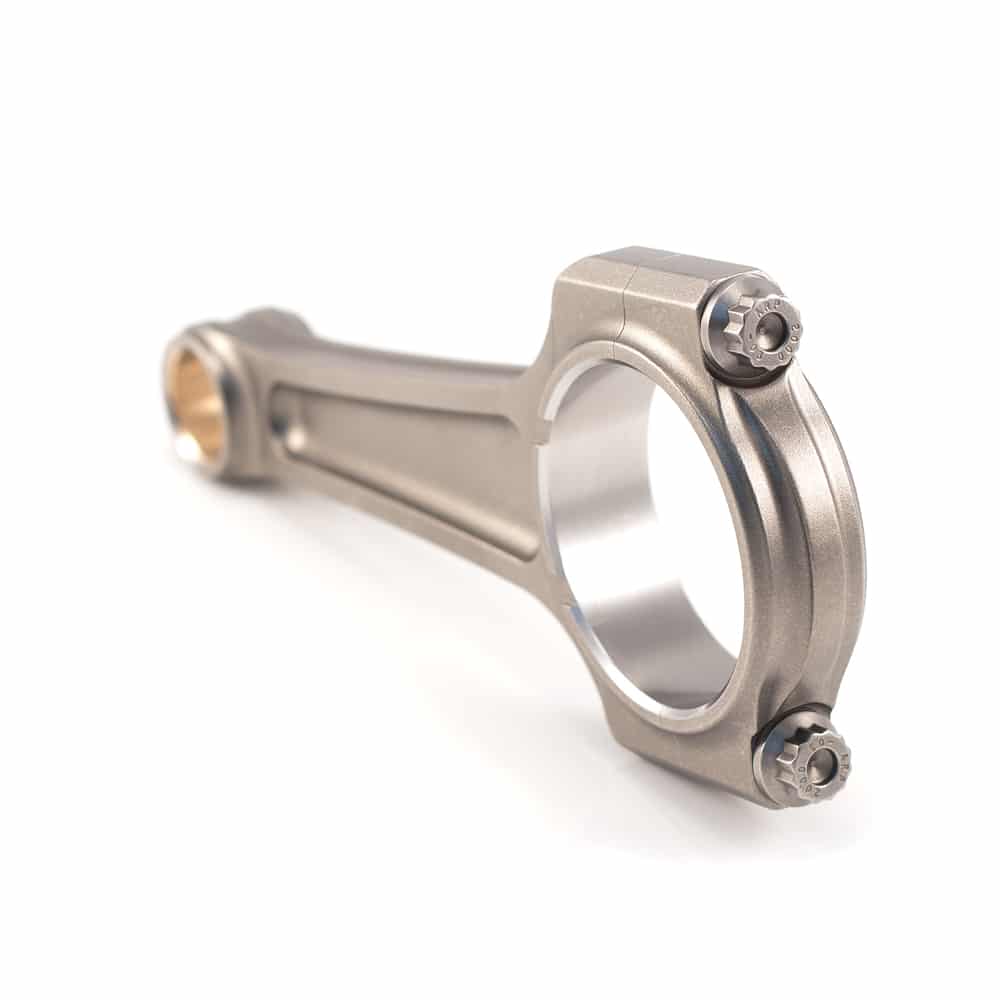

Manley 300M Tri-beam connecting rods
TP1 DLC coated wrist pins
Custom rod bearings

What’s Included

88.4 mm billet crankshaft with upgraded crank bolt and key
GT1R spec Diamond pistons
Manley 300M Tri-beam connecting rods
TP1 DLC coated wrist pins
Custom rod bearings

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

T1 lists the Extreme Duty Rotating Assembly for 1,500 whp and up; actual output depends on the turbos, fuel and tuning around it
Machining, balancing and assembly are the engine builder’s work and are not part of the kit
For 4.1 liters, see the T1 Race Development GT1R 4.1L Extreme Duty Stroker Kit (GT1R-r35-extreme-duty-stroker-4-1)
T1 builds complete 3.8 liter engines as the T1 Race Development GT1R 3.8L Long Block

Frequently Asked Questions

What is the Extreme Duty Rotating Assembly? It is the T1 Race Development bottom end for a 3.8 liter VR38 built for high power: an 88.4 mm billet crankshaft with an upgraded bolt and key, GT1R spec Diamond pistons, Manley 300M Tri-beam rods, TP1 DLC coated wrist pins and custom rod bearings.
Does it change displacement? No. The billet crankshaft keeps the factory 88.4 mm stroke, so the VR38 stays at 3.8 liters. Owners who want more displacement can choose the 4.1 liter extreme duty stroker kit, which uses a 94.4 mm crank with the same rod and pin specification.
What power is it built for? T1 Race Development lists the T1 Extreme Duty Rotating Assembly for 1,500 whp and up. Reaching any figure depends on the turbochargers, fuel system, engine management and calibration, as well as the cylinder heads and head sealing chosen for the engine.
Is machine work included? No. The kit supplies the crankshaft, pistons, rods, wrist pins and rod bearings. Machining, balancing and assembly are carried out by the engine builder, or by T1 Race Development as part of one of its complete long block builds on a customer core.
Why use a billet crankshaft at stock stroke? The billet crankshaft replaces the factory crank in a build where cylinder pressure is far above stock, and it comes with an upgraded crank bolt and key. T1 Race Development pairs it with Tri-beam 300M rods and DLC coated pins for the same reason.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
