When is the Extreme Duty Stroker Kit needed?

T1 Race Development rates its standard 4.1L stroker kit for up to 1,300 whp and recommends the Extreme Duty Stroker Kit, which it calls the XT kit, beyond that. Its own description of the XT kit lists it for 1,500 whp and up, depending on the rest of the build.

How does the kit reach 4.1 liters?

Through stroke. The billet crankshaft has a 94.4 mm stroke compared with the factory 88.4 mm, which raises the displacement of the VR38 from 3.8 to 4.1 liters while keeping the bore. The pistons are made to suit the longer stroke and the rods that come with the kit.

What makes it extreme duty?

The standard kit uses Manley 15424-6 rods and H13 wrist pins. The T1 Extreme Duty Stroker Kit moves to Manley 300M Tri-beam rods and TP1 DLC coated wrist pins, alongside GT1R spec Diamond pistons, for the higher loads of a big power engine.

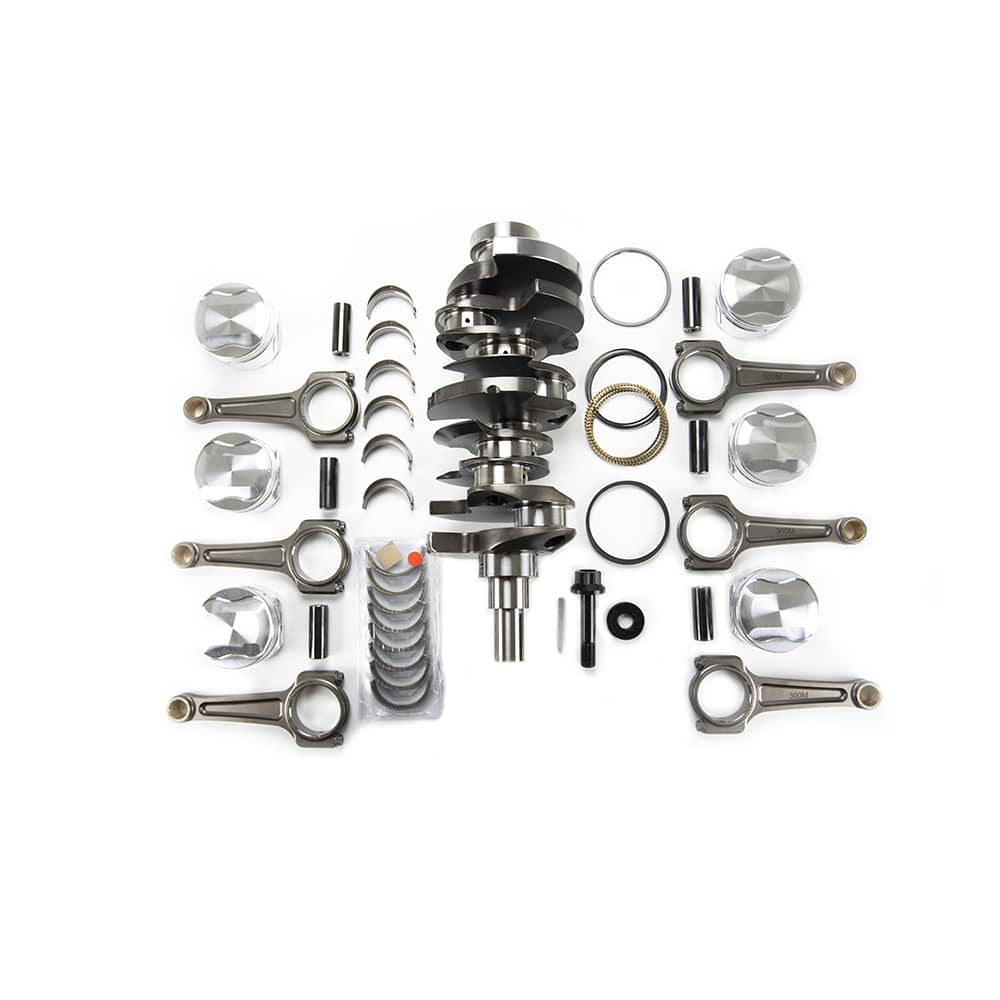

A 94.4 mm billet crankshaft with an upgraded crank bolt and key, GT1R spec Diamond pistons, Manley 300M Tri-beam connecting rods, TP1 DLC coated wrist pins and custom rod bearings. Machining, balancing and assembly are carried out by the engine builder.

Can T1 build the whole engine?

Yes. T1 Race Development assembles complete 4.1 liter VR38 long blocks in several stages from a customer core, with machine work, balancing, blueprinting and ported heads. Bulletproof Automotive can quote a complete long block if a finished engine suits the build better than parts.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R 4.1L Extreme Duty Stroker Kit for R35 Nissan GT-R

T1 Race Development’s GT1R 4.1L Extreme Duty Stroker Kit for R35 Nissan GT-R is the rotating assembly T1 points to once a 4.1 liter VR38 is headed past the 1,300 whp limit of its standard stroker kit. It is built around a billet crankshaft with a 94.4 mm stroke, matched to GT1R spec Diamond pistons, Tri-beam 300M rods from Manley and DLC coated TP1 wrist pins, the heavier duty combination T1 calls the XT kit.

Design and Performance

Stroke is what turns the 3.8 liter VR38 into a 4.1: the billet crankshaft lengthens the stroke to 94.4 mm from the factory 88.4 mm, and the pistons are made to suit that geometry. The crank comes with an upgraded crank bolt and key, and custom rod bearings complete the assembly. Compared with the standard GT1R stroker kit, the XT version steps up to Tri-beam 300M rods and DLC coated pins for higher cylinder pressure.

Where It Fits

The kit is the bottom end of a 4.1 liter build. T1 uses its stroker kits as the basis of the 4.1 liter long blocks it assembles, and the parts here suit an engine builder putting together a VR38 of the same displacement.

Features

94.4 mm billet crankshaft with upgraded crank bolt and key
GT1R spec Diamond pistons
Manley 300M Tri-beam connecting rods
TP1 DLC coated wrist pins
Custom rod bearings

What’s Included

94.4 mm billet crankshaft with upgraded crank bolt and key
GT1R spec Diamond pistons
Manley 300M Tri-beam connecting rods
TP1 DLC coated wrist pins
Custom rod bearings

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

T1 recommends the Extreme Duty Stroker Kit for builds beyond 1,300 whp, and its kit description lists it for 1,500 whp and up; actual output depends on the turbos, fuel and tuning around it
Machining, balancing and assembly are the engine builder’s work and are not part of the kit
For up to 1,300 whp, T1 offers the T1 Race Development GT1R 4.1L Stroker Kit (GT1R-r35-stroker)
A complete engine is available as the T1 Race Development GT1R 4.1L Stroker Long Block

Frequently Asked Questions

When is the Extreme Duty Stroker Kit needed? T1 Race Development rates its standard 4.1L stroker kit for up to 1,300 whp and recommends the Extreme Duty Stroker Kit, which it calls the XT kit, beyond that. Its own description of the XT kit lists it for 1,500 whp and up, depending on the rest of the build.
How does the kit reach 4.1 liters? Through stroke. The billet crankshaft has a 94.4 mm stroke compared with the factory 88.4 mm, which raises the displacement of the VR38 from 3.8 to 4.1 liters while keeping the bore. The pistons are made to suit the longer stroke and the rods that come with the kit.
What makes it extreme duty? The standard kit uses Manley 15424-6 rods and H13 wrist pins. The T1 Extreme Duty Stroker Kit moves to Manley 300M Tri-beam rods and TP1 DLC coated wrist pins, alongside GT1R spec Diamond pistons, for the higher loads of a big power engine.
What is included? A 94.4 mm billet crankshaft with an upgraded crank bolt and key, GT1R spec Diamond pistons, Manley 300M Tri-beam connecting rods, TP1 DLC coated wrist pins and custom rod bearings. Machining, balancing and assembly are carried out by the engine builder.
Can T1 build the whole engine? Yes. T1 Race Development assembles complete 4.1 liter VR38 long blocks in several stages from a customer core, with machine work, balancing, blueprinting and ported heads. Bulletproof Automotive can quote a complete long block if a finished engine suits the build better than parts.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
