Does the S-Tai 3rd-4th-5th Gear Set change the gear ratios?

Yes, but only slightly. Spoon lists third at 1.522 against 1.529 stock, fourth unchanged at 1.125 and fifth at 0.903 against 0.911. The S-Tai 3rd-4th-5th Gear Set was designed for strength, and the small ratio changes follow from the new tooth counts rather than any attempt to regear the car.

Why would an FL5 need stronger gears?

Most never will. Spoon developed the set after two transmission failures in the Fuji 24 Hours, where gears carry heavy load for hour after hour. Owners who run endurance events, long track sessions or time attack programs are the audience, while a road car or an occasional circuit day is unlikely to stress the factory gears to failure.

Can the main and counter gears be bought separately?

No. Spoon specifies that the main shaft and counter shaft gears are always used together, because each redesigned gear is cut to mesh with its new partner. The set is sold complete for third, fourth and fifth, so the builder installs matched pairs on both shafts in a single job.

How was the set proven?

On track. Spoon ran the gears in the last three races of the season that followed the Fuji failures and covered more than 3,500 km without replacing them. The following year the car completed the Fuji 24 Hours without a transmission problem, at a race pace Spoon describes as faster than in previous years.

Who should fit the gear set?

A specialist transmission builder. The job means removing and splitting the six-speed gearbox, pressing gears off both shafts and setting up bearings and synchronizers correctly on reassembly. Worn synchronizer rings or bearings are best renewed while the case is open.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

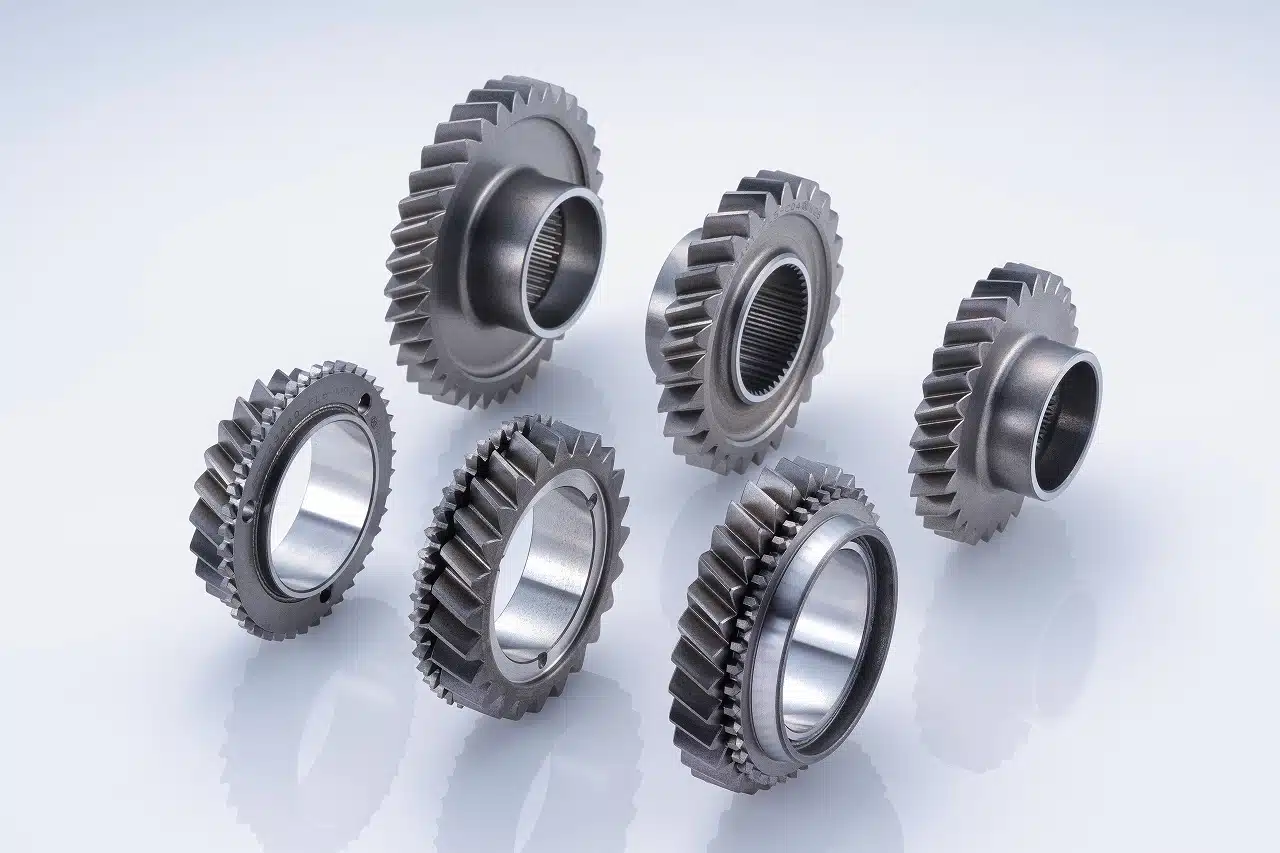

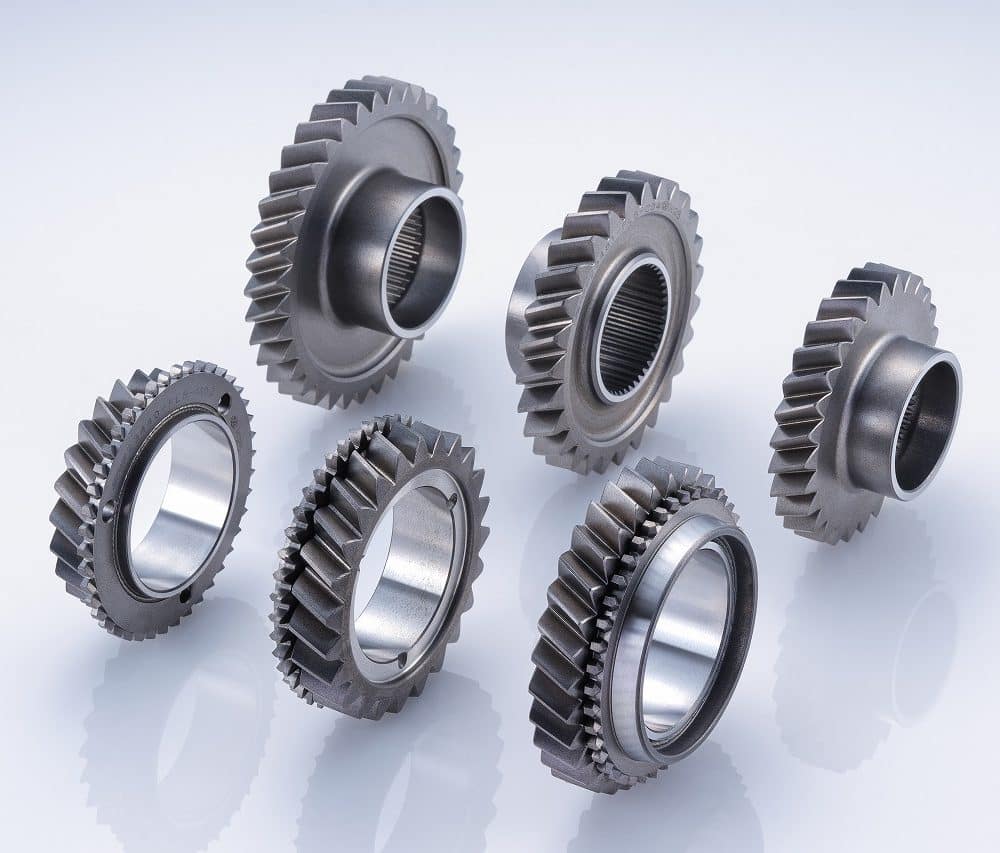

Spoon Sports S-Tai 3rd-4th-5th Gear Set for FL5 Honda Civic Type R

The Spoon Sports S-Tai 3rd-4th-5th Gear Set for FL5 Honda Civic Type R exists because Spoon lost a transmission twice in the Fuji 24 Hours and traced the weakness to the factory gears. Development began by cutting stock gears apart to study their hardness and composition. Spoon then changed the gear geometry itself, module, pressure angle, helix angle and tooth count, along with the material, the tooth profile and the manufacturing method, and reports roughly 30,000 times the bending fatigue life and about four times the pitting life of the factory parts. The gears then ran trouble-free through the next Fuji 24 Hours. Ratios stay within 0.01 of stock, so the car drives as Honda geared it. This set is for owners who run long sessions on track; a road car will never load the factory gears enough to justify the cost.

Features

Third, fourth and fifth gears redesigned for endurance circuit use
New module, pressure angle, helix angle and tooth count
Material revised for higher tensile strength and a deeper hardened layer
Refined tooth profile and lead shape
Ratios held within 0.01 of the factory gears

Specifications

Spoon 3rd gear ratio: 1.522
Spoon 4th gear ratio: 1.125
Spoon 5th gear ratio: 0.903
Stock 3rd gear ratio: 1.529
Stock 4th gear ratio: 1.125
Stock 5th gear ratio: 0.911

Applications

Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

Spoon requires the main shaft and counter shaft gears to be used together as a set
The S-Tai 3rd-4th-5th Gear Set replaces third, fourth and fifth only; first, second and sixth stay factory
Installation requires a full transmission teardown by a specialist builder
Durability figures are Spoon comparisons with the factory gears from its own analysis and race testing
Spoon registers the set for the FL5 6-speed manual, including the later variant it lists as FL5 RBP from 2025

Frequently Asked Questions

Does the S-Tai 3rd-4th-5th Gear Set change the gear ratios? Yes, but only slightly. Spoon lists third at 1.522 against 1.529 stock, fourth unchanged at 1.125 and fifth at 0.903 against 0.911. The S-Tai 3rd-4th-5th Gear Set was designed for strength, and the small ratio changes follow from the new tooth counts rather than any attempt to regear the car.
Why would an FL5 need stronger gears? Most never will. Spoon developed the set after two transmission failures in the Fuji 24 Hours, where gears carry heavy load for hour after hour. Owners who run endurance events, long track sessions or time attack programs are the audience, while a road car or an occasional circuit day is unlikely to stress the factory gears to failure.
Can the main and counter gears be bought separately? No. Spoon specifies that the main shaft and counter shaft gears are always used together, because each redesigned gear is cut to mesh with its new partner. The set is sold complete for third, fourth and fifth, so the builder installs matched pairs on both shafts in a single job.
How was the set proven? On track. Spoon ran the gears in the last three races of the season that followed the Fuji failures and covered more than 3,500 km without replacing them. The following year the car completed the Fuji 24 Hours without a transmission problem, at a race pace Spoon describes as faster than in previous years.
Who should fit the gear set? A specialist transmission builder. The job means removing and splitting the six-speed gearbox, pressing gears off both shafts and setting up bearings and synchronizers correctly on reassembly. Worn synchronizer rings or bearings are best renewed while the case is open.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
