Will the Rear Adjusting Plate for GK5 fit a US Fit?

Yes, once the car has rear disc brakes. The Rear Adjusting Plate for GK5 replaces the factory disc caliper mounting bracket, and Go Tuning states that US-market GK5 cars need the Honda rear disc brake conversion installed first. Budget for those parts and the extra labour when planning the job.

Which version should I choose, Street or Race?

Choose by ride height. Street is meant for a car lowered 20 to 30 mm below stock and leaves camber alone while setting rear toe to zero. Race is intended only for competition cars lowered 40 to 50 mm, and it adds a full degree of negative camber at the rear.

Why does a lowered GK5 understeer more?

The rear torsion beam gains toe-in as the body drops, and the Fit has no way to adjust it. Extra rear toe-in on a front-drive car raises rear grip too far, so the nose runs wide in corners. Bringing toe back to zero frees the rear to help the car rotate.

Do the plates change braking?

Spoon says yes, in a helpful way. The plates are thicker than the factory bracket at the caliper support, which stiffens the hub mounting face. Spoon found that this lets the ABS step in more smoothly and accurately during hard braking, a detail that matters on track.

Is an alignment needed after fitting?

Yes. The plates change the angle of the rear hub, so the car should go on an alignment rack once they are in place and the ride height is final. Front toe and camber are worth setting at the same visit so the car balances properly from end to end.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

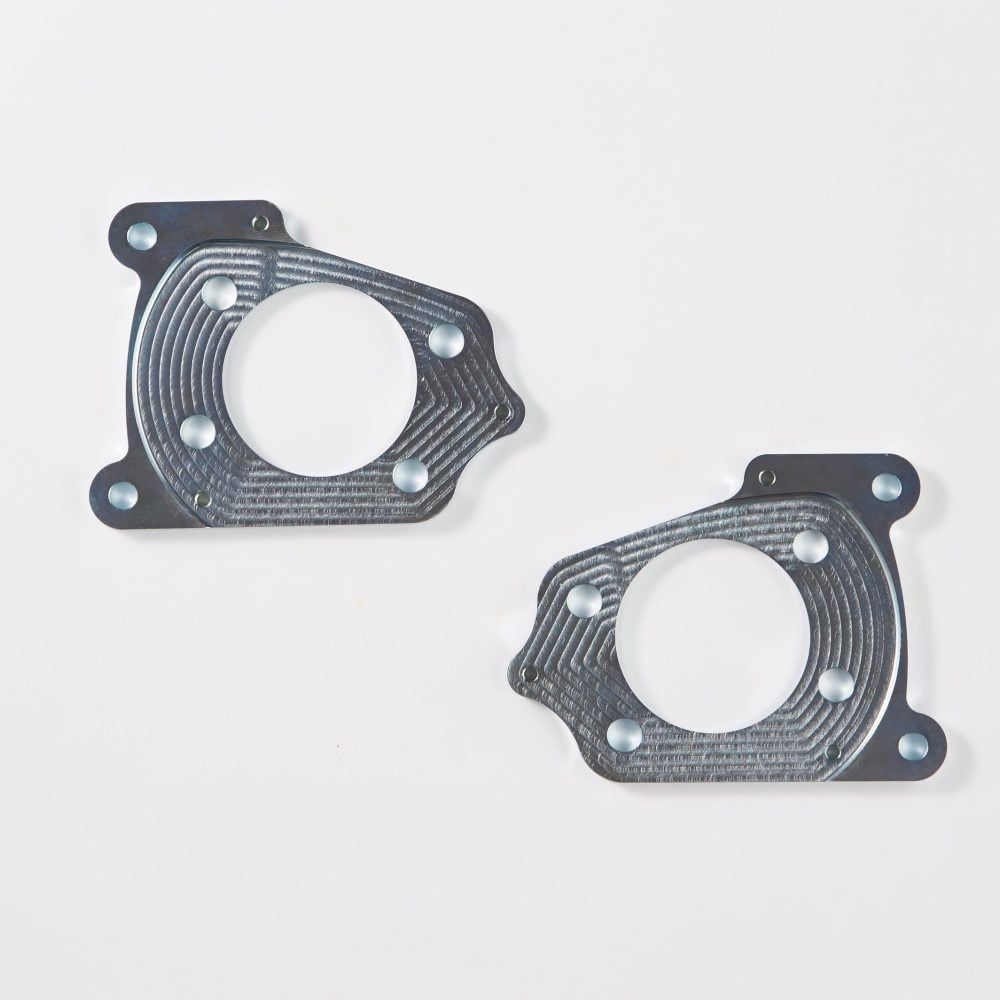

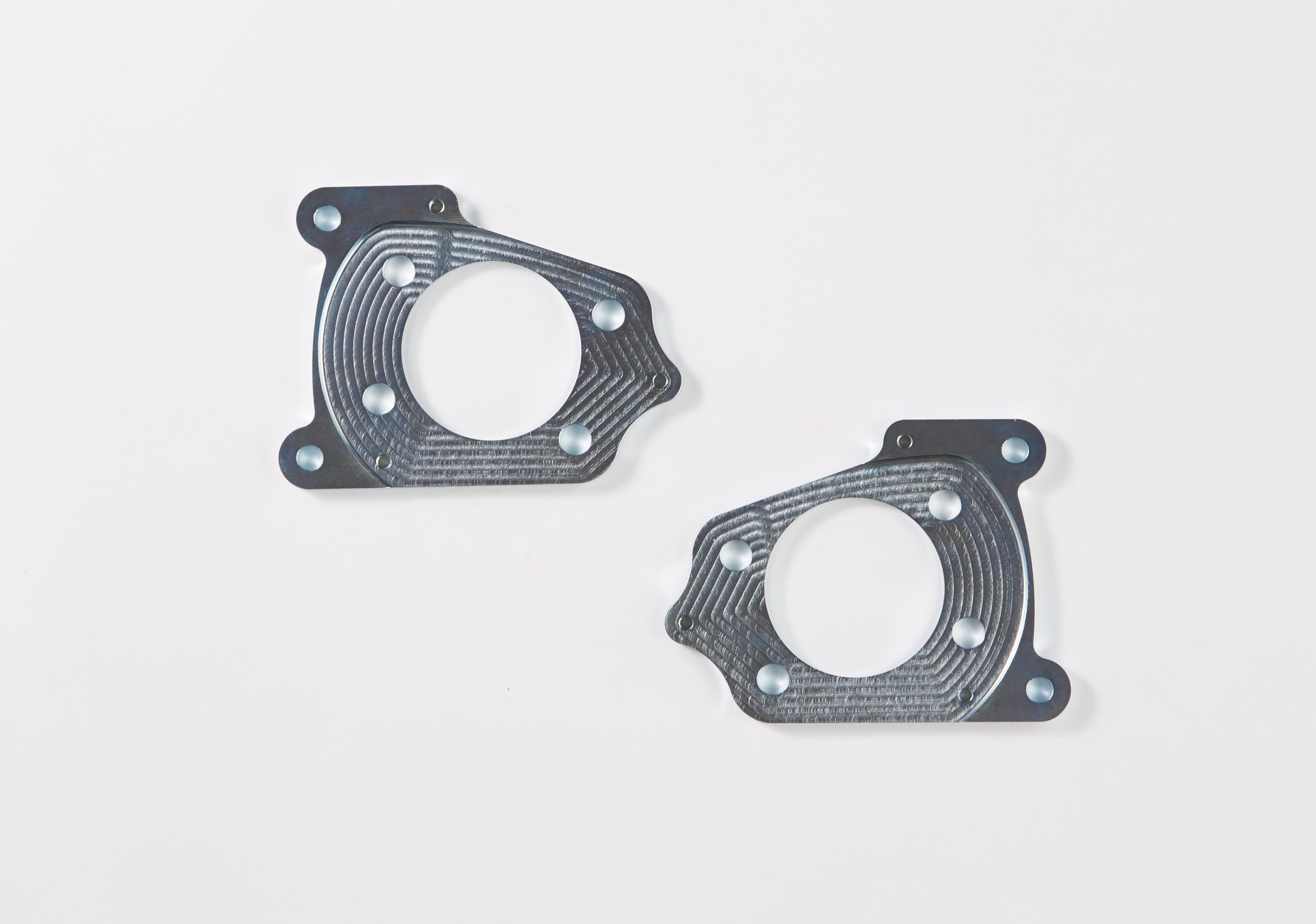

Spoon Sports Rear Adjusting Plate for GK5 Honda Fit

The Spoon Sports Rear Adjusting Plate for GK5 Honda Fit corrects a problem every lowered third-generation Fit shares. Its rear torsion beam offers no camber or toe adjustment at all, so as the car comes down the rear wheels pick up a large amount of toe-in. On a front-drive car that gives the rear axle too much grip, and the result is understeer that dulls turn-in. Spoon tested plate geometry against ride height and produced two versions: Street, for light-tune cars sitting 20 to 30 mm below stock, and Race, for cars dropped 40 to 50 mm. Each plate takes the place of the factory caliper mounting bracket, changing the angle of the hub itself. For a Fit on stock springs it changes little; on a lowered car it is the only way to put the rear alignment back where Spoon wants it.

Features

Two versions matched to how far the car has been lowered
Street plates take rear toe-in to zero with camber unchanged
Race plates add negative camber for a car built for the circuit
S50C high-strength steel construction
Thicker caliper support stiffens the hub mounting face
Steadier ABS behaviour under hard braking, per Spoon

Specifications

Material: S50C high-strength steel
Street ride height range: 20 to 30 mm below stock
Street rear toe: IN 0 deg 30 min to 0
Street camber: unchanged
Race ride height range: 40 to 50 mm below stock
Race rear toe: IN 0 deg 45 min to 0, per Spoon Japan
Race camber: -1 deg 30 min to -2 deg 30 min

Applications

Honda Fit: GK5 | 2013-2020 | 1.5L L15B

Notes

Street suits a GK5 lowered 20 to 30 mm; Race is a competition part for cars lowered 40 to 50 mm
Go Tuning states that US-market GK5 Fits need a rear disc brake conversion before the Rear Adjusting Plate for GK5 can be fitted, because the plate replaces the disc caliper bracket
Sold as a set for the rear axle; brakes, hubs and the disc conversion parts are not included
A four-wheel alignment is needed after installation

Frequently Asked Questions

Will the Rear Adjusting Plate for GK5 fit a US Fit? Yes, once the car has rear disc brakes. The Rear Adjusting Plate for GK5 replaces the factory disc caliper mounting bracket, and Go Tuning states that US-market GK5 cars need the Honda rear disc brake conversion installed first. Budget for those parts and the extra labour when planning the job.
Which version should I choose, Street or Race? Choose by ride height. Street is meant for a car lowered 20 to 30 mm below stock and leaves camber alone while setting rear toe to zero. Race is intended only for competition cars lowered 40 to 50 mm, and it adds a full degree of negative camber at the rear.
Why does a lowered GK5 understeer more? The rear torsion beam gains toe-in as the body drops, and the Fit has no way to adjust it. Extra rear toe-in on a front-drive car raises rear grip too far, so the nose runs wide in corners. Bringing toe back to zero frees the rear to help the car rotate.
Do the plates change braking? Spoon says yes, in a helpful way. The plates are thicker than the factory bracket at the caliper support, which stiffens the hub mounting face. Spoon found that this lets the ABS step in more smoothly and accurately during hard braking, a detail that matters on track.
Is an alignment needed after fitting? Yes. The plates change the angle of the rear hub, so the car should go on an alignment rack once they are in place and the ride height is final. Front toe and camber are worth setting at the same visit so the car balances properly from end to end.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
