How loud is the N1 Muffler Kit for FL5?

Spoon recorded 93 dB in the close-proximity noise test and 81 dB in the acceleration noise test for Japanese JQR certification. The N1 Muffler Kit for FL5 was voiced to the brief Spoon set at Thunderhill, a note that keeps the driver alert without tiring them.

Does the kit keep the factory exhaust valve?

No. Spoon builds the FL5 kit without the stock valve system, so there is no quiet mode and the sound is set by the fixed 70 mm piping and twin 145 mm silencers. Owners who rely on the valve for early starts should weigh that before ordering.

Will the kit suit a car with more boost or a bigger turbo?

Yes. Spoon sized the 70 mm front and main pipes with boost increases, upgraded turbochargers and racing in mind, so the exhaust should not need replacing as the engine is developed. Spoon publishes no power figure for this kit, so BA does not quote a gain.

Is professional installation recommended?

Yes. The kit replaces the front pipe and main muffler, Spoon lists it at 35 kg, and it ships in a box measuring 144 x 40 x 85 cm, so it is a job for a lift and two people. A shop can also set hanger alignment and tip position.

Which cars does it fit?

It fits the FL5 Civic Type R with the K20C turbo engine and 6-speed manual, the car Spoon developed it on. Go Tuning, the sole US distributor for Spoon, sells it for 2023 and 2024 model year US cars. It does not fit the earlier FK8, which has its own Spoon N1 kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Spoon Sports N1 Muffler Kit for FL5 Honda Civic Type R

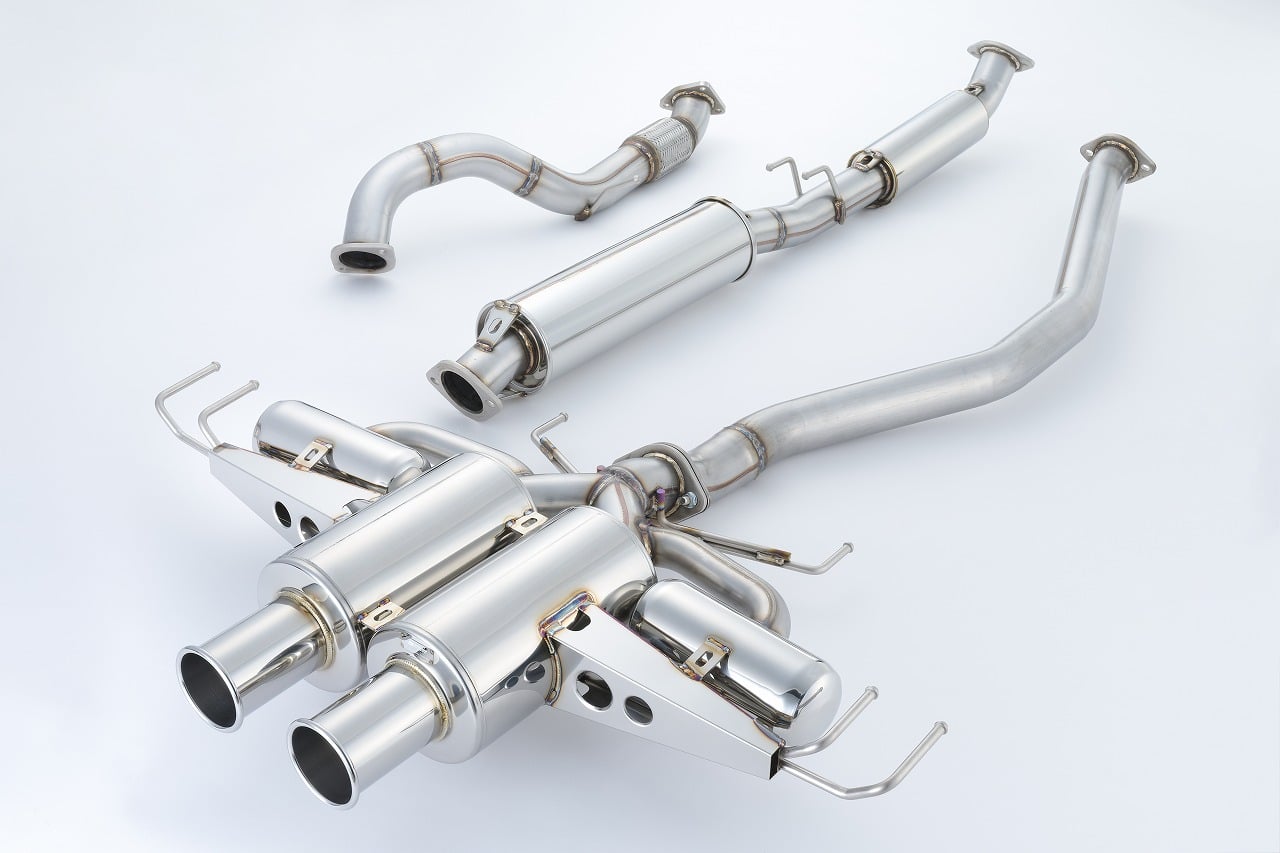

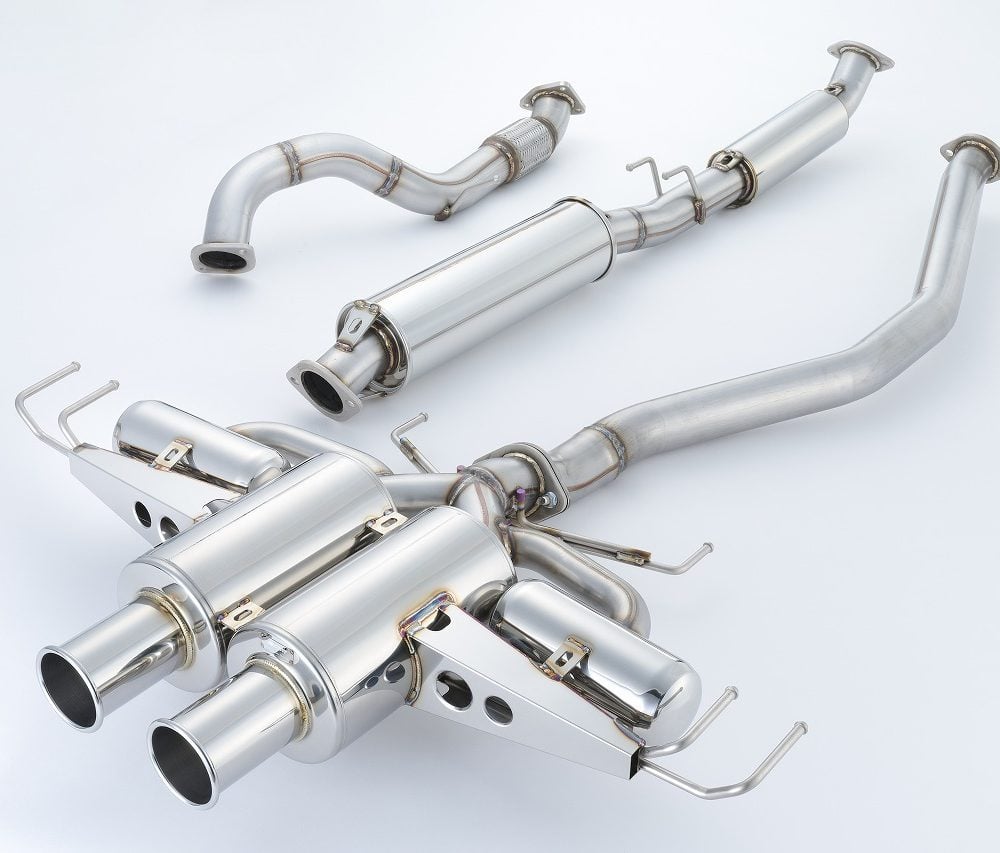

The Spoon Sports N1 Muffler Kit for FL5 Honda Civic Type R replaces the front pipe and main muffler with 70 mm SUS304 stainless piping that ends in twin bullet-shaped silencers, the dual exit style Spoon first gave its FK8. The sound was set by endurance racing. Spoon ran its N1 kit on the FK8 it entered in the 2021 Thunderhill 25 Hours to learn how exhaust volume affects a driver over a full day and night, and its drivers reported a note that kept them focused without wearing them down. The FL5 layout began as flow bench simulation and was refined through repeated testing on the car. Pipe sizing anticipates more power than the factory turbo makes, so the kit suits an owner planning boost upgrades and track days; on a car that will stay stock and commute, it is more exhaust than the engine needs.

Features

SUS304 stainless steel piping throughout
70 mm front and main pipes with headroom for boost and turbo upgrades
Twin 145 mm bullet-shaped silencers with 80 mm end pipes
Exhaust note voiced from 25-hour race driver feedback
Layout developed on a flow bench, then proven on the car

Specifications

Material: SUS304 stainless steel
Front pipe diameter: 70 mm
Main pipe diameter: 70 mm
Tail silencers: two, 145 mm bullet-shaped
End pipes: two, 80 mm
Close-proximity noise: 93 dB
Acceleration noise: 81 dB
Certification: JQR, Japan
Listed weight: 35 kg

Applications

Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

The N1 Muffler Kit for FL5 is sold as one complete set covering the front pipe, main pipe and both tail silencers
The factory exhaust valve system is not retained
Noise figures are Spoon test values from Japanese JQR certification and will vary with the car

Frequently Asked Questions

How loud is the N1 Muffler Kit for FL5? Spoon recorded 93 dB in the close-proximity noise test and 81 dB in the acceleration noise test for Japanese JQR certification. The N1 Muffler Kit for FL5 was voiced to the brief Spoon set at Thunderhill, a note that keeps the driver alert without tiring them.
Does the kit keep the factory exhaust valve? No. Spoon builds the FL5 kit without the stock valve system, so there is no quiet mode and the sound is set by the fixed 70 mm piping and twin 145 mm silencers. Owners who rely on the valve for early starts should weigh that before ordering.
Will the kit suit a car with more boost or a bigger turbo? Yes. Spoon sized the 70 mm front and main pipes with boost increases, upgraded turbochargers and racing in mind, so the exhaust should not need replacing as the engine is developed. Spoon publishes no power figure for this kit, so BA does not quote a gain.
Is professional installation recommended? Yes. The kit replaces the front pipe and main muffler, Spoon lists it at 35 kg, and it ships in a box measuring 144 x 40 x 85 cm, so it is a job for a lift and two people. A shop can also set hanger alignment and tip position.
Which cars does it fit? It fits the FL5 Civic Type R with the K20C turbo engine and 6-speed manual, the car Spoon developed it on. Go Tuning, the sole US distributor for Spoon, sells it for 2023 and 2024 model year US cars. It does not fit the earlier FK8, which has its own Spoon N1 kit.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
