Which cars need a new rotor with the Monoblock Caliper Set for EK9?

The EK9, the DC2 and the CL7 need the larger Spoon front rotor, which measures 300 mm across and 26 mm thick and is sold separately. Go Tuning names those three for the Monoblock Caliper Set for EK9 and lists no rotor requirement for the FN2 or the ZF1 CR-Z.

What pads does the caliper take?

It takes the S2000 factory front pad shape and size, and Go Tuning states that S2000 OEM-sized pads must be used. That gives a wide choice of street and racing compounds from many pad makers. Pads are not part of the set, so order a set that suits how the car is driven.

Does the set fit a US Acura Integra?

Spoon lists the set for the 1998-on JDM Integra Type R, whose front hub and brake specification is not the same across every US Acura Integra. US owners should confirm the specification of their car with BA before ordering, so the caliper, brackets and the larger rotor all match.

Will it work with the ABS?

Yes. Go Tuning states that the set is designed to work with the factory ABS brake system, and it ships with mounting brackets and hardware. Fitting is a caliper swap and fluid bleed, plus the rotor change on the EK9, DC2 and CL7.

Will the calipers clear my wheels?

Not always. An opposed caliper is wider than the factory sliding caliper because it has pistons on the outer face as well. Go Tuning asks owners to check wheel and fender clearance first, and a spacer that cures contact can push the tire past the fender, so measure before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

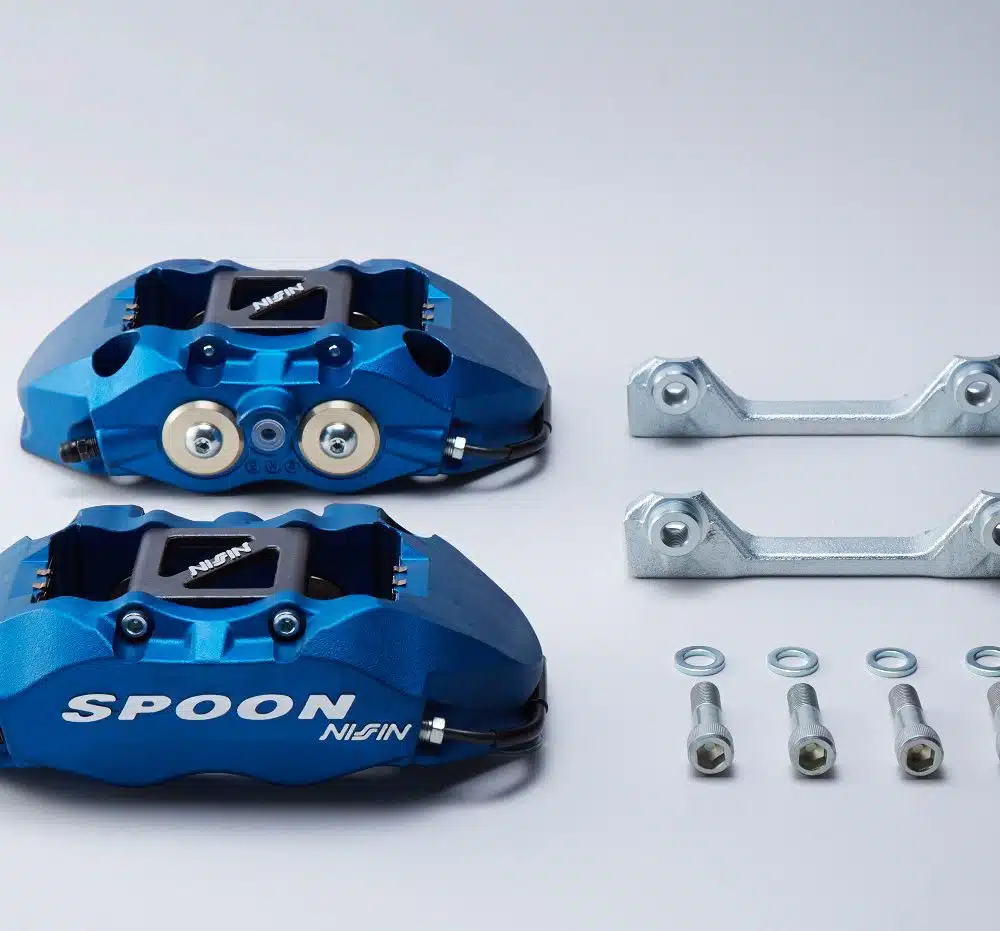

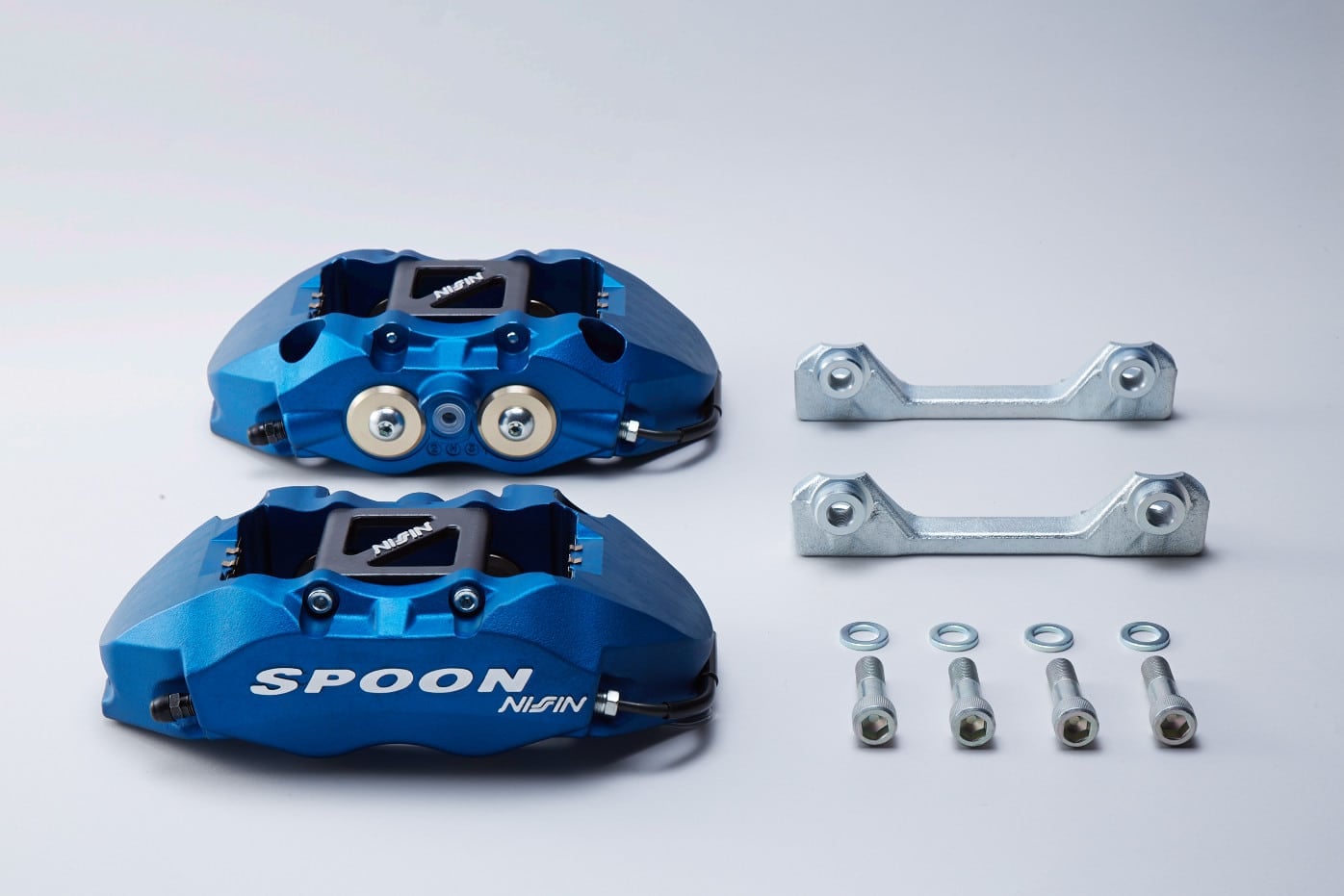

Spoon Sports Monoblock Caliper Set for EK9 / FN2 Honda Civic Type R, DC2 Integra Type R, ZF1 CR-Z and CL7 Accord Euro R

The Spoon Sports Monoblock Caliper Set for EK9 Civic Type R is the FWD version of the Spoon one-piece four-piston caliper, and Go Tuning lists it for the 1998-specification DC2 Integra Type R, the FN2 Civic Type R, the ZF1 CR-Z and the CL7 Accord Euro R as well. One caliper spans five front-drive Hondas because Spoon builds it around the S2000 front pad and rotors of up to 300 mm by 26 mm. Reducing assembly hardware gives each caliper high rigidity and a weight of 2.6 kg, which Go Tuning says trims unsprung mass for faster suspension response. Four opposing pistons with differential bores deliver smooth, consistent braking and reduce pad taper. For the EK9, DC2 and CL7, the larger rotor is part of the plan and is sold separately, so budget for it. The set rewards an owner who drives a light, fast Honda on circuits.

Features

Front-drive FWD version of the Spoon monoblock caliper
Four opposing pistons with differential bores
Rigid structure that reduces pad taper
Lightweight at 2.6 kg per caliper
Designed to work with the factory ABS

Specifications

Pistons: four per caliper, opposed
Caliper weight: 2.6 kg each
Pad shape: S2000 factory front
Maximum rotor diameter: 300 mm
Maximum rotor thickness: 26 mm

What’s Included

Monoblock front calipers (L/R)
Mounting brackets and hardware

Applications

Honda Accord Euro R: CL7 | 2002-2008 | 2.0L K20A
Honda CR-Z: ZF1 | 2010-2016 | 1.5L LEA hybrid
Honda Civic Type R: EK9 | 1997-2000 | 1.6L B16B
Honda Civic Type R Euro: FN2 | 2007-2011 | 2.0L K20A
Honda Integra Type R / Acura Integra: DC2 | 1998-2001 | 1.8L B18C

Notes

EK9, DC2 and CL7 require a larger Spoon front rotor of 300 mm by 26 mm, sold separately
The Monoblock Caliper Set for EK9 and the other listed cars uses S2000 factory-size front pads, which are not included
DC2 fitment is the 1998-on JDM Integra Type R; US Acura Integra owners should confirm hub and brake specification with BA
CL7 is the JDM Accord Euro R, not the US Acura TSX
Check wheel and fender clearance before fitting

Frequently Asked Questions

Which cars need a new rotor with the Monoblock Caliper Set for EK9? The EK9, the DC2 and the CL7 need the larger Spoon front rotor, which measures 300 mm across and 26 mm thick and is sold separately. Go Tuning names those three for the Monoblock Caliper Set for EK9 and lists no rotor requirement for the FN2 or the ZF1 CR-Z.
What pads does the caliper take? It takes the S2000 factory front pad shape and size, and Go Tuning states that S2000 OEM-sized pads must be used. That gives a wide choice of street and racing compounds from many pad makers. Pads are not part of the set, so order a set that suits how the car is driven.
Does the set fit a US Acura Integra? Spoon lists the set for the 1998-on JDM Integra Type R, whose front hub and brake specification is not the same across every US Acura Integra. US owners should confirm the specification of their car with BA before ordering, so the caliper, brackets and the larger rotor all match.
Will it work with the ABS? Yes. Go Tuning states that the set is designed to work with the factory ABS brake system, and it ships with mounting brackets and hardware. Fitting is a caliper swap and fluid bleed, plus the rotor change on the EK9, DC2 and CL7.
Will the calipers clear my wheels? Not always. An opposed caliper is wider than the factory sliding caliper because it has pistons on the outer face as well. Go Tuning asks owners to check wheel and fender clearance first, and a spacer that cures contact can push the tire past the fender, so measure before ordering.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
