Does the Monoblock Caliper Set for EP3 fit the US Civic Si?

Yes. Spoon registers the EP3 Civic Type R, and Go Tuning, the sole US distributor for Spoon, sells the Monoblock Caliper Set for EP3 for the Civic Si hatchback built on the same chassis. The set comes with brackets and hardware, so it bolts to the front hubs without fabrication on either car.

Which brake pads go in these calipers?

The calipers take the S2000 factory front pad shape and size, and Go Tuning states those pads must be used. S2000 pads come in a wide range of compounds from street to endurance racing, so an EP3 owner gains more pad choice than the factory caliper offers. Pads are not included in the set.

Can I keep my current rotors?

Possibly. Spoon rates the caliper for rotors up to 300 mm in diameter and 26 mm thick and lists no dedicated rotor for the EP3, unlike the CL7, DC2 and EK9 versions. Measure the rotors on the car, or ask BA to check the specification, before ordering, so the caliper and disc match.

Will the calipers rub on my wheels?

They might on some designs. An opposed caliper carries pistons on both sides of the disc, which makes it wider than the factory single-sided unit. Spoon warns that wheel contact is possible and that spacers used to cure it can move the tire outside the fender, so check with the fitting shop first.

Is the upgrade worth it on a street-driven EP3?

For a car driven briskly on back roads, the firmer pedal and even pad wear are noticeable. For a hatchback that only commutes, the factory front brake with good pads and fresh fluid is enough, and the cost of the monoblock set is better saved for tires or a track day.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

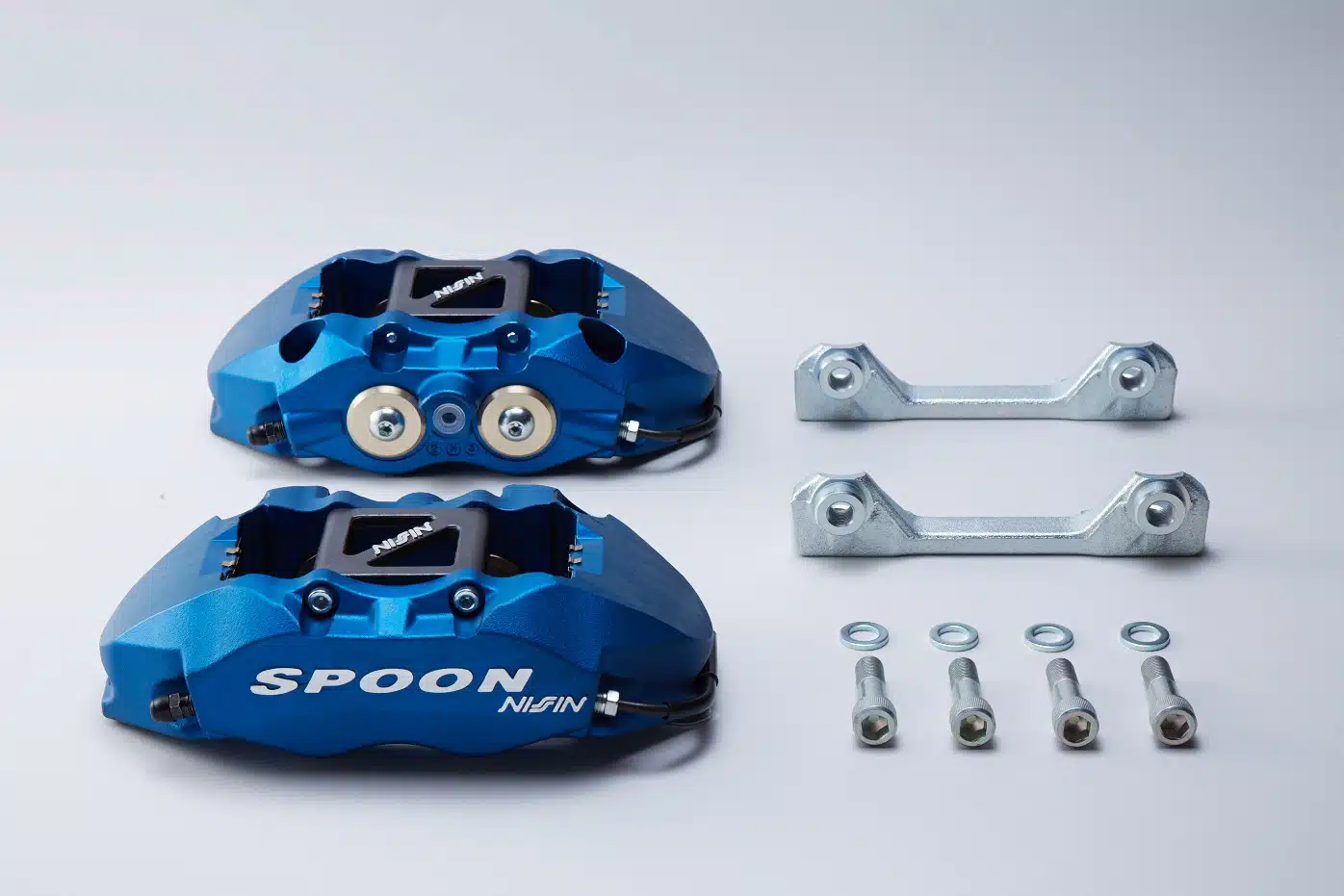

Spoon Sports Monoblock Caliper Set for EP3 Honda Civic Type R

The Spoon Sports Monoblock Caliper Set for EP3 Civic Type R brings opposed four-piston front calipers to the K20A hatchback, and Go Tuning sells it for the US Civic Si on the same EP3 body. Spoon registers the JDM Type R from late 2001 through 2005. The calipers are cast and machined as one piece with as little assembly hardware as possible, which Spoon and Go Tuning say gives the highest rigidity at the lowest weight, about 2.6 kg per caliper. A stiff body clamps the pad squarely, so wear stays even and the pedal stays consistent as temperatures rise during a track session. Brackets and hardware come in the set, and it is designed around the factory ABS. Pads are the S2000 front shape, and Spoon rates the caliper for rotors up to 300 mm across and 26 mm thick. A sensible upgrade for an EP3 that already wears sticky tires and sees circuit time; on a commuter, fresh pads and fluid will do.

Features

Cast and machined as a single body
Four opposed pistons with differential bores for smooth, consistent braking
Lightweight at about 2.6 kg per caliper
Takes widely available S2000 front pads
Works with the factory ABS

Specifications

Pistons: four per caliper, opposed
Caliper weight: 2.6 kg each
Pad shape: S2000 factory front
Maximum rotor diameter: 300 mm
Maximum rotor thickness: 26 mm
Listed set weight: 7 kg

What’s Included

Monoblock front calipers (L/R)
Mounting brackets and hardware

Applications

Honda Civic Type R / Civic Si: EP3 | 2001-2005 | 2.0L K20A

Notes

Spoon registers the JDM and EU EP3 Civic Type R; Go Tuning sells the Monoblock Caliper Set for EP3 for the US Civic Si
Uses S2000 factory-size front pads, sold separately
Rotors must be within 300 mm diameter and 26 mm thickness; Spoon lists no separate rotor for the EP3
The calipers sit wider than stock, so check wheel and fender clearance before fitting

Frequently Asked Questions

Does the Monoblock Caliper Set for EP3 fit the US Civic Si? Yes. Spoon registers the EP3 Civic Type R, and Go Tuning, the sole US distributor for Spoon, sells the Monoblock Caliper Set for EP3 for the Civic Si hatchback built on the same chassis. The set comes with brackets and hardware, so it bolts to the front hubs without fabrication on either car.
Which brake pads go in these calipers? The calipers take the S2000 factory front pad shape and size, and Go Tuning states those pads must be used. S2000 pads come in a wide range of compounds from street to endurance racing, so an EP3 owner gains more pad choice than the factory caliper offers. Pads are not included in the set.
Can I keep my current rotors? Possibly. Spoon rates the caliper for rotors up to 300 mm in diameter and 26 mm thick and lists no dedicated rotor for the EP3, unlike the CL7, DC2 and EK9 versions. Measure the rotors on the car, or ask BA to check the specification, before ordering, so the caliper and disc match.
Will the calipers rub on my wheels? They might on some designs. An opposed caliper carries pistons on both sides of the disc, which makes it wider than the factory single-sided unit. Spoon warns that wheel contact is possible and that spacers used to cure it can move the tire outside the fender, so check with the fitting shop first.
Is the upgrade worth it on a street-driven EP3? For a car driven briskly on back roads, the firmer pedal and even pad wear are noticeable. For a hatchback that only commutes, the factory front brake with good pads and fresh fluid is enough, and the cost of the monoblock set is better saved for tires or a track day.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
