Why replace the factory helical differential with the LSD Kit for FL5?

Because the helical unit is a compromise. Honda tuned it to balance sport and comfort, and Spoon found it short of locking for hard circuit driving. The LSD Kit for FL5 is a mechanical 1.5-way unit with preload, so it keeps the inside front tire pulling when load comes off it on corner exit.

Does it fit the FK8 and FK2 as well?

Yes. Spoon registers one kit for the FL5, the FK8 and the FK2 Civic Type R, all with the turbocharged K20C engine and a six-speed manual. FK8 cars from 2017 to 2021 and FL5 cars from 2023 on are covered, and the FK2 entry covers the version sold in Japan.

Is it noisy on the street?

Less than older mechanical designs. Spoon uses clutch plates selected to reduce chattering, so the unit is more comfortable in daily use than a conventional plate-type differential. Some drag and noise in tight, slow turns can still occur and are normal for a mechanical limited-slip unit.

What settings does Spoon use?

Spoon specifies 1.5-way locking with cam angles of 50 degrees under acceleration and 20 degrees on deceleration, and an initial torque of 5.0 to 6.0 kgf-m. Those values came from repeated driving tests in different conditions on the Type R, and the side bearings needed for fitting arrive with the unit.

Who should install it?

A drivetrain specialist. The six-speed gearbox must be removed and split, the factory differential replaced with the Spoon unit and the bearing preload and backlash set correctly. On an FL5 it is a natural time to fit the Spoon S-Tai gear set as well, since both jobs open the same transmission.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

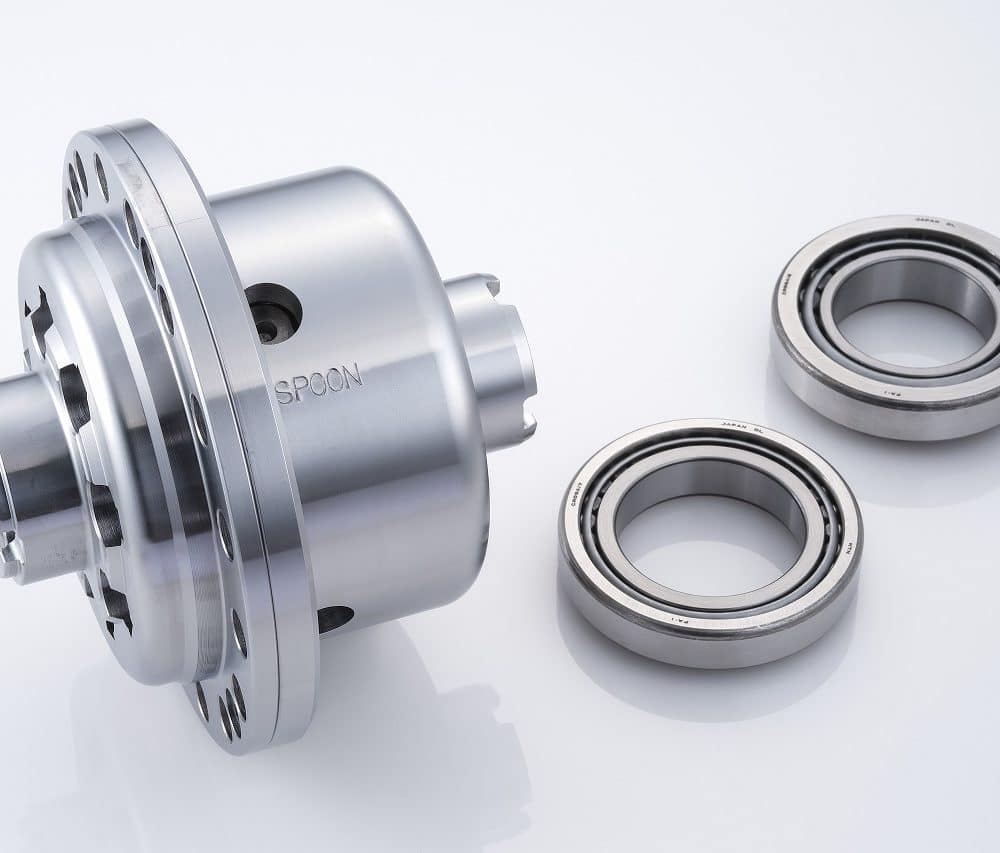

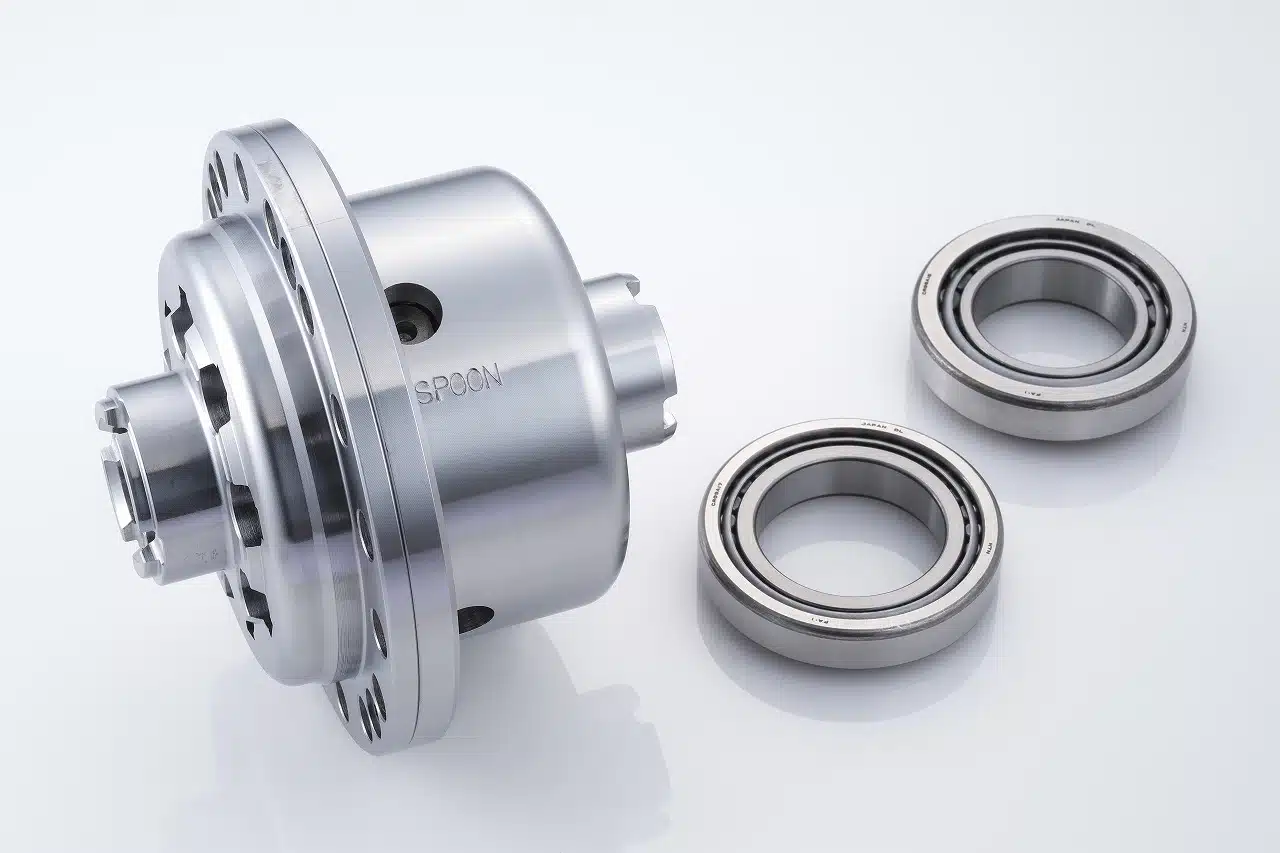

Spoon Sports LSD Kit for FL5 / FK8 / FK2 Honda Civic Type R

Spoon Sports’ LSD Kit for FL5, FK8 and FK2 Civic Type R replaces the factory helical differential with a mechanical 1.5-way unit, a step Spoon takes because the Honda part is tuned to balance sport and comfort and runs short of locking when the car is driven hard. Repeated testing across a range of driving conditions settled the specification: cam angles of 50 degrees on the drive side and 20 degrees on the coast side, and initial torque of 5.0 to 6.0 kgf-m. A helical unit relies on load at both wheels to bias torque, while a plate-type differential carries preload, so it keeps working when an inside tire goes light over a curb or under trail braking. Spoon also fitted clutch plates chosen to reduce chatter, giving more day-to-day comfort than conventional mechanical units, and the side bearings come in the box. For a Type R used for time attack or frequent track days, it lets the car carry more throttle out of tight corners; on a road car the factory differential already does the job well.

Features

Mechanical 1.5-way locking with preload
Replaces the factory helical differential
Low-chatter clutch plates for street comfort
Specification settled through repeated real-world testing
Side bearings supplied

Specifications

Type: mechanical limited-slip differential
Locking: 1.5-way
Cam angles: 50 degrees drive side, 20 degrees coast side
Initial torque: 5.0 to 6.0 kgf-m
Box size: 24 x 24 x 21 cm

Applications

Honda Civic Type R: FK2 | 2015-2017 | 2.0L K20C1 turbo
Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo
Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

The LSD Kit for FL5 replaces the factory helical limited-slip differential
FK2 was sold in Europe and Japan and not in the US
Some drag and noise in tight, slow turns remains normal for a mechanical unit
Installation requires removing and splitting the 6-speed transmission and should be done by a specialist

Frequently Asked Questions

Why replace the factory helical differential with the LSD Kit for FL5? Because the helical unit is a compromise. Honda tuned it to balance sport and comfort, and Spoon found it short of locking for hard circuit driving. The LSD Kit for FL5 is a mechanical 1.5-way unit with preload, so it keeps the inside front tire pulling when load comes off it on corner exit.
Does it fit the FK8 and FK2 as well? Yes. Spoon registers one kit for the FL5, the FK8 and the FK2 Civic Type R, all with the turbocharged K20C engine and a six-speed manual. FK8 cars from 2017 to 2021 and FL5 cars from 2023 on are covered, and the FK2 entry covers the version sold in Japan.
Is it noisy on the street? Less than older mechanical designs. Spoon uses clutch plates selected to reduce chattering, so the unit is more comfortable in daily use than a conventional plate-type differential. Some drag and noise in tight, slow turns can still occur and are normal for a mechanical limited-slip unit.
What settings does Spoon use? Spoon specifies 1.5-way locking with cam angles of 50 degrees under acceleration and 20 degrees on deceleration, and an initial torque of 5.0 to 6.0 kgf-m. Those values came from repeated driving tests in different conditions on the Type R, and the side bearings needed for fitting arrive with the unit.
Who should install it? A drivetrain specialist. The six-speed gearbox must be removed and split, the factory differential replaced with the Spoon unit and the bearing preload and backlash set correctly. On an FL5 it is a natural time to fit the Spoon S-Tai gear set as well, since both jobs open the same transmission.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
