When do I need the Inner Spacer Set for EG6?

Spoon lists the Inner Spacer Set for EG6 as required whenever its Twin-Block caliper is fitted to the EG6 or EK4 Civic SiR or the GE8 or GK5 Fit. On those cars the conversion also needs two Spoon front rotors, so the spacers, rotors and calipers are best ordered together.

How thick are the spacers?

Each is 3 mm thick and made for a 100 mm pitch circle diameter, which matches the four-lug 4 x 100 hub on all four registered cars. Go Tuning notes that the spacers increase track width slightly, which is how they create room for a caliper that is wider than the factory unit.

Do I need longer wheel studs?

Spoon does not call for longer hub bolts with this set. A 3 mm spacer does reduce thread engagement slightly, so the installer should confirm that each lug nut still takes a full, safe number of turns, especially with aftermarket wheels or open-ended nuts.

Can I use the spacers without the Twin-Block caliper?

Yes, though there is little reason to. Go Tuning describes them as a way to add track width as well as to clear wider calipers, but 3 mm per side makes almost no visual or handling difference. Spoon registers the set specifically for the Twin-Block conversion.

Do they fit the DC2, DB8 or EK9?

No. Spoon registers the set only for the EG6 and EK4 Civic SiR and the GE8 and GK5 Fit. The Integra Type R and the EK9 take the Twin-Block caliper without these spacers, so owners of those cars should leave this part out of the order.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

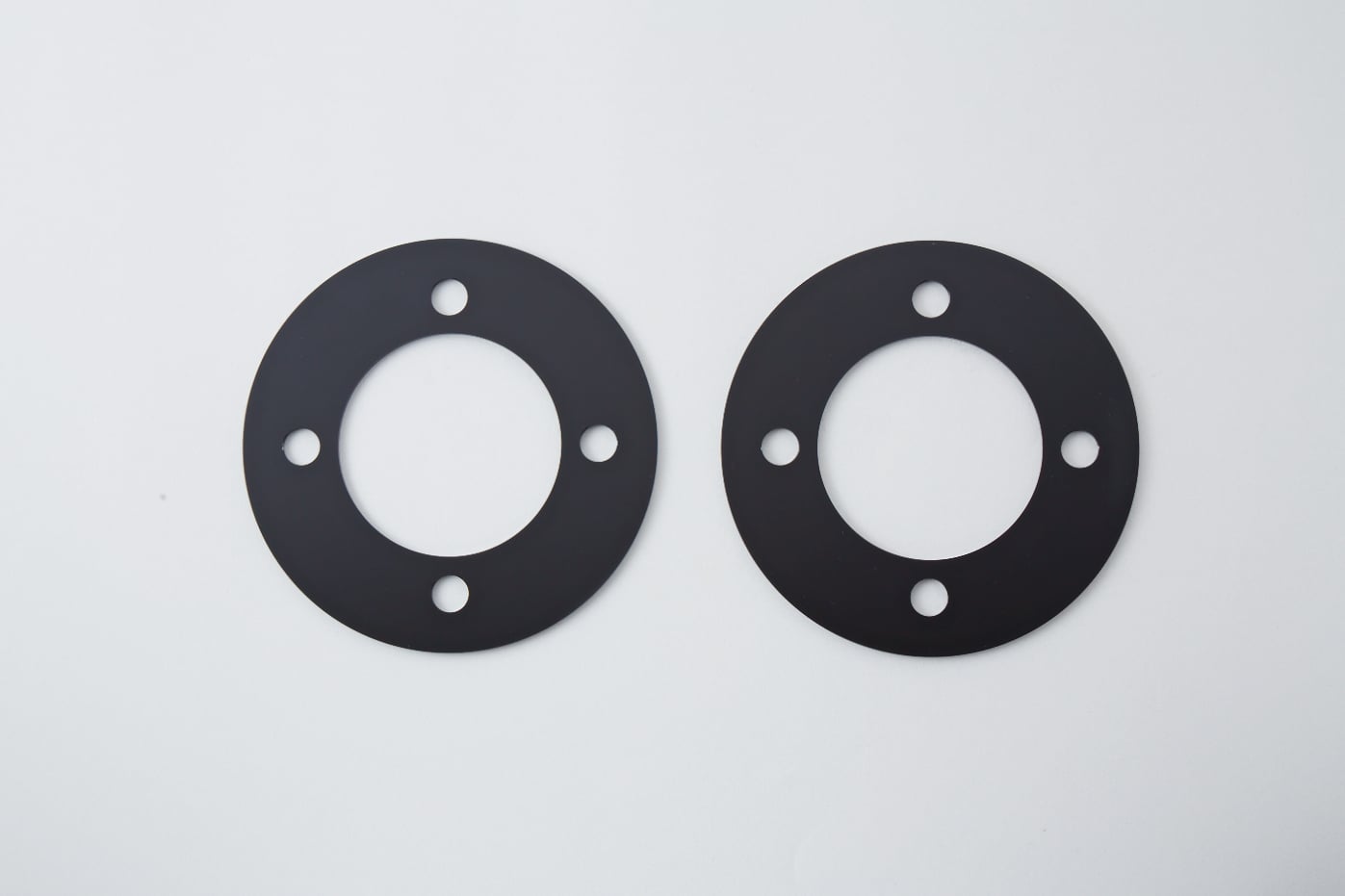

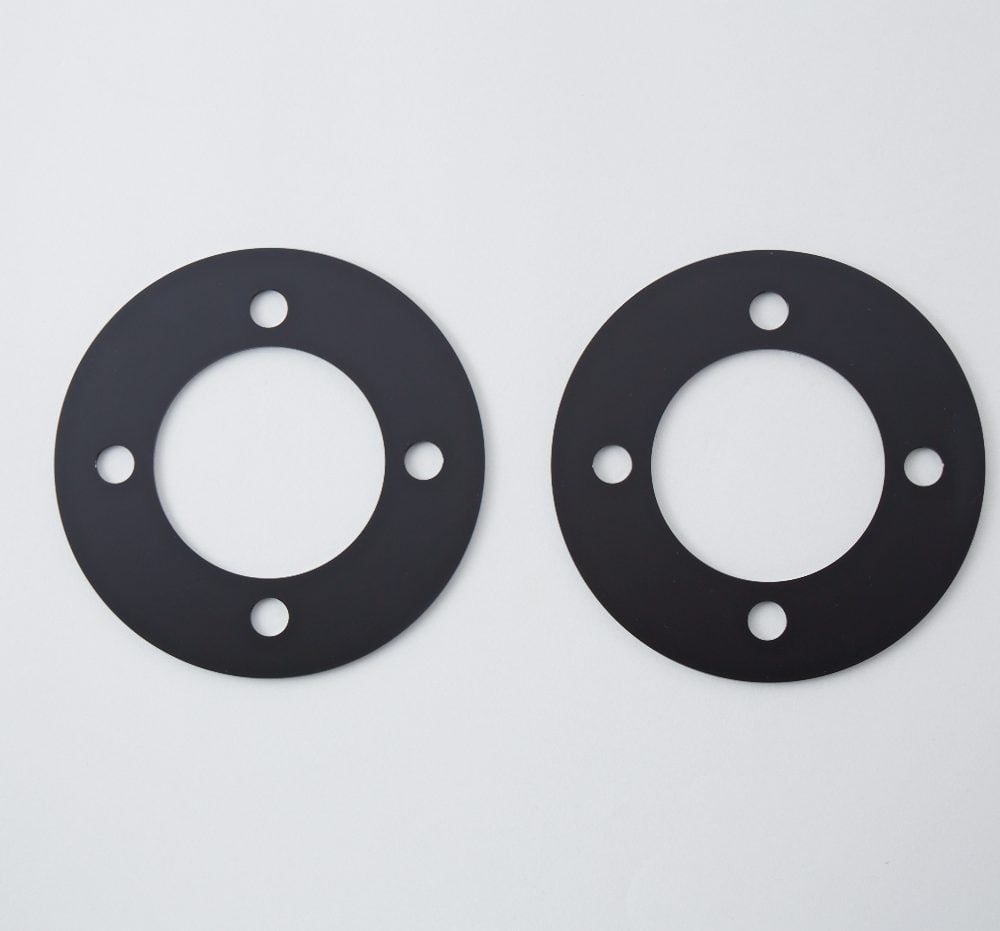

Spoon Sports Inner Spacer Set for EG6 / EK4 Honda Civic and GE8 / GK5 Fit

Spoon Sports’ Inner Spacer Set for EG6 and EK4 Civic SiR and GE8 and GK5 Fit is a small part with one clear job: it provides the clearance the Spoon Twin-Block caliper needs on these four-lug Hondas. Each spacer is 3 mm thick and sized for a 100 mm pitch circle diameter, the 4 x 100 pattern these cars share. Spoon lists the set as required whenever the Twin-Block caliper goes on one of these chassis, together with the larger Spoon conversion rotor. Go Tuning explains the principle: the spacers add a little track width and in doing so make room for a caliper wider than the factory one. Three millimetres is a modest change that will not alter the look of the car or noticeably move the tire in the arch. Buy it with the caliper and rotors, not on its own; on its own it offers no meaningful benefit.

Features

3 mm thickness
Sized for 4 x 100 hubs with a 100 mm pitch circle
Creates clearance for the wider Twin-Block caliper
Adds a small amount of track width, per Go Tuning
Sold as a set

Applications

Honda Civic SiR: EG6 | 1991-1995 | 1.6L B16A
Honda Civic SiR: EK4 | 1995-2000 | 1.6L B16A
Honda Fit: GE8 | 2007-2013 | 1.5L L15A
Honda Fit: GK5 | 2013-2020 | 1.5L L15B

Notes

Required when fitting the Spoon Sports Twin-Block Caliper Set to the EG6, EK4, GE8 or GK5
The Inner Spacer Set for EG6 and the other listed cars is not registered for the DC2, DB8 or EK9
Spoon does not publish the number of spacers in the set

Frequently Asked Questions

When do I need the Inner Spacer Set for EG6? Spoon lists the Inner Spacer Set for EG6 as required whenever its Twin-Block caliper is fitted to the EG6 or EK4 Civic SiR or the GE8 or GK5 Fit. On those cars the conversion also needs two Spoon front rotors, so the spacers, rotors and calipers are best ordered together.
How thick are the spacers? Each is 3 mm thick and made for a 100 mm pitch circle diameter, which matches the four-lug 4 x 100 hub on all four registered cars. Go Tuning notes that the spacers increase track width slightly, which is how they create room for a caliper that is wider than the factory unit.
Do I need longer wheel studs? Spoon does not call for longer hub bolts with this set. A 3 mm spacer does reduce thread engagement slightly, so the installer should confirm that each lug nut still takes a full, safe number of turns, especially with aftermarket wheels or open-ended nuts.
Can I use the spacers without the Twin-Block caliper? Yes, though there is little reason to. Go Tuning describes them as a way to add track width as well as to clear wider calipers, but 3 mm per side makes almost no visual or handling difference. Spoon registers the set specifically for the Twin-Block conversion.
Do they fit the DC2, DB8 or EK9? No. Spoon registers the set only for the EG6 and EK4 Civic SiR and the GE8 and GK5 Fit. The Integra Type R and the EK9 take the Twin-Block caliper without these spacers, so owners of those cars should leave this part out of the order.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
