Which S2000 does the Gusset Plate Set for AP1 Early Model fit?

It fits AP1 cars from the 100 series to the 120 series, built up to October 2003. In the US that means 2000 to 2003 model years. The Gusset Plate Set for AP1 Early Model will not suit later cars, whose different mounts need the Spoon late model set.

Does installation require welding?

Yes. Go Tuning, the sole US distributor for Spoon, specifies a welded installation, so this is not a bolt-on part. Plan for a fabrication shop with the experience to weld to the chassis cleanly, and allow for paint or protective coating afterwards on the welded areas.

Do I need it on a street car?

Probably not. The problem Spoon identified appears mainly with wide semi-slick tires, whose grip loads the upper arm mounts far beyond what road tires do. On a road car it is preventative; on a car doing regular track days on sticky tires, it guards against handling loss and mount damage.

What material are the plates made from?

The plates are high-tensile steel, a material Spoon reserves for the most important chassis parts. It brings real strength to the mount area while keeping the set light, with Spoon listing it at 2 kg, so the reinforcement adds almost nothing to the front of the car.

What happens to the mounts without reinforcement?

Spoon explains that under heavy cornering loads the body-side mounts for the upper arms flex, which upsets steering precision and handling. Over time, in the worst case, the factory welds at those mounts can peel away from the body, a costly repair that the gusset plates are designed to prevent.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

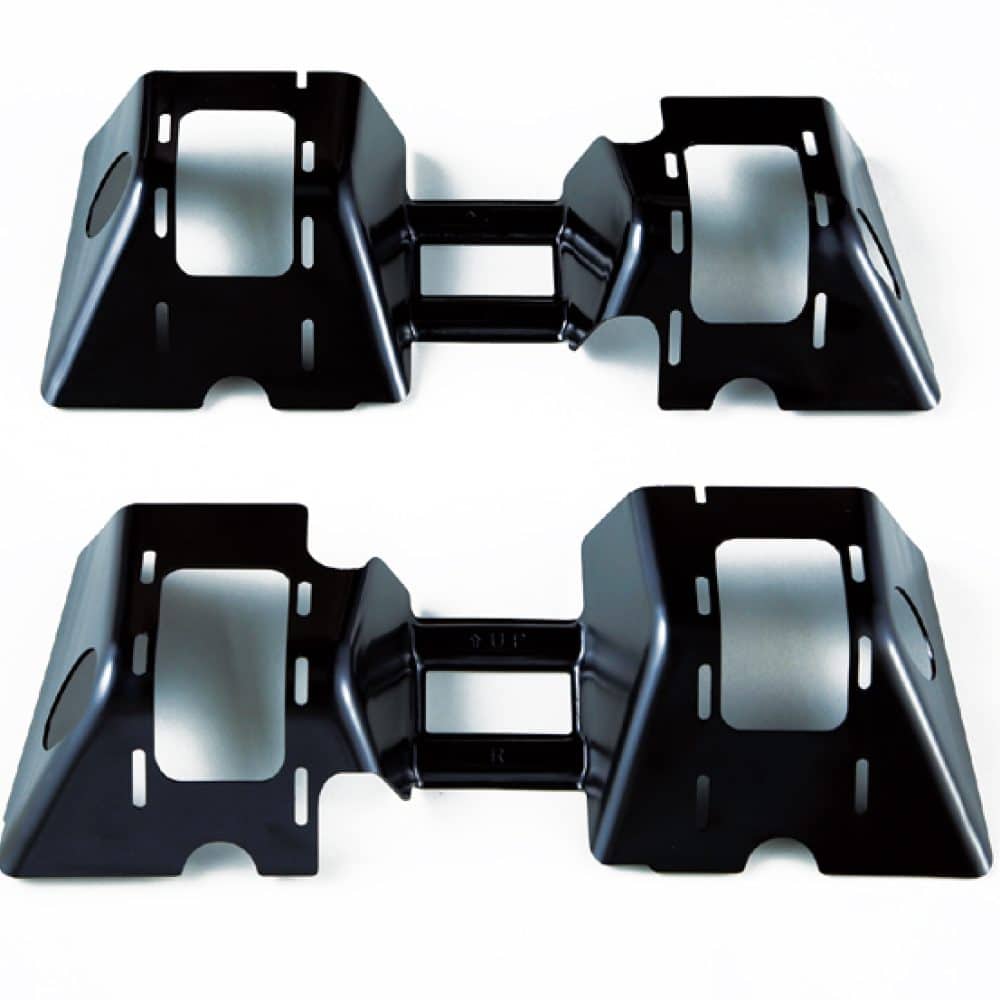

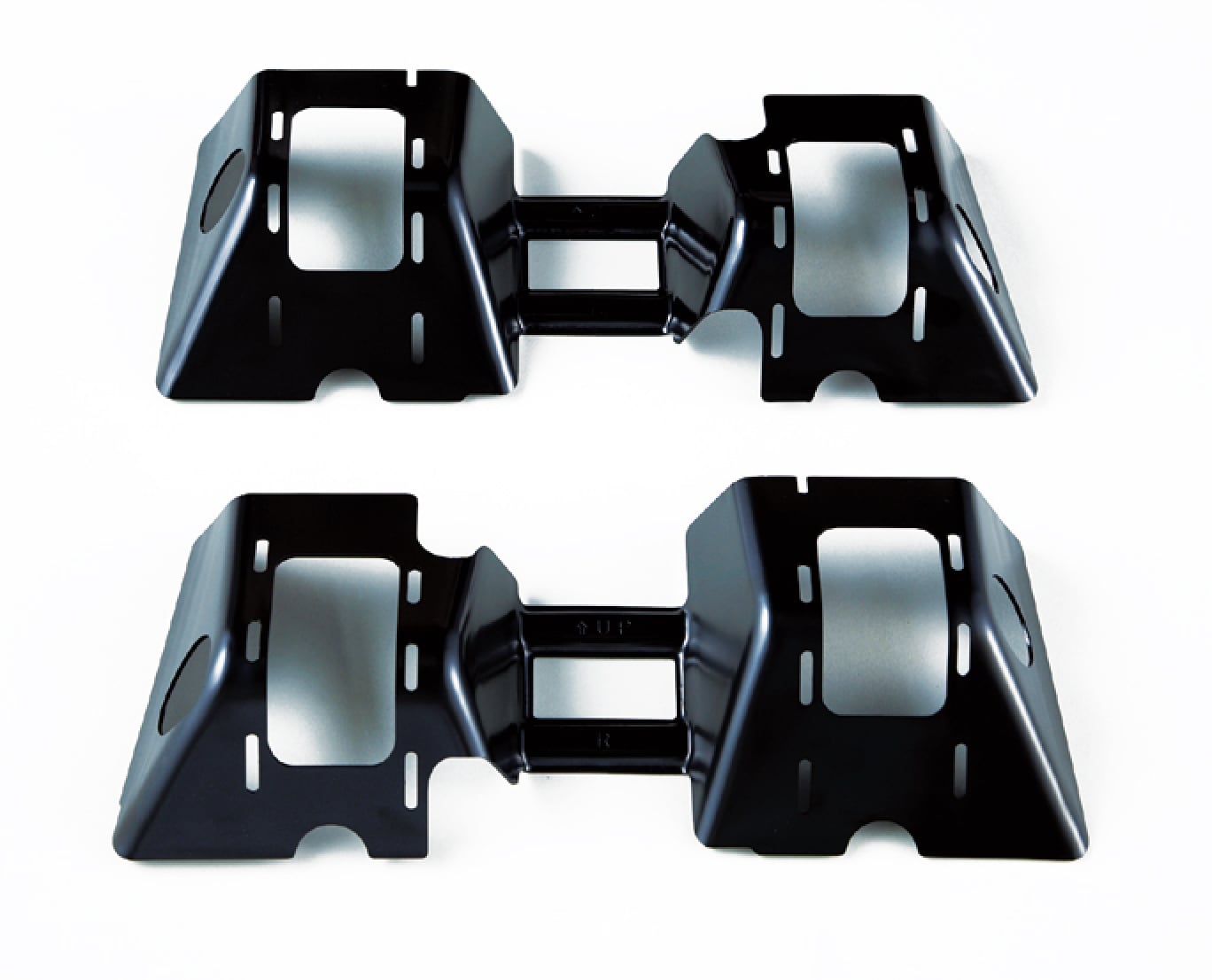

Spoon Sports Gusset Plate Set for AP1 Honda S2000 Early Model

The Spoon Sports Gusset Plate Set for AP1 Honda S2000 Early Model reinforces the body-side mounts for the front upper arms, a known weak point once the car runs wide semi-slick tires. Under that grip the mounts move, the steering loses accuracy, and in the worst case Spoon warns the welds at the mount can begin to separate from the body. Spoon solved it by tying the left and right mounts together into a single framed structure made from high-tensile steel, a grade normally kept for critical chassis areas. The plates weigh 2 kg and are welded in place. This version is for cars built up to October 2003, which covers US model years 2000 to 2003. For a street S2000 on road tires it is insurance rather than a need; for a car on semi-slicks and lapping regularly, it is the part to fit before trouble starts.

Early and Late Versions

Spoon makes two versions because the mounting area changed during production. This early set fits AP1 cars from the first 100 series to the 120 series. Later AP1 cars from the 130 series on and every AP2 take a separate late model set, as their mounts differ.

Features

Joins left and right upper arm mounts into one frame
High-tensile steel reserved for critical chassis parts
Prevents mount movement under wide semi-slick tires
Protects the factory welds at the mounting points
Lightweight at 2 kg for the set

Applications

Honda S2000: AP1 | 1999-2003 | 2.0L F20C

Notes

The Gusset Plate Set for AP1 requires welded installation by a qualified fabricator
Fits AP1 cars built to October 2003, US model years 2000 to 2003; later cars need the Spoon late model set, part number 60815-AP1-010

Frequently Asked Questions

Which S2000 does the Gusset Plate Set for AP1 Early Model fit? It fits AP1 cars from the 100 series to the 120 series, built up to October 2003. In the US that means 2000 to 2003 model years. The Gusset Plate Set for AP1 Early Model will not suit later cars, whose different mounts need the Spoon late model set.
Does installation require welding? Yes. Go Tuning, the sole US distributor for Spoon, specifies a welded installation, so this is not a bolt-on part. Plan for a fabrication shop with the experience to weld to the chassis cleanly, and allow for paint or protective coating afterwards on the welded areas.
Do I need it on a street car? Probably not. The problem Spoon identified appears mainly with wide semi-slick tires, whose grip loads the upper arm mounts far beyond what road tires do. On a road car it is preventative; on a car doing regular track days on sticky tires, it guards against handling loss and mount damage.
What material are the plates made from? The plates are high-tensile steel, a material Spoon reserves for the most important chassis parts. It brings real strength to the mount area while keeping the set light, with Spoon listing it at 2 kg, so the reinforcement adds almost nothing to the front of the car.
What happens to the mounts without reinforcement? Spoon explains that under heavy cornering loads the body-side mounts for the upper arms flex, which upsets steering precision and handling. Over time, in the worst case, the factory welds at those mounts can peel away from the body, a costly repair that the gusset plates are designed to prevent.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
