Does the Full-Spec Damper Kit for FL5 also fit the FK8?

Yes. Spoon developed the Full-Spec Damper Kit for FL5 for both generations after racing each at Thunderhill, and registers the FK8 from 2017 and the FL5 from 2022. Go Tuning sells it for 2017 to 2024 model year US Civic Type R cars.

What happens to the factory adaptive dampers?

The Spoon dampers replace them, and Spoon supplies a damper control canceller in the kit for the factory damper control system. That lets the car run the passive Spoon dampers without the factory system expecting its original units. Installation should be done by a shop familiar with the car.

How much adjustment does the kit offer?

Bump damping has 12 clicks and rebound 16, with Spoon recommending 6 bump and 9 rebound front and rear. Ride height is recommended from stock down to 35 mm lower at the front and 40 mm at the rear, and front camber adjusts from -1.0 to -3.0 degrees.

How low does it sit as delivered?

Spoon ships the kit set 20 mm below stock at the front and 25 mm at the rear, with jack point clearance of 140 mm and 155 mm. Those figures were measured on the Spoon demo car, so individual cars will vary slightly.

What role did KW play?

Spoon developed the kit in partnership with KW USA, using data gathered in the Thunderhill 25 Hours. Spoon set the goals and tuning from its racing, then refined the result through testing on the street, on the circuit and on winding roads.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

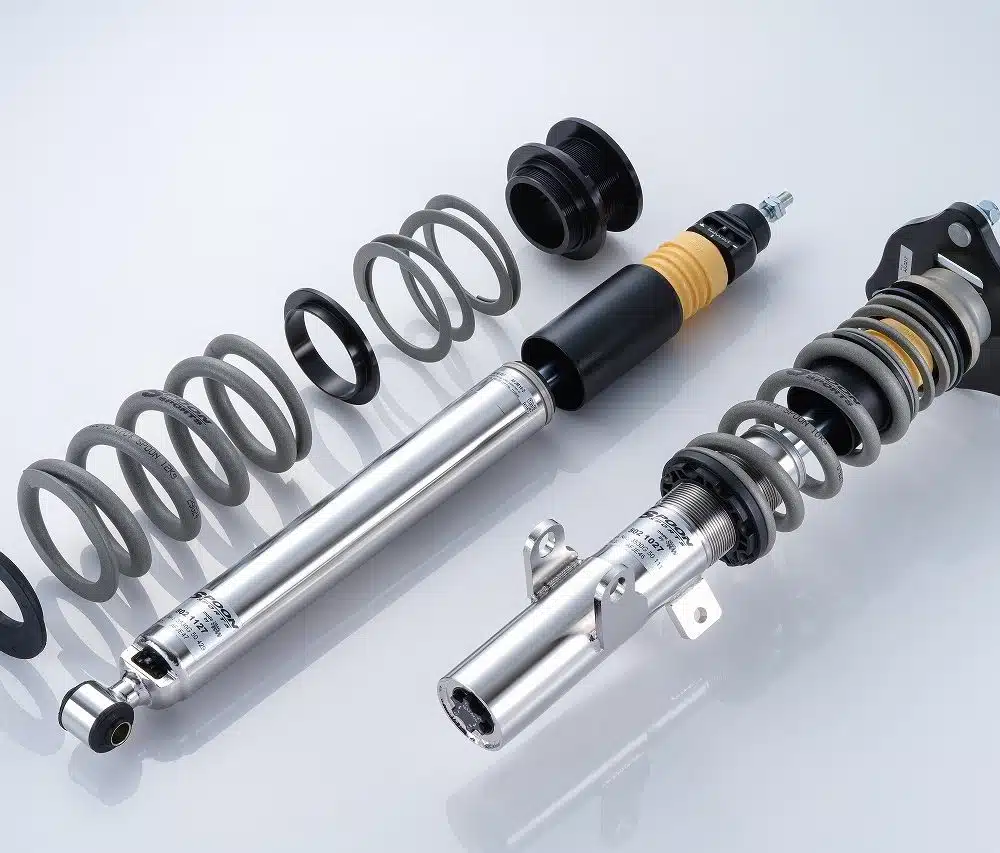

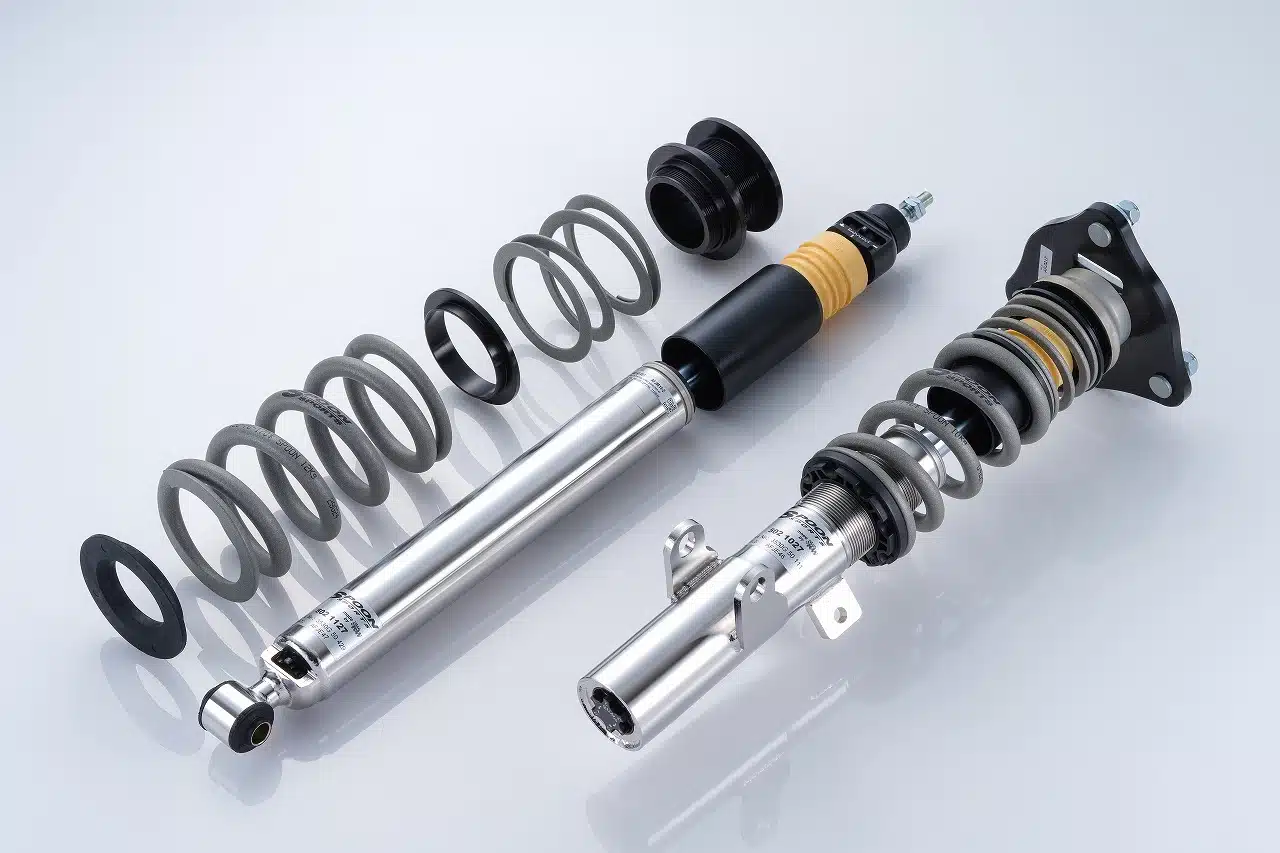

Spoon Sports Full-Spec Damper Kit for FL5 / FK8 Honda Civic Type R

The Spoon Sports Full-Spec Damper Kit for FL5 and FK8 Civic Type R grew out of Spoon’s endurance racing in North America. Spoon raced an FK8 in the 2021 Thunderhill 25 Hours and an FL5 in 2023, and it used the data from those races to develop coilovers for both cars in partnership with KW USA. Testing then moved to the street, the circuit and winding roads, with the goal of one kit that serves all three. Damping is adjustable in both bump and rebound, across 12 and 16 clicks, and the front dampers carry camber-adjustable upper mounts with a range of -1.0 to -3.0 degrees. Spoon ships the kit set 20 mm low at the front and 25 mm at the rear, measured on its demo car. On the road it gives a flat, settled ride; on track it delivers the direct, smooth cornering of a race car. It suits a Type R used hard on circuit days.

Features

Developed from Thunderhill 25 Hours race data
Engineered with KW USA
Two-way damping: 12 bump and 16 rebound clicks
Camber-adjustable front upper mounts
Damper control canceller supplied for the factory system

Specifications

Front spring: 10 kgf/mm, 140 mm, 60 mm ID
Rear spring: 12 kgf/mm, 170 mm, 70 mm ID
Height as shipped: -20 mm front, -25 mm rear
Jack point clearance as shipped: 140 mm front, 155 mm rear
Recommended height range: 0 to -35 mm front, 0 to -40 mm rear
Recommended damping: bump 6, rebound 9, front and rear
Camber as shipped: -2 deg front and rear
Front camber range: -1.0 to -3.0 deg
Listed weight: 24 kg

What’s Included

Damper control canceller
Hook wrench
Damping adjustment dial

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo
Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

Heights were measured on the Spoon demo car and will vary with the vehicle
The Full-Spec Damper Kit for FL5 also fits the FK8; Go Tuning lists 2017 to 2024 model year US cars
A four-wheel alignment is required after installation and after any height or camber change

Frequently Asked Questions

Does the Full-Spec Damper Kit for FL5 also fit the FK8? Yes. Spoon developed the Full-Spec Damper Kit for FL5 for both generations after racing each at Thunderhill, and registers the FK8 from 2017 and the FL5 from 2022. Go Tuning sells it for 2017 to 2024 model year US Civic Type R cars.
What happens to the factory adaptive dampers? The Spoon dampers replace them, and Spoon supplies a damper control canceller in the kit for the factory damper control system. That lets the car run the passive Spoon dampers without the factory system expecting its original units. Installation should be done by a shop familiar with the car.
How much adjustment does the kit offer? Bump damping has 12 clicks and rebound 16, with Spoon recommending 6 bump and 9 rebound front and rear. Ride height is recommended from stock down to 35 mm lower at the front and 40 mm at the rear, and front camber adjusts from -1.0 to -3.0 degrees.
How low does it sit as delivered? Spoon ships the kit set 20 mm below stock at the front and 25 mm at the rear, with jack point clearance of 140 mm and 155 mm. Those figures were measured on the Spoon demo car, so individual cars will vary slightly.
What role did KW play? Spoon developed the kit in partnership with KW USA, using data gathered in the Thunderhill 25 Hours. Spoon set the goals and tuning from its racing, then refined the result through testing on the street, on the circuit and on winding roads.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
