How do I know if my car needs the early Carbon Bonnet for EK9?

Go by the production date. Spoon makes the early Carbon Bonnet for EK9 and EK4 for cars built up to September 1998, and a separate late version for cars built from September 1998 to the end of production in 2000. Spoon registers each only for its own period, so check the build date before ordering.

How much lighter is it than the stock bonnet?

Spoon puts its EK carbon bonnet at 8.2 kg, compared with 15.5 kg for the factory part. That is a reduction of 7.3 kg at the very front of the car, which Spoon says has the same effect as a Civic built without an air conditioning system. Few single parts take that much from the nose.

Does the bonnet need pins to stay closed?

No. It uses the same latch arrangement as the factory bonnet, so it opens, closes and secures the way the original does, and the washer system keeps working. Anyone running the car in competition should still check whether the event requires secondary hood restraints, as some do for every entry.

Is the bonnet painted?

No. The carbon weave is left exposed. Because ultraviolet light can discolor carbon, Spoon advises a UV-protective clear coat, applied after a trial fit. Spoon also asks that the coating air dry without heat, and below 40 degrees Celsius in cold or humid conditions, to keep the panel from distorting.

What does a lighter bonnet do for an EK on track?

Spoon lists four effects for a front-heavy front-drive car: less understeer, quicker turn-in, reduced load on the brakes and better acceleration. On a short, tight circuit, where the car is braking and turning almost constantly, those small gains add up over a session and help the front tires last.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

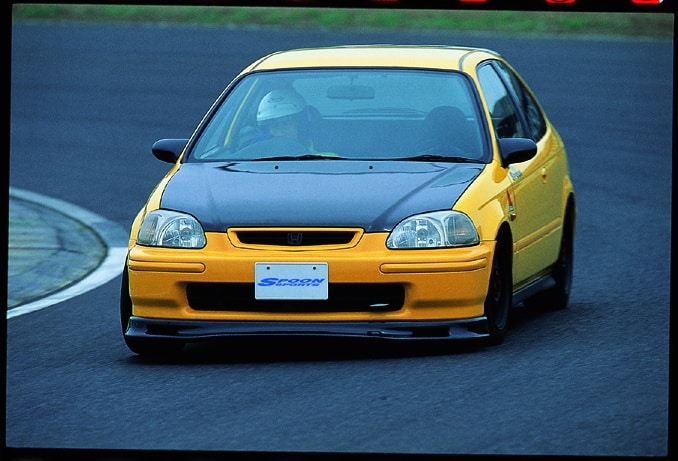

Spoon Sports Carbon Bonnet for EK9 / EK4 Honda Civic Early Model

The Spoon Sports Carbon Bonnet for EK9 and EK4 Honda Civic Early Model is made for cars built before the September 1998 change to the late model: the B16B Type R from its August 1997 launch, and the B16A SiR II from September 1995. Spoon makes early and late EK bonnets separately, so the production date matters when ordering. The payoff is the same on both. Spoon quotes 8.2 kg against 15.5 kg for the factory EK bonnet and equates the saving to a car built without air conditioning. With less mass at the nose, a front-drive EK pushes less in slow corners, turns in more eagerly and asks less of its front brakes. Mounting uses the factory latch, no pins are needed, and the washers carry on working. Spoon leaves the black weave exposed. It is aimed at a Civic built for circuit days; an owner chasing originality will prefer to keep the factory bonnet.

Features

Early-model shape for cars built to September 1998
8.2 kg against 15.5 kg for the factory bonnet, per Spoon
Factory latch; no bonnet pins required
Window washers remain functional
Exposed black carbon weave

Applications

Honda Civic SiR: EK4 | 1995-1998 | 1.6L B16A
Honda Civic Type R: EK9 | 1997-1998 | 1.6L B16B

Notes

Early model only: EK4 built September 1995 to September 1998 and EK9 built August 1997 to September 1998; later cars need the late model bonnet, 60100-EKA-011
The Carbon Bonnet for EK9 and EK4 is unpainted, and Spoon recommends a UV-protective clear coat
Test fit before clear coating and air dry below 40 degrees Celsius, without booth heat or spot heating

Frequently Asked Questions

How do I know if my car needs the early Carbon Bonnet for EK9? Go by the production date. Spoon makes the early Carbon Bonnet for EK9 and EK4 for cars built up to September 1998, and a separate late version for cars built from September 1998 to the end of production in 2000. Spoon registers each only for its own period, so check the build date before ordering.
How much lighter is it than the stock bonnet? Spoon puts its EK carbon bonnet at 8.2 kg, compared with 15.5 kg for the factory part. That is a reduction of 7.3 kg at the very front of the car, which Spoon says has the same effect as a Civic built without an air conditioning system. Few single parts take that much from the nose.
Does the bonnet need pins to stay closed? No. It uses the same latch arrangement as the factory bonnet, so it opens, closes and secures the way the original does, and the washer system keeps working. Anyone running the car in competition should still check whether the event requires secondary hood restraints, as some do for every entry.
Is the bonnet painted? No. The carbon weave is left exposed. Because ultraviolet light can discolor carbon, Spoon advises a UV-protective clear coat, applied after a trial fit. Spoon also asks that the coating air dry without heat, and below 40 degrees Celsius in cold or humid conditions, to keep the panel from distorting.
What does a lighter bonnet do for an EK on track? Spoon lists four effects for a front-heavy front-drive car: less understeer, quicker turn-in, reduced load on the brakes and better acceleration. On a short, tight circuit, where the car is braking and turning almost constantly, those small gains add up over a session and help the front tires last.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
