Is the Aluminum Radiator for FL5 a race part?

Yes. Spoon developed a 42 mm core prototype for its FL5 race car and confirmed its effect at the 25 Hours of Thunderhill. After street testing, Spoon chose to sell the Aluminum Radiator for FL5 to the same racing specification, because the condenser in front of a road car restricts airflow enough to demand equal cooling.

Why does a street FL5 need race-level cooling?

On a road car the air conditioning condenser sits in front of the radiator and blocks much of the air that would otherwise reach it. Spoon found in testing that this leaves a street FL5 needing the same cooling capacity as its race car on a hot circuit day, so it offers only the one specification.

Do the factory hoses need modification?

Yes. Spoon and Go Tuning both state that the radiator-side ends of the factory hoses must be cut by 10 mm for a correct fit. It is a simple trim with a sharp blade, but measure carefully and cut square so the hose seats fully and the clamp holds evenly.

Do I need the Spoon thermostat?

Yes, Spoon specifies it. Spoon lists its thermostat 19301-FK8-000 for use with this radiator and notes that a thermostat change alone only slows the rise in temperature. Together, the thermostat and the 42 mm core are what hold the K20C at its ideal temperature on track. The thermostat is sold separately.

Does it keep the factory fan and sensors?

Yes. Go Tuning confirms the radiator installs directly with the factory cooling fan and sensors, so no wiring changes or new sensor adapters are needed. Inlet and outlet use ORB fittings, and the billet upper tank carries an engraved SPOON SPORTS logo that is visible with the hood open.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

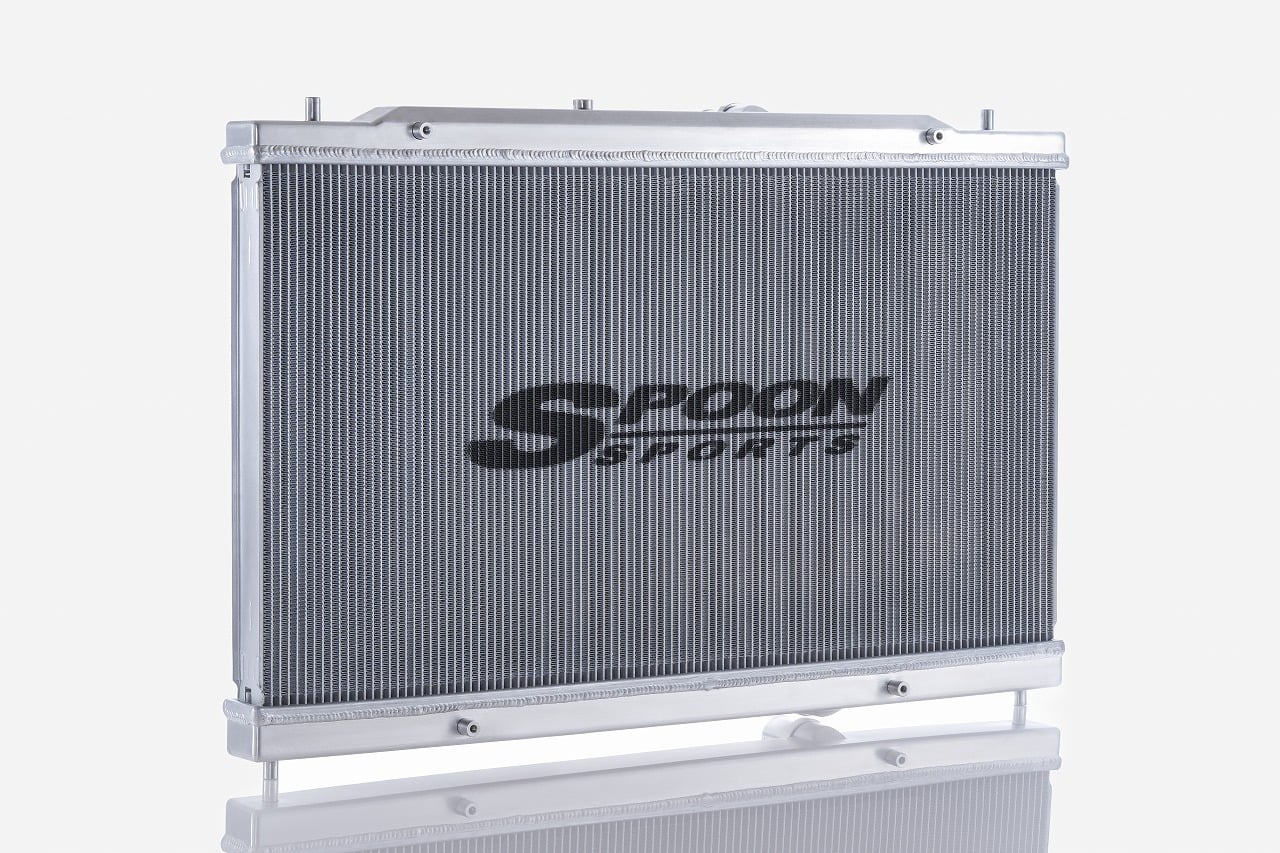

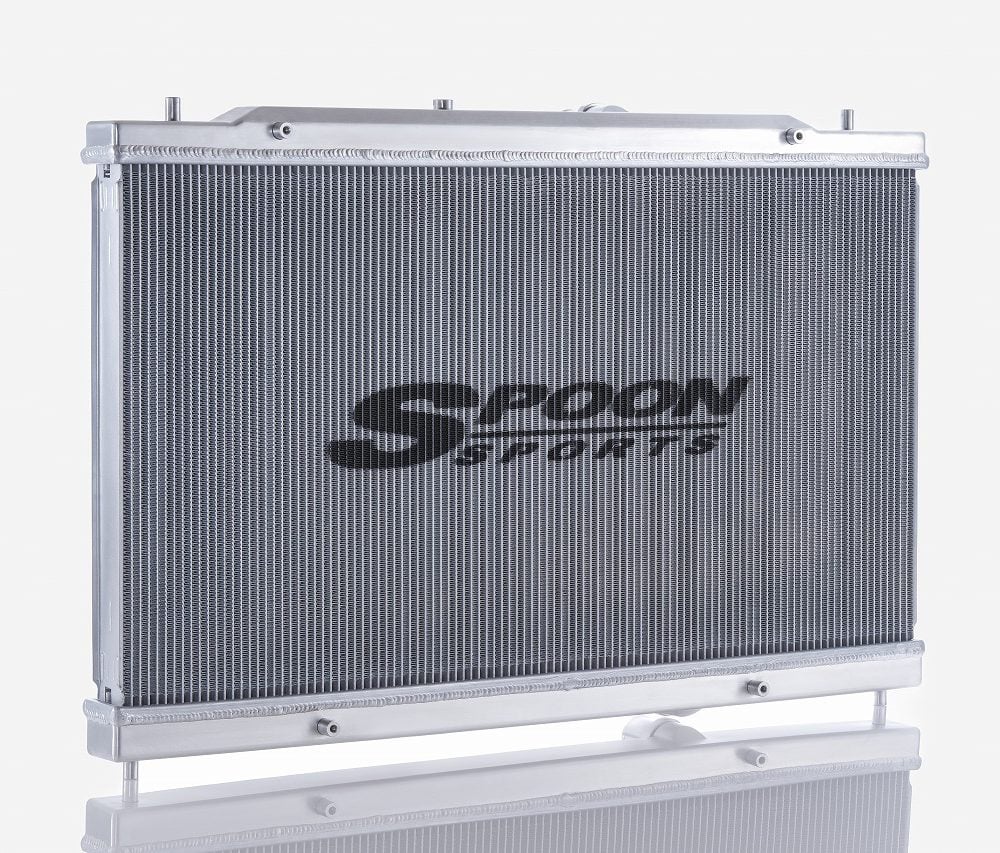

Spoon Sports Aluminum Radiator for FL5 Honda Civic Type R

The Spoon Sports Aluminum Radiator for FL5 Civic Type R is the same radiator Spoon runs on its race car, offered without compromise for the street. The turbocharged K20C generates a great deal of heat, and on a circuit its coolant temperature climbs fast enough to make continuous laps difficult; a different thermostat or a lower fan switching point slows the rise, but holding the ideal temperature takes a better radiator. Spoon built a prototype with a 42 mm core and ran it in the 25 Hours of Thunderhill, where it proved effective. Street testing then showed that the air conditioning condenser in front of the radiator blocks much of the airflow, so a road car needs the same capacity as the racer, and Spoon made the race part its catalogue part. It is aluminum with billet upper and lower tanks, and Spoon specifies its 19301-FK8-000 thermostat alongside it. For an FL5 that sees circuit days it is the first cooling part to buy.

Features

42 mm core proven at the 25 Hours of Thunderhill
Billet aluminum upper and lower tanks
High-performance 5 mm fins according to Go Tuning
ORB inlet and outlet fittings according to Go Tuning
SPOON SPORTS logo engraved on the upper tank

Specifications

Material: Aluminum
Core thickness: 42 mm
Tanks: Billet aluminum, upper and lower
Fins: 5 mm, per Go Tuning
Inlet and outlet: ORB fittings, per Go Tuning
Fan and sensors: Factory parts reused

Applications

Honda Civic Type R: FL5 | 2023-present | 2.0L K20C1 turbo

Notes

Spoon specifies its thermostat 19301-FK8-000 for use with the Aluminum Radiator for FL5; it is sold separately
The factory radiator hoses must be shortened by 10 mm at the radiator end during installation
The factory cooling fan and sensors are reused
Coolant is not included

Frequently Asked Questions

Is the Aluminum Radiator for FL5 a race part? Yes. Spoon developed a 42 mm core prototype for its FL5 race car and confirmed its effect at the 25 Hours of Thunderhill. After street testing, Spoon chose to sell the Aluminum Radiator for FL5 to the same racing specification, because the condenser in front of a road car restricts airflow enough to demand equal cooling.
Why does a street FL5 need race-level cooling? On a road car the air conditioning condenser sits in front of the radiator and blocks much of the air that would otherwise reach it. Spoon found in testing that this leaves a street FL5 needing the same cooling capacity as its race car on a hot circuit day, so it offers only the one specification.
Do the factory hoses need modification? Yes. Spoon and Go Tuning both state that the radiator-side ends of the factory hoses must be cut by 10 mm for a correct fit. It is a simple trim with a sharp blade, but measure carefully and cut square so the hose seats fully and the clamp holds evenly.
Do I need the Spoon thermostat? Yes, Spoon specifies it. Spoon lists its thermostat 19301-FK8-000 for use with this radiator and notes that a thermostat change alone only slows the rise in temperature. Together, the thermostat and the 42 mm core are what hold the K20C at its ideal temperature on track. The thermostat is sold separately.
Does it keep the factory fan and sensors? Yes. Go Tuning confirms the radiator installs directly with the factory cooling fan and sensors, so no wiring changes or new sensor adapters are needed. Inlet and outlet use ORB fittings, and the billet upper tank carries an engraved SPOON SPORTS logo that is visible with the hood open.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
