Why not a thicker core on the Aluminum Radiator for FK8?

Because thicker is not always better. Spoon found that beyond a certain depth air no longer passes freely through the core, so efficiency drops and weight rises. The Aluminum Radiator for FK8 uses a 36 mm core with high heat-dissipation fins, the combination Spoon settled on after repeated testing.

What problem does it solve?

On the factory radiator, which has a 27 mm core, coolant temperature in hard driving quickly passes 100 degrees C and sustained laps become difficult. Spoon designed this radiator so the K20C turbo can keep producing its intended performance through a full session rather than suffering as heat builds.

Will the factory fan shroud fit?

Yes. Spoon kept the factory fan shroud and air conditioning condenser compatible, so both go back on as before. The cooling fans, climate system and front-end packaging stay standard, and the radiator is a direct replacement rather than part of a custom cooling system.

No. Spoon registers this radiator for the FK8 only, across both its 2017 launch version and its 2020 update. The FL5 has its own Spoon aluminum radiator, a racing-specification part with a thicker 42 mm core and billet tanks, developed through endurance racing.

What is the extra sensor boss for?

It is a 1/8 PT threaded boss that Spoon adds for an aftermarket sensor, typically a coolant temperature sender for a gauge or data logger. It saves cutting into a hose or adding an adapter, which keeps the installation clean and the readings taken directly at the radiator.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

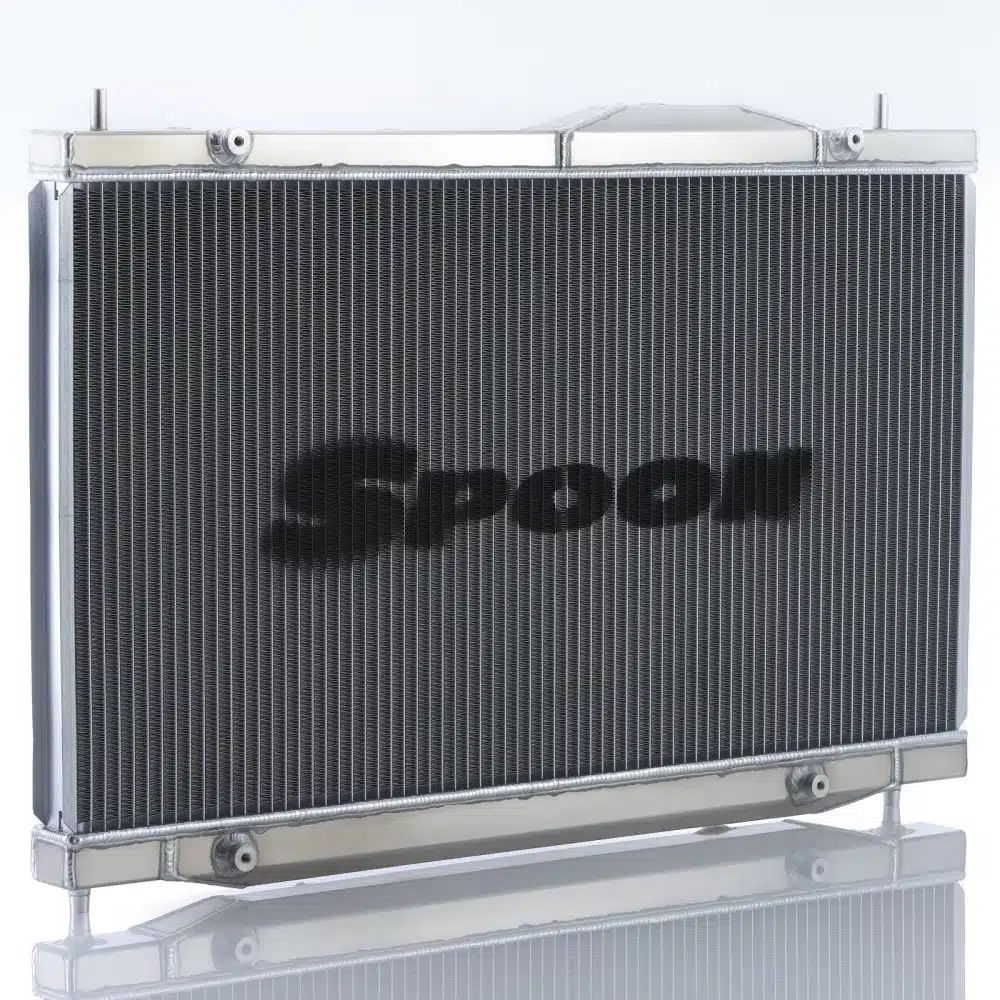

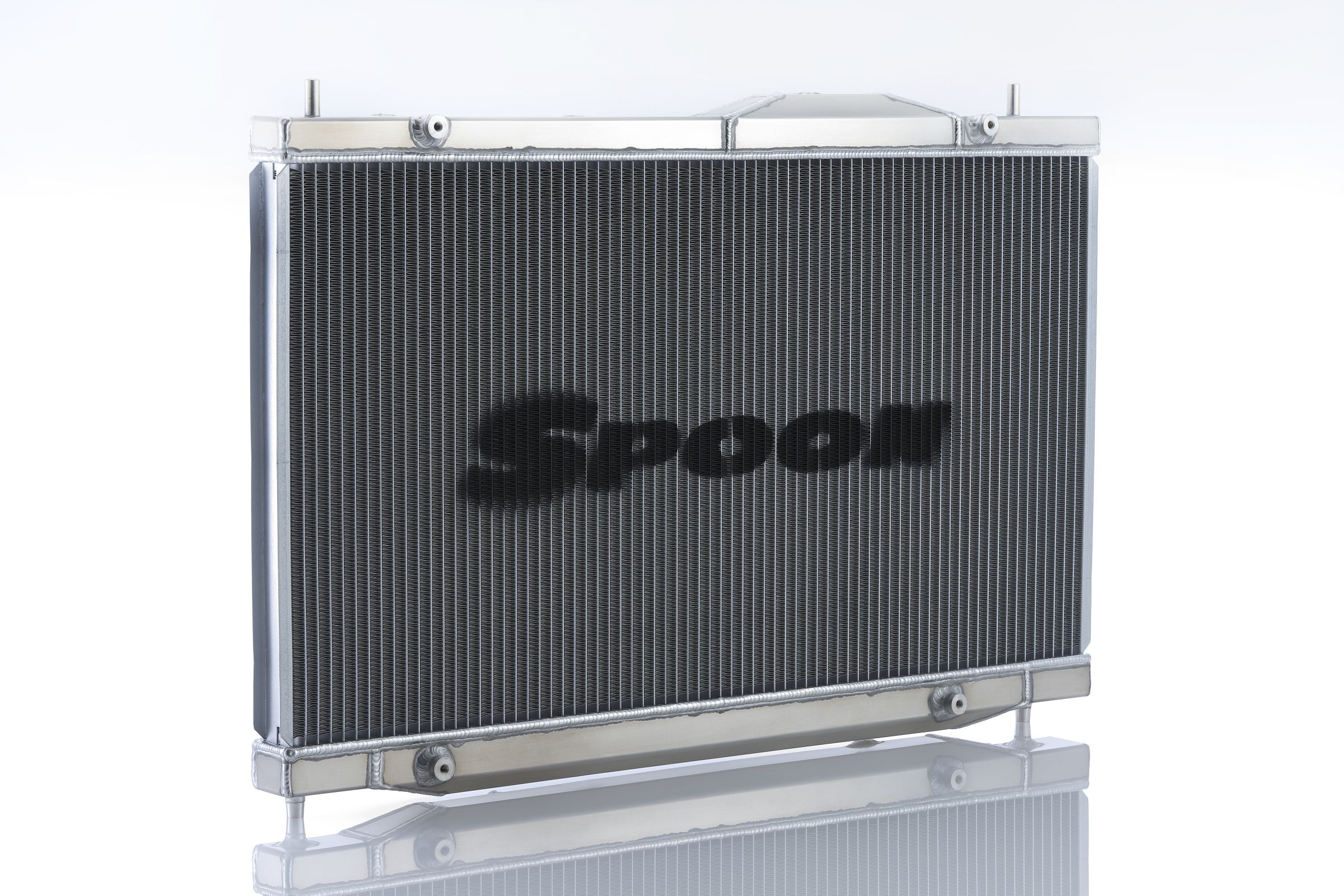

Spoon Sports Aluminum Radiator for FK8 Honda Civic Type R

The Spoon Sports Aluminum Radiator for FK8 Civic Type R is the product of a balancing act. On the factory 27 mm radiator, coolant temperature in hard driving soon passes 100 degrees C and continuous laps become difficult, yet simply fitting the thickest core possible would backfire: past a point, air struggles to pass through, cooling efficiency falls and the radiator gains weight. Spoon worked through repeated testing to find the right combination, settling on a 36 mm core with a fin shape chosen for high heat dissipation, which it says improves cooling efficiency markedly. The factory fan shroud and A/C condenser fit as before, and a 1/8 PT boss accepts an aftermarket sensor. For an FK8 that runs full track days it lets the K20C turbo keep working at its best for longer; a road car will rarely approach the limits it addresses.

Features

36 mm core chosen through repeated Spoon testing
High heat-dissipation fin design
Factory fan shroud and A/C condenser refit
1/8 PT boss for an aftermarket sensor
Aluminum construction, made in Japan according to Go Tuning

Specifications

Material: Aluminum
Core thickness: 36 mm
Factory core thickness: 27 mm
Sensor boss: 1/8 PT
Listed weight: 7.6 kg

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo

Notes

The Aluminum Radiator for FK8 reuses the factory fan shroud and condenser
Spoon registers the FK8 from 2017 and from its 2020 update; the FL5 uses its own Spoon radiator
Coolant and hoses are not included

Frequently Asked Questions

Why not a thicker core on the Aluminum Radiator for FK8? Because thicker is not always better. Spoon found that beyond a certain depth air no longer passes freely through the core, so efficiency drops and weight rises. The Aluminum Radiator for FK8 uses a 36 mm core with high heat-dissipation fins, the combination Spoon settled on after repeated testing.
What problem does it solve? On the factory radiator, which has a 27 mm core, coolant temperature in hard driving quickly passes 100 degrees C and sustained laps become difficult. Spoon designed this radiator so the K20C turbo can keep producing its intended performance through a full session rather than suffering as heat builds.
Will the factory fan shroud fit? Yes. Spoon kept the factory fan shroud and air conditioning condenser compatible, so both go back on as before. The cooling fans, climate system and front-end packaging stay standard, and the radiator is a direct replacement rather than part of a custom cooling system.
Does it fit the FL5? No. Spoon registers this radiator for the FK8 only, across both its 2017 launch version and its 2020 update. The FL5 has its own Spoon aluminum radiator, a racing-specification part with a thicker 42 mm core and billet tanks, developed through endurance racing.
What is the extra sensor boss for? It is a 1/8 PT threaded boss that Spoon adds for an aftermarket sensor, typically a coolant temperature sender for a gauge or data logger. It saves cutting into a hose or adding an adapter, which keeps the installation clean and the readings taken directly at the radiator.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
