Can I still use the soft top with the 4-Point Roll Cage for AP1?

Yes. Spoon designed the 4-Point Roll Cage for AP1 and AP2 to work with the factory soft top, including the version with a glass rear window, and with a hardtop. With the glass window, Spoon requires roll bar padding on the bar because the glass passes close to it when the roof moves.

Is roll bar padding included?

No padding is listed as part of the cage. Spoon makes padding mandatory on cars with the glass-window soft top, since the glass could be damaged by contact with bare tubing while opening or closing the roof, so buy suitable padding before the installation is complete.

Does it fit the AP2 as well as the AP1?

Yes. Spoon registers the 4-point cage for every AP1 from 1999 and every AP2 through 2009, covering both the 2.0L and 2.2L cars. That includes US S2000s from 2000 to 2009, so one part number serves the whole production run.

Is it suitable for street use?

Yes. Spoon designed it for circuit driving, and Go Tuning describes it as suitable for the circuit or the street. Because the roof still works and the dashboard is not cut, the car remains usable every day, although a cage in the cabin means helmet-free occupants should take care around the tubing.

Spoon lists the cage at 20.5 kg, and it ships in a box measuring 140 x 22 x 125 cm. The weight comes from the 40 mm steel tubing, which gives the bar its strength. Plan on two people to handle it and fit it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

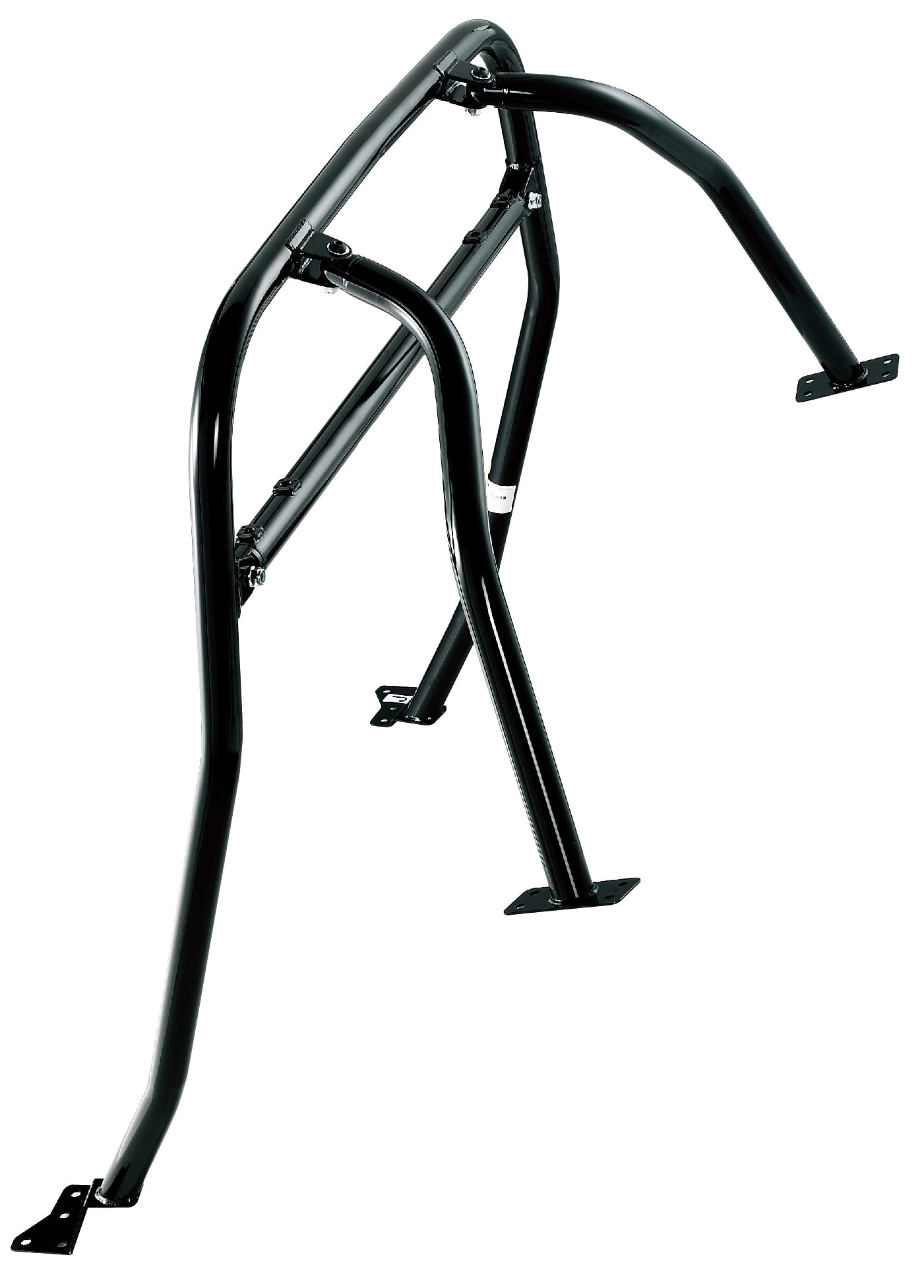

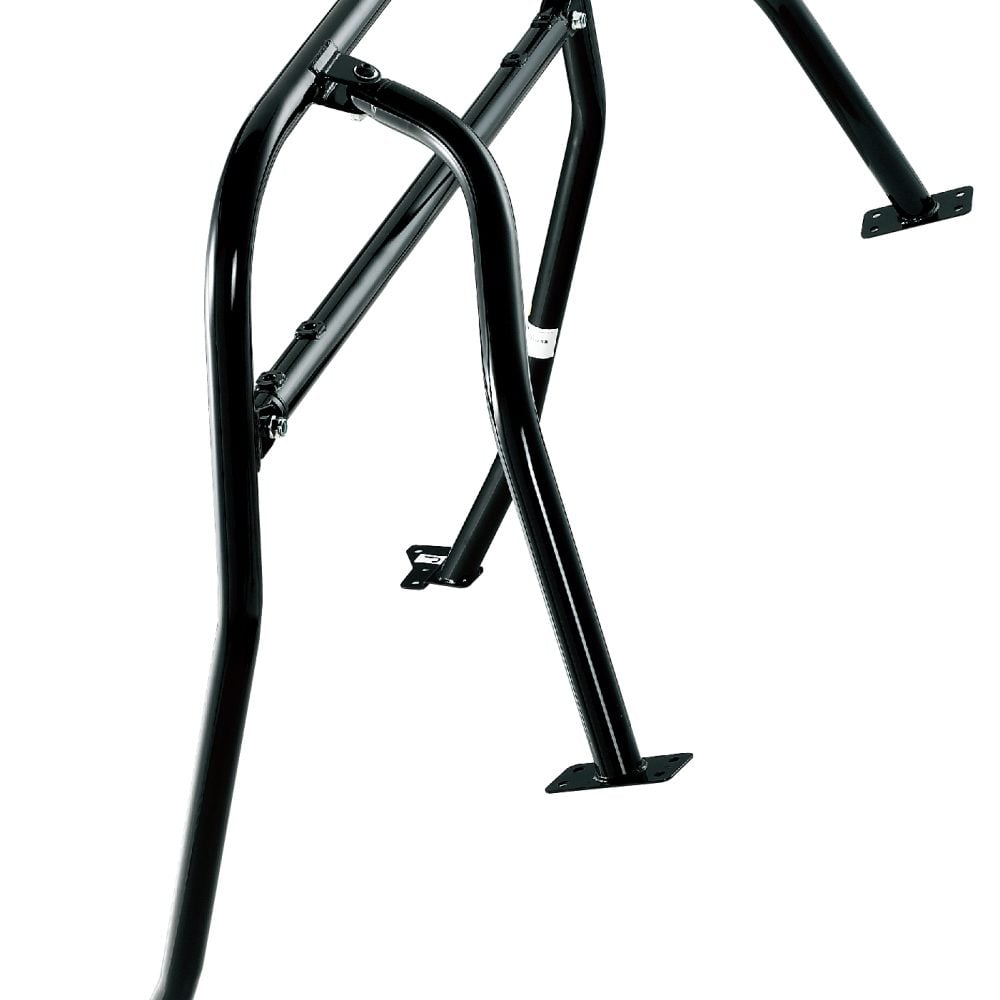

Spoon Sports 4-Point Roll Cage for AP1 / AP2 Honda S2000

The Spoon Sports 4-Point Roll Cage for AP1 Honda S2000 gives the car proper protection for circuit driving without taking away what makes it a roadster. Spoon designed it to work with the factory soft top, including the later top with a glass rear window, as well as with a hardtop, so the car can still be driven open between track days. It is made from 40 mm diameter steel tubing and weighs 20.5 kg. Spoon sets one firm condition. With the glass-window top, clearance between the glass and the bar is tight as the roof opens and closes, so roll bar padding must be wrapped around the bar to protect the glass. Registered for every AP1 and AP2, it suits an owner who wants track safety and still values the top-down drive home; a dedicated race car with a hardtop is better served by the 7-point design.

Design and Development

A four-point layout keeps the structure behind the seats, which is what allows the roof to fold as normal and leaves the dashboard untouched. Spoon intends it for circuit work, and Go Tuning notes it is equally usable on the street. Keeping the tubing at 40 mm diameter matches the other Spoon S2000 cage, so the bar is substantial without being out of proportion in the cabin.

Features

Works with the factory soft top or a hardtop
Compatible with the glass rear window soft top
40 mm diameter steel tubing
Four-point layout kept behind the seats
No dashboard cutting needed

Specifications

Layout: 4-point
Tubing: 40 mm diameter steel
Listed weight: 20.5 kg
Shipping box: 140 x 22 x 125 cm
Roof compatibility: factory soft top or hardtop

Applications

Honda S2000: AP1 | 1999-2005 | 2.0L F20C
Honda S2000: AP2 | 2005-2009 | 2.2L F22C

Notes

With the glass-window soft top, wrap roll bar padding around the bar to protect the glass; padding is not listed as included
The 4-Point Roll Cage for AP1 ships as oversize freight
Professional installation is recommended

Frequently Asked Questions

Can I still use the soft top with the 4-Point Roll Cage for AP1? Yes. Spoon designed the 4-Point Roll Cage for AP1 and AP2 to work with the factory soft top, including the version with a glass rear window, and with a hardtop. With the glass window, Spoon requires roll bar padding on the bar because the glass passes close to it when the roof moves.
Is roll bar padding included? No padding is listed as part of the cage. Spoon makes padding mandatory on cars with the glass-window soft top, since the glass could be damaged by contact with bare tubing while opening or closing the roof, so buy suitable padding before the installation is complete.
Does it fit the AP2 as well as the AP1? Yes. Spoon registers the 4-point cage for every AP1 from 1999 and every AP2 through 2009, covering both the 2.0L and 2.2L cars. That includes US S2000s from 2000 to 2009, so one part number serves the whole production run.
Is it suitable for street use? Yes. Spoon designed it for circuit driving, and Go Tuning describes it as suitable for the circuit or the street. Because the roof still works and the dashboard is not cut, the car remains usable every day, although a cage in the cabin means helmet-free occupants should take care around the tubing.
How heavy is it? Spoon lists the cage at 20.5 kg, and it ships in a box measuring 140 x 22 x 125 cm. The weight comes from the 40 mm steel tubing, which gives the bar its strength. Plan on two people to handle it and fit it.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
