What is the difference between the SPL RE 996 and the SPL FE 996?

These are two separate endlink products for the 996 and 997 platform. The RE 996 is the rear sway bar endlink; it connects the rear sway bar to the rear shock mount. The FE 996 is the front sway bar endlink; it connects the front sway bar to the front strut. A complete endlink set for a 996 or 997 requires one pair of each. The FE 996 also covers the front and rear of the 986/987 Boxster and Cayman and the rear of the 981/982/718; the RE 996 is rear 996/997 specific only.

How does rear sway bar preload develop on a 996 or 997, and why does it matter?

Preload develops whenever the rear sway bar's endlinks are a different length than the gap between the sway bar and the shock mount at the car's actual ride height. This happens any time the car is lowered, has experienced spring settling, or has been corner-weighted to unequal rear heights. When the endlink is too short or too long, it twists the sway bar at rest; creating a baseline roll stiffness bias that favors one side even in a straight line. Independently adjustable endlinks allow the exact length that produces zero preload to be set on both sides, giving the sway bar a neutral starting point.

Do the 65-degree Chromoly misalignment studs make a difference on a stock rear sway bar?

For a factory rear sway bar at the factory connection position, a standard stud handles the geometry without binding. The 65-degree studs become important when running an aftermarket rear sway bar with multiple adjustment holes; each hole moves the connection angle relative to factory geometry, and a standard stud's limited articulation range begins to bind at non-factory positions. The 65-degree Chromoly studs stay free at every hole position, allowing the full rated stiffness of any aftermarket rear bar to reach the chassis without restriction.

Are these endlinks suitable for a street-driven 996 or 997?

Yes. The SPL RE 996 is designed for both street and race applications. For a street 996 or 997 running an aftermarket rear sway bar or any lowering that has changed rear ride height, the primary benefit is eliminating the rubber deflection that reduces bar effectiveness and zeroing out any preload. Both improvements are felt on the street as more consistent rear body control and more predictable handling balance.

Do I need these if I already have the SPL FE 996 front endlinks installed?

The front and rear endlinks are independent products addressing independent sway bar positions. Installing the SPL FE 996 at the front improves front sway bar performance; the rear sway bar still connects to the chassis through whatever endlinks are currently installed at the rear. For a complete endlink upgrade on the 996 or 997, both the SPL FE 996 (front) and SPL RE 996 (rear) are needed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

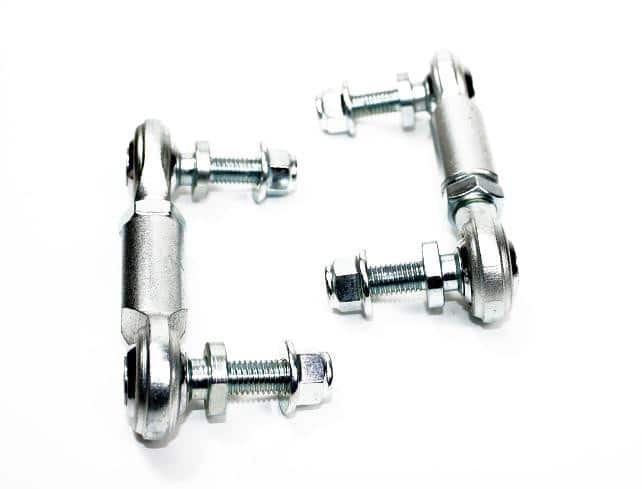

SPL Parts Adjustable Rear Sway Bar Endlinks for 99x Porsche 911

The rear sway bar on the Porsche 996 and 997 is doing exactly as much work as the endlinks connecting it to the suspension allow. Factory rubber-bushed endlinks absorb a portion of the bar’s lateral force before it reaches the chassis, which means an aftermarket rear bar upgrade delivers less than its rated stiffness to the suspension. Fixed-length endlinks compound the issue on any 996 or 997 that has been lowered, corner-weighted, or set up with unequal rear suspension heights; when both sides aren’t at identical height, a fixed endlink twists the bar and introduces preload that biases roll resistance toward one side before the car has cornered at all. The SPL RE 996 removes both of those limitations from the rear sway bar equation. Teflon-lined FK 1/2-inch bearings at the shock mount deliver the highest load capacity available in this application; sway bar force transfers directly to the chassis without the rubber deflection that blunts the bar’s effective stiffness. Heat-treated Chromoly High Misalignment Studs at the sway bar connection provide 65 degrees of articulation, which is the range needed to run an aftermarket rear sway bar across every available adjustment hole position without the stud binding. Standard studs at non-factory hole positions restrict bar movement and wear prematurely; the 65-degree Chromoly studs stay free at every position.

Features

Teflon-lined FK 1/2-inch bearings at the shock mount; highest load capacity for this application; eliminates rubber deflection under rear sway bar load for full transfer of bar stiffness to the chassis
Heat-treated Chromoly High Misalignment Studs at the sway bar connection; 65° articulation prevents binding at any adjustment hole position on any aftermarket rear sway bar
Length adjustable via left and right hand threaded rod ends; each side independently adjustable for precise zero-preload setup at any corner height configuration
Eliminates rear sway bar preload from ride height variation, spring settling, and corner weight differences

Specifications

Body Material: 6061-T6 black anodized aluminum turnbuckle
Heim Joint: 1/2″ Teflon-lined FK USA spherical bearings
Stud Material: Heat-treated chromoly with 65° high misalignment
Adjustment: Length-adjustable for preload elimination
Origin: Made in the USA

Applications

Porsche 911 Carrera: 996, 997 | 1999-2012
Porsche 911 Carrera 4: 996, 997 | 1999-2012
Porsche 911 Carrera 4S: 996, 997 | 2002-2012
Porsche 911 Carrera S: 997 | 2005-2012
Porsche 911 Targa: 996 | 2002-2005
Porsche 911 Targa 4: 997 | 2006-2012
Porsche 911 Targa 4S: 997 | 2006-2012
Porsche 911 Turbo: 996, 997 | 2001-2012
Porsche 911 Turbo S: 997 | 2010-2012
Porsche 911 GT2: 996, 997 | 2002-2012
Porsche 911 GT2 RS: 997 | 2010-2012
Porsche 911 GT3: 996, 997 | 1999-2012
Porsche 911 GT3 RS: 996, 997 | 2004-2012

Notes

SPL components are made-to-order in the USA; build time will be confirmed at the time of order

Frequently Asked Questions

What is the difference between the SPL RE 996 and the SPL FE 996? These are two separate endlink products for the 996 and 997 platform. The RE 996 is the rear sway bar endlink; it connects the rear sway bar to the rear shock mount. The FE 996 is the front sway bar endlink; it connects the front sway bar to the front strut. A complete endlink set for a 996 or 997 requires one pair of each. The FE 996 also covers the front and rear of the 986/987 Boxster and Cayman and the rear of the 981 / 982 / 718; the RE 996 is rear 996 / 997 specific only.
How does rear sway bar preload develop on a 996 or 997, and why does it matter? Preload develops whenever the rear sway bar’s endlinks are a different length than the gap between the sway bar and the shock mount at the car’s actual ride height. This happens any time the car is lowered, has experienced spring settling, or has been corner-weighted to unequal rear heights. When the endlink is too short or too long, it twists the sway bar at rest; creating a baseline roll stiffness bias that favors one side even in a straight line. Independently adjustable endlinks allow the exact length that produces zero preload to be set on both sides, giving the sway bar a neutral starting point.
Do the 65-degree Chromoly misalignment studs make a difference on a stock rear sway bar? For a factory rear sway bar at the factory connection position, a standard stud handles the geometry without binding. The 65-degree studs become important when running an aftermarket rear sway bar with multiple adjustment holes; each hole moves the connection angle relative to factory geometry, and a standard stud’s limited articulation range begins to bind at non-factory positions. The 65-degree Chromoly studs stay free at every hole position, allowing the full rated stiffness of any aftermarket rear bar to reach the chassis without restriction.
Are these endlinks suitable for a street-driven 996 or 997? Yes. The SPL RE 996 is designed for both street and race applications. For a street 996 or 997 running an aftermarket rear sway bar or any lowering that has changed rear ride height, the primary benefit is eliminating the rubber deflection that reduces bar effectiveness and zeroing out any preload. Both improvements are felt on the street as more consistent rear body control and more predictable handling balance.
Do I need these if I already have the SPL FE 996 front endlinks installed? The front and rear endlinks are independent products addressing independent sway bar positions. Installing the SPL FE 996 at the front improves front sway bar performance; the rear sway bar still connects to the chassis through whatever endlinks are currently installed at the rear. For a complete endlink upgrade on the 996 or 997, both the SPL FE 996 (front) and SPL RE 996 (rear) are needed.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
