Why are adjustable endlinks considered required equipment for corner-balancing an F8X or G8X M car?

Corner-balancing adjusts the corner weights of the car by changing ride height at each corner independently. Every time ride height changes, the distance between the strut mount and the sway bar changes too. Fixed-length endlinks cannot account for those changes, so they introduce preload into the sway bar; a constant twisting load that exists even when the car is at rest. That preload shifts the car's roll resistance asymmetrically, making the suspension tuning numbers on the setup pad inaccurate. Adjustable endlinks allow the length on each side to be set precisely to zero preload after every ride height change, so the sway bar only does work when the car rolls; not when it's sitting still.

What is the OEM length range of the SPL FE F8X, and how does it compare to other BMW-specific SPL endlink kits?

The FE F8X covers 11.4 to 12.9 inches for the F8X and G8X M chassis. For reference, the FE E9X covers 10.4 to 11.9 inches for the E8X and E9X non-M, the FE F3X covers 11.4 to 12.9 inches for the F2X and F3X, and the FE E9M covers 12.9 to 14.4 inches for the E8X M, E9X M, G2X, G42, and G8X platforms.

Do MCS or other aftermarket coilovers on the F8X or G8X require a different endlink length?

Yes, in many cases. MCS and other premium coilover manufacturers frequently move the upper strut mount position from the factory location to optimize damper geometry. This changes the strut-to-sway-bar distance and can place the required endlink length outside the 11.4 to 12.9 inch range. Measure the distance between the sway bar and the strut mount before ordering if coilovers are installed; if the measurement falls outside the range, contact us with the required length before placing the order.

Does the SPL FE F8X fit both the F8X and the newer G8X generation?

Yes. A single part number, SPL FE F8X, covers both the F8X generation (2014-2021 M2, M3, M4) and the G8X generation (2021+ M2, M3, M4). The front strut and sway bar geometry is compatible across both generations within the same length range.

What is included, and can replacement rod ends be ordered separately?

Each pair includes the left and right adjustable front sway bar endlinks, each consisting of the black anodized 6061-T6 aluminum turnbuckle, Teflon-lined FK 1/2-inch bearing at the strut mount, heat-treated Chromoly High Misalignment Stud at the sway bar connection, and left and right hand threaded rod ends. Replacement rod ends are available directly from SPL Parts. Contact SPL Parts for the correct replacement. Part number: SPL FE F8X.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

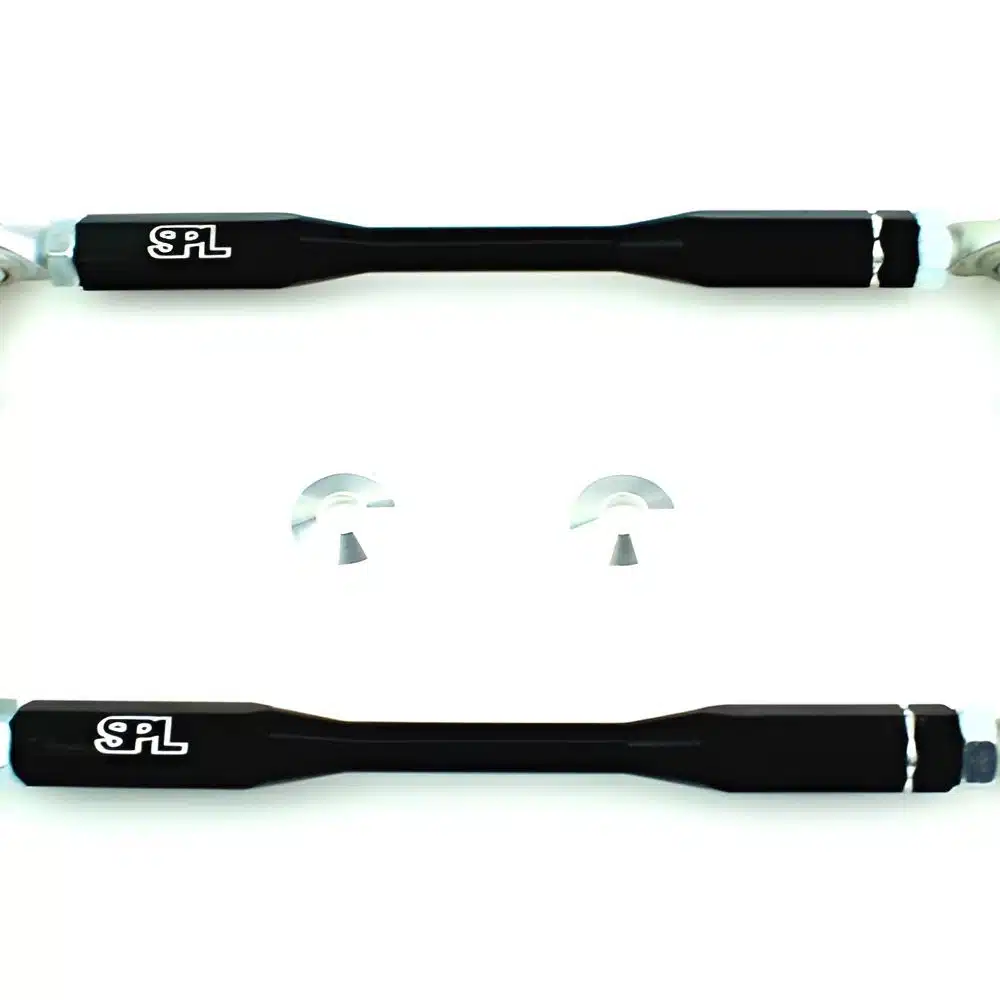

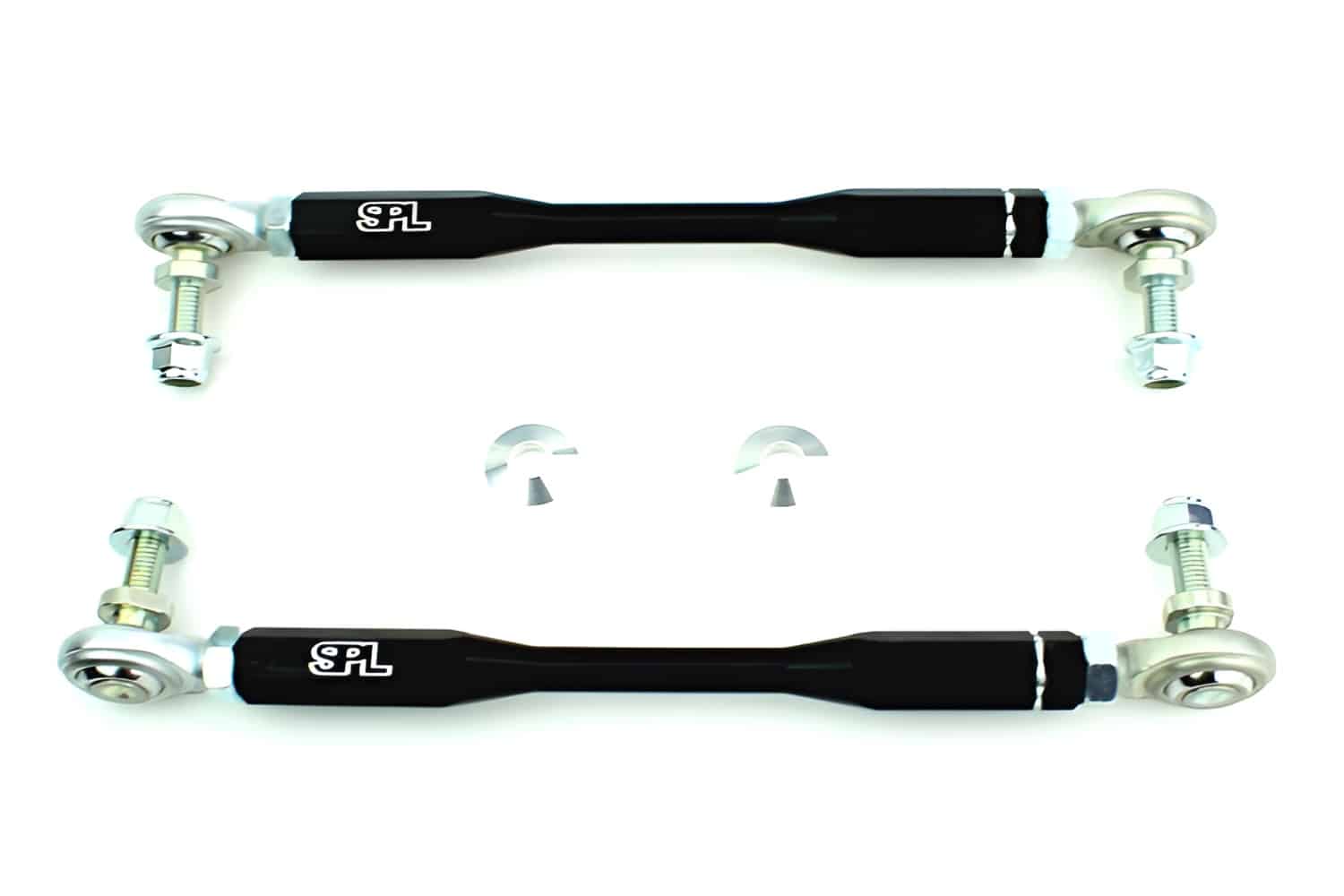

SPL Parts Adjustable Front Sway Bar Endlinks for F8x / G8x BMW M2 / M3 / M4

Corner-balancing an M2, M3, or M4 without adjustable endlinks is a compromise before the car even rolls off the setup pad. The factory endlinks are fixed length and rubber-bushed; two design attributes that create problems as soon as the car is set up for performance driving. Fixed length means any change in ride height or corner weight introduces preload into the front sway bar, giving the bar a resting load that shifts the car’s roll balance without the driver asking for it. Rubber bushings mean part of the sway bar’s lateral force is absorbed at the endlink rather than transmitted to the chassis; blunting the effect of whatever bar is installed. The SPL Parts FE F8X removes both limitations from the front suspension equation. Teflon-lined FK 1/2-inch bearings at the strut mount provide the highest load capacity available for this application and transmit sway bar force directly without rubber deflection. Heat-treated Chromoly High Misalignment Studs at the bar connection provide 65 degrees of articulation, the functional range needed when using an aftermarket sway bar across its full range of adjustment holes; standard studs bind at non-factory angles, reducing the bar’s effectiveness and accelerating stud wear. The 65-degree studs prevent both at any position.

Features

Teflon-lined FK 1/2-inch bearings at the strut mount; highest load capacity available for this application; eliminates rubber deflection under sway bar load
Heat-treated Chromoly High Misalignment Studs at the sway bar connection; 65° articulation prevents binding at any adjustment hole position on any aftermarket sway bar
Black anodized 6061-T6 aluminum turnbuckle with left and right hand threaded rod ends; each side independently adjustable for precise zero-preload setup
Required before meaningful corner balancing; eliminates bar preload that makes suspension tuning inaccurate
OEM shock mount length range: 11.4 to 12.9 inches; measure before ordering with aftermarket coilovers installed
Installation instructions provided by SPL Parts
Suitable for street and race applications
Made in the USA

Specifications

Body Material: 6061-T6 black anodized aluminum turnbuckle
Heim Joint: 1/2″ Teflon-lined FK USA spherical bearings
Studs: Heat-treated chromoly, 65° high misalignment
Adjustment: Length adjustable for preload elimination
Origin: Made in the USA

Applications

BMW M2: F87, G87 | 2016-2021
BMW M3: F80, G80, G81, G81 | 2014-2018
BMW M4: F82, F83, G82, G83 | 2014-2020

Complete the Kit

Adjustable Rear Sway Bar Endlinks for F8X / G8X BMW M2 / M3 / M4
Adjustable Bumpsteer Tie Rod Ends for G8X BMW M2 / M3 / M4

Notes

Installation Instructions
SPL components are made-to-order in the USA; build time will be confirmed at the time of order
Replacement rod ends are available, please contact us for purchase
If aftermarket shocks are installed please contact us with your measurements prior to purchase

Frequently Asked Questions

Why are adjustable endlinks considered required equipment for corner-balancing an F8X or G8X M car? Corner-balancing adjusts the corner weights of the car by changing ride height at each corner independently. Every time ride height changes, the distance between the strut mount and the sway bar changes too. Fixed-length endlinks cannot account for those changes, so they introduce preload into the sway bar; a constant twisting load that exists even when the car is at rest. That preload shifts the car’s roll resistance asymmetrically, making the suspension tuning numbers on the setup pad inaccurate. Adjustable endlinks allow the length on each side to be set precisely to zero preload after every ride height change, so the sway bar only does work when the car rolls; not when it’s sitting still.
What is the OEM length range of the SPL FE F8X, and how does it compare to other BMW-specific SPL endlink kits? The FE F8X covers 11.4 to 12.9 inches for the F8X and G8X M chassis. For reference, the FE E9X covers 10.4 to 11.9 inches for the E8X/E9X non-M, the FE F3X covers 11.4 to 12.9 inches for the F2X and F3X, and the FE E9M covers 12.9 to 14.4 inches for the E8X M, E9X M, G2X, G42, and G8X. Note that the FE F8X and FE F3X share the same length range; the two kits are not interchangeable because the sway bar connection geometry differs between platforms.
Do MCS or other aftermarket coilovers on the F8X or G8X require a different endlink length? Yes, in many cases. MCS and other premium coilover manufacturers frequently move the upper strut mount position from the factory location to optimize damper geometry. This changes the strut-to-sway-bar distance and can place the required endlink length outside the 11.4 to 12.9 inch range. Professional builders who set up these cars for track use confirm this is a common issue. Measure the distance between the sway bar and the strut mount before ordering if coilovers are installed; if the measurement falls outside the range, contact us with the required length before placing the order.
Does the SPL FE F8X fit both the F8X and the newer G8X generation? Yes. A single part number, SPL FE F8X, covers both the F8X generation (2014-2021 M2, M3, M4) and the G8X generation (2021+ M2, M3, M4). The front strut and sway bar geometry is compatible across both generations within the same length range.
What is included, and can replacement rod ends be ordered separately? Each pair includes the left and right adjustable front sway bar endlinks, each consisting of the black anodized 6061-T6 aluminum turnbuckle, Teflon-lined FK 1/2-inch bearing at the strut mount, heat-treated Chromoly High Misalignment Stud at the sway bar connection, and left and right hand threaded rod ends. Replacement rod ends are available directly from SPL Parts. Contact SPL Parts for the correct replacement. Part number: SPL FE F8X.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
