Why does the rear sway bar on an E9X or E8X need upgraded endlinks?

The factory rear endlinks use rubber bushings that deflect under lateral load. That deflection absorbs a portion of the sway bar's force before it reaches the chassis, which means the bar is not delivering its full rated stiffness to the suspension. On a car with an aftermarket rear sway bar, this gap between expected and delivered stiffness is especially apparent. The SPL RE E9X uses FK spherical bearings that transmit force directly without deflection, allowing the full stiffness of the rear bar to reach the suspension as designed.

Does the SPL RE E9X cover both M and non-M E9X and E8X models?

Yes. Unlike the front endlinks for these platforms, which require separate M and non-M versions due to different front strut geometries, the rear endlink geometry is consistent across all E9X and E8X variants. One part number covers all models; 128i, 135i, 328i, 335i, 335d, M3, and every variant in between.

How does adjustable length help when corner-balancing a rear sway bar setup?

Corner-balancing adjusts the corner weights of the car by changing ride height at each corner independently. If the resulting rear ride heights differ between left and right by even a small amount, fixed-length rear endlinks introduce preload into the sway bar; a baseline twist that changes how the bar responds to roll. Setting each endlink independently to the exact length that produces zero preload on both sides removes that variable, giving the setup a neutral starting point that makes the rest of the corner balance work accurate and repeatable.

Do these endlinks work with any aftermarket rear sway bar adjustment position?

Yes. The 65-degree articulation range of the Chromoly High Misalignment Studs accommodates every adjustment hole position on any aftermarket rear sway bar for the E9X and E8X. Standard ball studs with limited articulation bind at non-factory angles and restrict the bar's movement; the SPL studs articulate freely at every position without restriction.

Are replacement rod ends available separately?

Yes. SPL Parts offers replacement rod ends for the RE E9X. Contact SPL Parts directly through their website for the correct replacement part for your specific endlink.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

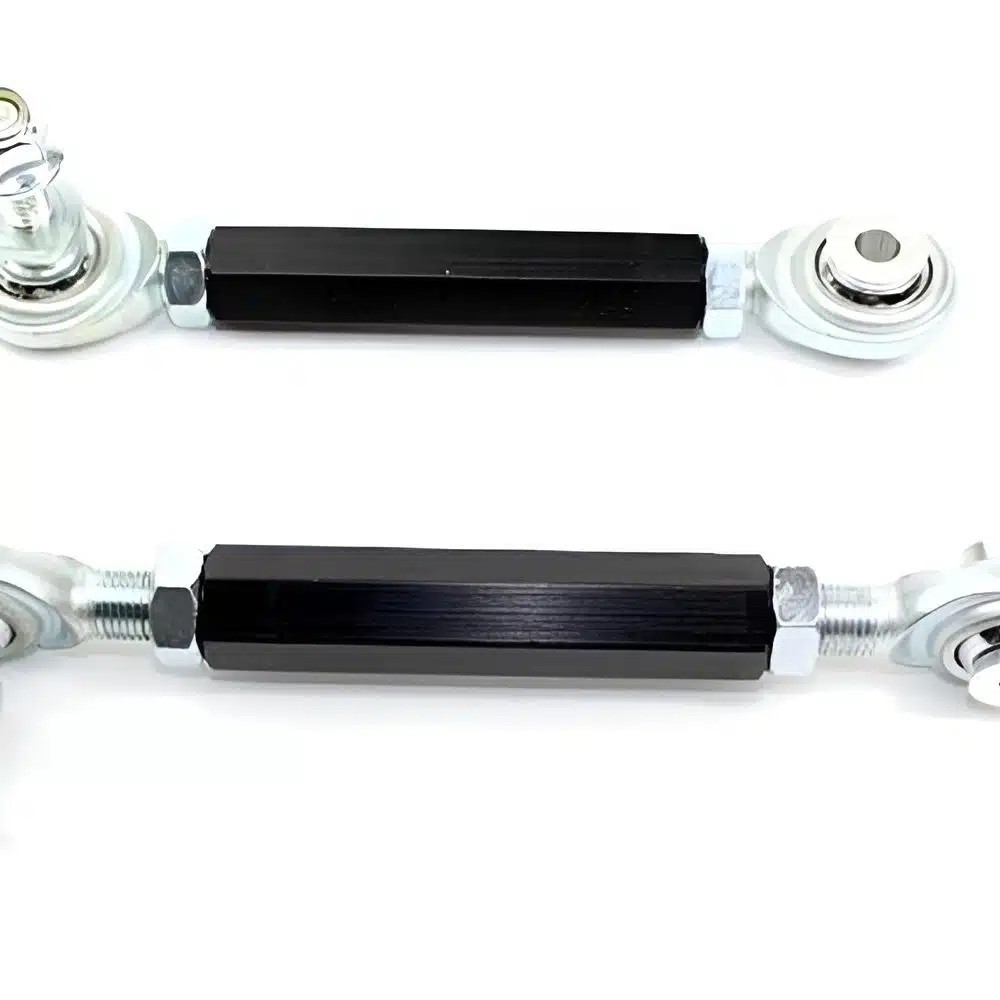

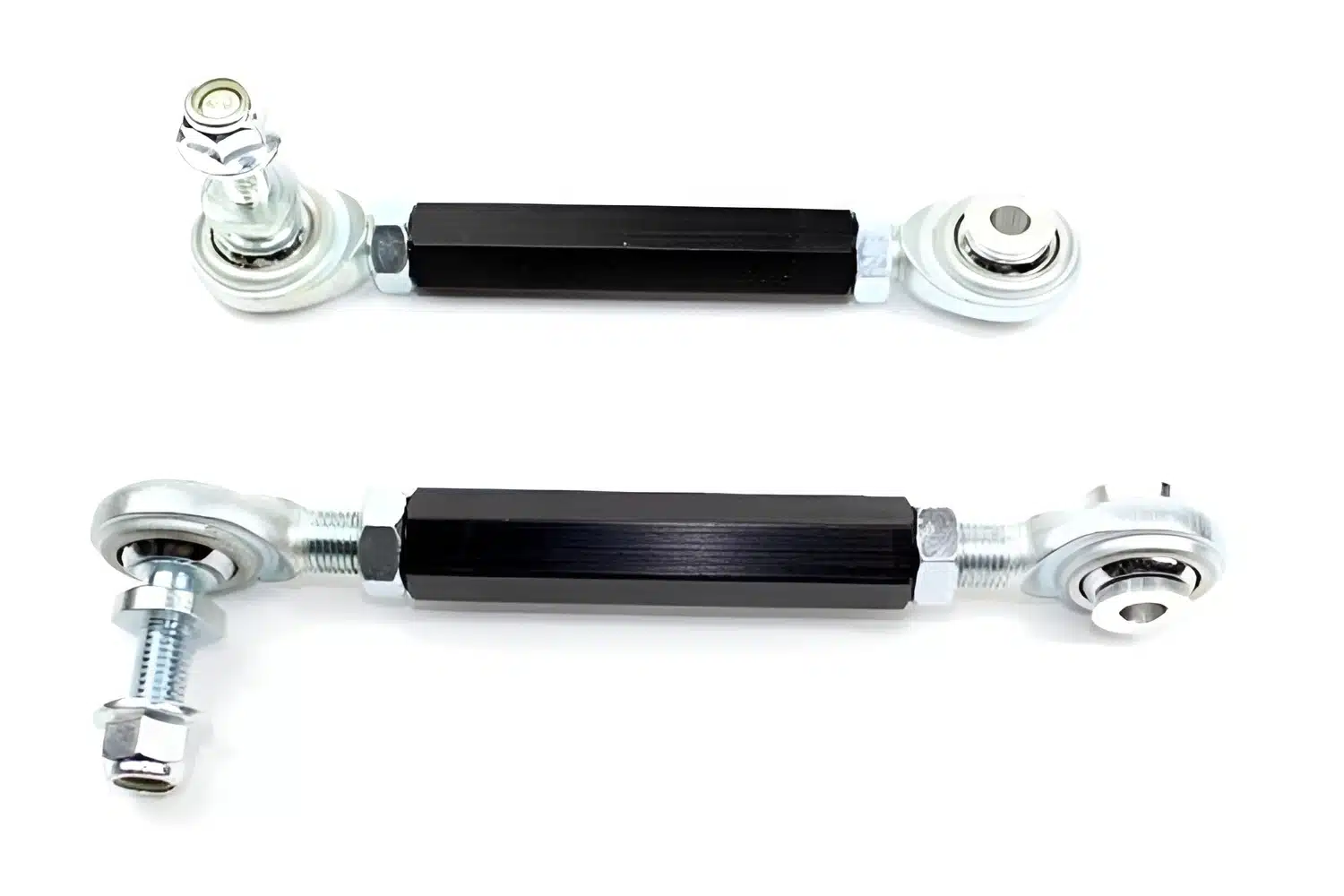

SPL Parts Adjustable Rear Sway Bar Endlinks for E8x / E9x BMW 1 Series / 3 Series

The SPL Parts RE E9X corrects that at both the sway bar connection and the shock mount. Teflon-lined FK 1/2-inch bearings at the shock end deliver the highest load capacity available for this application; no compression, no deflection, direct force transfer. Heat-treated Chromoly High Misalignment Studs at the sway bar connection provide 65 degrees of articulation, covering the full range of positions across any aftermarket rear sway bar’s adjustment holes without binding. Where standard studs seize up at non-factory hole positions and restrict bar movement, the Chromoly studs articulate freely at every angle and let the bar do exactly what it was built to do. Length adjustment on each side is independent, handled through the black anodized 6061-T6 aluminum turnbuckle with left and right hand threaded rod ends. That independence matters for any car that has been corner-weighted; a rear sway bar with side-to-side preload from unequal endlink lengths creates a baseline roll stiffness that skews the car’s balance before the driver has even touched the wheel. Setting each side to the exact length that zeroes out preload gives the setup a neutral, accurate starting point that the rest of the corner balance work can actually build on.

Features

Teflon-lined FK 1/2-inch bearings at the shock connection; highest load capacity for this application; eliminates rubber deflection under rear sway bar load for full transfer of bar stiffness to the chassis
Heat-treated Chromoly High Misalignment Studs at the sway bar connection; 65° articulation prevents binding at any adjustment hole position on any aftermarket rear sway bar
Black anodized 6061-T6 aluminum turnbuckle with left and right hand threaded rod ends; each side independently adjustable for precise zero-preload setup
Covers all E9x and E8x M and non-M variants under one part number; no separate M and non-M versions required for the rear
Eliminates rear sway bar preload from ride height variation, spring settling, and corner weight differences; both sides set independently
Suitable for street and race applications
Made in the USA

Specifications

Body Material: 6061-T6 black anodized aluminum turnbuckle
Heim Joint: 1/2″ Teflon-lined FK USA spherical bearings
Studs: Heat-treated chromoly, 65° high misalignment
Adjustment: Length adjustable for preload elimination
Origin: Made in the USA

Applications

BMW 118d: E81, E87 | 2004-2013
BMW 120d: E81, E87 | 2004-2013
BMW 123d: E81, E87 | 2007-2013
BMW 116i: E81, E87 | 2004-2013
BMW 118i: E81, E87 | 2004-2013
BMW 120i: E81, E87 | 2004-2013
BMW 125i: E81, E87 | 2007-2013
BMW 128i: E81, E82 | 2007-2013
BMW 130i: E81, E87 | 2004-2013
BMW 135i: E82, E88 | 2007-2013
BMW 1M Coupé: E82 | 2011-2012
BMW 318d: E90, E91, E92 | 2005-2013
BMW 320d: E90, E91, E92 | 2005-2013
BMW 325d: E90, E91, E92 | 2005-2013
BMW 330d: E90, E91, E92 | 2005-2013
BMW 335d: E90, E91, E92 | 2006-2013
BMW 316i: E90, E91, E92 | 2005-2013
BMW 318i: E90, E91, E92 | 2005-2013
BMW 320i: E90, E91, E92 | 2005-2013
BMW 323i: E90, E91, E92 | 2005-2011
BMW 325i: E90, E91, E92 | 2005-2013
BMW 328i: E90, E91, E92 | 2005-2013
BMW 330i: E90, E91, E92 | 2005-2013
BMW 335i: E90, E91, E92 | 2006-2013
BMW M3: E90, E92, E93 | 2007-2013

Notes

Installation Instructions
Replacement rod ends available please contact us
SPL components are made-to-order in the USA; build time will be confirmed at the time of order

Frequently Asked Questions

Why does the rear sway bar on an E9x or E8x need upgraded endlinks? The factory rear endlinks use rubber bushings that deflect under lateral load. That deflection absorbs a portion of the sway bar’s force before it reaches the chassis, which means the bar is not delivering its full rated stiffness to the suspension. On a car with an aftermarket rear sway bar, this gap between expected and delivered stiffness is especially apparent. The SPL RE E9X uses FK spherical bearings that transmit force directly without deflection, allowing the full stiffness of the rear bar to reach the suspension as designed.
Does the SPL RE E9X cover both M and non-M E9x and E8x models? Yes. Unlike the front endlinks for these platforms, which require separate M and non-M versions due to different front strut geometries, the rear endlink geometry is consistent across all E9x and E8x variants. One part number covers all models; 128i, 135i, 328i, 335i, 335d, M3, and every variant in between.
How does adjustable length help when corner-balancing a rear sway bar setup? Corner-balancing adjusts the corner weights of the car by changing ride height at each corner independently. If the resulting rear ride heights differ between left and right by even a small amount, fixed-length rear endlinks introduce preload into the sway bar; a baseline twist that changes how the bar responds to roll. Setting each endlink independently to the exact length that produces zero preload on both sides removes that variable, giving the setup a neutral starting point that makes the rest of the corner balance work accurate and repeatable.
Do these endlinks work with any aftermarket rear sway bar adjustment position? Yes. The 65-degree articulation range of the Chromoly High Misalignment Studs accommodates every adjustment hole position on any aftermarket rear sway bar for the E9x and E8x. Standard ball studs with limited articulation bind at non-factory angles and restrict the bar’s movement; the SPL studs articulate freely at every position without restriction.
Are replacement rod ends available separately? Yes. SPL Parts offers replacement rod ends for the RE E9X.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
