What is the difference between the SPL FE E9X and the SPL FE E9M, and which one do I need?

The FE E9X is for non-M E8X and E9X models; the 128i, 135i, 328i, 335i, and 335d. The FE E9M is for M chassis E8X and E9X models; the 1M, M3, and M3 GTS; as well as the newer G2X, G42, and G8X platforms. The two kits cover different length ranges because the M chassis has a different front strut geometry than the non-M. The FE E9X covers 10.4 to 11.9 inches; the FE E9M covers 12.9 to 14.4 inches. Ordering the wrong version for your chassis will result in an endlink that is the wrong length for your car.

How does the OEM length range of the FE E9X compare to the other BMW-specific SPL front endlink kits?

The SPL lineup covers four distinct BMW platform length ranges. The FE E46 covers 9.9 to 11.4 inches for the E46 and E85/E86 Z4. The FE E9X covers 10.4 to 11.9 inches for E8X and E9X non-M models. The FE F3X covers 11.4 to 12.9 inches for F2X and F3X models. The FE E9M covers 12.9 to 14.4 inches for E8X M, E9X M, G2X, G42, and G8X platforms. Each range reflects the different strut-to-sway-bar distance on each chassis; ordering the platform-correct part is essential.

Why does a non-M E9X need adjustable endlinks when running an aftermarket sway bar?

Two reasons. First, aftermarket sway bars have multiple adjustment holes that move the connection angle relative to factory geometry. Standard endlinks with limited articulation bind at non-factory positions, which restricts the bar's movement and accelerates wear on the stud joint. The 65-degree Chromoly studs prevent that at any hole position. Second, any change in ride height or corner balance introduces preload into a fixed-length endlink, which makes roll behavior asymmetric and inconsistent. Adjustable length zeroes out that preload independently on each side.

What if my coilovers place the sway bar-to-strut distance outside the 10.4 to 11.9 inch range?

Contact us before ordering with your measurement. If the distance does not fall within the OEM range, a custom-length endlink is needed. SPL Parts can help identify the correct part once the required length is known. Do not order the FE E9X without first confirming the measurement falls within range if coilovers are installed.

What is included, and can replacement parts be ordered separately?

Each pair includes left and right adjustable front sway bar endlinks with Teflon-lined FK 1/2-inch bearings, 65-degree Chromoly misalignment studs, and 6061-T6 aluminum turnbuckles with left and right hand threaded rod ends. If a rod end wears out, replacements are available directly from SPL Parts. Installation instructions are provided via Dropbox. Part number: SPL FE E9X.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

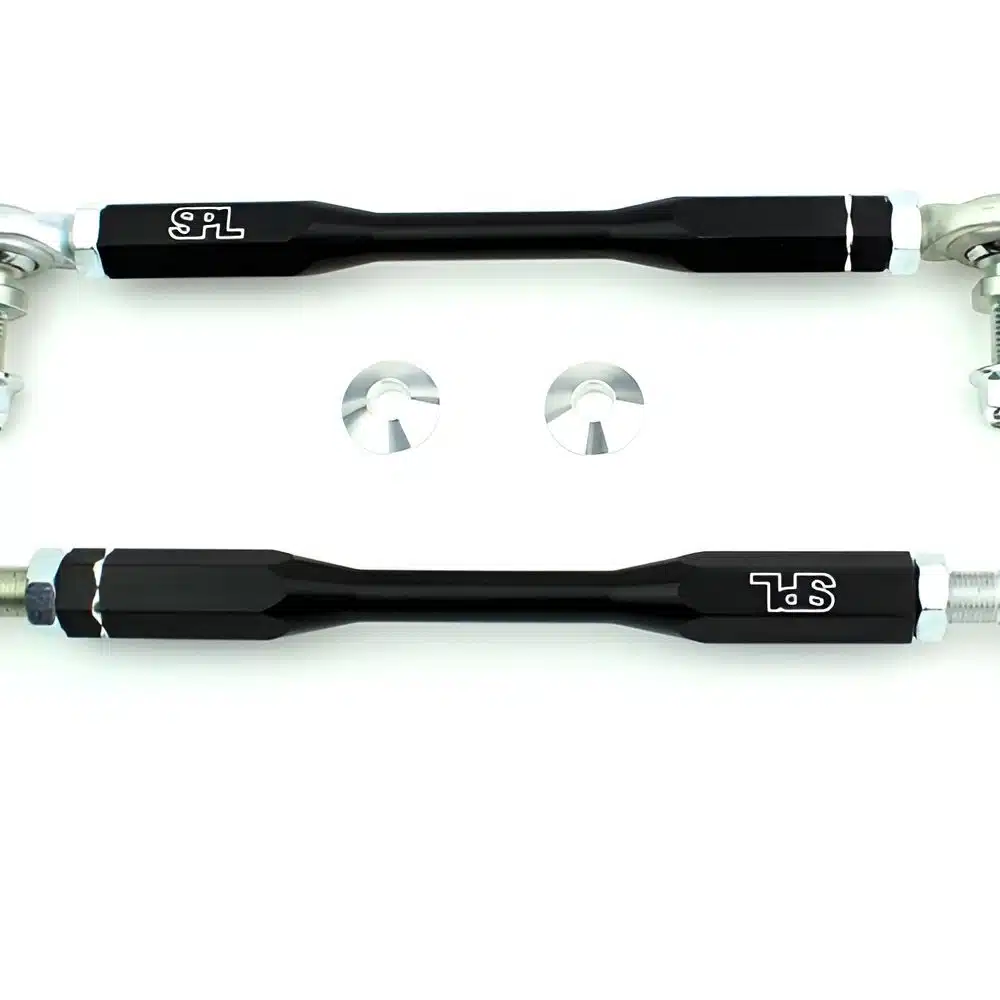

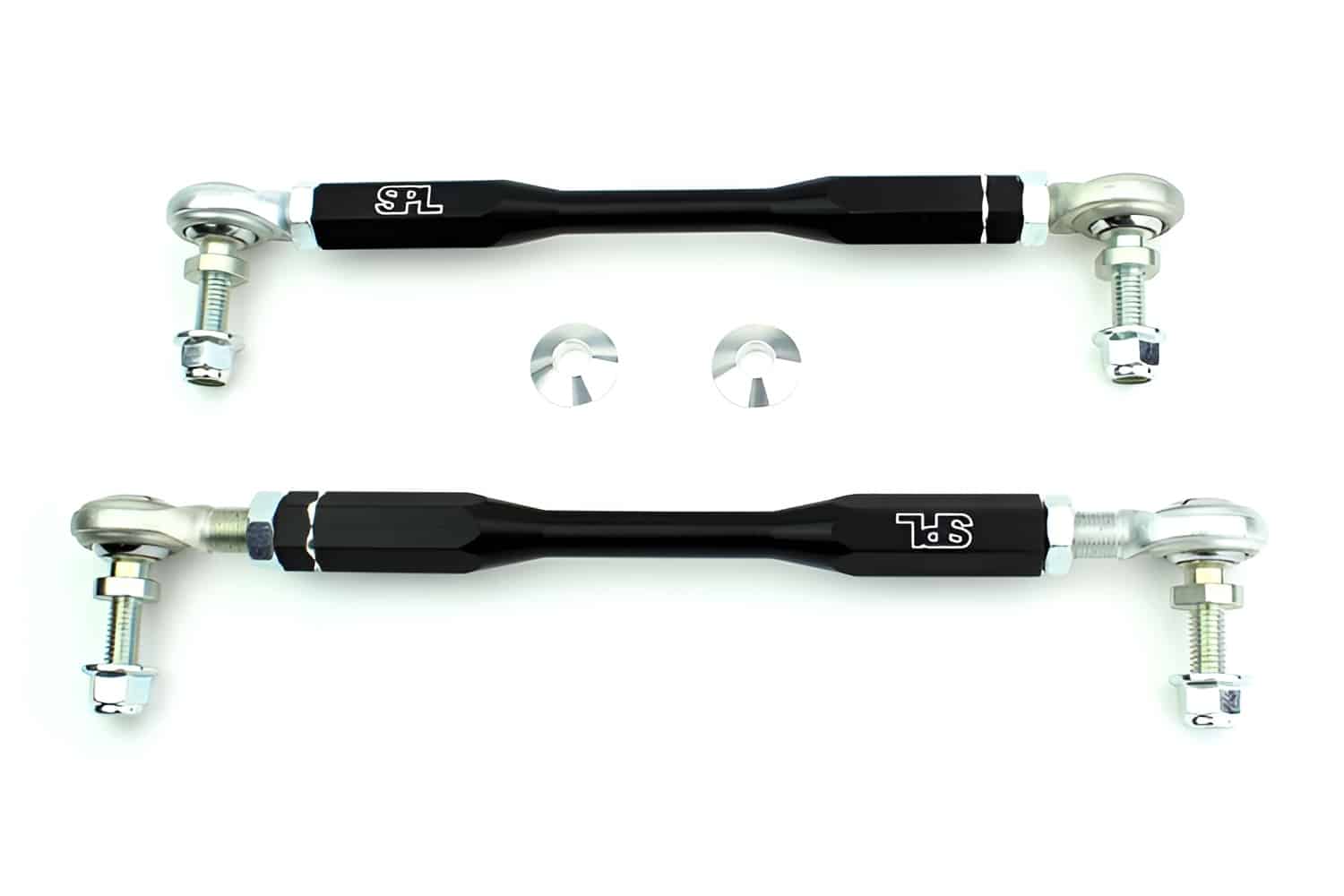

SPL Parts Adjustable Front Sway Bar Endlinks for E8x / E9x BMW 1 Series / 3 Series (Non-M)

The non-M E8x and E9x BMWs sit on a front suspension architecture that responds well to stiffer aftermarket sway bars. The handling payoff is immediate on a well-set-up non-M platform. The limitation is the factory endlinks, which use rubber bushings that deflect under lateral load and absorb the stiffness the upgraded bar was supposed to deliver. The roll response the sway bar was rated for at the bench never fully reaches the chassis because the rubber gives before the bar does. The SPL Parts FE E9X removes that compliance from the connection. Teflon-lined FK 1/2-inch bearings replace the rubber at the strut mount, providing the highest load capacity available for this application and transferring sway bar force directly without deflection. Heat-treated Chromoly High Misalignment Studs at the sway bar end provide 65 degrees of articulation; the range needed to run an aftermarket sway bar across multiple adjustment hole positions without binding. Standard studs with limited articulation restrict movement at non-factory angles and wear prematurely; the 65-degree Chromoly studs prevent both at any hole position.

Features

Non-M specific fitment; different strut-to-sway-bar geometry from the M chassis requires the correct part; do not substitute with the SPL FE E9M
Teflon-lined FK 1/2-inch bearings at the strut mount; highest load capacity for this application; eliminates rubber deflection under sway bar load
Heat-treated Chromoly High Misalignment Studs at the sway bar connection; 65° articulation prevents binding at any adjustment hole position on any aftermarket sway bar
Black anodized 6061-T6 aluminum turnbuckle body with left and right hand threaded rod ends; each side independently adjustable for precise zero-preload setup
Suitable for street and race applications
Made in the USA

Specifications

Body Material: 6061-T6 black anodized aluminum turnbuckle
Heim Joint: 1/2″ Teflon-lined FK USA spherical bearings
Studs: Heat-treated chromoly, 65° high misalignment
Adjustment: Length adjustable for preload elimination
Origin: Made in the USA

Applications

BMW 128i: E81, E82 | 2007-2013
BMW 135i: E81, E82 | 2007-2013
BMW 335d: E90, E91, E92 | 2007-2013
BMW 328i: E90, E91, E92 | 2006-2013
BMW 335i: E90, E91, E92 | 2006-2013

Notes

For 1M and M3 (E9x), use SPL FE E9M
Replacement rod ends are available, please contact us for purchase
If aftermarket shocks are installed please contact us with your measurements prior to purchase
SPL components are made-to-order in the USA; build time will be confirmed at the time of order.

Frequently Asked Questions

What is the difference between the SPL FE E9X and the SPL FE E9M, and which one do I need? The FE E9X is for non-M E8x and E9x models; the 128i, 135i, 328i, 335i, and 335d. The FE E9M is for M chassis E8x and E9x models; the 1M, M3, and M3 GTS; as well as the newer G2x, G42, and G8x platforms. The two kits cover different length ranges because the M chassis has a different front strut geometry than the non-M. The FE E9X covers 10.4 to 11.9 inches; the FE E9M covers 12.9 to 14.4 inches. Ordering the wrong version for your chassis will result in an endlink that is the wrong length for your car.
How does the OEM length range of the FE E9X compare to the other BMW-specific SPL front endlink kits? The SPL lineup covers four distinct BMW platform length ranges. The FE E46 covers 9.9 to 11.4 inches for the E46 and E85 / E86 Z4. The FE E9X covers 10.4 to 11.9 inches for E8x and E9x non-M models. The FE F3X covers 11.4 to 12.9 inches for F2x and F3x models. The FE E9M covers 12.9 to 14.4 inches for E8x M, E9x M, G2x, G42, and G8x platforms. Each range reflects the different strut-to-sway-bar distance on each chassis; ordering the platform-correct part is essential/
Why does a non-M E9X need adjustable endlinks when running an aftermarket sway bar? Two reasons. First, aftermarket sway bars have multiple adjustment holes that move the connection angle relative to factory geometry. Standard endlinks with limited articulation bind at non-factory positions, which restricts the bar’s movement and accelerates wear on the stud joint. The 65-degree Chromoly studs prevent that at any hole position. Second, any change in ride height or corner balance introduces preload into a fixed-length endlink, which makes roll behavior asymmetric and inconsistent. Adjustable length zeroes out that preload independently on each side.
What if my coilovers place the sway bar-to-strut distance outside the 10.4 to 11.9 inch range? Contact us before ordering with your measurement. If the distance does not fall within the OEM range, a custom-length endlink is needed. SPL Parts can help identify the correct part once the required length is known. Do not order the FE E9X without first confirming the measurement falls within range if coilovers are installed.
What is included, and can replacement parts be ordered separately? Each pair includes left and right adjustable front sway bar endlinks with Teflon-lined FK 1/2-inch bearings, 65-degree Chromoly misalignment studs, and 6061-T6 aluminum turnbuckles with left and right hand threaded rod ends. If a rod end wears out, replacements are available directly from SPL Parts. Installation instructions are provided via Dropbox. Part number: SPL FE E9X.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
